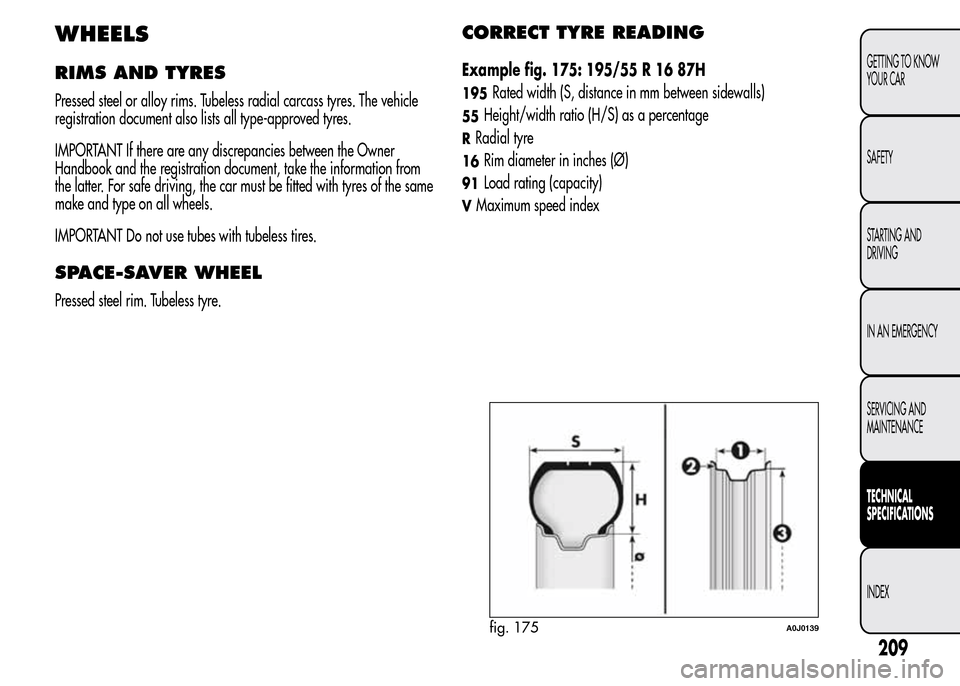

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass tyres. The vehicle
registration document also lists all type-approved tyres.
IMPORTANT If there are any discrepancies between the Owner
Handbook and the registration document, take the information from
the latter. For safe driving, the car must be fitted with tyres of the same
make and type on all wheels.
IMPORTANT Do not use tubes with tubeless tires.
SPACE-SAVER WHEEL
Pressed steel rim. Tubeless tyre.
CORRECT TYRE READING
Example fig. 175: 195/55 R 16 87H
195Rated width (S, distance in mm between sidewalls)
55Height/width ratio (H/S) as a percentage
RRadial tyre
16Rim diameter in inches (Ø)
91Load rating (capacity)
VMaximum speed index
fig. 175A0J0139
