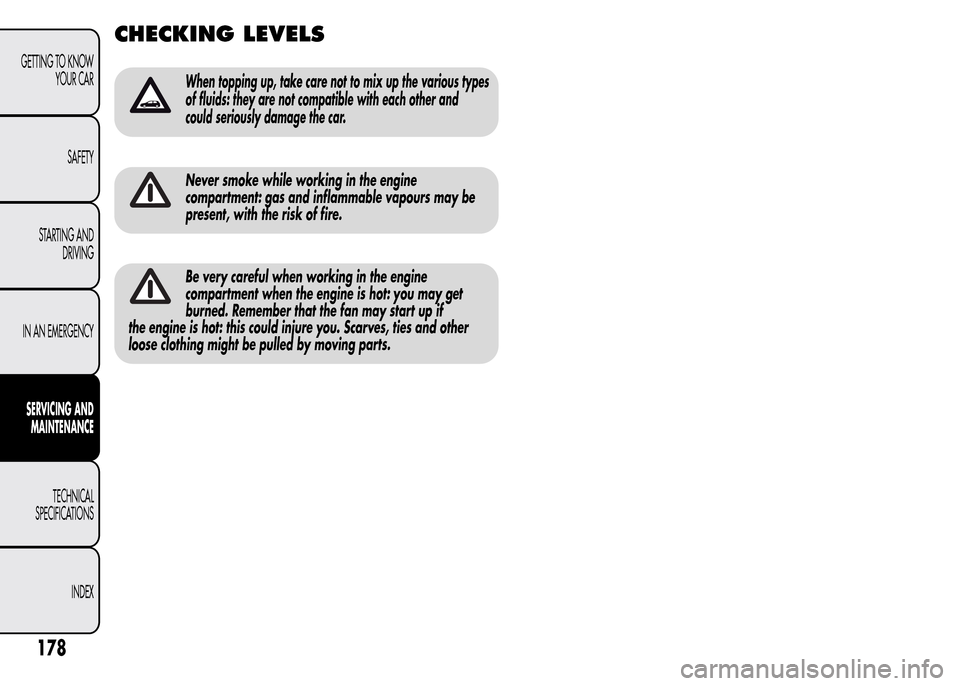

CHECKING LEVELS
When topping up, take care not to mix up the various types
of fluids: they are not compatible with each other and
could seriously damage the car.
Never smoke while working in the engine
compartment: gas and inflammable vapours may be
present, with the risk of fire.
Be very careful when working in the engine
compartment when the engine is hot: you may get
burned. Remember that the fan may start up if
the engine is hot: this could injure you. Scarves, ties and other
loose clothing might be pulled by moving parts.
178
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

F
E
CD
B
A
fig. 161 - Turbo TwinAir versionsA0J0380179
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

fig. 162 - 1.4 Petrol versionsA0J0300
180
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

fig. 163 - 1.4 Turbo MultiAir versionsA0J0283
181
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

fig. 164 - 1.3 JTDM-2versionsA0J0411
182
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

fig. 165 - 1.6 JTDMversionsA0J0200183
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ENGINE OIL
Check that the oil level is between the MIN and MAX references on the
dipstick A.
If the oil level is near or under the MIN reference, add oil through the
filler B until it reaches the MAX reference.
The oil level must never exceed the MAX reference.
1.4 Petrol, 1.4 Turbo MultiAir, 1.3 JTDM-2, 1.6 JTDMversions
Take out the engine oil dipstick A, clean it with a lint-free cloth and
reinsert it. Extract it again and check that the level is between the MIN
and MAX marks on the dipstick.
Turbo TwinAir versions
The engine oil dipstick A is integral with plug B. Undo the plug, clean
the dipstick with a cloth that does not leave traces, reinsert the dipstick
and re-tighten the plug.
Unscrew the plug again and check that the engine oil level is between
the MIN and MAX marks on the dipstick.
Engine oil consumption
The maximum engine oil consumption is usually 400 grams every
1,000 km. When the car is new, the engine needs to be run in;
therefore the engine oil consumption can only be considered stabilised
after the first 5,000 - 6,000 km.
Do not add oil with specifications other than those of the oil
already in the engine.
Used engine oil and oil filters contain substances which are
harmful to the environment. We recommend having the
oil and filters replaced by Alfa Romeo Authorised Services.
ENGINE COOLANT
If the level is too low, unscrew reservoir cap C and add the fluid
described in the "Technical Specifications" section.
PARAFLUUPanti-freeze is used in the engine cooling
system. Use the same fluid as in the cooling system when
topping up. PARAFLU
UPcannot be mixed with any other
type of fluid. If this accidentally occurs, do not start the engine under
any circumstances. Contact Alfa Romeo Authorised Services.
The cooling system is pressurised. If necessary, only
replace the cap with another genuine one or the
operation of the system may be adversely affected. Do
not remove the reservoir cap when the engine is hot: you risk
scalding yourself.
184
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WINDSCREEN/REAR WINDOW
WASHER FLUID
If the level is too low, lift reservoir cap D and add the fluid described in
the chapter "Technical Specifications".
Do not travel if the windscreen washer reservoir is
empty: using the windscreen washer is essential for
improving visibility. Some commercial windscreen
washer additives are flammable. The engine compartment
contains hot components which may set it on fire.
BRAKE FLUID
Check that the fluid is at the max. level.
If the fluid level in the reservoir is too low, undo reservoir cap E and
add the fluid described in the chapter "Technical Specifications".
Prevent brake fluid, which is highly corrosive, from coming
into contact with painted parts. Should it happen, wash
immediately with water.
Brake fluid is poisonous and highly corrosive. In the
event of accidental contact, immediately wash the
affected parts with water and mild soap. Then rinse
thoroughly. Call a doctor immediately if swallowed.
Symbolon the container identifies synthetic brake
fluids, distinguishing them from the mineral type.
Using a mineral-type fluid will damage the special
rubber seals of the braking system beyond repair.
