2016 Alfa Romeo Giulia steering wheel

This chapter describes the main functions of the Connect 6.5” /
Connect NAV 6.5” / Connect 3D NAV 8.8” system that can be fitted
on the vehicle.
MULTIMEDIA
ROAD SAFETY...............................174
RECEPTION CONDITIONS........................174
CARE AND MAINTENANCE.......................174
ANTITHEFT PROTECTION........................175
IMPORTANT NOTES............................175
CONTROLS.................................177
CONTROLS ON STEERING WHEEL...................180
INTRODUCTION..............................182
RADIO MODE................................182
MEDIA MODE................................183
Bluetooth® SOURCE ............................183
USB/iPod/AUX SUPPORT........................183
PHONE MODE...............................184
NAVIGATION MODE ............................185
SETTINGS..................................185
APPLICATIONS...............................188
VOICE COMMANDS . . ..........................188

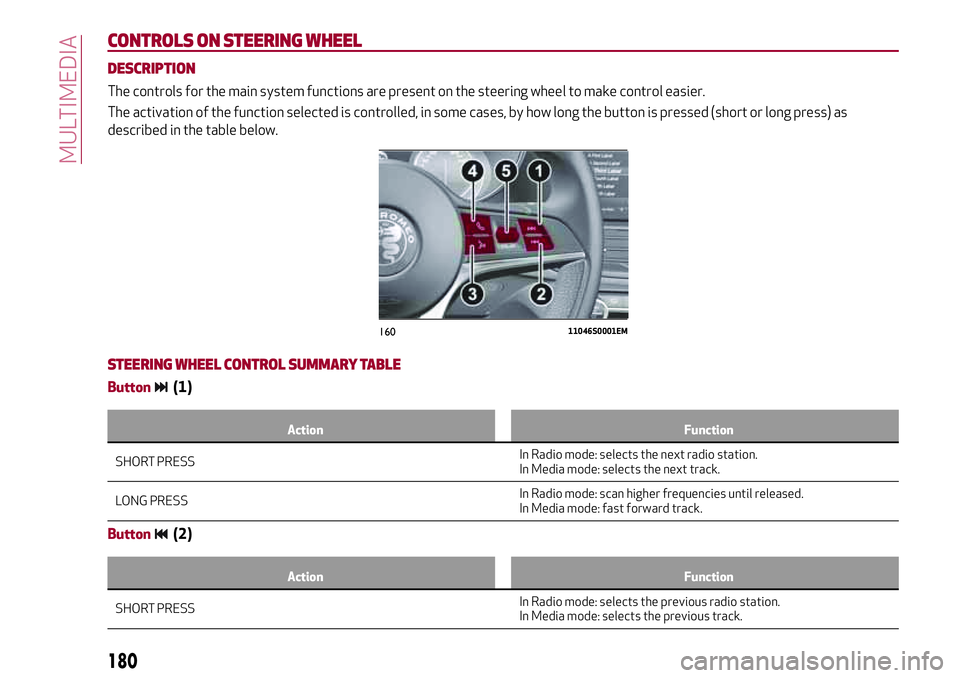

CONTROLS ON STEERING WHEEL
DESCRIPTION
The controls for the main system functions are present on the steering wheel to make control easier.
The activation of the function selected is controlled, in some cases, by how long the button is pressed (short or long press) as
described in the table below.
STEERING WHEEL CONTROL SUMMARY TABLE
Button(1)
Action Function
SHORT PRESSIn Radio mode:selects the next radio station.
In Media mode: selects the next track.
LONG PRESSIn Radio mode: scan higher frequencies until released.
In Media mode: fast forward track.
Button(2)
Action Function
SHORT PRESSIn Radio mode:selects the previous radio station.
In Media mode: selects the previous track.
16011046S0001EM
180
MULTIMEDIA

System
To access the “System” function, select it
by turning the Rotary Pad and press the
Rotary Pad to activate. The following
settings can be modified when this mode
is selected:
Automatic ignition;
Delay shutting off;
Software update;
Map update;
Clear personal data;
Restore settings.
APPLICATIONS
APPLICATIONS mode can be activated
from the main menu (MENU button) by
turning and pressing the Rotary Pad.
The display will show the following
information:
"My car": lets you see a series of
information linked to the car status;
"Efficient drive": this lets you see some
driving style parameters;
"Use and service": lets you consult the
car's user manual.
VOICE COMMANDS
IMPORTANT For languages not
supported by the system, voice
commands are not available.
To use the voice commands, press the
button on the steering wheel controls
and say the function you want to activate
aloud.
The following lists give the main word for
each command.
Radio functions
The
button activates the following
functions:
Tune to Station
Tune by Frequency
Add to favourites
Show Available Stations
Show Favourite Stations
FM
AM
DAB
SiriusXM
Media Functions
The
button activates the following
functions:
Display Album
Play Album
Display Artist
Play Artist
Display Composer
Play Composer
16611126S0004EM
188
MULTIMEDIA

INDEX
“Alfa DNA” system............109
ABS (system)................66
Active safety systems...........66
AFS function................26
Airbag
Front airbags..............95
Side airbags...............99
Airbag (SRS supplementary
restraint system)............95
Alarm system................14
ATV (Alfa™ Active Torque
Vectoring) system...........68
Automatic dual-zone climate
control system.............30
Automatic transmission.........106
Battery..................148
Battery recharging............149
Bodywork (cleaning and
maintenance).............154
Bonnet . ...................34
Brakes
brake fluid level............147
Broken-down vehicle towing......138
BSM (Blind Spot Monitoring).......69
Carrying children safely.........83
Checking levels..............146
Child protection systems.........83
Child safety device.............16
Climate control system..........30CO2 emissions..............171
Control panel and on-board
instruments...............38
CONTROLS................177
Controls on tunnel..........177
Steering wheel control summary
table..................180
Tunnel control summary table . . .177
CONTROLS ON STEERING
WHEEL.................180
Cruise Control...............112
Daytime running lights (DRL)......25
Dimensions................163
Dipped headlights.............25
Dipped headlights
(changing a bulb)...........125
Direction indicators (changing a
bulb)...................126
Display....................40
Doors.....................14
Driving assistance systems.......69
Driving modes...............109
DTC (system)................66
Dusk sensor.................25
Electric parking brake..........103
Electric steering wheel heating.....22
Electric sunroof..............33
Electric windows..............32
Emergency starting...........134
Engine...................159engine coolant level .........147
Engine compartment..........146
Engine Immobilizer (system).......13
Engine oil
consumption . .............147
level check...............147
ESC (Electronic Stability Control)
system..................66
External lights...............24
Fluids and lubricants..........166
Fog lights (bulb replacement).....126
Forward Collision
Warning (system) . . ..........71
Front ceiling light..............28
Front fog lights . . .............25
Front light cluster with main
beam/dipped beam halogen
headlights (bulb replacement) . . .125
Front light cluster with main
beam/dipped beam Xenon gas
discharge headlights (bulb
replacement). .............127
Front seat electric heating........19
Front seats (electric adjustment)....18
Front seats (manual adjustments)....18
Fuel consumption............170
Fuel cut-off system...........137
Fuse boxes................128
Fuses (replacement)...........127
Hazard warning lights..........122

Emergency braking..........122
Headlight alignment adjustment....27
Headlight alignment corrector......27
Headrests..................21
HSA (Hill Start Assist) system......67
i-Size child restraint systems......89
Identification data............158
Ignition device...............12
Important information and
recommendations..........190
Interior lights................28
ISOFIX child restraint system
(installation)...............87
Jump starting...............135
Keys
electronic key..............11
Lane Change................27
Lane Departure Warning System . . .116
Lifting the vehicle............153
Light bulbs
types of bulbs.............123
Light switch.................24
Luggage compartment..........35
Main beam headlights..........26
Automatic main beam headlights . .26
Main beam headlights (changing a
bulb)...................125
Manual gearbox..............105
Occupant protection systems......78
Paintwork (cleaning and
maintenance).............154
Park Sensors system..........113
Parking lights................26
Passive Entry (system)..........15
PBA (Panic Brake Assist) system....67
Performance (top speed)........169
Power Lock (device)............16
Prescriptions for handling the
vehicle at the end of its life.....172
Pretensioners................81
Load limiters..............82
Rain sensor.................29
RCP system.................70
Rear Back-up Camera / Dynamic
Gridlines................117
Rear seats..................19
Rear view mirrors.............23
Reconfigurable TFT display.......40
Refuelling.................165
Refuelling procedure..........118
Refuelling the vehicle..........118
Replacing a bulb.............122
Replacing an external bulb.......125
Rims and tyres...........153 ,160
Rims and tyres provided........160
SBA (Seat Belt Alert)...........80
SBA (Seat Belt Alert) System......80
SBL function................27Scheduled servicing...........142
Scheduled servicing plan (2.2 JTD
diesel engine versions)........143
Screen wiper/washer...........28
Smart washing function........29
Seat belts..................78
Seats.....................18
Servicing procedures..........151
Side bag . . .................99
Side lights..................25
Snow chains................153
Speed Limiter...............111
Split folding rear seat...........19
SRS (supplementary restraint
system)..................95
Start & Stop Evo.............110
Starting the engine............102
Starting with flat key battery......12
Steering lock . . ..............12
Steering wheel...............22
Symbols....................4
TC (Traction Control) system......67
TFT Display (3.5”) . ............38
TFT Display (7”)...............39
The keys...................11
Tire Repair Kit...............132
Towing the vehicle . ...........138
TPMS (Tyre Pressure Monitoring
System)..................75
