2016 Acura RLX charging

14
Quick Reference Guide
Safety Precautions
Do not touch the High Voltage systemAttempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. If the High Voltage system needs maintenance or repair, it
should be performed at an Acura dealer.
If a crash occurs●Be careful of electric shock hazard.
uIf a severe crash damages your vehi cle’s High Voltage system, there is a possibility of electrical shock
due to exposed High Voltage components or wires. If this happens, do not touch any of the High
Voltage system components or any of its orange wires.
● Avoid contact with High Voltage battery fluid.
uThe High Voltage battery contains a flammable electrolyte that could leak as a result of a severe
crash. Avoid any skin or ey e contact with the electrolyte as it is corrosive. If you accidentally touch it,
flush your eyes or skin with a large quantity of water for at le ast five minutes, and seek medical
attention immediately.
● Use a fire extinguisher for an electrical fire.
uAttempting to extinguish an electrical fire with a small quantity of water, from a garden hose for
instance, can be dangerous.
● Anytime the vehicle is damaged in an accident, have it repaired by an Acura dealer.
Emergency Shutdown System for the High Voltage SystemThe emergency shutdown system may activate when the vehicle is impacted by some
incident such as a crash. When this system activates, the High Voltage system automatically
shuts down, and your vehicle no longer will move under its own power. To return the High
Voltage system back to normal operation, consult an Acura dealer.
Acura collects and recycles High Voltage batteries used in its vehicles – consult an Acura
dealer for more information.
Do not cover the air intake.
If the air intake is obstructed
during vehicle operation, the High
Voltage battery can become too
hot. To protect the battery, the
system may start to limit the
battery’s output and cause the
power system and 12-volt battery
charging system indi cators to come
on.
Air Intake
16 ACURA RLX E-AWD-31TY36200.book 14 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

16
Quick Reference Guide
Instrument Panel (P 73)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA® ) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Low Temperature
Indicator
Low Fuel Indicator
Gauges (P 106)/Multi-Information Display (P 108)
/Head-Up Display (P 123)/System Indicators (P 74)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage
Battery Charge
Level Gauge Security System
Alarm Indicator
Fuel
Gauge
Tachometer
Multi-Information Display
Speedometer
Gear Position
Indicator M (sequential mode)
Indicator/Sequential Mode
Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator Brake System
Indicator (Amber)
SPORT
Mode Indicator
Blind Spot Information
(BSI) Indicator
System Indicators
Collision Mitigation
Brake SystemTM
(CMBSTM) Indicator
High Temperature
Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System ( LKAS) Indicator
Adaptive Cruise Control
(
ACC ) with Low Speed
Follow (LSF) Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
Fog Light Indicator
Head-Up Display
READY Indicator
POWER SYSTEM
Indicator
16 ACURA RLX E-AWD-31TY36200.book 16 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

79
uuIndicators u
Continued
Instrument Panel

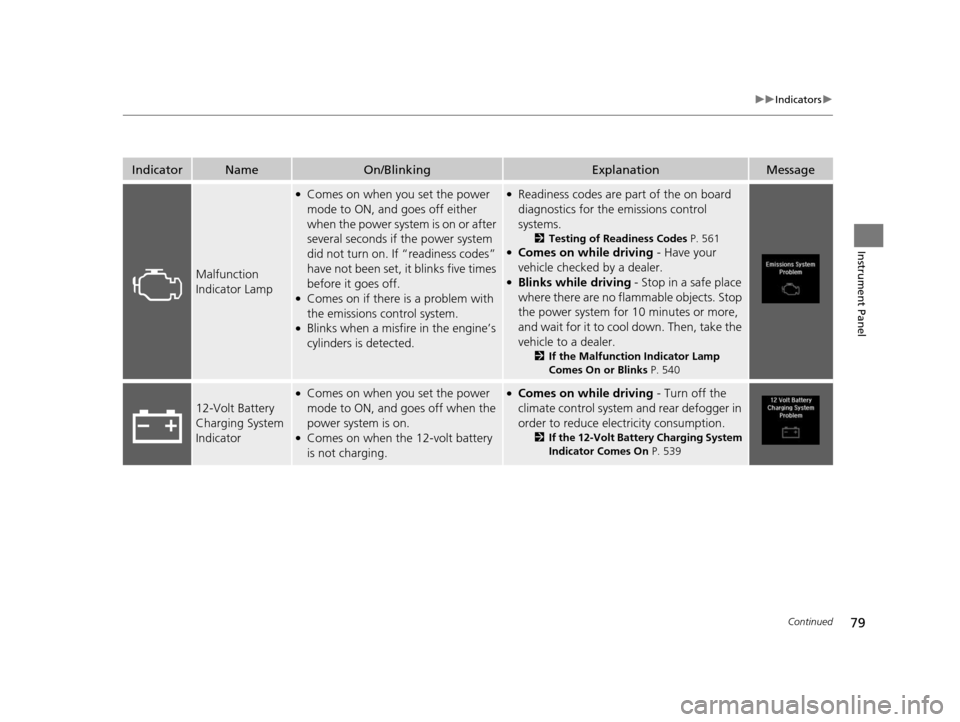

IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
●Comes on when you set the power
mode to ON, and goes off either
when the power system is on or after
several seconds if the power system
did not turn on. If “readiness codes”
have not been set, it blinks five times
before it goes off.
●Comes on if there is a problem with
the emissions control system.
●Blinks when a misfire in the engine’s
cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 561●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the power system for 10 minutes or more,
and wait for it to cool down. Then, take the
vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 540
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system is on.
●Comes on when the 12-volt battery
is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce elec tricity consumption.
2If the 12-Volt Battery Charging System
Indicator Comes On P. 539
16 ACURA RLX E-AWD-31TY36200.book 79 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

99
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel

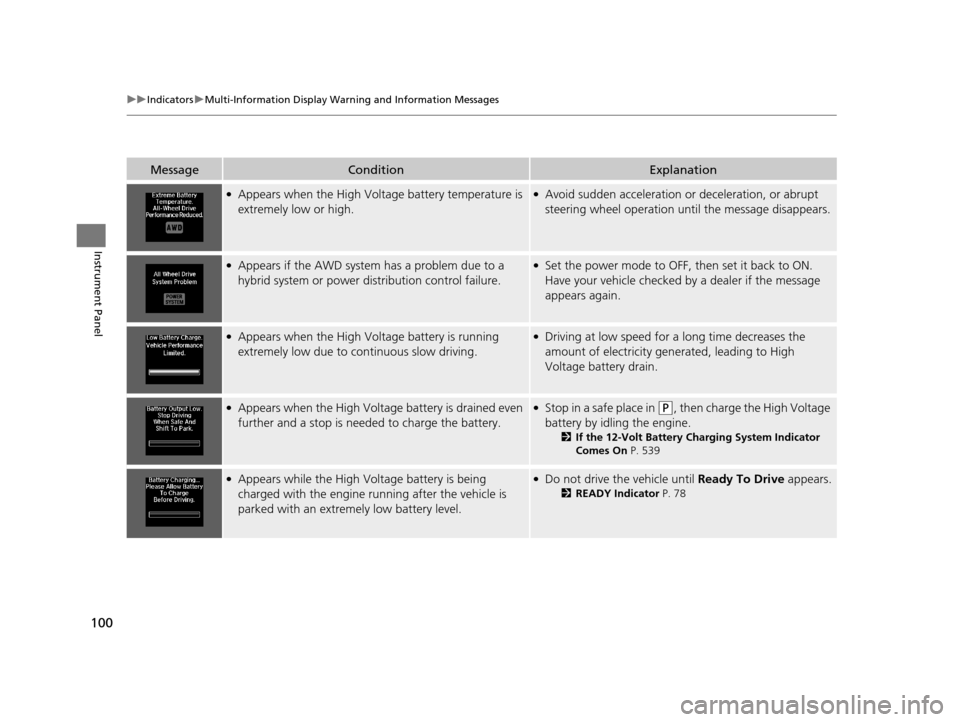

MessageConditionExplanation
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact a dealer immediately.
●Appears when the High Volt age battery temperature is
too low to operate (approx. -22°F [-30°C] or below).●You can start the engine an d use the climate control
system to warm up the interior, which will also warm
the High Voltage battery enough for you to drive the
vehicle.
●The engine speed does not increase even if you fully
depress the accelerator pedal.
●Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [- 40°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
●Consult a dealer.
●Appears when the rear motor fluid temperature is
extremely low.●The vehicle speed is temporarily limited up to 74 mph
(120 km/h). This is canceled after the fluid temperature
rises.
16 ACURA RLX E-AWD-31TY36200.book 99 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the High Voltage battery temperature is
extremely low or high.●Avoid sudden acceleration or deceleration, or abrupt
steering wheel operation until the message disappears.
●Appears if the AWD system has a problem due to a
hybrid system or power distribution control failure.●Set the power mode to OFF, then set it back to ON.
Have your vehicle checked by a dealer if the message
appears again.
●Appears when the High Voltage battery is running
extremely low due to continuous slow driving.●Driving at low speed for a long time decreases the
amount of electricity generated, leading to High
Voltage battery drain.
●Appears when the High Voltag e battery is drained even
further and a stop is needed to charge the battery.●Stop in a safe place in (P, then charge the High Voltage
battery by idling the engine.
2 If the 12-Volt Battery Charging System Indicator
Comes On P. 539
●Appears while the High Voltage battery is being
charged with the engine running after the vehicle is
parked with an extremely low battery level.●Do not drive the vehicle until Ready To Drive appears.
2READY Indicator P. 78
16 ACURA RLX E-AWD-31TY36200.book 100 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

107
uuGauges and Displays uGauges
Instrument Panel
Shows the remaining High Voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The High Voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.
•When the High Voltage battery control system
corrects its reading.
The charge level readi ng will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charging remains the
same.
16 ACURA RLX E-AWD-31TY36200.book 107 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

501
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
Check the battery terminals for corrosion
monthly.
The battery condition is being monitored by
the sensor on the negative terminal. If there is
a problem with the sensor, the warning
message on multi-information display will let
you know. Have your vehicle checked by a
dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 214
•The clock resets.
2 Clock P. 132
•The navigation system is disabled.
2 Refer to the Navigation System Manual
Charging the 12-Volt Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean terminals with a damp towel. Cloth/towel dry
the battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery maintenance,
wear protective clothing and a face shield,
or have a skilled technician do it.
16 ACURA RLX E-AWD-31TY36200.book 501 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

511
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 512
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 513
Changing a Flat Tire ......................... 525
Power System Won’t Start Checking the Procedure ................... 531
If the Keyless Access Remote Battery is Weak ............................................. 532
Emergency Power System Off........... 533
Jump Starting .................................... 534
Overheating How to Handle Overheating ............. 537 Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On ...... 539
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 539
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 540
If the Brake System Indicator (Red) Comes On .. 540
If the Electric Power Steering (EPS) System Indicator Comes On .............................. 541
If the Electric Parking Brake System Indicator Comes On............................................. 541
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 542 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 543
Fuses
Fuse Locations ................................. 544
Inspecting and Changing Fuses ........ 549
Emergency Towing ........................... 550
When You Cannot Unlock the Fuel Fill Door ................................................. 551
When You Cannot Open the Trunk ..... 552
Refueling
Refueling From a Portable Fuel Container ... 553
16 ACURA RLX E-AWD-31TY36200.book 511 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分
