509Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with temporary tire repair kit
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
16 ACURA RLX E-AWD-31TY36200.book 509 ページ ２０１５年３月１１日　水曜日　午後１時３０分

521
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

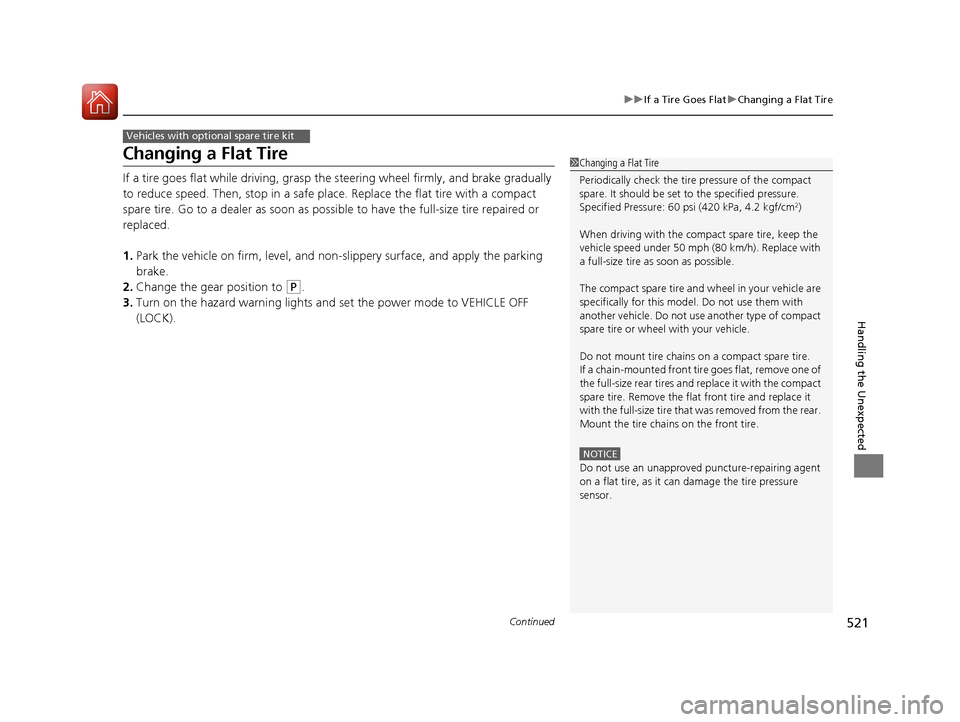

Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non-slippery surface, and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with optional spare tire kit
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use an unapproved puncture-repairing agent
on a flat tire, as it can damage the tire pressure
sensor.
16 ACURA RLX E-AWD-31TY36200.book 521 ページ ２０１５年３月１１日　水曜日　午後１時３０分

527
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready to Drive message
does not appear on the multi-information display, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or multi-
information display
messages come on.The Temperature is Too Cold For Vehicle To Operate
message appears.2 Multi-Information Display Warning and
Information Messages P. 92
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2POWER Button Operating Range P. 155
2If the Keyless Access Remote Battery is
Weak P. 528
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission indicator blinks and Transmission Problem
Apply Parking Brake When Parked message appears.The power system can be activated as a
temporary measure.
2If the Transmission Indicator Blinks along
with the Warning Message P. 539
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 545
Check the gear
position.The transmission is not in (P.Change the gear position to (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 85
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 530
16 ACURA RLX E-AWD-31TY36200.book 527 ページ ２０１５年３月１１日　水曜日　午後１時３０分

530
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood. 1.Open the fuse box cover on your vehicle’s
12-volt battery positive + terminal.
2. Connect the first jump er cable to your
vehicle’s 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u If you use a booster battery, only use a
12-volt booster battery.
u When using an automotive battery
charger, select a charging voltage lower
than 15-volts. Check the charger manual
for the proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cable clips so that they do
not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the e ngine from starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct pr ocedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
Booster Battery
16 ACURA RLX E-AWD-31TY36200.book 530 ページ ２０１５年３月１１日　水曜日　午後１時３０分

533Continued
Handling the Unexpected

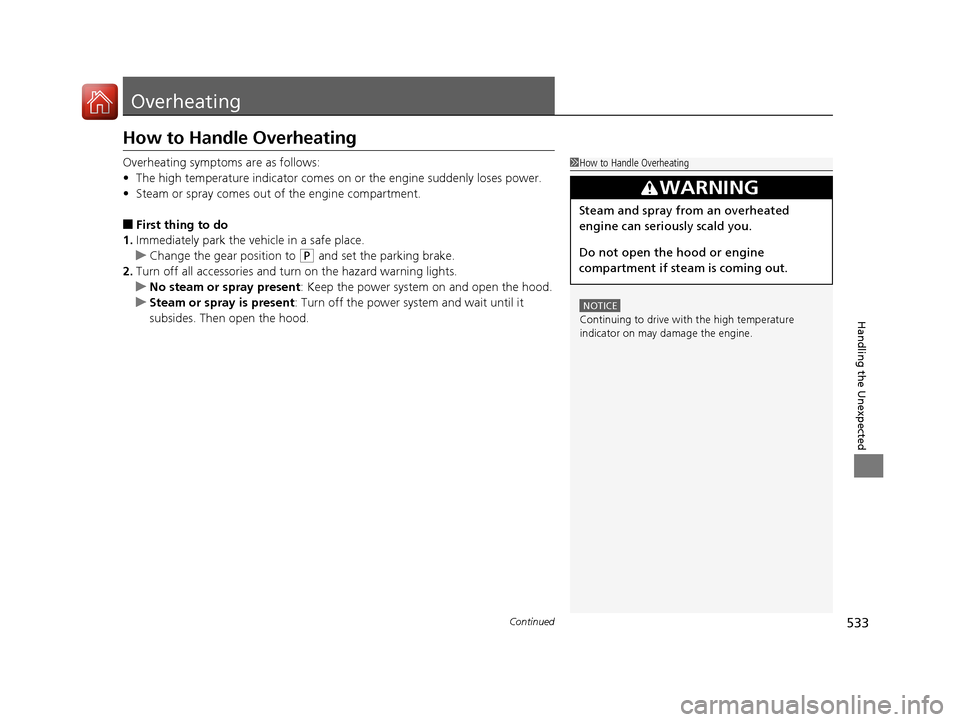

Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The high temperature indicator comes on or the engine suddenly loses power.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
u Change the gear position to
(P and set the parking brake.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present : Keep the power system on and open the hood.
u Steam or spray is present : Turn off the power system and wait until it
subsides. Then open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the high temperature
indicator on may da mage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood or engine
compartment if steam is coming out.
16 ACURA RLX E-AWD-31TY36200.book 533 ページ ２０１５年３月１１日　水曜日　午後１時３０分

535
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 472
3.Turn the power system on and chec k the low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Turn the power
system off and contact a dealer for repairs immediately.
If the 12-Volt Battery Cha rging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
16 ACURA RLX E-AWD-31TY36200.book 535 ページ ２０１５年３月１１日　水曜日　午後１時３０分

539
uuIndicator, Coming On/Blinking uIf the Transmission Indicator Blin ks along with the Warning Message
Handling the Unexpected
If the Transmission Indicator Blinks along with the
Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioned.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Change the gear position to
(N when you turn the power system on.
u Check if the
(N position in the instrument panel and the indicator
on the
(N button light/blink.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 366
1If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 546
16 ACURA RLX E-AWD-31TY36200.book 539 ページ ２０１５年３月１１日　水曜日　午後１時３０分

569
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 500
Oil .......................................................... 474
Flat Tire ............................................. 509, 521
Floor Mats ................................................ 502
Fluids
Brake ...................................................... 479
Dual Clutch Transmission ........................ 478
Engine Coolant ....................................... 476
Inverter Coolant ...................................... 478
Windshield Washer ................................. 479
Foot Brake ................................................ 422
Front Airbags (SRS) .................................... 46
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 383
Fuel ..................................................... 25, 455
Economy................................................. 457
Gauge .................................................... 106
Instant Fuel Economy .............................. 111
Low Fuel Indicator..................................... 81
Range ..................................................... 111
Recommendation............................ 455, 552
Refueling ................................................ 455
Fuel Economy ........................................... 457
Fuel Fill Door ...................................... 25, 456 Fuses
.......................................................... 540
Inspecting and Changing ......................... 545
Locations ................................. 540, 542, 544
G
Gasoline (Fuel)
Economy ................................................. 457
Gauge ..................................................... 106
Information ............................................. 455
Instant Fuel Economy ............................... 111
Low Fuel Indicator ..................................... 81
Refueling ................................................. 455
Gauges ...................................................... 106
Gear Position Indicator ...................... 80, 375
Gear Shift Positions
Dual Clutch Transmission ......................... 373
Glass (care) ........................................ 501, 504
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 507
HandsFreeLink ® (HFL) ............................... 313
Auto Answer ........................................... 328
Automatic Import of Cellular Phonebook and
Call History ............................................ 330
Automatic Transferring ............................ 328
Displaying Messages ................................ 347
Editing User Name ................................... 327
HFL Buttons ............................................. 313 HFL Menus .............................................. 315
HFL Status Display ................................... 314
Limitations for Manual Operation ............ 314
Making a Call .......................................... 338
Options During a Call .............................. 344
Phone Setup............................................ 319
Phonebook Phonetic Modification ........... 334
Receiving a Call ....................................... 343
Receiving a Text/E-m
ail Message.............. 345
Ring Tone................................................ 329
Roadside Assistance ................................ 351
Selecting a Mail Account ......................... 346
Speed Dial ............................................... 331
To Create a Security PIN .......................... 326
To Set Up a Text/E-mail Message Option................................................... 324
Use Contact Photo .................................. 329
Hard Disk Drive (HDD) Audio .................. 251
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 159
Aiming .................................................... 480
Automatic Operation............................... 160
Dimming ......................................... 159, 162
Operating................................................ 159
Head-Up Display ....................................... 123
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
HFL (HandsFreeLink ®)............................... 313
16 ACURA RLX E-AWD-31TY36200.book 569 ページ ２０１５年３月１１日　水曜日　午後１時３０分
