2016 Acura RDX service

403
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Continued
Handling the Unexpected
4. Recheck the air pressure using the air only
hose on the compressor.
5. Turn the selector switch to AIR ONLY.
u Do not turn the air compressor on to
check the pressure.
2 Inflating an Under-inflated Tire P. 405
6.If the air pressure is
• Less than 19 psi (130 kPa):
Do not add air or continue driving. The leak
is too severe. Call for help and have your
vehicle towed.
2 Emergency Towing P. 423
•Front: 35 psi (240 kPa) /rear: 33 psi (230
kPa) or more:
Continue driving for another 10 minutes or
until you reach the nearest service station.
Do not exceed 50 mph (80 km/h).
u If the air pressure does not go down after
the 10 minute driving, you do not need
to check the pressure any more.
Air Only Hose
AIR ONLY
side
ON

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
404
Handling the Unexpected
• Greater than 19 psi (130 kPa), but less
than front: 35 psi (240 kPa)/rear: 33 psi
(230 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches front: 35
psi (240 kPa)/rear: 33 psi (230 kPa).
2 Inflating an Under-inflated Tire P. 405
Then drive carefully for 10 more minutes or
until you reach the nearest service station.
Do not exceed 50 mph (80 km/h).
u You should repeat this procedure as long
as the air pressure is within this range.
7. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
8. Repackage and properly stow the kit.
Pressure Relief Button
1Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.

412
uuJump Starting u
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the assisting vehicle’s -
terminal.
3. Disconnect the jumper cable from your vehicle’s + terminal.
4. Disconnect the other end of the jumper cable from the assisting vehicle’s +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts

423
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
All models
2WD models

425
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 426
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 428
Devices that Emit Radio Waves ....... 429
Reporting Safety Defects ................. 430Emissions Testing
Testing of Readiness Codes.............. 431
Warranty Coverages ........................ 433
Authorized Manuals ......................... 435
Client Service Information ............... 436

435
Information

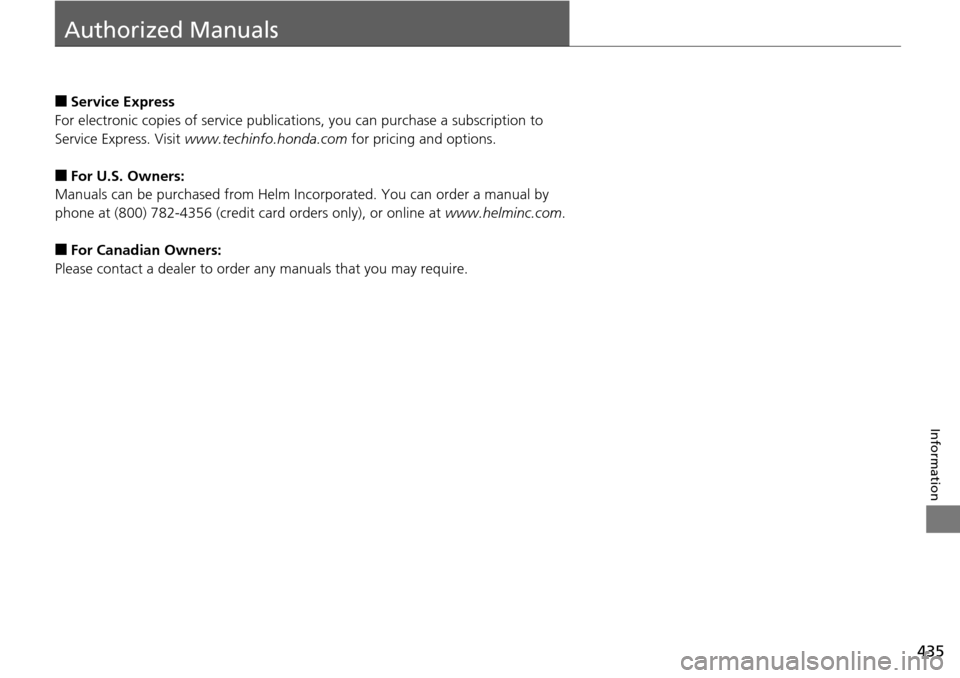

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners:
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
■For Canadian Owners:
Please contact a dealer to order any manuals that you may require.

436
Information
Client Service Information
Acura dealer personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership’s service manager or general ma nager. If you are dissatisfied with the
decision made by the dealership’s management, contact Acura Client Relations/
Services.
U.S. Owners:
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 500-2N-7E
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238 Canadian Owners:
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-Mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Client Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 428
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you

438
Index
Bluetooth® HandsFreeLink ®..................... 224
Booster Seats (For Children) ....................... 61
Brake System ............................................. 314
Anti-lock Brake System (ABS) ................... 316
Brake Assist System ................................. 317
Fluid ........................................................ 357
Foot Brake ............................................... 315
Indicator ............................................ 66, 418
Parking Brake .......................................... 314
Brightness Control (Instrument Panel) .... 154
BSI (Blind spot information) System ........ 307
Bulb Replacement ..................................... 359
Back-Up Light and Taillight ...................... 364
Brake Light/Taillight/Rear Side Marker Light and
Rear Turn Signal Light Bulbs ................... 362
Fog Lights ................................................ 359
Front Turn Signal Light/Parking Light/
Daytime Running Light and
Front Side Marker Light Bulbs ................ 361
Headlights ............................................... 359
High-Mount Brake Light .......................... 365
Rear License Plate Light............................ 365
Side Turn Signal Light /Emergency Indicator
Light ...................................................... 360
Bulb Specifications .................................... 426
C
Carbon Monoxide Gas ................................ 62
Cargo Hook ............................................... 175
Carrying Cargo .................................. 257, 259 CD Player
................................................... 202
Certification Label .................................... 428
Changing Bulbs ........................................ 359
Charging System Indicator ................. 68, 416
Child Safety ................................................. 50
Childproof Door Locks............................. 129
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Childproof Door Locks ............................. 129
Cleaning the Exterior ............................... 385
Cleaning the Interior ................................ 383
Client Service Information ....................... 436
Climate Control System ............................ 180
Changing the Mode ................................ 180
Defrosting the Windshield and
Windows ............................................... 181
Dust and Pollen Filter............................... 382
Recirculation/Fresh Air Mode ................... 180
Sensors ................................................... 183
Synchronized Mode................................. 182
Using Automatic Climate Control ............ 180
Clock .......................................................... 118
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 318 Coat Hook
................................................ 175
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 318
Compact Spare Tire .......................... 391, 427
Compass .................................................... 253
Console Compartment ............................. 172
Controls .................................................... 117
Coolant (Engine) ...................................... 354
Adding to the Radiator ........................... 355
Adding to the Reserve Tank .................... 354
Overheating ............................................ 414
Creeping (Automatic Transmission) ........ 274
Cross Traffic Monitor ............................... 331
Cruise Control .......................................... 279
Indicator ................................................... 76
Cup Holders .............................................. 173
Customized Features ....................... 100, 106
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 411
Defrosting the Windshield and Windows ................................................. 181
Detachable Anchor .................................... 34
Devices that Emit Radio Waves ............... 429
Dimming
Headlights .............................................. 147
Rearview Mirror ...................................... 159
Dipstick (Engine Oil) ................................ 350
Directional Signals (Turn Signal) ............. 147
