2016 Acura MDX Light on side mirrors

7
Quick Reference Guide
❙Side Curtain Airbags (P52)
❙Grab Handle
❙Seat Belt with Detachable Anchor (P38)
❙Accessory Power Socket (P194)
❙Side Airbags (P50)
❙Map Lights (P187)
❙Seat Belts (P36)
❙Front Seat (P175)
❙Moonroof Switch (P154)
❙Sunglasses Holder (P196)
❙Sun Visors
❙Vanity Mirrors
❙LATCH to Secure a Child Seat (P61)
❙Seat Belt (Installing a Child Seat) (P63)
❙Third Row Seat (P184)
❙Second Row Seat (P176)
❙AC Power Outlet* (P194)
❙Coat Hook (P195)
❙HDMI® Jack* () See the Navigation System Manual
❙Seat Belt to Secure a Child Seat (P63)
❙Cargo Area Light (P187)
* Not available on all models
16 ACURA MDX-31TZ56200.book 7 ページ ２０１５年３月４日　水曜日　午後２時５９分

Visual Index
8
Quick Reference Guide
❙How to Refuel (P436)
❙High-Mount Brake Light (P464)
❙Opening/Closing the Tailgate (P143)
❙Back-Up Lights (P463)
❙Multi-View Rear Camera* (P434)
❙Tailgate Outer Handle (P143)
❙Rear Side Marker Lights (P462)
❙Taillights (P462)
❙Brake Light and Rear Turn Signal Lights
(P461)
❙Rear Wiper (P165)
❙Maintenance Under the Hood (P447)
❙Windshield Wipers (P163, 465)
❙Tires (P469, 493)
❙Door Lock/Unlock Control (P131)
❙Power Door Mirrors (P173)
❙Headlights (P159, 459)
❙Side Marker Lights (P159, 460)
❙Front Turn Signal/Parking Lights (P158, 460)
❙Fog Lights* (P459)
16 ACURA MDX-31TZ56200.book 8 ページ ２０１５年３月４日　水曜日　午後２時５９分

127
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 128
Locking and Unlocking the Doors Key Types and Functions .................. 129
Locking/Unlocking the Doors from the Outside .......................................... 131
Low Keyless Access Remote Signal
Strength ......................................... 137
Locking/Unlocking the Doors from the Inside ............................................. 138
Childproof Door Locks ..................... 140
Auto Door Locking/Unlocking .......... 141
Opening and Closing the Tailgate ... 142
Security System Immobilizer System .......................... 149
Security System Alarm ...................... 149 Opening and Closing the Windows
... 152
Opening and Closing the Moonroof .. 154
Operating the Switches Around the
Steering Wheel ENGINE START/STOP Button............. 155
Turn Signals ..................................... 158
Light Switches.................................. 159
Fog Lights
*...................................... 162
Daytime Running Lights ................... 162
Wipers and Washers ........................ 163
Brightness Control ........................... 167
Defogger/Heated Door Mirror .......... 168
Driving Position Memory System ...... 169
Adjusting the Steering Wheel........... 171 Adjusting the Mirrors
Interior Rearview Mirror ................... 172
Power Door Mirrors ......................... 173
Adjusting the Seats Adjusting the Seat Positions ............. 175
Rear Seats........................................ 182
Armrest ........................................... 185
Interior Lights/Interior Convenience Items
Interior Lights .................................. 186
Interior Convenience Items .............. 188
Climate Control System
Using Automatic Climate Control .... 200
Rear Climate Control System ........... 208
Automatic Climate Control Sensors ... 212
* Not available on all models
16 ACURA MDX-31TZ56200.book 127 ページ ２０１５年３月４日　水曜日　午後２時５９分

uuOperating the Switches Around the Steering Wheel uDriving Position Memory System
170
Controls
1. Set the power mode to ON. Adjust the
driver’s seat, the steering wheel and the
door mirrors to the desired position.
2. Press the SET button.
u You will hear a beep, and the memory
button indicator light will blink.
3. Press memory button
(1 or (2 within five
seconds of pressing the SET button.
u Once the seat, the steering wheel and
the outside mirror positions have been
memorized, the indicator light on the
button you pressed stays on.
1. Select
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear a beep, and the indicator
light will blink.
The seat, the steering wheel and the door
mirrors will automatically move to the
memorized positions. When it has finished
moving, you will hear the beep, and the
indicator light stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat, the steering wheel or the
outside mirror position before the double-beep.
•You set the power mode to any position except
ON.
Memory Button 1
Memory Button 2SET Button
■Recalling the Stored Position1Recalling the Stored Position
The seat will st op moving if you:
•Press the SET button, or a memory button ((1 or
(2).•Adjust the seat, the st eering wheel or the door
mirror position.
•Select into any position except ( P.
Memory Buttons
16 ACURA MDX-31TZ56200.book 170 ページ ２０１５年３月４日　水曜日　午後２時５９分

172
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When driving after dark, the automatic
dimming rearview mirror and power door
mirrors
* reduce the glare from headlights
behind you.
■Automatic Dimming Rearview Mirror and Power Door
Mirrors
*
1 Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Adjusting the Seat Positions P. 175
1Automatic Dimming Rearview Mirror and Power Door Mirrors*
The auto dimming function cancels when the
transmission is in
(R.
* Not available on all models
16 ACURA MDX-31TZ56200.book 172 ページ ２０１５年３月４日　水曜日　午後２時５９分

322
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 469
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal.
Also check under the hood fo r leftover flammable
materials after you or so meone else has performed
maintenance on your vehicle.
16 ACURA MDX-31TZ56200.book 322 ページ ２０１５年３月４日　水曜日　午後２時５９分

Continued323
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 325
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driv ing and a crash could occur.
• Securely close and lock al l doors and the tailgate.
2Locking/Unlocking the Doors from the Inside P. 138
•Adjust your seating position properly.
u Adjust the head restraint, too.
2Adjusting the Seats P. 175
2 Adjusting the Head Restraints P. 178
•Adjust the mirrors and steering wh eel properly for your driving.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Steering Wheel P. 171
2 Adjusting the Mirrors P. 172
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
16 ACURA MDX-31TZ56200.book 323 ページ ２０１５年３月４日　水曜日　午後２時５９分

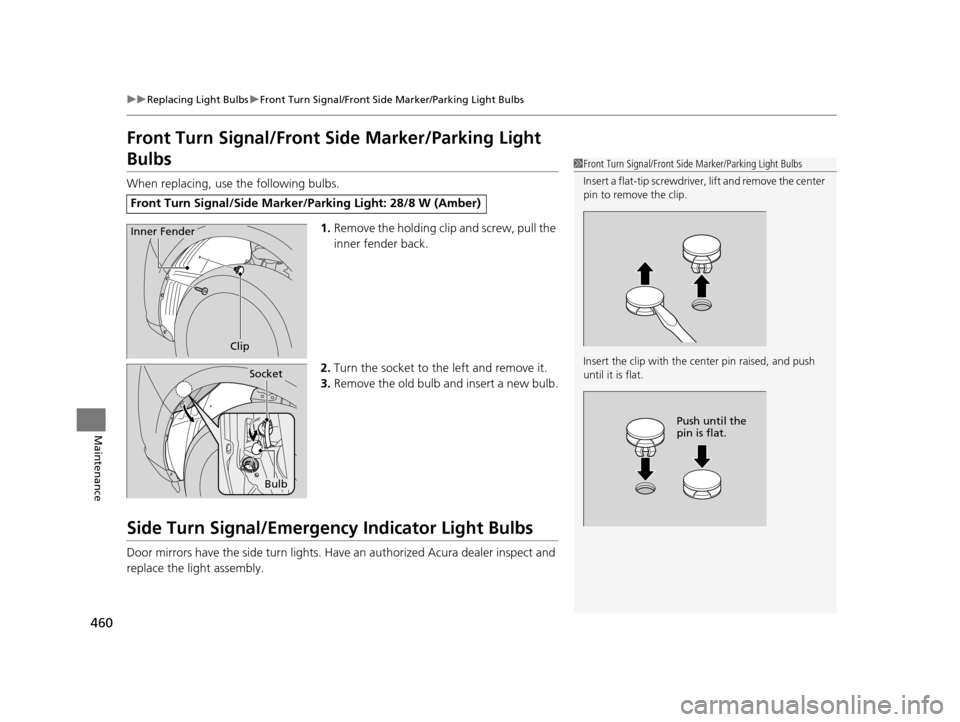

460
uuReplacing Light Bulbs uFront Turn Signal/Front Side Marker/Parking Light Bulbs
Maintenance
Front Turn Signal/Front Side Marker/Parking Light
Bulbs
When replacing, use the following bulbs.
1.Remove the holding clip and screw, pull the
inner fender back.
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emergency Indicator Light Bulbs
Door mirrors have the side turn lights. Ha ve an authorized Acura dealer inspect and
replace the light assembly.
Front Turn Signal/Side Marker/Parking Light: 28/8 W (Amber)
1 Front Turn Signal/Front Side Marker/Parking Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the
pin is flat.
Clip
Inner Fender
Bulb
Socket
16 ACURA MDX-31TZ56200.book 460 ページ ２０１５年３月４日　水曜日　午後２時５９分
