2016 Acura MDX traction control

37
XX
Interface Settings
XVoice Command Tips
System Setup
Voice Command TipsHSETTINGS button
X System Settings
X Others
X Voice Command Tips
Alerts you when manual control of the system is disabled to prevent distraction while
driving. Only voice commands are available.
Rotate i to select the map unit.
Press u.
The following items are available:
• On (factory default): Displays a message.
• Off : Disables the message.
MDX_KA-31TZ58200.book 37 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

83
XX
Map
XMap Legend
System Setup
Display or hide all icons on the map screen, with the exception of Honda/Acura
Dealer icons which are always shown.
■ Landmark icon■Map Icons and Functions
Type Icon display
control Icon
selectable Icon
searchable
Honda/Acura dealer
Always on
Yes
Yes
Hospital YesYes Yes
School
Yes
Yes
Yes
ATM YesYes Yes
Gas station
Yes
Yes
Yes
Restaurants YesYes Yes
Post office
Yes
Yes
Yes
Grocery store Yes Yes Yes
Hotel/Lodging
Yes
Yes
Yes
Police station No iconNoYes
Shopping, Tourist attraction, Bank
No icon
No
Yes
Parking garage YesYes Yes
Parking lot
Yes
Yes
Yes
Freeway exit info. Yes Yes No
1 Map Icons and Functions
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital” ).
2 Map Display Commands P. 330
Some icons, like police stations, are not shown,
but you can still locate the nearest one with the
Find Nearest voice command (e.g., say d “Find
nearest police station” ).
2 Find Place Commands P. 331
Icon display control
Icons that can be displa yed or hidden using the
Interface Dial or voice command.
Icon selectable
Icons that can be selected as a destination using
the Interface Dial.
Icon searchable
Icons that can be searched using the d Find
Nearest voice command.
Continued
MDX_KA-31TZ58200.book 83 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

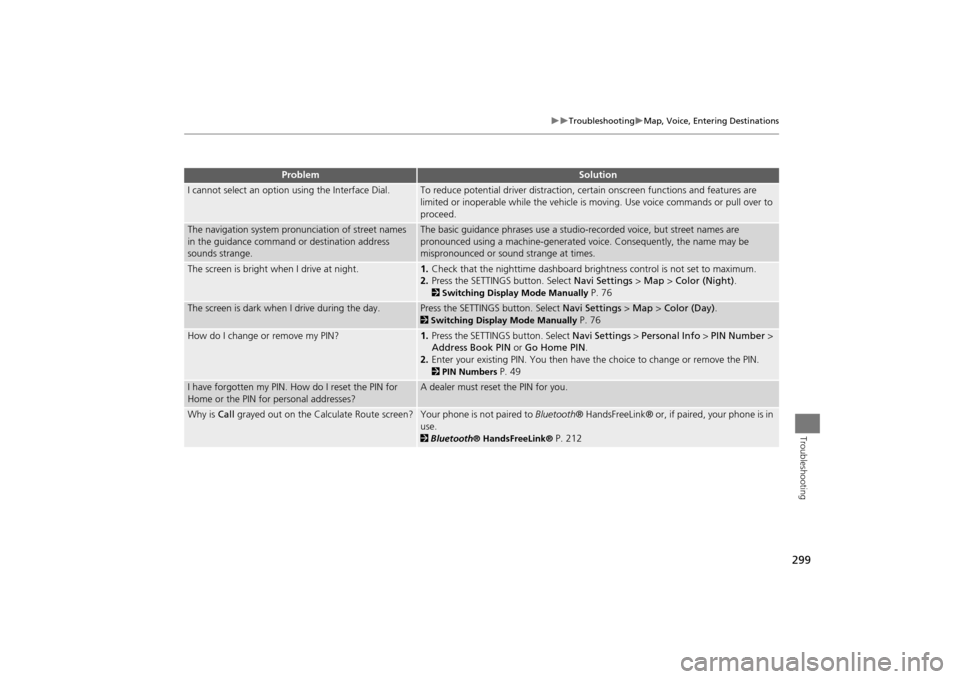

299
XX
Troubleshooting
XMap, Voice, Entering Destinations
Troubleshooting
I cannot select an option using the Interface Dial.
To reduce potential driver distraction, ce rtain onscreen functions and features are
limited or inoperable while the vehicle is moving. Use voice commands or pull over to
proceed.
The navigation system pronunciation of street names
in the guidance command or destination address
sounds strange.
The basic guidance phrases use a studio- recorded voice, but street names are
pronounced using a machine-generated voice. Consequently, the name may be
mispronounced or sound strange at times.
The screen is bright when I drive at night.
1. Check that the nighttime dashboard brig htness control is not set to maximum.
2. Press the SETTINGS button. Select Navi Settings > Map > Color (Night) .2Switching Display Mode Manually
P. 76
The screen is dark when I drive during the day.
Press the SETTINGS button. Select Navi Settings > Map > Color (Day) .2Switching Display Mode Manually
P. 76
How do I change or remove my PIN?
1. Press the SETTINGS button. Select Navi Settings > Personal Info > PIN Number >
Address Book PIN or Go Home PIN.
2. Enter your existing PIN. Yo u then have the choice to change or remove the PIN. 2PIN Numbers
P. 49
I have forgotten my PIN. How do I reset the PIN for
Home or the PIN for personal addresses?
A dealer must reset the PIN for you.
Why is Call grayed out on the Calculate Route screen?
Your phone is not paired to Bluetooth® HandsFreeLink® or, if paired, your phone is in
use. 2 Bluetooth ® HandsFreeLink®
P. 212
Problem
Solution
MDX_KA-31TZ58200.book 299 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
