2016 Acura ILX glove box

Visual Index
6
Quick Reference Guide
❙Parking Brake (P388)
❙Power Window Switches (P129)
❙Driver's Front Airbag (P38)
❙Trunk Release (P122)
❙Hood Release Handle (P421)
❙Interior Fuse Box (P496)
❙Passenger's Front Airbag
(P38)
❙USB Adapter Cable* (P167)
❙Shift Lever
Dual Clutch Transmission
(P345)
❙Glove Box (P157)
❙Accessory Power Socket
(P159)
❙Rearview Mirror (P146)
❙Auxiliary Input Jack* (P167)
❙Door Mirror Controls (P147)
❙Power Door Lock Master Switch (P120)❙Memory Buttons* (P145)
❙SET Button* (P145)
❙Fuel Fill Door Release Handle (P407)
❙USB Port* (P168)
❙HDMI® Port* (P168)
❙Seat Heater Switches* (P160)
16 ACURA ILX-31TX66300.book 6 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

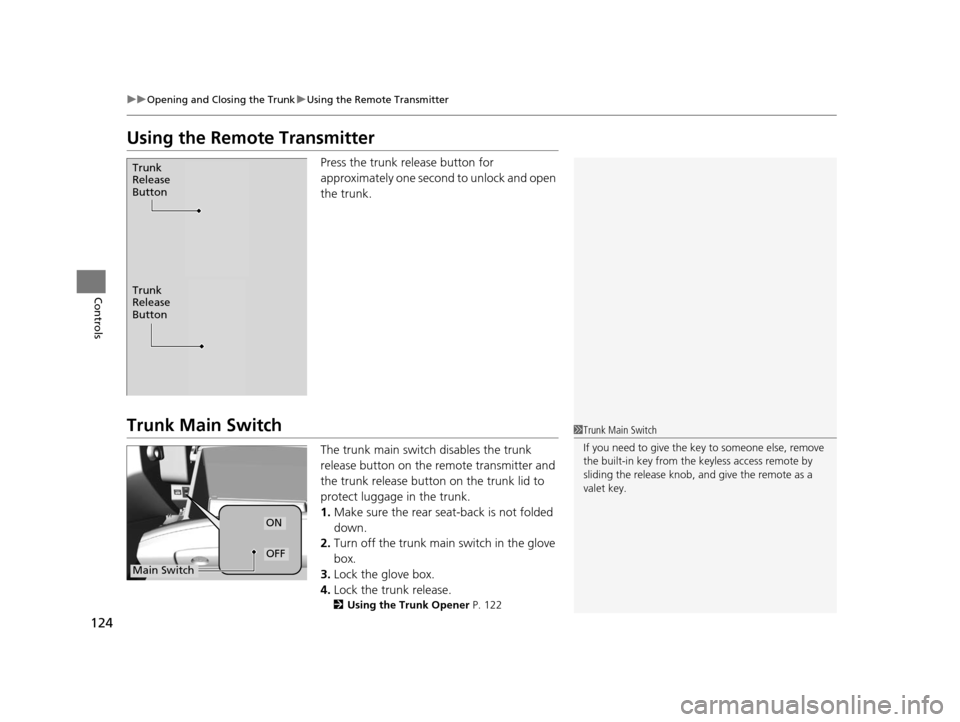

124
uuOpening and Closing the Trunk uUsing the Remote Transmitter
Controls
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
Trunk Main Switch
The trunk main switch disables the trunk
release button on the remote transmitter and
the trunk release button on the trunk lid to
protect luggage in the trunk.
1. Make sure the rear seat-back is not folded
down.
2. Turn off the trunk main switch in the glove
box.
3. Lock the glove box.
4. Lock the trunk release.
2 Using the Trunk Opener P. 122
Trunk
Release
Button
Trunk
Release
Button
1Trunk Main Switch
If you need to give the ke y to someone else, remove
the built-in key from the keyless access remote by
sliding the release knob, and give the remote as a
valet key.
ON
OFF
Main Switch
16 ACURA ILX-31TX66300.book 124 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

135
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
keyless access remote is out of the vehicle. If
the buzzer continues even after the remote is
put back inside, place it to be within its
operational range.
■When the power mode is in ON
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the multi-information display notifies the
driver inside that the remote is out.
■When the power mode is in
ACCESSORY
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from outside the
vehicle.
■Keyless Access Remote Reminder1 Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational range, and the driver’s door is
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the keyless access remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go of f. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational
range.
Models with full color display
Models without full color display
16 ACURA ILX-31TX66300.book 135 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

157
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the built-in key.
Press the button to open the console
compartment.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
■Console Compartment
Button
16 ACURA ILX-31TX66300.book 157 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

500
Information
Specifications
■Vehicle Specifications
*1: Vehicle without blind spot information system
*2: 17 inch wheel vehicle with blind spot information system
*3: Vehicle with 18 inch wheel
ModelAcura ILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle Weight
Rating
U.S.: 4,001 lbs (1,815 kg)*1
Canada: 1,815 kg*1
U.S.: 4,023 lbs (1,825 kg)*2
Canada: 1,825 kg*2
U.S.: 4,045 lbs (1,835 kg)*3
Canada: 1,835 kg*3
Gross Axle Weight
Rating (Front) U.S.: 2,205 lbs (1,000 kg)
*1
Canada: 1,000 kg*1
U.S.: 2,216 lbs (1,005 kg)*2
Canada: 1,005 kg*2
U.S.: 2,227 lbs (1,010 kg)*3
Canada: 1,010 kg*3
Gross Axle Weight
Rating (Rear)
U.S.: 1,797 lbs (815 kg)*1
Canada: 815 kg*1
U.S.: 1,808 lbs (820 kg)*2
Canada: 820 kg*2
U.S.: 1,819 lbs (825 kg)*3
Canada: 825 kg*3
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
■
Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*55 W (H11)Front Turn Signal LightsLED
Parking Lights LED
Side Marker Lights3 CP
Brake/Taillights/Rear Side Marker
Lights LED
Back-Up Lights16 W
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 5 W
Trunk Light5 W
Interior Lights Map Lights LED
Ceiling Light 8 W
Foot light1.4 W
Glove Box light LED
Vanity Mirror light1.4 W
* Not available on all models
16 ACURA ILX-31TX66300.book 500 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

515
Index
Fuses......................................................... 495
Inspecting and Changing ........................ 497
Locations ........................................ 495, 496
G
Gasoline (Fuel)
Economy................................................. 408
Gauge ...................................................... 88
Information............................................. 406
Instant Fuel Economy ................................ 95
Low Fuel Indicator..................................... 68
Refueling ................................................ 406
Gauges ........................................................ 88
Gear Position Indicator .............................. 66
Gear Shift Lever Positions
Dual Clutch Transmission ........................ 345
Glass (care) ............................................... 458
Glove Box ................................................. 157
H
Halogen Bulbs .......................................... 431
Handling the Unexpected ....................... 461
HandsFreeLink ® (HFL) .............................. 268
Auto Answer .......................................... 312
Automatic Import of Cellular Phonebook and Call History .......... 284, 314
Automatic Transferring ................... 282, 312
Caller’s ID Information ............................ 282
Displaying Messages ............................... 326 HFL Buttons ..................................... 268, 297
HFL Menus ...................................... 270, 299
HFL Status Display ........................... 269, 298
Limitations for Manua
l Operation ............ 298
Making a Call .................................. 287, 318
Options During a Call ...................... 291, 323
Phone Setup .................................... 275, 304
Receiving a Call ............................... 290, 322
Receiving a Text/E-mail Message .............. 324
Ring Tone ................................................ 313
Selecting a Mail Account ......................... 325
Speed Dial ....................................... 285, 315
Text Message .................................. 280, 292
To Clear the System ................................. 283
To Create a Security PIN .................. 281, 311
To Set Up a Text/E-mail Message Option .. 309
Use Contact Photo .................................. 313
Hazard Warning Button ............................... 4
HDMI ® Port ............................................... 168
Head Restraints ......................................... 151
Headlights ................................................. 136
Automatic Operation ............................... 137
Dimming ......................................... 136, 139
Operating ................................................ 136
Heaters (Seat) ........................................... 160
HFL (HandsFreeLink ®)............................... 268
High-Beam Indicator .................................. 72
Hill Start Assist System ............................. 342
HomeLink® Universal Transceiver ............ 266
I
Identification Numbers ............................ 502
Engine and Transmission ......................... 502
Vehicle Identification ............................... 502
Illumination Control ................................. 142
Knob ....................................................... 142
Immobilizer System .................................. 126
Indicator.................................................... 73
