2016 Acura ILX fuse 29

Contents
Child Safety P. 48Exhaust Gas Hazard P. 60Safety Labels P. 61
Opening and Closing the Trunk P. 122 Security System P. 126 Opening and Closing the Windows P. 129
Operating the Switches Around the Steering Wheel P. 133 Adjusting the Mirrors P. 146
Interior Lights/Interior Convenience It ems P. 156 Climate Control System P. 161
Audio System Basic Operation P. 193 Audio Error Messages P. 235
HomeLink® Universal Transceiver* P. 266 Bluetooth ® HandsFreeLink ® P. 268
When Driving P. 338 Braking P. 388Parking Your Vehicle P. 401
Fuel Economy P. 408 Accessories and Modifications P. 409
Maintenance Under the Hood P. 420 Replacing Light Bulbs P. 431
Checking and Maintaining Tires P. 442 Battery P. 451 Remote Transmitter Care P. 452
Cleaning P. 455
Engine Does Not Start P. 482Jump Starting P. 485 Shift Lever Does Not Move P. 488
Fuses P. 495 Emergency Towing P. 498
Devices that Emit Radio Waves P. 503 Reporting Safety Defects P. 504
Authorized Manuals P. 509 Client Service Information P. 510
Quick Reference GuideP. 4
Safe DrivingP. 23
Instrument PanelP. 63
ControlsP. 107
FeaturesP. 165
DrivingP. 331
MaintenanceP. 411
Handling the UnexpectedP. 461
InformationP. 499
IndexP. 512
16 ACURA ILX-31TX66300.book 3 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

Visual Index
6
Quick Reference Guide
❙Parking Brake (P388)
❙Power Window Switches (P129)
❙Driver's Front Airbag (P38)
❙Trunk Release (P122)
❙Hood Release Handle (P421)
❙Interior Fuse Box (P496)
❙Passenger's Front Airbag
(P38)
❙USB Adapter Cable* (P167)
❙Shift Lever
Dual Clutch Transmission
(P345)
❙Glove Box (P157)
❙Accessory Power Socket
(P159)
❙Rearview Mirror (P146)
❙Auxiliary Input Jack* (P167)
❙Door Mirror Controls (P147)
❙Power Door Lock Master Switch (P120)❙Memory Buttons* (P145)
❙SET Button* (P145)
❙Fuel Fill Door Release Handle (P407)
❙USB Port* (P168)
❙HDMI® Port* (P168)
❙Seat Heater Switches* (P160)
16 ACURA ILX-31TX66300.book 6 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

Quick Reference Guide
19
Handling the Unexpected (P461)
Flat Tire (P463)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P491)
● Identify the indica tor and consult the
owner's manual.
Vehicles with tire repair kit
Vehicles with optional spare tire
Engine Won't Start (P482)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P495)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P489)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P498)
●Call a professional towing service if you
need to tow your vehicle.
16 ACURA ILX-31TX66300.book 19 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

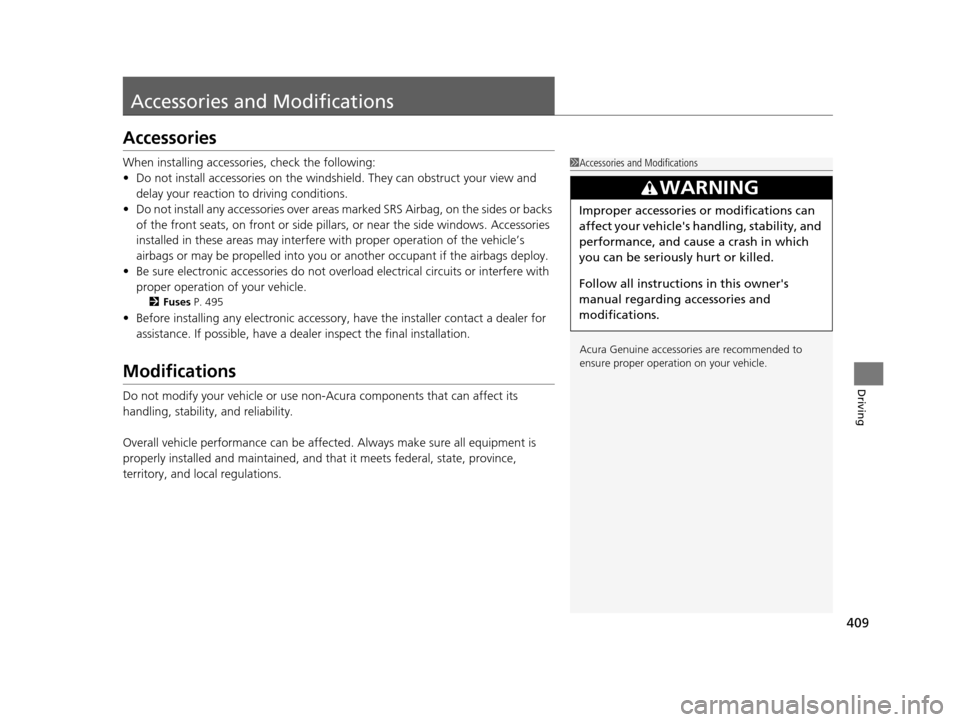

409
Driving
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows. Accessories
installed in these areas may interfere wi th proper operation of the vehicle’s
airbags or may be propelled into you or another occupant if the airbags deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 495
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
Modifications
Do not modify your vehicle or use no n-Acura components that can affect its
handling, stability, and reliability.
Overall vehicle performance can be affect ed. Always make sure all equipment is
properly installed and maintained, and that it meets federal, state, province,
territory, and local regulations.
1 Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner's
manual regarding accessories and
modifications.
16 ACURA ILX-31TX66300.book 409 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

461
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 462
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 463
Changing a Flat Tire ......................... 475
Engine Does Not Start Checking the Engine ........................ 482
If the Keyless Access Remote Battery is Weak ............................................. 483
Emergency Engine Stop ................... 484
Jump Starting .................................... 485
Vehicles with optional spare tire
Shift Lever Does Not Move .............. 488
Overheating How to Handle Overheating............. 489
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On ............................................. 491
If the Charging System Indicator Comes
On ................................................. 491
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 492
If the Brake System Indicator (Red) Comes On .................................. 493
If the Electric Power Steering (EPS) System
Indicator Comes On......................... 493
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 494
Fuses Fuse Locations ................................. 495
Inspecting and Changing Fuses ........ 497
Emergency Towing ........................... 498
16 ACURA ILX-31TX66300.book 461 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

482
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 483
uMake sure the keyless remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 133
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 451●If the interior lights come on normally 2 Fuses P. 495
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and resp ond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 338
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 126
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 88
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 497
If the problem continues:
2Emergency Towing P. 498
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 485
16 ACURA ILX-31TX66300.book 482 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

495Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
−−
ABS/VSA FSR30 A
ABS/VSA Motor40 A
WIPER30 A
Main Fuse120 A
2
IG Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight Main 30 A
ST/MG SW30 A
Rear Defogger 30 A IG Main1 30 ABlower 40 A
IG Main2 30 A
Sub Fan Motor 20 A
Main Fan Motor 20 A
3−−
4− −
5Starter DIAG7.5 A
6− −
7−−
8− −
9−−
10 − −
11Oil Level7.5 A
12 Fog Lights*(20 A)
13Injector20 A
14 Hazard 10 A
15FI Sub15 A
16 IG Coil 15 A
17Daytime Running Lights7.5 A
18 Stop & Horn 10 A
19−−
20 Right Headlight Low Beam 10 A
21IGP15 A
22 DBW 15 A
23Left Headlight Low Beam10 A
24 − −
25MG Clutch7.5 A
26 Washer 15 A
27Small20 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
16 ACURA ILX-31TX66300.book 495 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

496
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1−−
2ACG15 A
3SRS10 A
4Fuel Pump15 A
5Meter7.5 A
6Power Window7.5 A
7VB SOL*7.5 A
8Right Door Lock Motor
(Unlock)15 A
9Left Door Lock Motor (Unlock)15 A
10Audio(15 A)
11Moonroof20 A
12Driver’s Power Seat Sliding*(20 A)
13Driver’s Power Seat Reclining*(20 A)
14Seat Heaters*(15 A)
15Driver’s Door Lock Motor (Unlock)10 A
16Passenger’s Power Seat
Sliding*(20 A)
17Passenger’s Power Seat Reclining*(20 A)
18−−
19Accessory7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23−−
24ABS/VSA7.5 A
25ACC7.5 A
26−−
27Accessory Power Socket20 A
28−−
29ODS7.5 A
Circuit ProtectedAmps
30Driver’s Door Lock Motor
(Lock)10 A
31SMART10 A
32Right Door Lock Motor (Lock)15 A
33Left Door Lock Motor (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36−−
37Premium Audio*(30 A)
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40−−
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Passenger’s Side
Power Window20 A
44Front Passenger’s Side Power Window20 A
45Rear Driver’s Side Power Window20 A
46−−
Circuit ProtectedAmps
* Not available on all models
16 ACURA ILX-31TX66300.book 496 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分
