2016 Acura ILX bulb replace

411
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 412
Safety When Performing Maintenance..... 413Parts and Fluids Used in Maintenance Service ........................................... 414
Maintenance Minder
TM..................... 415
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 420Opening the Hood ........................... 421
Recommended Engine Oil ................ 422
Oil Check ......................................... 423
Adding Engine Oil ............................ 424
Changing the Engine Oil and Oil Filter ..... 425
Engine Coolant ................................ 427
Transmission Fluid ............................ 429
Brake Fluid ....................................... 430
Refilling Window Washer Fluid......... 430
Replacing Light Bulbs ....................... 431
Checking and Maintaining Wiper
Blades .......................................... 440
Checking and Maintaining Tires
Checking Tires ................................. 442
Tire and Loading Information Label ...... 443Tire Labeling .................................... 443DOT Tire Quality Grading (U.S. Vehicles)....... 445Wear Indicators................................ 447 Tire Service Life ................................ 447
Tire and Wheel Replacement ........... 448
Tire Rotation .................................... 449
Winter Tires ..................................... 450
Battery ............................................... 451
Remote Transmitter Care
Replacing the Button Battery ........... 452
Climate Control System Maintenance.... 454Cleaning
Interior Care .................................... 455
Exterior Care.................................... 457
16 ACURA ILX-31TX66300.book 411 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

412
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 430
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 442
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 431
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 440
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the mult i-information display.
2 Maintenance Service Items P. 418
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 509
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
16 ACURA ILX-31TX66300.book 412 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

431Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
Headlight bulbs are LED type. Have an authorized Acura dealer inspect and replace
the light assembly.
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the screw using a Phillips-head
screwdriver.
u The screw does not drop.
Fog Light: 55 W (H11 for halogen bulb Type)
1Headlight Bulbs
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
1Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Dropping
prevention
* Not available on all models
16 ACURA ILX-31TX66300.book 431 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

433

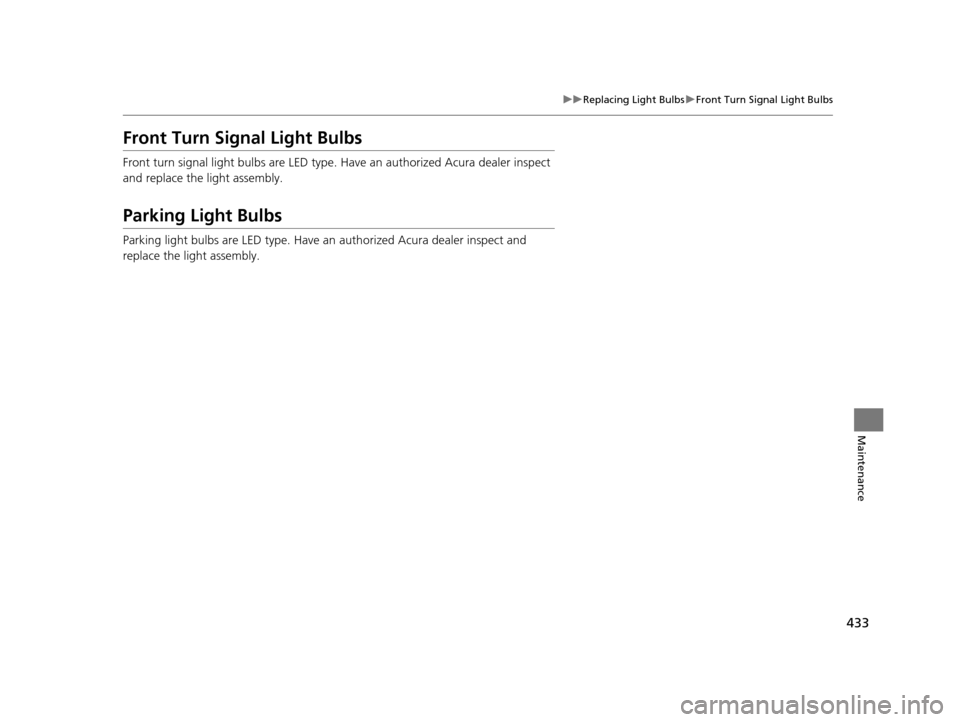

uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
Front turn signal light bulbs are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
Parking Light Bulbs
Parking light bulbs are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
16 ACURA ILX-31TX66300.book 433 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

434
uuReplacing Light Bulbs uSide Marker Light Bulbs
Maintenance
Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel to
the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips (A), (B) and screw,
pull the inner fender back.
3. Push the tab to remove the coupler.
Side Marker Light: 3 CP
1Side Marker Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Holding clip (A-type)
Push until the
pin is flat
Screw
Inner
Fender
Clip (B)
Clips (A)
Coupler
Tab
16 ACURA ILX-31TX66300.book 434 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

436
uuReplacing Light Bulbs uBrake Light, Taillight and Rear Side Marker Light Bulbs
Maintenance
Brake Light, Taillight and Rear Side Marker Light
Bulbs
Brake light, taillight and rear side mar ker light bulbs are LED type. Have an
authorized Acura deal er inspect and replace the light assembly.
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Remove the mounting bolts.
3. Pull the light assembly out of the rear pillar.
Rear Turn Signal Light: 21 W (Amber)
Cover
Bolts
16 ACURA ILX-31TX66300.book 436 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

439
uuReplacing Light Bulbs uRear License Plate Light Bulb
Maintenance
Rear License Plate Light Bulb
When replacing, use the following bulb.
1.Remove the screw from the center of the
fastener using a Phillips-head screwdriver.
2. Remove the holding cl ips using a flat-tip
screwdriver, then pull the lining back.
3. Remove the license plat e light assembly by
squeezing the tabs on both sides of the
socket.
4. Remove the old bulb and insert a new bulb.
High-Mount Brake Light Bulb
High-mount brake light bulbs are LED type. Ha ve an authorized Acura dealer inspect
and replace the light assembly.
Rear License Plate Light: 5 W
Fastener
LiningClip
Socket Bulb
16 ACURA ILX-31TX66300.book 439 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分
