2016 Acura ILX Engine

84
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
Message*1ConditionExplanation
●Appears when you close the door with the
power mode in ON without the keyless access
remote inside the vehicle.●Disappears when you bring the keyless access
remote back inside the vehicle and close the
door.
2Keyless Access Remote Reminder P. 135
●Appears when the keyless access remote
battery becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 452
●Appears after you unlock and open the driver’s
door.
2Starting the Engine P. 338
●Appears three seconds after the TO START
ENGINE message appears.
2Starting the Engine P. 338
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift
lever in
(P.
●Move the shift lever to (P. The power mode
changes to VEHICLE OFF.
16 ACURA ILX-31TX66300.book 84 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

85
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
Message*1ConditionExplanation
—
●Appears when you unlock and open the
driver’s door while the engine is running by
two-way keyless access remote
*.
2 Remote Engine Start with Vehicle
Feedback* P. 340
●Appears when the transmission system
temperature is too high. The vehicle no longer
moves.●Immediately stop in a safe place in (P.●Let the engine idle until the message
disappears.
—
●Appears if any door or the trunk is not
completely closed.
●Appears if any door is opened while driving.
The beeper sounds.
●Goes off when all doors and the trunk are
closed.
●Appears when there is a problem with the
headlights.●Appears while driving - The low beam
headlights may not be on. When conditions
allow you to drive safely, have your vehicle
checked by a dealer as soon as possible.
* Not available on all models
16 ACURA ILX-31TX66300.book 85 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

88
Instrument Panel
Gauges and Multi-Information Display
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 489
16 ACURA ILX-31TX66300.book 88 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

90
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Main displays
Press the (information) button to change the display.
■Switching the Display
Models with full color display
QP QQ
QP
QQ
(information)
ButtonEngine Oil Life
Vehicle Settings Elapsed Time
Blank Screen
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass*Tire Pressure for
Each TireTurn-by-Turn
Directions
*
* Not available on all models
16 ACURA ILX-31TX66300.book 90 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

91
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Models without fu ll color display
Engine Oil Life
Vehicle Settings Elapsed Time
Blank Screen
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Tire Pressure for
Each Tire
(information)
Button
16 ACURA ILX-31TX66300.book 91 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

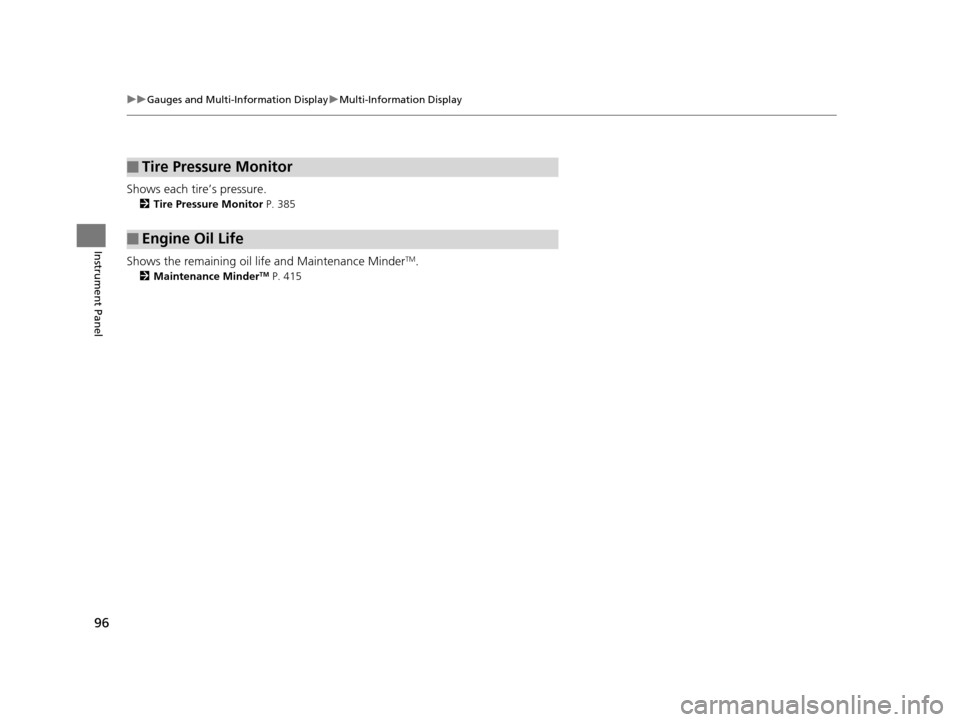

96
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows each tire’s pressure.
2 Tire Pressure Monitor P. 385
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 415
■Tire Pressure Monitor
■Engine Oil Life
16 ACURA ILX-31TX66300.book 96 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

102
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Driving
Position
Setup
*Memory Position LinkTurns the driving position memory system on and
off.On*1/
Off
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle.
Driver Door Only
*1/
All Doors
Keyless Access Light
Flash Causes some exterior lights to flash when you
unlock/lock the doors.
On
*1/
Off
Keyless Access Beep Causes the beeper to s
ound when you unlock/lock
the doors. On
*1/
Off
Remote Start System On/
Off
*Turns the remote engine start feature on and off. On*1/Off
* Not available on all models
16 ACURA ILX-31TX66300.book 102 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

104
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Maintenance
Info.Maintenance ResetResets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel
/Reset
Default All —Cancels/Resets all the cu
stomized settings as
default. Cancel
/Set
16 ACURA ILX-31TX66300.book 104 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分
