Vehicle care241After inflating, some driving may be
required to update the tyre pressure
values in the Driver Information
Centre. During this time w may
illuminate.
If w illuminates at lower temperatures
and extinguishes after driving, this
could be an indicator for approaching
a low tyre pressure condition. Check
tyre pressure.
Vehicle messages 3 120.
If the tyre pressure must be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and w
illuminates continuously.
A spare wheel or temporary spare
wheel is not equipped with pressure
sensors. The tyre pressure
monitoring system is not operational
for these tyres. Control indicator w
illuminates. For the further three
tyres, the system remains
operational.The use of commercially-available
liquid tyre repair kits can impair the
function of the system. Factory-
approved repair kits can be used.
Operating electronic devices or being close to facilities using similar wave
frequencies could disrupt the tyre
pressure monitoring system.
Each time the tyres are replaced, tyre pressure monitoring system sensors
must be dismounted and serviced.
For the screwed sensor, replace
valve core and sealing ring. For the
clipped sensor, replace complete
valve stem.
Vehicle loading status Adjust tyre pressure to load condition
according to the tyre information label or tyre pressure chart 3 276, and
select the appropriate setting in the Tyre load menu in the Driver
Information Centre 3 113. This
setting is the reference for the tyre
pressure warnings.The Tyre load menu only appears if
the vehicle is in a standstill and the
parking brake is applied. On vehicles
with automatic transmission the
selector lever has to be in P.

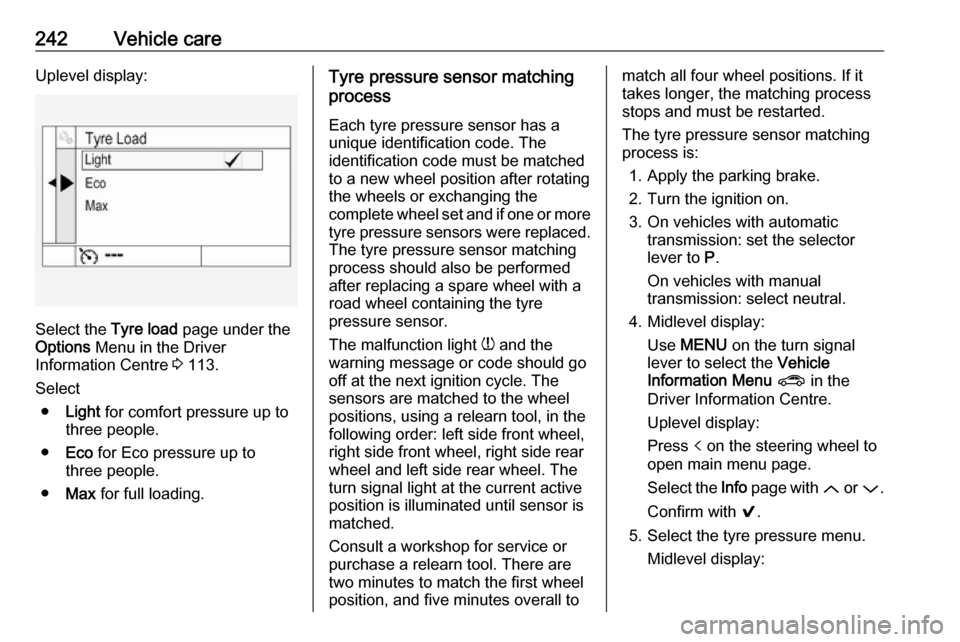

Midlevel display:
Select the Tyre load page under the
Vehicle Information Menu ? in the
Driver Information Centre 3 113.
Select ● Light for comfort pressure up to
three people.
● Eco for Eco pressure up to three
people.
● Max for full loading.

242Vehicle careUplevel display:
Select the Tyre load page under the
Options Menu in the Driver
Information Centre 3 113.
Select ● Light for comfort pressure up to
three people.
● Eco for Eco pressure up to
three people.
● Max for full loading.
Tyre pressure sensor matching
process
Each tyre pressure sensor has a
unique identification code. The
identification code must be matched
to a new wheel position after rotating the wheels or exchanging the
complete wheel set and if one or more tyre pressure sensors were replaced.
The tyre pressure sensor matching
process should also be performed
after replacing a spare wheel with a
road wheel containing the tyre
pressure sensor.
The malfunction light w and the
warning message or code should go
off at the next ignition cycle. The
sensors are matched to the wheel
positions, using a relearn tool, in the following order: left side front wheel,
right side front wheel, right side rear
wheel and left side rear wheel. The
turn signal light at the current active
position is illuminated until sensor is
matched.
Consult a workshop for service or
purchase a relearn tool. There are
two minutes to match the first wheel
position, and five minutes overall tomatch all four wheel positions. If it
takes longer, the matching process stops and must be restarted.
The tyre pressure sensor matching
process is:
1. Apply the parking brake.
2. Turn the ignition on.
3. On vehicles with automatic transmission: set the selector
lever to P.
On vehicles with manual
transmission: select neutral.
4. Midlevel display: Use MENU on the turn signal
lever to select the Vehicle
Information Menu ? in the
Driver Information Centre.
Uplevel display:
Press p on the steering wheel to
open main menu page.
Select the Info page with Q or P.
Confirm with 9.
5. Select the tyre pressure menu. Midlevel display:

Vehicle care243
Uplevel display:
6. Midlevel display:Press SET/CLR to begin the
sensor matching process. A
message requesting acceptance
of the process should be
displayed.
Press SET/CLR again to confirm
the selection. The horn sounds
twice to indicate that the receiver
is in relearn mode.
Uplevel display:
Press 9 to begin the sensor
matching process. The horn
sounds twice to indicate that the receiver is in relearn mode.
7. Start with the left side front wheel.
8. Place the relearn tool against the tyre sidewall, near the valve stem.Then press the button to activate
the tyre pressure sensor. A horn
chirp confirms that the sensor
identification code has been
matched to this wheel position.
9. Proceed to the right side front wheel, and repeat the procedure
in Step 8.
10. Proceed to the right side rear wheel, and repeat the procedure
in Step 8.
11. Proceed to the left side rear wheel, and repeat the procedure
in Step 8. The horn sounds twiceto indicate that the sensor
identification code has been
matched to the left side rear
wheel, and the tyre pressure
sensor matching process is no
longer active.
12. Turn off the ignition.
13. Set all four tyres to the recommended air pressure level
as indicated on the tyre pressure
information label.
14. Ensure the tyre loading status is set according to the selected
pressure 3 113.
Tread depth Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons it is recommended
that the tread depth of the tyres on
one axle should not vary by more than
2 mm.

Vehicle care259Clean the leather upholstery with
clear water and a soft cloth. In case of
heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light- coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water or interior cleaner.Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior cleaner if necessary. Do not use any
other agent. Avoid solvents and petrol in particular. Do not use high-
pressure jet cleaners.

260Service and maintenanceService and
maintenanceGeneral information ...................260
Service information ..................260
Recommended fluids, lubricants
and parts .................................... 261
Recommended fluids and lubricants ................................ 261General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Service display 3 106.
European service intervals Maintenance of your vehicle is
required every 20,000 miles or after
one year, whichever occurs first, unless otherwise indicated in theservice display.
A shorter service interval can be valid for severe driving behaviour, e.g. for
taxis and police vehicles.
The European service intervals are
valid for the following countries:Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,
Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania,
Luxembourg, Macedonia, Malta,
Monaco, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia,
Slovenia, Spain, Sweden,
Switzerland, United Kingdom.
Service display 3 106.
International service intervals Maintenance of your vehicle is
required every 10,000 miles or after
one year, whichever occurs first, unless otherwise indicated in the
service display.
The international service intervals are
valid for the countries which are not
listed in the European service
intervals.
Service display 3 106.

Service and maintenance261ConfirmationsConfirmation of service is recorded inthe Service and warranty booklet.
The date and mileage is completed
with the stamp and signature of the servicing workshop.
Make sure that the Service and
warranty booklet is completed
correctly as continuous proof of
service is essential if any warranty or goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service interval with remaining
engine oil life duration
The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display 3 106.Recommended fluids,
lubricants and parts
Recommended fluids andlubricants
Only use products that meet the
recommended specifications.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for
gasoline and diesel engines. If it is
unavailable, engine oils of other listed qualities have to be used.
Recommendations for gasoline
engines are also valid for
Compressed Natural Gas (CNG),
Liquified Petroleum Gas (LPG) and
Ethanol (E85) fuelled engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 265.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 265.

286Headlights when driving abroad 134
Head restraint adjustment .............8
Head restraints ............................ 45
Heated mirrors ............................. 39
Heated rear window ..................... 42
Heated steering wheel .................91
Heating .................................. 53, 54
Heating and ventilation system . 143
High beam ......................... 112, 133
High beam assist ........................112
Hill start assist ........................... 175
Horn ....................................... 13, 91
I
Identification plate .....................263
Ignition switch positions .............154
Immobiliser .......................... 37, 112
Indicators .................................... 103
Info display ................................. 118
Information displays.................... 113
Instrument cluster ......................100
Instrument panel fuse box .........233
Instrument panel illumination .....229
Instrument panel illumination control .................................... 140
Instrument panel overview ........... 10
Interior care ............................... 258
Interior lighting ............................ 140
Interior lights ...................... 140, 229
Interior mirrors .............................. 39Interruption of power supply ......168
Introduction .................................... 3
J Jump starting ............................. 253
K Key, memorised settings ..............23
Keys ............................................. 19
Keys, locks ................................... 19
L
Lane keep assist ................110, 201
Lashing eyes ............................... 80
LED headlights ...................112, 134
Lighting features .........................141
Light switch ................................ 132
Load compartment ................29, 72
Load compartment cover .............78
Load compartment fuse box ......235
Loading information .....................87
Low fuel ..................................... 111
M Malfunction indicator light ..........109
Manual anti-dazzle ......................39
Manual mode .....................167, 171
Manual seat adjustment ...............47
Manual transmission .................. 169
Manual transmission automated 169
Manual windows ..........................40Massage....................................... 54
Maximum speed ......................... 238
Memorised settings ......................23
Midlevel display .......................... 113
Mirror adjustment ........................... 9 Misted light covers .....................139
N
New vehicle running-in ..............154
Number plate light .....................229
O Object detection systems ...........186
Odometer ................................... 104
Oil, engine .......................... 261, 265
OnStar ........................................ 128
Outside temperature ....................94
Overrun cut-off ........................... 159
P Parking ................................ 18, 162
Parking assist ............................ 186
Parking brake ............................ 173
Parking lights ............................. 139
Particulate filter ........................... 164
Performance .............................. 270
Performing work ........................213
Pollen filter ................................. 152
Power button .............................. 155
Power connector........................... 97
Power outlets ............................... 96

287Power seat adjustment ................49
Power windows ............................ 40
Preheating ................................. 111
Puncture ..................................... 248
Q
Quickheat ................................... 151
R Radio Frequency Identification (RFID) ..................................... 283
Radio remote control ...................20
Reading lights ............................ 140
Rear floor storage cover ..............79
Rear fog light .....................112, 139
Rear seats .................................... 54
Rear view camera ...................... 195
Rear window wiper/washer .......... 93
Recommended fluids and lubricants ........................ 261, 265
Refuelling ................................... 203
Retained power off .....................156
Reversing lights .........................139
Ride control systems ..................175
Roof .............................................. 43
Roof load ...................................... 87
Roof rack ..................................... 86
S
Safety belts ................................... 55
Safety net .................................... 83Seat adjustment ............................. 7
Seat belt ........................................ 8
Seat belt reminder .....................107
Seat belts ..................................... 55
Seat heating Seat heating, front .....................53
Seat heating, rear .....................54
Seat position ................................ 46
Selector lever ..................... 166, 170
Service ............................... 152, 260
Service display .......................... 106
Service information ....................260
Side airbag system ......................60
Side blind spot alert ....................194
Sidelights .................................... 132
Side turn signal lights ................228
Software acknowledgement .......280
Spare wheel ............................... 250
Speed limiter....................... 112, 180
Speedometer ............................. 103
Sport mode ................................ 177
Starting and operating ................154
Starting off ................................... 16
Starting the engine ....................157
Steering ...................................... 154
Steering wheel adjustment ......9, 90
Steering wheel controls ...............90
Stop-start system........................ 159
Storage ......................................... 70
Storage compartments .................70Sunroof ........................................ 43
Sunvisor lights ........................... 141
Sun visors .................................... 42
Symbols ......................................... 4
T
Tachometer ............................... 105
Tail lights ................................... 222
Three-point seat belt .................... 56
Tools .......................................... 236
Tow bar....................................... 205
Towing ................................ 205, 255
Towing another vehicle .............256
Towing equipment .....................207
Towing the vehicle .....................255
Traction Control system ............. 175
Traction Control system off......... 111
Traffic sign assistant ...........113, 197
Trailer coupling ........................... 205
Trailer stability assist .................210
Trailer towing ............................. 206
Transmission ............................... 15
Transmission display .........165, 170
Tread depth ............................... 243
Trip odometer ............................ 104
Turn and lane-change signals ...138
Turn signal ................................. 107
Tyre chains ................................ 244
Tyre designations ......................238
Tyre pressure ............................ 238
