Instruments and controls109Control indicators in the centre
console
Overview
OTurn signal 3 110XSeat belt reminder 3 110vAirbag and belt tensioners
3 110VAirbag deactivation 3 111pCharging system 3 111ZMalfunction indicator light
3 111gService vehicle soon 3 111RBrake and clutch system
3 111-Operate pedal 3 112mElectric parking brake 3 112jElectric parking brake fault
3 112uAntilock brake system (ABS)
3 112[Upshift 3 113cPower steering 3 113)Lane departure warning 3 113rUltrasonic parking assist
3 113nElectronic Stability Control off
3 113bElectronic Stability Control and
Traction Control system 3 113kTraction Control system off
3 114!Preheating 3 114%Diesel particle filter 3 114YAdBlue 3 114wTyre pressure monitoring
system 3 114IEngine oil pressure 3 114iLow fuel 3 115dImmobiliser 3 115#Reduced engine power 3 1158Exterior light 3 115CHigh beam 3 115lHigh beam assist 3 115fAdaptive forward lighting
3 115>Fog light 3 116rRear fog light 3 116GLow washer fluid 3 116mCruise control 3 116 / Adaptive
cruise control 3 116

114Instruments and controlsTraction Control system offk illuminates yellow.
The system is deactivated.
Preheating ! illuminates yellow.
Preheating is activated. Only
activates when outside temperature
is low.
Diesel particle filter % illuminates or flashes yellow.
The diesel particle filter requires
cleaning.
Continue driving until %
extinguishes. If possible, do not allow engine speed to drop below
2000 rpm.
Illuminates
The diesel particle filter is full. Start cleaning process as soon as
possible.Flashes
The maximum filling level of the filter
is reached. Start cleaning process
immediately to avoid damage to the
engine.
Diesel particle filter 3 164, Stop-start
system 3 161.
AdBlue
Y flashes yellow.
AdBlue level is low. Refill AdBlue soon to avoid prevention of the
engine start.
AdBlue 3 166.
Tyre pressure monitoring system
w illuminates or flashes yellow.
Illuminates
Tyre pressure loss. Stop immediately
and check tyre pressure.Flashes
Fault in system or tyre without
pressure sensor mounted (e.g. spare
wheel). After 60-90 seconds the
control indicator illuminates
continuously. Consult a workshop.
Engine oil pressure I illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
runningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress clutch.
2. Select neutral gear, set selector lever to N.

Instruments and controls125The system displays messages
regarding the following topics:
● service messages
● fluid levels
● anti-theft alarm system
● brakes
● driver assistance systems ● ride control systems
● speed limiter
● cruise control
● adaptive cruise control
● forward collision alert
● collision imminent braking system
● parking assistant systems
● lighting, bulb replacement
● adaptive forward lighting
● wiper/washer system
● doors, windows
● side blind spot alert
● traffic sign assistant
● lane departure warning
● radio remote control
● seat belts● airbag systems
● engine and transmission
● tyre pressure
● diesel particle filter 3 164
● vehicle battery status
● selective catalytic reduction, Diesel Exhaust Fluid (DEF),
AdBlue 3 166
Vehicle messages on the Colour-
Info-Display
Some important messages appear
additionally in the Colour-Info-
Display. Press the multifunction knob
to confirm a message. Some
messages only pop-up for a few
seconds.
Warning chimes
When starting the engine or whilst driving
Only one warning chime will sound at
a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.● If seat belt is not fastened.
● If a door or the tailgate is not fully
closed when starting-off.
● If a certain speed is exceeded with parking brake applied.
● If adaptive cruise control deactivates automatically.
● If approaching a vehicle ahead too closely.
● If a programmed speed or speed
limit is exceeded.
● If a warning message or a warning code appears in the
Driver Information Centre.
● If the parking assist detects an object.
● If an unintended lane change occurs.
● If reverse gear is engaged and the rear carrier system is
extended.
● If the diesel particle filter has reached the maximum filling
level.
● If AdBlue needs to be refilled.

158Driving and operatingDriving and
operatingDriving hints ............................... 159
Control of the vehicle ...............159
Steering ................................... 159
Starting and operating ...............159
New vehicle running-in ............159
Ignition switch positions ...........160
Retained power off ..................160
Starting the engine ..................160
Overrun cut-off ........................ 161
Stop-start system ....................161
Parking .................................... 163
Engine exhaust .......................... 164
Diesel particle filter ..................164
Catalytic converter ...................165
AdBlue ..................................... 166
Automatic transmission ..............169
Transmission display ...............169
Selector lever .......................... 169
Manual mode ........................... 170
Electronic driving programmes 171
Fault ........................................ 171
Interruption of power supply ....171
Manual transmission ..................172Brakes........................................ 173
Antilock brake system .............173
Parking brake .......................... 174
Brake assist ............................. 175
Hill start assist ......................... 175
Ride control systems .................176
Traction Control system ..........176
Electronic Stability Control ......176
Interactive driving system ........177
Driver assistance systems .........179
Cruise control .......................... 179
Speed limiter ........................... 180
Adaptive cruise control ............182
Forward collision alert .............188
Following distance indication ...192
Active Emergency Braking ......192
Parking assist .......................... 194
Side blind spot alert .................201
Rear view camera ...................202
Traffic sign assistant ................204
Lane departure warning ..........207
Fuel ............................................ 209
Fuel for petrol engines .............209
Fuel for diesel engines ............209
Fuel for natural gas operation . 209
Fuel for liquid gas operation ....210
Refuelling ................................ 212
Fuel consumption - CO 2-
Emissions .............................. 217Trailer hitch................................ 218
General information .................218
Driving characteristics and towing tips .............................. 219
Trailer towing ........................... 219
Towing equipment ...................220
Trailer stability assist ...............222

166Driving and operatingcan be continued for a short period,
keeping vehicle speed and engine
speed low.
AdBlue
General information The selective catalytic reduction
(BlueInjection) is a method to
substantially reduce the nitrogen
oxides in the exhaust emission. This
is achieved by injecting a Diesel
Exhaust Fluid (DEF) into the exhaust
system.
The designation of this fluid is AdBlue
Ⓡ 1)
. It is a non-toxic, non-flammable,
colourless and odourless fluid which
consists of 32% urea and 68% water.9Warning
Avoid contact of your eyes or skin
with AdBlue.
In case of eye or skin contact,
rinse off with water.
Caution
Avoid contact of the paintwork with
AdBlue.
In case of contact, rinse off with water.
AdBlue freezes at a temperature of
approx. -11 °C. As the vehicle is
equipped with an AdBlue pre-heater,
the emissions reduction at low
temperatures is ensured. The AdBlue
pre-heater works automatically.
Level warnings
The AdBlue consumption is approx.
4000 mpg and depends on the driving
behaviour.

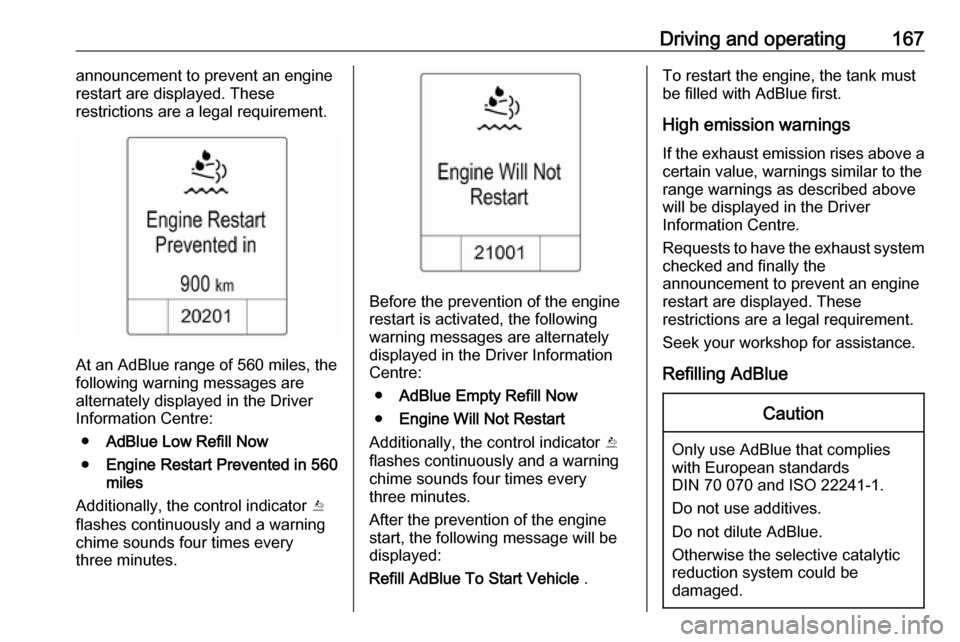

If the AdBlue level falls below a
certain value, a level warning AdBlue
Range: 1500 mi will be displayed in
the Driver Information Centre.
A volume of at least 5 litres of AdBlue must be refilled as soon as possible.
Driving is possible without any
restrictions.
If AdBlue is not refilled within a certain
distance, further level warnings are
displayed in the Driver Information Centre depending on the current
AdBlue level. Later on requests to
refill AdBlue and finally the
1) Registered trademark of the Verband der Automobilindustrie e.V. (VDA).

Driving and operating167announcement to prevent an engine
restart are displayed. These
restrictions are a legal requirement.
At an AdBlue range of 560 miles, the following warning messages are
alternately displayed in the Driver
Information Centre:
● AdBlue Low Refill Now
● Engine Restart Prevented in 560
miles
Additionally, the control indicator Y
flashes continuously and a warning
chime sounds four times every
three minutes.
Before the prevention of the engine
restart is activated, the following
warning messages are alternately
displayed in the Driver Information
Centre:
● AdBlue Empty Refill Now
● Engine Will Not Restart
Additionally, the control indicator Y
flashes continuously and a warning
chime sounds four times every
three minutes.
After the prevention of the engine
start, the following message will be
displayed:
Refill AdBlue To Start Vehicle .
To restart the engine, the tank must
be filled with AdBlue first.
High emission warnings If the exhaust emission rises above a
certain value, warnings similar to the
range warnings as described above
will be displayed in the Driver
Information Centre.
Requests to have the exhaust system checked and finally the
announcement to prevent an engine
restart are displayed. These
restrictions are a legal requirement.
Seek your workshop for assistance.
Refilling AdBlueCaution
Only use AdBlue that complies
with European standards
DIN 70 070 and ISO 22241-1.
Do not use additives.
Do not dilute AdBlue.
Otherwise the selective catalytic
reduction system could be
damaged.

168Driving and operatingNotice
Only use the designated AdBlue
canisters for refilling, to prevent a
topping-up of too much AdBlue.
Additionally, the fumes in the tank
are captured in the canister and do
not emerge.
Since AdBlue has a limited
durability, check the date of expiry
before refilling.
Notice
A volume of at least 5 litres of AdBlue must be added when refilling.
Otherwise the refilling of AdBlue
may not be detected by the system.
In case AdBlue refill is not
successfully detected:
1. Continuously drive the vehicle for 10 minutes making sure that
vehicle speed is always higher
than 12 mph.
2. If AdBlue refill is detected successfully, AdBlue supply
driven limitations will disappear.If AdBlue refill is still not detected
seek the assistance of a workshop.
If AdBlue must be refilled at
temperatures below -11 °C, the
refilling of AdBlue may not be
detected by the system. In this
event, park the vehicle in a space
with a higher ambient temperature until AdBlue is liquefied.
Notice
When unscrewing the protective cap
from the filler neck, ammonia fumes
may emerge. Do not inhale as the
fumes have a pungent smell. The fumes are not harmful by inhalation.
The vehicle must be parked on a level surface.
The filler neck for AdBlue is located
behind the fuel filler flap.
The fuel filler flap is located at right
rear side of the vehicle.
The fuel filler flap can only be opened
if the vehicle is unlocked.
1. Remove key from ignition lock.
2. Close all doors to avoid ammonia fumes entering the interior of the
vehicle.3. Pull fuel filler flap at the recess and open 3 212.
4. Unscrew protective cap from the
filler neck.
5. Open AdBlue canister.
6. Mount one end of the hose on the
canister and screw the other end
on the filler neck.
7. Lift the canister until it is empty.
8. Unscrew the hose from the filler neck.
9. Mount the protective cap and turn
clockwise until it engages.
