Vehicle care151battery. Short-distance driving and
frequent engine starts can discharge
the battery. Avoid the use of
unnecessary electrical consumers.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Laying up the vehicle for more than
4 weeks can lead to battery
discharge.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
Replacing the vehicle battery In vehicles with an AGM (Absorptive
Glass Mat) battery, make sure to
have the battery replaced with
another AGM battery.
An AGM battery can be identified by
the label on the battery. We
recommend the use of an original
Vauxhall battery.
Notice
Using an AGM vehicle battery
different from the original Vauxhall
vehicle battery may result in a lower
performance of the stop-start
system.
We recommend that you have the
vehicle battery replaced by a
workshop.
Stop-start system 3 119.
Charging the vehicle battery9 Warning
On vehicles with stop-start
system, ensure that the charging potential does not exceed
14.6 volts when using a battery
charger. Otherwise the vehicle
battery might be damaged.
9 Danger
Ensure adequate ventilation when
charging the battery. There is a
risk of explosion if gases
generated during charging are
allowed to accumulate!
Jump starting 3 174.

174Vehicle careThe spare wheel is mounted under
the rear underbody and may be
secured using a security bolt that can only be removed using the wheel bolt
sleeve supplied. Vehicle tools 3 163.9 Warning
Due to the weight of the tyre
assembly, exercise caution when
releasing the spare wheel carrier.
Do not fully remove bolt 1.
Support the spare wheel with a
suitable object to prevent the
wheel falling suddenly when
loosening the carrier bolts - risk of injury!
To release the spare wheel carrier,loosen bolt 1, ensuring it is not fully
removed. Fully remove bolt 2, then
pull the carrier to the left, until it clears bolt 1, and lower the carrier assembly.
When installing the wheel ensure that
the spare wheel carrier is correctly
positioned before tightening the bolts.
Summer and winter tyres
If you use winter tyres, the spare wheel may still be fitted with a
summer tyre.
If you use the spare wheel when it is
fitted with a summer tyre the vehicle's driveability may be affected,
especially on slippery road surfaces.
Directional tyres Fit directional tyres such that they rollin the direction of travel. The rolling
direction is indicated by a symbol
(e.g. an arrow) on the sidewall.
The following applies to tyres fitted
opposing the rolling direction:
● Driveability may be affected. Have the defective tyre renewed
or repaired as soon as possible
and fit it instead of the spare
wheel.
● Do not drive faster than 50 mph.
● Drive particularly carefully on wet
and snow-covered road
surfaces.Jump starting
Do not start with a quick charger.
A vehicle with a discharged battery
can be started using jump leads and the vehicle battery of another vehicle.9 Warning
Be extremely careful when starting
with jump leads. Any deviation
from the following instructions can
lead to injuries or damage caused
by battery explosion or damage to the electrical systems of both
vehicles.
9 Warning
Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact.
● Never expose the battery to naked flames or sparks.

Vehicle care175● A discharged vehicle battery canalready freeze at a temperature
of 0 °C. Defrost the frozen battery before connecting jump leads.
● Wear eye protection and protective clothing when
handling a battery.
● Use a booster battery with the same voltage (12 volts). Its
capacity (Ah) must not be much less than that of the discharged
battery.
● Use jump leads with insulated terminals and a cross section of
at least 16 mm 2
(25 mm 2
for
diesel engines).
● Do not disconnect the discharged
vehicle battery from the vehicle.
● Switch off all unnecessary electrical consumers.
● Do not lean over the battery during jump starting.
● Do not allow the terminals of one
lead to touch those of the other
lead.
● The vehicles must not come into contact with each other during
the jump starting process.● Apply the parking brake, transmission in neutral.
● Open the positive terminal protection caps of both batteries.
The battery is located in the engine
compartment.
Remove cover to access the battery.

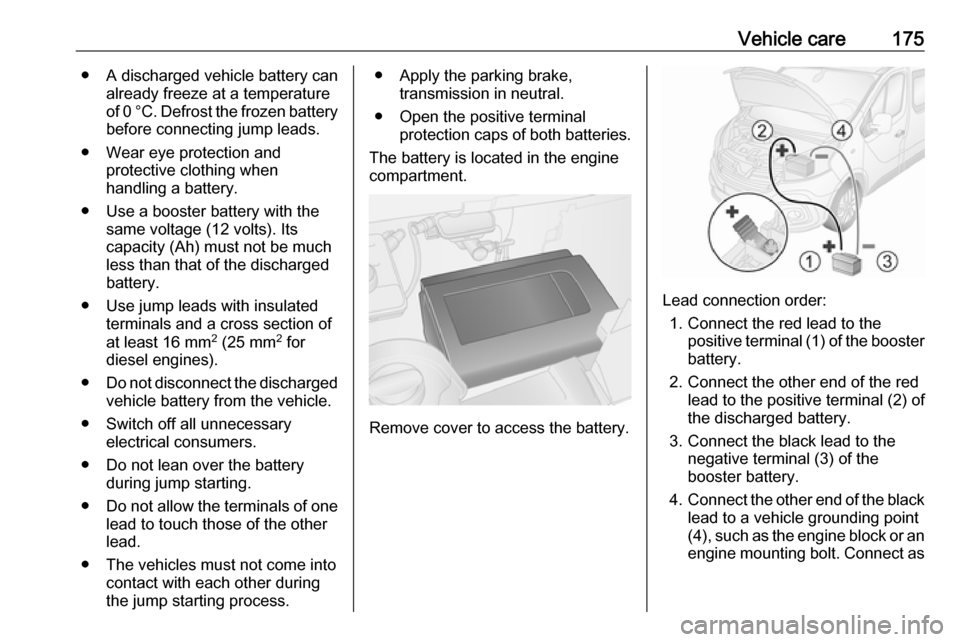

Lead connection order:
1. Connect the red lead to the positive terminal (1) of the booster
battery.
2. Connect the other end of the red lead to the positive terminal (2) of
the discharged battery.
3. Connect the black lead to the negative terminal (3) of the
booster battery.
4. Connect the other end of the black
lead to a vehicle grounding point
(4), such as the engine block or an
engine mounting bolt. Connect as

176Vehicle carefar away from the discharged
vehicle battery as possible,
however at least 60 cm.
Route the leads so that they cannot
catch on rotating parts in the engine
compartment.
To start the engine: 1. Start the engine of the vehicle providing the jump start.
2. After 5 minutes, start the other engine. Start attempts should be
made for no longer than
15 seconds at an interval of
1 minute.
3. Allow both engines to idle for approx. 3 minutes with the leads
connected.
4. Switch on electrical consumers (e.g. headlights, heated rear
window) of the vehicle receiving
the jump start.
5. Reverse above sequence exactly when removing leads.Towing
Towing the vehicle The towing eye is stowed with thevehicle tools 3 163.
Release cap using a suitable tool.
Screw the towing eye clockwise into
the front towing point and tighten fully
using the wheel wrench.
Attach a tow rope - or better still a tow rod - to the towing eye, never to the
bumper or front suspension units.
Caution
Do not tow the vehicle from the
rear. The front towing eye must
only be used for towing and not
recovering a vehicle.
Caution
Activate the child locks in the rear
doors if the rear seats are
occupied. Child locks 3 29.
Switch on ignition to permit operation
of brake lights, horn and windscreen
wipers, and move the steering wheel
slightly to release the steering wheel
lock.
Transmission in neutral.
Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.

202IndexAAbsorptive Glass Mat battery .....150
Accessories and vehicle modifications .......................... 145
Adaptive forward lighting .............98
Adblue .......................................... 93
AdBlue .......................... 88, 123, 182
AdBlue tank ................................ 197
Adjustable air vents ...................112
AGM battery ............................... 150
Airbag and belt tensioners ...........85
Airbag deactivation ................57, 85
Airbag label............................. 53, 57
Airbag system .............................. 53
Air conditioning regular operation ................................ 113
Air conditioning system .............. 104
Air intake .................................... 113
Air recirculation ...................104, 176
Air vents...................................... 112
Alert .............................................. 92
Antifreeze ................................... 148
Antilock brake system ................ 129
Antilock brake system (ABS) .......87
Anti-theft alarm system ................35
Anti-theft bolts............................. 171
Anti-theft locking system .............. 33
Anti-theft security lock ..................23
Appearance care ........................177
Armrest ........................................ 46Ashtrays ....................................... 79
Automatic anti-dazzle ..................39
Automatic fuel cut-off ..................119
Automatic light control .................97
Automatic locking ........................28
Autostop ....................... 89, 118, 119
Auxiliary heater ........................... 108
B Battery ........................................ 150
Battery discharge protection ......102
Battery, jump starting.................. 174
Belts.............................................. 49 Bench seat.................................... 68
BlueInjection ............................... 123
Bonnet ....................................... 146
Bottle holders................................ 68
Brake and clutch fluid .................182
Brake assist ............................... 130
Brake fluid .................................. 150 Brakes ............................... 128, 150
Brake system ............................... 86
Breakdown.................................. 176
Bulb replacement ....................... 154
C
Capacities .................................. 197
Car Pass ...................................... 20
Catalytic converter .....................123
Central locking system ................23
Centre high-mounted brake light 156

204Exterior lighting ......................12, 96
Exterior mirrors ............................. 37
F
Fault messages ............................ 91
First aid kit ................................... 72
Fixed air vents ........................... 112
Fog light ....................................... 90
Fog lights .............................. 99, 154
Fog tail light ............................... 157
Folding centre seatback ...............67
Folding front centre passenger seat ........................................... 45
Folding mirrors ............................. 38
Foot well lights ............................ 100
Front airbag system .....................56
Front courtesy lights ...................100
Front door pockets........................ 68
Front fog lights ........................ 96, 99
Front seats.................................... 43
Front storage ................................ 67
Front turn signal lights ...............155
Fuel consumption - CO 2-
Emissions ............................... 142
Fuel cut-off system .....................119
Fuel economy gauge ....................81
Fuel economy mode .....................89
Fuel economy rating ...............91, 93
Fuel for diesel engines ..............140
Fuel gauge ................................... 81Fuel tank ..................................... 197
Fuse box ..................................... 160
Fuses ......................................... 159
G Gauges ......................................... 79
General information ...................142
Glovebox ..................................... 66
Glovebox cooler ......................... 112
Glove box lighting .......................101
H Hand brake ................................. 128
Hand brake - see Parking brake. 129
Hazard warning flashers ..............98
Headlight flash ............................. 97
Headlight range adjustment ........97
Headlights ...................... 96, 97, 154
Headlights when driving abroad ..98
Head restraint adjustment .............8
Head restraints ............................ 42
Heated exterior mirrors .................15
Heated mirrors ............................. 38
Heated rear window ...............15, 41
Heating ........................................ 46
Heating and ventilation system . 103
Heat-reflecting windscreen ...........39
High beam ............................. 89, 97
Hill start assist ........................... 130
Horn ....................................... 14, 75I
Identification plate .....................185
Idle speed control .......................118
Ignition switch positions .............116
Immobiliser .................................. 36
Indicators ...................................... 79
Info-display ................................... 90
Information displays...................... 90
Initial drive information.................... 6
Instrument cluster ........................79
Instrument panel fuse box .........160
Instrument panel illumination .....158
Instrument panel illumination control .................................... 100
Instrument panel overview ........... 10
Instrument panel storage ..............66
Instrument panel tray ....................66
Interior care ............................... 179
Interior lighting ............................ 100
Interior lights ...................... 100, 158
Interior mirrors .............................. 38
Introduction .................................... 3
Isofix child restraint systems ........ 65
J
Jack ............................................ 163
Journey record.............................. 93
Jump starting ............................. 174
