2016.5 VAUXHALL MERIVA light

Vehicle care179Bulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base. Do
not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Replace headlight bulbs from within
the engine compartment.
Halogen headlightsHeadlights have separate systems forlow beam 1 (outer bulbs) and high
beam 2 (inner bulbs).
Low beam
1. Rotate the cap 1 anticlockwise
and remove it.
2. Push the bulb holder upwards and
withdraw the bulb holder from the
reflector.
3. Detach the bulb from the bulb holder and replace the bulb.

180Vehicle care4. Insert the bulb holder into thereflector.
5. Fit the cap and rotate clockwise.
High beam
1. Rotate the cap 2 anticlockwise
and remove it.
2. Detach the plug from the bulb.
3. Disengage the spring clip and then swivel it backwards.
4. Remove and replace the bulb.
5. Swivel the spring clip forwards and engage.
6. Attach the plug to the bulb.
7. Fit the cap and rotate clockwise.
Sidelight/Daytime running light
1. Rotate the bulb holder anticlockwise and remove it.

Vehicle care181
2. Detach bulb from the bulb holderand replace it.
3. Insert the bulb holder into the reflector and rotate clockwise.
Sidelight/Daytime running light
with LEDs
On another version sidelight and
daytime running lights are designed
as LEDs. In case of defective have
LEDs replaced by a workshop.
Adaptive forward lighting
Headlights have separate systems for low beam and high beam 1 (outer
bulbs) and cornering light 2 (inner
bulbs).
Low beam/High beam
1. Rotate the cap 1 anticlockwise
and remove it.

182Vehicle care2. Rotate the bulb holder clockwiseto disengage. Withdraw the bulb
holder from the reflector.
3. Disengage the bulb holder from the plug connector by pressing
the retaining lug.
4. Replace the bulb and connect bulb holder with the plug
connector.
5. Insert the bulb holder, engaging the two lugs into the reflector and
rotate anticlockwise to secure.
6. Fit the cap and rotate clockwise.
Cornering light
1. Rotate protective cover 2
anticlockwise and remove.
2. Rotate the bulb holder anticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Disengage the bulb holder from the plug connector by pressing
the retaining lugs.
4. Replace the bulb and connect bulb holder with the plug
connector.
5. Insert the bulb holder, engaging the two lugs into the reflector and
rotate clockwise to secure.
6. Fit the cap and rotate clockwise.

Vehicle care183Sidelight/Daytime running lightSidelight and daytime running lights
are designed as LEDs. In case of
failure, have LEDs replaced by a workshop.
Fog lights
The bulbs are accessible from the
underside of the vehicle.
1. Turn the bulb holder anticlockwise
and remove it from the reflector.
2. Disengage the bulb holder from the plug connector by pressing
the retaining lug.
3. Remove and replace the bulb holder with bulb.
4. Attach the plug connector.
5. Insert the bulb holder into the reflector.
6. Turn the bulb holder clockwise and engage.
Front turn signal lights
1. Rotate the bulb holder anticlockwise and remove it.

184Vehicle care
2. Rotate bulb anticlockwise andremove from bulb holder.
3. Replace bulb.
4. Insert the bulb holder into the reflector and rotate clockwise.
Tail lights
1. Release the cover and remove it.
2. Unscrew the two plastic securing nuts from the inside by hand.
3. Carefully withdraw the lightassembly from retaining pins and
remove. Make sure that the cable duct remains in position.
4. Detach the wiring plug from the bulb carrier.

Vehicle care185

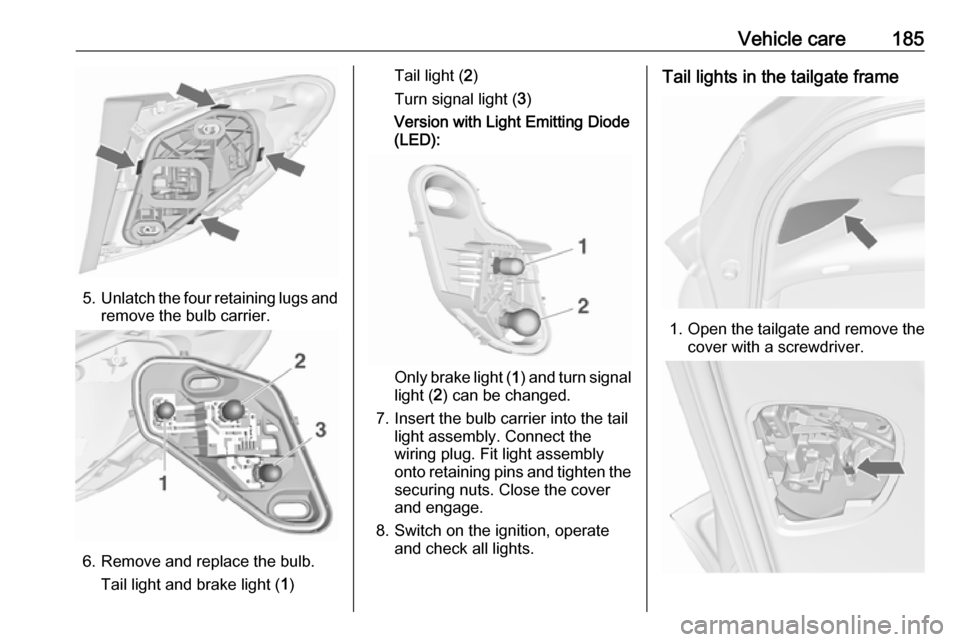

5.Unlatch the four retaining lugs and
remove the bulb carrier.
6. Remove and replace the bulb.
Tail light and brake light ( 1)
Tail light ( 2)
Turn signal light ( 3)
Version with Light Emitting Diode (LED):
Only brake light ( 1) and turn signal
light ( 2) can be changed.
7. Insert the bulb carrier into the tail light assembly. Connect the
wiring plug. Fit light assembly
onto retaining pins and tighten the securing nuts. Close the cover
and engage.
8. Switch on the ignition, operate and check all lights.
Tail lights in the tailgate frame
1. Open the tailgate and remove the
cover with a screwdriver.

186Vehicle care2. Press the retaining lug andremove the bulb carrier
downwards.
3. To replace the reverse light bulb (1 ), remove and replace the bulb.
To replace the tail light/rear fog
light bulb ( 2), push the bulb
slightly into the socket, rotate
anticlockwise, remove and
replace the bulb.
4. Insert the bulb carrier into the retainer.
5. Attach the cover.
6. Switch on the ignition, operate and check all lights.
For replacing the tail light bulb and
reverse light bulb on the right side of
the tailgate frame, proceed in the
same way.
Version with Light Emitting Diode
(LED):
Only the reverse light bulb can be
changed.
1. Open the tailgate and remove the
cover with a screwdriver.
2. Rotate the bulb holder anticlockwise to disengage.
Withdraw the bulb holder.
3. To replace the reverse light bulb, push the bulb slightly into the
socket, rotate anticlockwise,
remove and replace the bulb.
4. Insert bulb holder and turn clockwise.
5. Attach the cover.
