PERIODIC MAINTENANCE AND ADJUSTMENT
6-40
6
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU24361
Front wheel
EAU56350

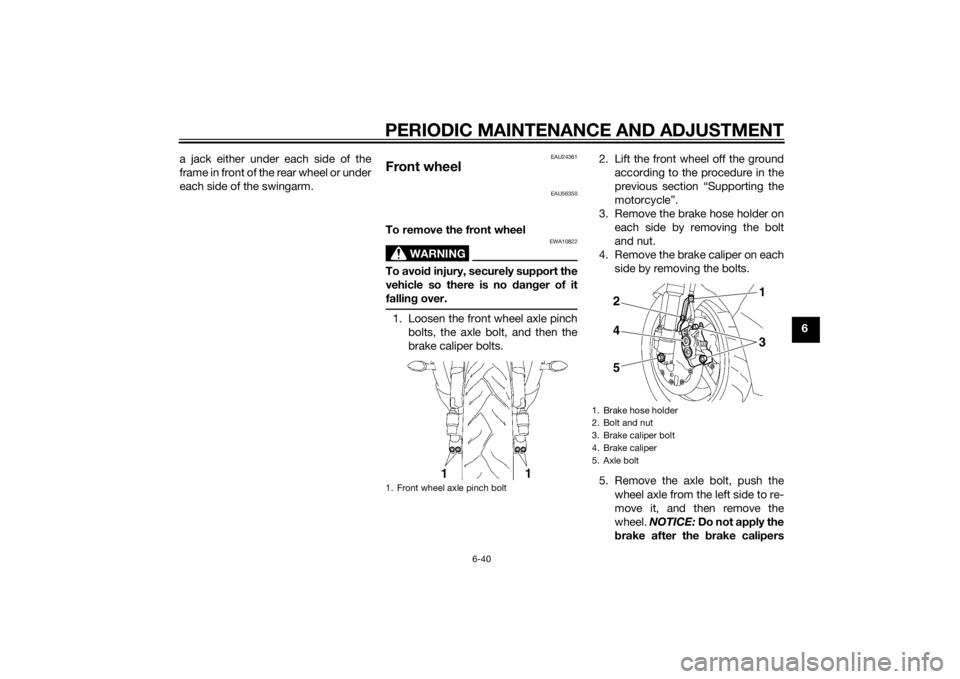

To remove the front wheel
WARNING
EWA10822
To avoi
d injury, securely support the
vehicle so there is no dan ger of it
fallin g over.1. Loosen the front wheel axle pinch
bolts, the axle bolt, and then the
brake caliper bolts. 2. Lift the front wheel off the ground
according to the procedure in the
previous section “Supporting the
motorcycle”.
3. Remove the brake hose holder on each side by removing the bolt
and nut.
4. Remove the brake caliper on each side by removing the bolts.
5. Remove the axle bolt, push the wheel axle from the left side to re-
move it, and then remove the
wheel. NOTICE: Do not apply the
b rake after the brake calipers1. Front wheel axle pinch bolt
1. Brake hose holder
2. Bolt and nut
3. Brake caliper bolt
4. Brake caliper
5. Axle bolt
31
2
4
5
U2CXE1E0.book Page 40 Friday, July 25, 2014 11:05 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-42
6
12. Retighten pinch bolt D to the
specified torque.
13. While applying the front brake, push down hard on the handlebar
several times to check for proper
fork operation.
EAU25081
Rear wheel
EAU56721
To remove the rear wheel
WARNING
EWA10822
To avoi d injury, securely support the
vehicle so there is no dan ger of it
fallin g over.1. Loosen the axle nut.
2. Lift the rear wheel off the ground
according to the procedure on
page 6-39. 3. Remove the axle nut.
4. Fully loosen the locknut on each
side of the swingarm.
5. Turn the drive chain slack adjust- ing bolts in direction (a) to loosen
the drive chain enough so it can
be removed from the rear sprock-
et, and then push the wheel for-
ward.
6. Remove the drive chain from the rear sprocket.
Tightenin g torque:
Wheel axle pinch bolt: 21 Nm (2.1 m·kgf, 15 ft·lbf)
1. Axle nut
2. Brake caliper
3. Brake caliper bracket
1
2
3
1. Drive chain slack adjusting bolt
2. Locknut
(a)
12
U2CXE1E0.book Page 42 Friday, July 25, 2014 11:05 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-44
6
7. Tighten the locknuts to their spec- ified torque.
EAU25872
Trou bleshootin gAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, d o
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot li ghts from water heaters or furnaces. Gasoline or
g
asoline vapors can i gnite or ex-
plo de, causin g severe injury or prop-
erty damag e.
1. Drive chain slack adjusting boltTightenin g torque:
Drive chain slack adjusting bolt: 2.0 Nm (0.20 m·kgf, 1.4 ft·lbf)
Ti ghtenin g torque:
Locknut:
16 Nm (1.6 m·kgf, 12 ft·lbf)
(b)
1
U2CXE1E0.book Page 44 Friday, July 25, 2014 11:05 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-46
6
En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press down on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U2CXE1E0.book Page 46 Friday, July 25, 2014 11:05 AM

MOTORCYCLE CARE AND STORAGE
7-3
7windshield. Before using them, make a
test by polishing an area which does
not affect your visibility.
Cleaning the titanium muffler
This model is equipped with a titanium
muffler, which requires the following
special care.
 Use only a soft, clean cloth or
sponge with mild detergent and
water to clean the titanium muffler.
However, if the muffler cannot be
thoroughly cleaned with mild de-
tergent, alkaline products and a
soft brush may be used.
 Never use compounds or other
special treatments to clean the ti-
tanium muffler, as they will remove
the finish on the outer surface of
the muffler.
 Even the smallest amounts of oil,
such as from oily towels or finger-
prints, will leave stains on the tita-
nium muffler, which can be
removed with a mild detergent. 
Note that the thermally induced
discoloring of the portion of the
exhaust pipe leading into the tita-
nium muffler is normal and cannot
be removed.
After cleaning 1. Dry the motorcycle with a chamois or an absorbing cloth.
2. Immediately dry the drive chain and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine chrome, aluminum and stainless-
steel parts.
4. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean- er to remove any remaining dirt.
6. Touch up minor paint damage caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely before storing or covering it.
WARNING
EWA11132
Contaminants on the brakes or tires
can cause loss of control.  Make sure that there is no oil or
wax on the brakes or tires.
 If necessary, clean the brake
d iscs an d b rake linin gs with a
re gular brake disc cleaner or
acetone, an d wash the tires with
warm water an d a mil d d eter-
g ent. Before ri din g at hi gher
speed s, test the motorcycle’s
b rakin g performance an d cor-
nerin g b ehavior.NOTICE
ECA10801
 Apply spray oil an d wax spar-
in gly an d make sure to wipe off
any excess.
 Never apply oil or wax to any
rubber an d plastic parts, but
treat them with a suitab le care
prod uct.
 Avoi d usin g a brasive polishin g
compoun ds as they will wear
away the paint.
U2CXE1E0.book Page 3 Friday, July 25, 2014 11:05 AM

MOTORCYCLE CARE AND STORAGE7-4
7
TIPConsult a Yamaha dealer for ad-
vice on what products to use.
 Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
EAU26183
Stora geShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the mo-
torcycle.NOTICE
ECA10811
 Storin g the motorcycle in a
poorly ventilated room or cover-
in g it with a tarp, while it is still
wet, will allow water an d humi d-
ity to seep in an d cause rust.
 To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are store d.Lon g-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter. 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then
place the spark plugs on the
cylinder head so that the elec-
trodes are grounded. (This will
limit sparking during the next
step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
U2CXE1E0.book Page 4 Friday, July 25, 2014 11:05 AM

SPECIFICATIONS
8-3
8
Charging system:AC magnetoBattery:Model:
YTZ10S
Voltage, capacity: 12 V, 8.6 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 55.0 W × 2
Tail/brake light:
LED
Front turn signal light: 12 V, 10.0 W × 2
Rear turn signal light: 12 V, 10.0 W × 2
Auxiliary light:
LED
License plate light: 12 V, 5.0 W × 1
Meter lighting: LED
Neutral indicator light:
LED
High beam indicator light: LED
Oil level warning light: LED
Turn signal indicator light:
LED Fuel level warning light:
LED
Coolant temperature warning light: LED
Engine trouble warning light:
LED
Immobilizer system indicator light: LED
Shift timing indicator light: LED
Fuses:Main fuse:50.0 A
Headlight fuse: 15.0 A
Taillight fuse:
7.5 A
Signaling system fuse: 10.0 A
Ignition fuse: 15.0 A
Radiator fan motor fuse:
15.0 A × 2
Fuel injection system fuse: 15.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
U2CXE1E0.book Page 3 Friday, July 25, 2014 11:05 AM

10-1
10
INDEXAAir filter element .................................... 6-19
Auxiliary light......................................... 6-37BBattery .................................................. 6-34
Brake and clutch levers, checking and lubricating .................... 6-31
Brake and shift pedals, checking and lubricating .................... 6-30
Brake fluid, changing ............................ 6-27
Brake fluid level, checking .................... 6-25
Brake lever ............................................ 3-16
Brake lever free play, checking............. 6-24
Brake light switches.............................. 6-24
Brake pedal........................................... 3-16CCables, checking and lubricating ......... 6-29
Care ........................................................ 7-1
Catalytic converters .............................. 3-19
Clutch lever ........................................... 3-15
Clutch lever free play, adjusting ........... 6-23
Coolant ................................................. 6-16
Coolant temperature warning light ......... 3-5
Cowlings and panels, removing and installing......................... 6-8DDimmer switch ...................................... 3-14
Drive chain, cleaning and lubricating .... 6-29
Drive chain slack................................... 6-27EEngine break-in....................................... 5-3
Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ........... 6-13
Engine serial number .............................. 9-1 Engine stop switch ............................... 3-14
Engine trouble warning light ................... 3-7
EXUP system........................................ 3-27
FFront and rear brake pads, checking ... 6-25
Front fork, adjusting ............................. 3-22
Front fork, checking ............................. 6-32
Fuel ....................................................... 3-17
Fuel consumption, tips for reducing ...... 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose and overflow
hose ................................................... 3-19
Fuel tank cap ........................................ 3-17
Fuses, replacing ................................... 6-35HHandlebar switches .............................. 3-14
Hazard switch....................................... 3-15
Headlight bulb, replacing ..................... 6-36
Helmet holding cable ........................... 3-21
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-14IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-28
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-7
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing........ 6-39
Luggage strap holders ......................... 3-27MMain switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4 Maintenance, emission control
system ..................................................6-3
Matte color, caution ................................7-1
Model label .............................................9-1
Multi-function meter unit .........................3-8
NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PParking ....................................................5-4
Part locations ..........................................2-1
Pass switch ...........................................3-14RRear view mirrors ..................................3-22SSafety information ...................................1-1
Seats .....................................................3-20
Shifting ....................................................5-2
Shift pedal .............................................3-15
Shift timing indicator light .......................3-7
Shock absorber assembly, adjusting ....3-24
Sidestand ..............................................3-28
Sidestand, checking and lubricating.....6-31
Spark plugs, checking ..........................6-12
Specifications .........................................8-1
Starting the engine ..................................5-1
Start switch ...........................................3-14
Steering, checking ................................6-33
Storage ...................................................7-4
Supporting the motorcycle ...................6-39
Swingarm pivots, lubricating ................6-32TTail/brake light ......................................6-38
U2CXE1E0.book Page 1 Friday, July 25, 2014 11:05 AM
