2015 YAMAHA XJR 1300 headlight bulb

TABLE OF CONTENTS
Replacing the fuses .......................6-29
Replacing the headlight bulb.........6-30
Replacing the auxiliary light bulb ............................................6-32
Tail/brake light ...............................6-33
Replacing a turn signal light
bulb ............................................6-33
Replacing a license plate light
bulb ............................................6-34
Supporting the motorcycle............6-35
Front wheel....................................6-36
Rear wheel.....................................6-37
Troubleshooting ............................6-39
Troubleshooting chart ...................6-40
MOTORCYCLE CARE AND
STORAGE ..........................................7-1
Matte color caution .........................7-1
Care .................................................7-1
Storage ............................................7-3
SPECIFICATIONS ..............................8-1
CONSUMER INFORMATION ............9-1
Identification numbers .....................9-1
INDEX ...............................................10-1
U2PNE0E0.book Page 2 Tuesday, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
If a fuse is blown, replace it as follows. 1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive dam-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU63180
Replacin g the hea dlig ht bul bThis model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10661
Do not touch the glass part of the
hea dlig ht bul b to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bul b,
an d the b ulb life will b e adversely af-
fected . Thorou ghly clean off any d irt
an d fin gerprints on the head light
b ul b using a cloth moistened with al-
cohol or thinner.1. Remove the headlight unit by re- moving the screws.

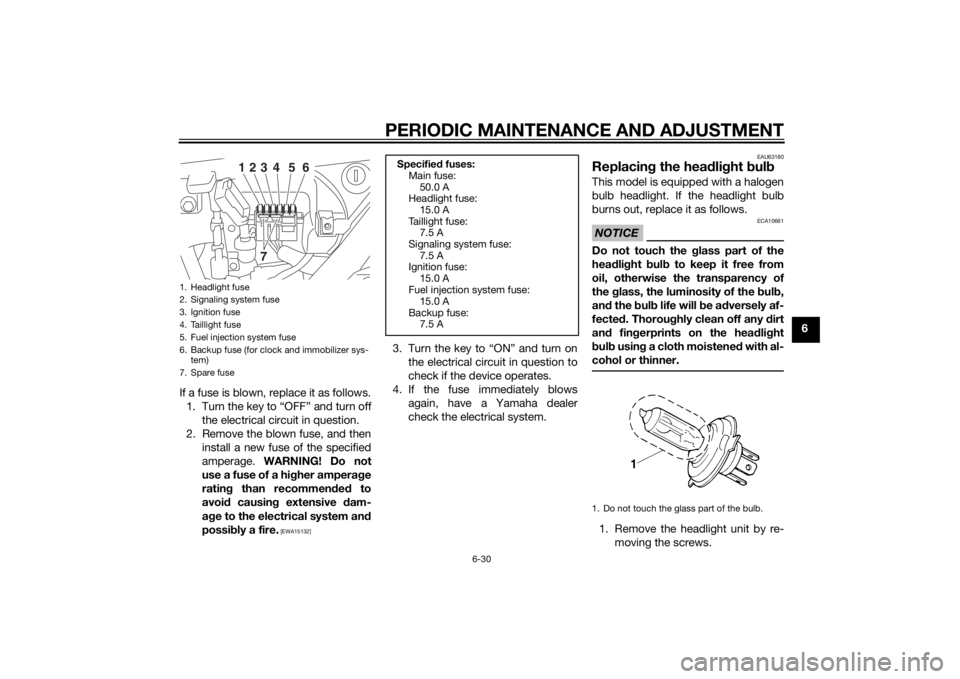

1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Taillight fuse
5. Fuel injection system fuse
6. Backup fuse (for clock and immobilizer sys-tem)
7. Spare fuse
123
4
5
6
7
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse: 7.5 A
Signaling system fuse: 7.5 A
Ignition fuse:
15.0 A
Fuel injection system fuse: 15.0 A
Backup fuse: 7.5 A
1. Do not touch the glass part of the bulb.
U2PNE0E0.book Page 30 Tuesda y, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
62. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Unhook the headlight bulb holder, and then remove the burnt-out
bulb. 4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
5. Install the bulb cover, and then connect the coupler.
TIPWhen installing the headlight bulb cov-
er, make sure the “TOP” mark faces
upwards.
6. Install the headlight unit by install-ing the screws.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
1. Screw
1. Headlight coupler
2. Headlight bulb cover
2
1
1. Headlight bulb holder
1
1. “TOP” mark
1
U2PNE0E0.book Page 31 Tuesda y, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAU65440
Replacing the auxiliary li ght
b ul bIf the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re- moving the screws.
2. Pull up the cover as shown. 3. Remove the auxiliary light bulb
socket (together with the bulb) by
pulling it out.
4. Remove the burnt-out bulb by pushing it in and turning it coun-
terclockwise. 5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with the bulb) by pushing it in.
7. Install the cover in its original posi- tion.
8. Install the headlight unit by install- ing the screws.1. Screw
1. Cover
1. Auxiliary light bulb socket
1
1
U2PNE0E0.book Page 32 Tuesda y, September 16, 2014 4:15 PM

SPECIFICATIONS
8-2
8
5th:1.115 (29/26)
Chassis:Frame type:
Double cradle
Caster angle: 24.70 °
Trail: 92 mm (3.6 in)Front tire:Type:Tubeless
Size: 120/70 ZR17M/C (58W)
Manufacturer/model:
DUNLOP/D252F LRear tire:Type: Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model: DUNLOP/D252 LLoa din g:Maximum load:
210 kg (463 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):Loading condition:
0–90 kg (0–198 lb)
Front:250 kPa (2.50 kgf/cm², 36 psi) Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Loading condition: 90–210 kg (198–463 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding: Front:250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Front wheel:Wheel type:Cast wheel
Rim size: 17M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size: 17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation: Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type:
Single disc brake Operation:
Right foot operation
Specified brake fluid: DOT 4
Front suspension:Type:Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
130 mm (5.1 in)Rear suspension:Type:Swingarm
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 110 mm (4.3 in)Electrical system:Ignition system:
TCI
Charging system: AC generatorBattery:Model:
YTZ14S
Voltage, capacity: 12 V, 11.2 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 60.0 W/55.0 W × 1
U2PNE0E0.book Page 2 Tuesday, September 16, 2014 4:15 PM

10-1
10
INDEX
AAir filter element and check hose, replacing and cleaning ....................... 6-13
Auxiliary light bulb, replacing ............... 6-32BBattery .................................................. 6-28
Brake and clutch fluid levels, checking ............................................. 6-20
Brake and clutch fluids , changing ........ 6-21
Brake and clutch levers, checking and lubricating........................................... 6-25
Brake and shift pedals, checking and
lubricating........................................... 6-24
Brake lever............................................ 3-11
Brake lever free play, checking ............ 6-18
Brake light switches ............................. 6-19
Brake pedal .......................................... 3-12CCables, checking and lubricating ......... 6-24
Care ........................................................ 7-1
Catalytic converters.............................. 3-15
Clutch lever.................................. 3-10, 6-18DDimmer switch........................................ 3-9
Drive chain, cleaning and lubricating ... 6-23
Drive chain slack .................................. 6-22EEngine break-in ...................................... 5-3
Engine oil and oil filter element............. 6-10
Engine serial number .............................. 9-1
Engine stop switch ............................... 3-10
Engine trouble warning light ................... 3-4
EXUP system ........................................ 3-21
FFront and rear brake pads, checking ... 6-19
Front fork, adjusting ............................. 3-16
Front fork, checking ............................. 6-26
Fuel ...................................................... 3-13
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather hose and overflow
hose ................................................... 3-14
Fuel tank cap........................................ 3-12
Fuses, replacing ................................... 6-29HHandlebar switches ............................... 3-9
Hazard switch ...................................... 3-10
Headlight bulb, replacing ..................... 6-30
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-10IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-22
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-5
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing ....... 6-34
Luggage strap holders ......................... 3-21MMain switch/steering lock ...................... 3-2
Maintenance and lubrication, periodic... 6-4
Maintenance, emission control system ................................................. 6-3
Matte color, caution ............................... 7-1
Model label............................................. 9-1
Multi-function display............................. 3-6
NNeutral indicator light ............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch............................................. 3-9SSafety information................................... 1-1
Seat....................................................... 3-15
Shifting.................................................... 5-2
Shift pedal............................................. 3-11
Shock absorber assemblies, adjusting ............................................. 3-18
Sidestand.............................................. 3-21
Sidestand, checking and lubricating .... 6-26
Spark plugs, checking ............................ 6-9
Specifications ......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine ................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Supporting the motorcycle ................... 6-35
Swingarm pivots, lubricating ................ 6-26TTachometer............................................. 3-5
Tail/brake light ...................................... 6-33
Throttle grip and cable, checking and lubricating ........................................... 6-24
Throttle grip free play, checking ........... 6-15
Tires ...................................................... 6-15
