2015 YAMAHA VMAX clock

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6Fuse
box 2
If a fuse is blown, replace it as follows. 1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to avoi
d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
1. Ignition fuse
2. ABS control unit fuse
3. Headlight fuse
4. Backup fuse (for clock and immobilizer sys-tem)
5. Electronic throttle valve fuse
6. Radiator fan motor fuse
7. Spare fuse
8. Signaling system fuse
9. Parking lighting fuse
10.Sub radiator fan motor fuse
1 23456
7
8
10
7
9
Specifie
d fuses:
Main fuse: 50.0 A
Ignition fuse:
20.0 A
Parking lighting fuse: 7.5 A
Signaling system fuse: 7.5 A
Headlight fuse:
15.0 A
Radiator fan motor fuse: 20.0 A
Sub radiator fan motor fuse: 7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse: 7.5 A
U2CEE0E0.book Page 35 Wednesday, August 27, 2014 11:11 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
65. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight unit by install- ing the bolts.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
EAU46405
Replacin g the auxiliary li ght
b ul bIf the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See page 6-36.)
2. Remove the auxiliary light bulb socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pulling it out of the socket. 4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the headlight unit.1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
1
U2CEE0E0.book Page 37 Wednesday, August 27, 2014 11:11 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6
EAU24182
Tail/brake li ghtThis model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24205
Replacin g a turn sig nal light
b ul b1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by pushing it in and turning it coun-
terclockwise. 3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the screw. NOTICE: Do not over-
ti ghten the screw, otherwise the
lens may break.
[ECA11192]
1. Screw
2. Turn signal light lens
1
2
1. Turn signal light bulb
1
U2CEE0E0.book Page 38 Wednesday, August 27, 2014 11:11 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
6
EAU50453

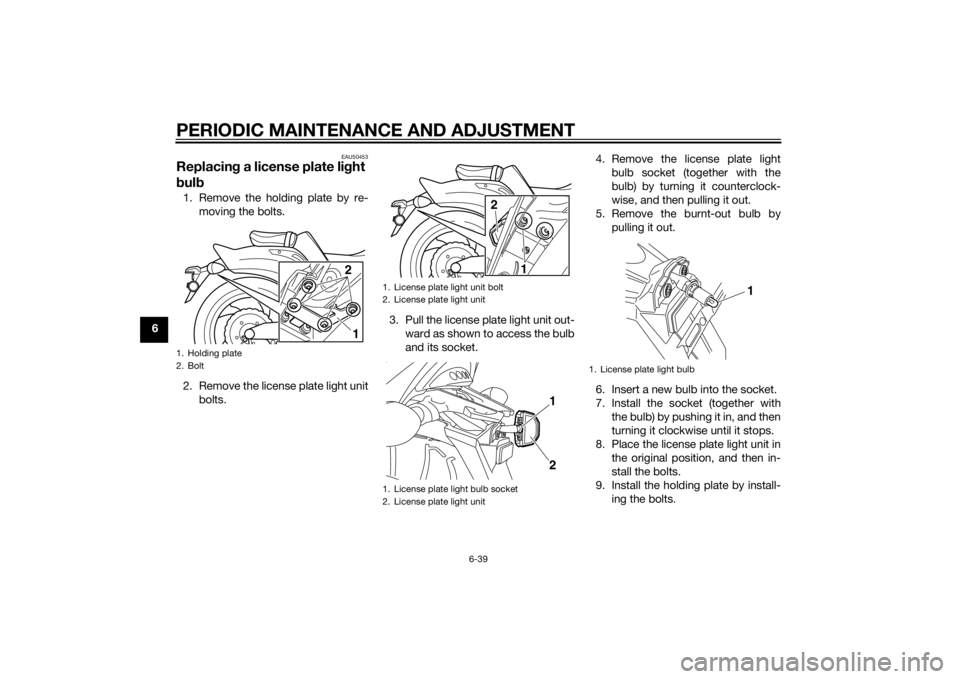

Replacing a license plate li ght
b ul b1. Remove the holding plate by re-
moving the bolts.
2. Remove the license plate light unit bolts. 3. Pull the license plate light unit out-
ward as shown to access the bulb
and its socket. 4. Remove the license plate light
bulb socket (together with the
bulb) by turning it counterclock-
wise, and then pulling it out.
5. Remove the burnt-out bulb by pulling it out.
6. Insert a new bulb into the socket.
7. Install the socket (together with the bulb) by pushing it in, and then
turning it clockwise until it stops.
8. Place the license plate light unit in the original position, and then in-
stall the bolts.
9. Install the holding plate by install- ing the bolts.1. Holding plate
2. Bolt
12
1. License plate light unit bolt
2. License plate light unit
1. License plate light bulb socket
2. License plate light unit
1
2
12
1. License plate light bulb
1
U2CEE0E0.book Page 39 Wednesday, August 27, 2014 11:11 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-43
6En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press d own on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
