Periodic maintenance an d a djustment
6-1
6
EAU17246
Periodic inspection, adjustment, and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. Safety is an obligation of the
vehicle owner/operator. The most im-
portant points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.
WARNING
EWA15123
Turn off the en gine when performin g
maintenance unless otherwise
specified .
 A runnin g en gine has movin g
parts that can catch on b ody
parts or clothin g an d electrical
parts that can cause shocks or
fires.
 Runnin g the eng ine while ser-
vicin g can lead to eye injury,
b urns, fire, or car bon monoxi de
poisonin g – possi bly lea din g to
d eath. See pag e 1-3 for more in-
formation a bout car bon monox-
i d e.
WARNING
EWA15461
Brake discs, calipers, drums, an d
linin gs can b ecome very hot during
use. To avoi d possi ble burns, let
b rake components cool before
touching them.
EAU39692
Owner’s tool kitThe owner’s tool kit is located on the
bottom of the seat. (See page 3-15.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.1. Owner’s tool kit
1
U2DSE0E0.book Page 1 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-9
6
4. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
To check the spark plu g
1. Check that the porcelain insulator around the center electrode of the
spark plug is a medium-to-light
tan (the ideal color when the vehi-
cle is ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrodeerosion and excessive carbon or
other deposits, and replace it if
necessary.
3. Measure the spark plug gap with a wire thickness gauge and, if nec-
essary, adjust the gap to specifi-
cation. To install the spark plu
g
1. Clean the surface of the spark plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.3. Install the spark plug cap.TIPInstall the spark plug cap so that it is
positioned as shown in the illustration
and the spark plug lead does not con-
tact any surrounding parts.
1. Spark plug wrench
1
Specified spark plu g:
NGK/CPR8EA-9
1. Spark plug gap
Spark plu g g ap:
0.8–0.9 mm (0.031–0.035 in)
Ti ghtenin g torque:
Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U2DSE0E0.book Page 9 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-11
6
To chan
ge the en gine oil an d clean
the oil strainer 1. Start the engine, warm it up for several minutes, and then turn it
off.
2. Place an oil pan under the engine to collect the used oil.
3. Remove the engine oil filler cap and engine oil drain bolts A and B
to drain the oil from the crankcase.
NOTICE: When removin g the
en gine oil drain bolt B, the O-
rin g, compression sprin g, an d
oil strainer will fall out. Take
care not to lose these parts.
[ECAT1022]
4. Clean the engine oil strainer with solvent, and then check it for
damage and replace it if neces-
sary.
5. Install the engine oil strainer, com- pression spring, new O-ring and
engine oil drain bolt B.TIPMake sure that the O-ring is properly
seated.
6. Install engine oil drain bolt A andits new gasket, and then tighten
both drain bolts to their specified
torques.
7. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11621
In or der to prevent clutch slip-
pa ge (since the en gine oil also
lu bricates the clutch), do not
1. Engine oil drain bolt A
2. Gasket
3. Oil strainer
4. Compression spring
5. O-ring
6. Engine oil drain bolt B
1
3456
2
Ti ghtenin g torque:
Engine oil drain bolt A: 20 Nm (2.0 m·kgf, 14 ft·lbf)
Engine oil drain bolt B:
32 Nm (3.2 m·kgf, 23 ft·lbf)
Recommen ded en gine oil:
See page 8-1.
Oil quantity: 0.90 L (0.95 US qt, 0.79 Imp.qt)
U2DSE0E0.book Page 11 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-13
6
6. Install the final transmission oil
drain bolt and its new gasket, and
then tighten the bolt to the speci-
fied torque.
7. Refill with the specified amount of the recommended final transmis-
sion oil. WARNING! Make sure
that no forei gn material enters
the final transmission case.
Make sure that no oil gets on
the tire or wheel.
[EWA11312]
8. Install the final transmission oil fill- er cap and its new O-ring, and
then tighten the oil filler cap.
9. Check the final transmission case for oil leakage. If oil is leaking,
check for the cause.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUN1090
To check the coolant level1. Place the vehicle on the center- stand.TIPThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level through
the check window.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below theminimum level mark, remove the
right floorboard mat by pulling it
up.
Tightenin g torque:
Final transmission oil drain bolt: 20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommen ded final transmission
oil: See page 8-1.
Oil quantity: 0.15 L (0.16 US qt, 0.13 Imp.qt)
1. Coolant level check window
2. Maximum level mark
3. Minimum level mark
1. Floorboard mat
1
23
1
U2DSE0E0.book Page 13 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-15
6
6. Remove the coolant drain screw
and its O-ring to drain the cooling
system.
7. Remove the coolant drain bolt and its gasket to drain the cooling sys-
tem. 8. Remove the coolant reservoir by
removing the bolt. 9. Remove the coolant reservoir cap,
and then turn the coolant reservoir
upside down to empty it.
10. After the coolant is completely drained, thoroughly flush the cool-
ing system with clean tap water.
11. Install the coolant reservoir by in- stalling the bolt.
12. Install the coolant drain bolt and its new gasket, and then tighten
the bolt to the specified torque.
13. Install the coolant drain screw and its new O-ring.
14. Pour the recommended coolant into the reservoir to the maximum
level mark, and then install the
coolant reservoir cap.
15. Pour the recommended coolant into the radiator until it is full.

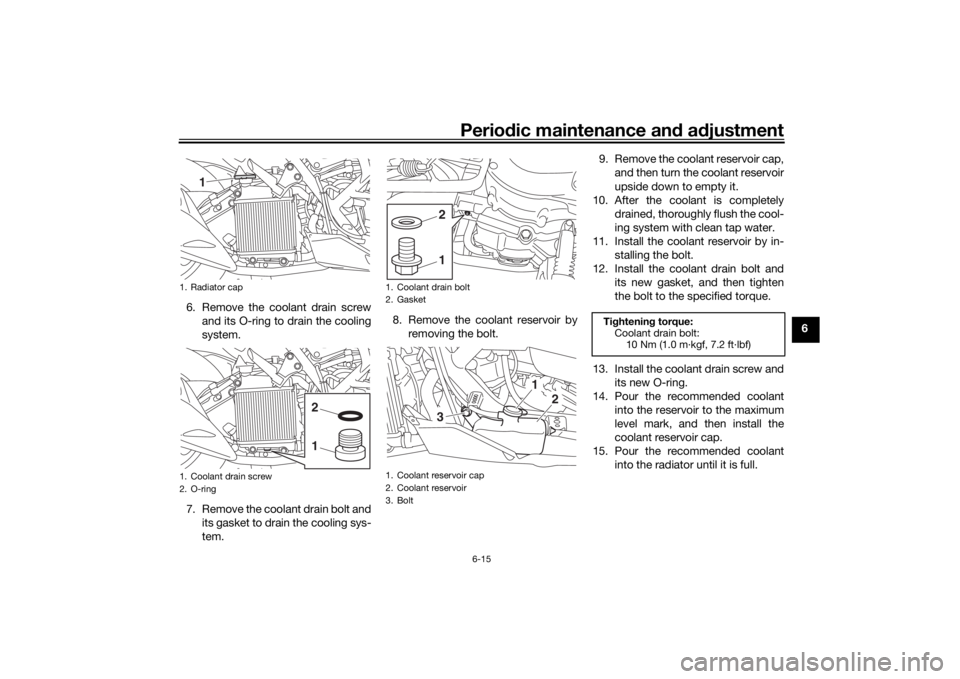

1. Radiator cap
1. Coolant drain screw
2. O-ring
1
12
1. Coolant drain bolt
2. Gasket
1. Coolant reservoir cap
2. Coolant reservoir
3. Bolt
12
1
2
3
Tightenin g torque:
Coolant drain bolt: 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U2DSE0E0.book Page 15 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-34
6 12. Install the grab bar by installing the
bolts, and then tightening them to
the specified torque.
13. Close the seat.
EAU43054
Replacin g a front turn si gnal
li g ht bul b1. Place the vehicle on the center-
stand.
2. Remove the turn signal light bulb socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pulling it out. 4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
Tightenin g torque:
Grab bar bolt: 17 Nm (1.7 m·kgf, 12 ft·lbf)
1. Turn signal light bulb socket
1
1. Turn signal light bulb
1
U2DSE0E0.book Page 34 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-35
6
EAU67320
Replacin g a rear turn si gnal
lig ht bul b1. Open the seat. (See page 3-15.)
2. Remove the grab bar by removing
the bolts.
3. Remove the taillight cover by re- moving the screws. 4. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
5. Remove the burnt-out bulb by pulling it out. 6. Insert a new bulb into the socket.
7. Install the socket (together with
the bulb) by turning it clockwise.
8. Install the taillight cover by install- ing the screws.
9. Install the grab bar by installing the bolts, and then tightening them to
the specified torque.1. Grab bar
2. Bolt1
2
1. Taillight cover
2. Screw
1. Turn signal light bulb socket
1
2
1
1. Turn signal light bulb
1
U2DSE0E0.book Page 35 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-36
6 10. Close the seat.
EAU25882
Trou
bleshootin gAlthough Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, do
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot lig hts from water heaters or furnaces. Gasoline or
g
asoline vapors can i gnite or ex-
plod e, causin g severe injury or prop-
erty damag e.
Tightenin g torque:
Grab bar bolt:
17 Nm (1.7 m·kgf, 12 ft·lbf)
U2DSE0E0.book Page 36 Thursday, March 19, 2015 10:34 AM
