Instrument and control functions
3-4
3 b
le wheel lock during emer gency
b rakin g. Have a Yamaha d ealer
check the brake system an d electri-
cal circuits as soon as possi ble.
TIPThe ABS warning light may come on
while accelerating the engine with the
vehicle on its centerstand, but this
does not indicate a malfunction.
EAUN0981
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.The multi-function meter unit is
equipped with the following: 
a speedometer
 a clock
 a fuel meter
 an instantaneous fuel consump-
tion meter
 a multi-function display
TIPBe sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.
 For the UK: To switch the speed-
ometer between km/h and MPH,
press the “SELECT” button for
one second when the multi-func-
tion meter is in odometer mode,
tripmeter 1, or tripmeter 2 mode .Speed ometer
The speedometer shows the vehicle’s
traveling speed.
1. Fuel meter
2. Clock
3. Speedometer
4. Instantaneous fuel consumption meter
5. “RESET” button
6. Multi-function display
7. “SELECT” button
2
3
1
4
6
7
5
U2DSE0E0.book Page 4 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-5
3
Clock
The clock uses a 12-hour time system.
To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
3. When the hour digits start flash- ing, push the “RESET” button to
set the hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it to start the clock. Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment and
fuel level warning indicator “ ” start
flashing, refuel as soon as possible.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, the fol-
lowing cycle is repeated until the
malfunction is corrected: fuel level seg-
ments and fuel level warning
indicator “ ” flash eight times, then go off for approximately 3 seconds. If this
occurs, have a Yamaha dealer check
the electrical circuit.
Instantaneous fuel consumption
meter
This meter shows the instantaneous
fuel consumption.
Depending on the display setting se-
lected for the instantaneous fuel con-
sumption mode “F/ECO”, the
displayed segments increase or de-
crease.
 km/L and MPG (for the UK): The
number of segments displayed in-
creases the more efficiently the
vehicle is being operated.
1. Clock
1
1. Fuel meter
2. Fuel level warning indicator “ ”
1
2
1. Instantaneous fuel consumption meter
1
U2DSE0E0.book Page 5 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-12
3
EAU66690
Fuel tank capTo remove the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be
released and the fuel tank cap can be
removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the tank opening with the key inserted
in the lock and with the “ ” mark
facing forward. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly installed and
locked.
WARNING
EWA10132
Make sure that the fuel tank cap is
properly installe d before ri din g.
Leakin g fuel is a fire hazar d.
1. Front wheel sensor
2. Front wheel sensor rotor
1. Rear wheel sensor
2. Rear wheel sensor rotor
2
1
1
2
1. Fuel tank cap lock cover
2. Lock.
3. Unlock.
1 2
3
1. “ ” mark
1
U2DSE0E0.book Page 12 Thursday, March 19, 2015 10:34 AM

Instrument and control functions
3-15
3
NOTICE
ECA10702
Use only unlea ded g asoline. The use
of lead ed g asoline will cause unre-
paira ble damag e to the catalytic
converter.
EAU60620
SeatTo open the seat 1. Place the vehicle on the center- stand.
2. Insert the key into the main switch, and then turn it counterclockwise
to “SEAT OPEN”.TIPDo not push inward when turning the
key.3. Fold the seat up.
To close the seat 1. Fold the seat down, and then push it down to lock it in place. 2. Remove the key.
TIPMake sure that the seat is properly se-
cured before riding.
1. Open.
1
U2DSE0E0.book Page 15 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-31
6
EAU67290
Replacin g an auxiliary li ght
b ul bThis model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the windshield by remov- ing the screws.
2. Remove the headlight cover by re- moving the bolts. 3. Remove the auxiliary light bulb
socket (together with the bulb) by
turning the socket counterclock-
wise.
4. Remove the burnt-out bulb by pulling it out. 5. Insert a new bulb into the socket.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the headlight cover by in- stalling the bolts.
8. Install the windshield by installing the screws.1. Windshield
2. Screw
2
21
1. Headlight cover
2. Bolt
1. Auxiliary light bulb socket
2
1
1
1. Auxiliary light bulb
1
U2DSE0E0.book Page 31 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-33
6
5. Pull the left and right side covers slightly outward and pull the tail-
light unit rearward. 6. Remove the taillight bulb socket
(together with the bulb) by turning
it counterclockwise.
7. Remove the burnt-out bulb by pulling it out. 8. Insert a new bulb into the socket.
9. Install the socket (together with
the bulb) by turning it clockwise.
10. Place the taillight unit in the origi- nal position, and then install the
screws and quick fasteners.
11. Install the taillight cover by install- ing the screws.
1. Screw
2. Quick fastener
1. Screw
2. Quick fastener
2 1
1
2
1. Taillight unit
2. Side cover
1. Taillight bulb socket
1
2
1
1. Taillight bulb
1
U2DSE0E0.book Page 33 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-34
6 12. Install the grab bar by installing the
bolts, and then tightening them to
the specified torque.
13. Close the seat.
EAU43054
Replacin g a front turn si gnal
li g ht bul b1. Place the vehicle on the center-
stand.
2. Remove the turn signal light bulb socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pulling it out. 4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
Tightenin g torque:
Grab bar bolt: 17 Nm (1.7 m·kgf, 12 ft·lbf)
1. Turn signal light bulb socket
1
1. Turn signal light bulb
1
U2DSE0E0.book Page 34 Thursday, March 19, 2015 10:34 AM

Periodic maintenance an d a djustment
6-35
6
EAU67320

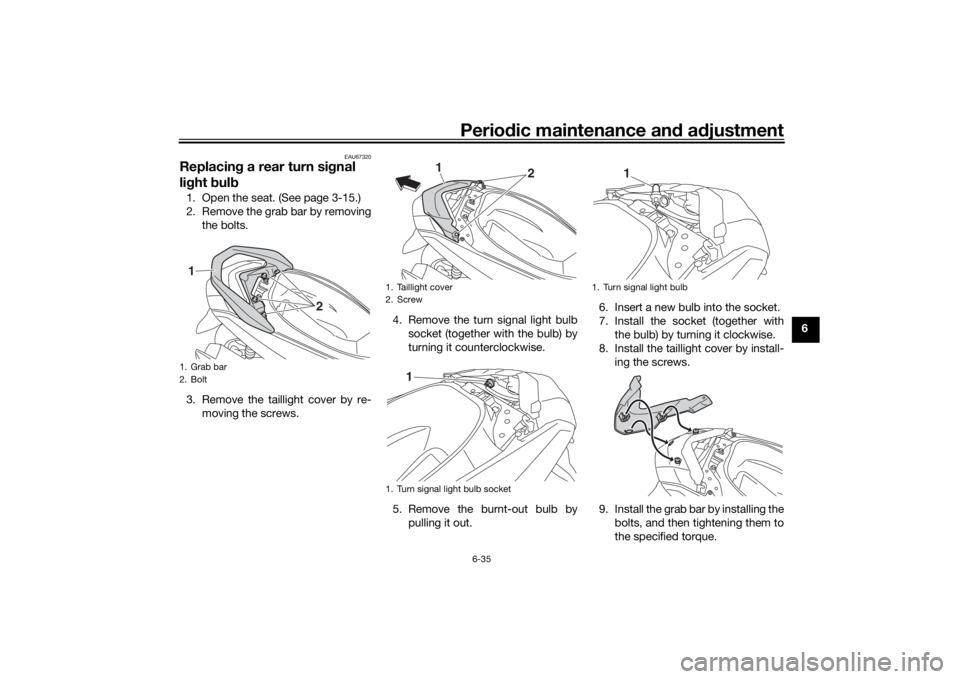

Replacin g a rear turn si gnal
lig ht bul b1. Open the seat. (See page 3-15.)
2. Remove the grab bar by removing
the bolts.
3. Remove the taillight cover by re- moving the screws. 4. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
5. Remove the burnt-out bulb by pulling it out. 6. Insert a new bulb into the socket.
7. Install the socket (together with
the bulb) by turning it clockwise.
8. Install the taillight cover by install- ing the screws.
9. Install the grab bar by installing the bolts, and then tightening them to
the specified torque.1. Grab bar
2. Bolt1
2
1. Taillight cover
2. Screw
1. Turn signal light bulb socket
1
2
1
1. Turn signal light bulb
1
