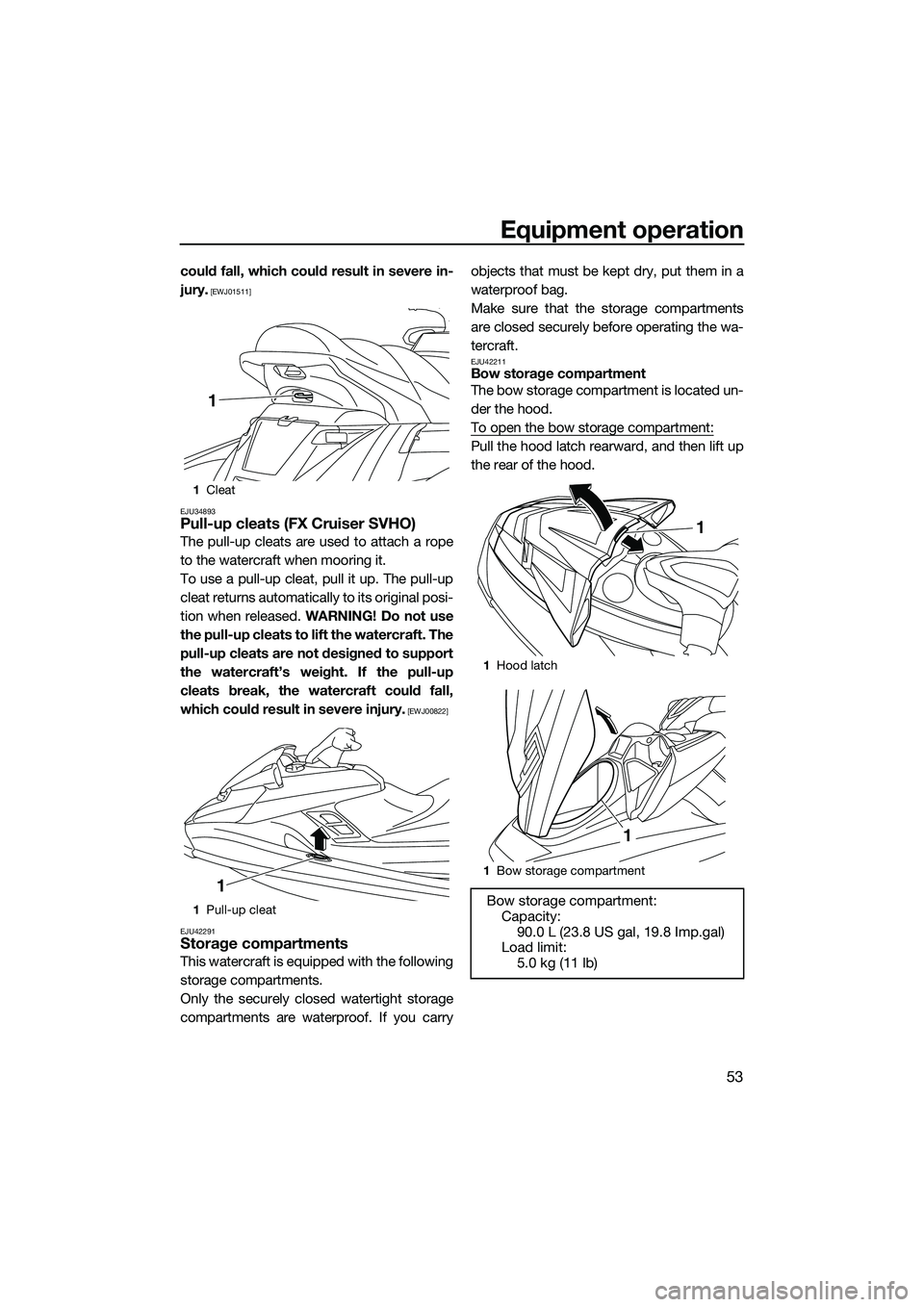

Equipment operation
53
could fall, which could result in severe in-
jury.
[EWJ01511]
EJU34893
Pull-up cleats (FX Cruiser SVHO)
The pull-up cleats are used to attach a rope
to the watercraft when mooring it.
To use a pull-up cleat, pull it up. The pull-up
cleat returns automatically to its original posi-
tion when released. WARNING! Do not use
the pull-up cleats to lift the watercraft. The
pull-up cleats are not designed to support
the watercraft’s weight. If the pull-up
cleats break, the watercraft could fall,
which could result in severe injury.
[EWJ00822]
EJU42291
Storage compartments
This watercraft is equipped with the following
storage compartments.
Only the securely closed watertight storage
compartments are waterproof. If you carry objects that must be kept dry, put them in a
waterproof bag.
Make sure that the storage compartments
are closed securely before operating the wa-
tercraft.
EJU42211Bow storage compartment
The bow storage compartment is located un-
der the hood.
To open the bow storage compartment:
Pull the hood latch rearward, and then lift up
the rear of the hood.
1
Cleat
1 Pull-up cleat
1
1
1Hood latch
1 Bow storage compartment
Bow storage compartment:
Capacity: 90.0 L (23.8 US gal, 19.8 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
UF3J71E0.book Page 53 Friday, June 27, 2014 1:50 PM

Equipment operation
54
To close the bow storage compartment:
Push the rear of the hood down to securely
lock it in place.
To drain water from the bow storage com-
partment:
(1) Remove the drain plug on the bottom ofthe storage compartment to drain the
water into the engine compartment.
(2) Securely install the drain plug in its origi- nal position.
EJU35164Glove compartment
The glove compartment is located in front of
the seat. To open the glove compartment:
Turn the glove compartment knob 90° to the
left or right, and then lift up the lid.
1
Drain plug
1
1Glove compartment knob
1 Glove compartment
Glove compartment:
Capacity: 7.0 L (1.8 US gal, 1.5 Imp.gal)
Load limit: 1.0 kg (2 lb)
1
1
UF3J71E0.book Page 54 Friday, June 27, 2014 1:50 PM

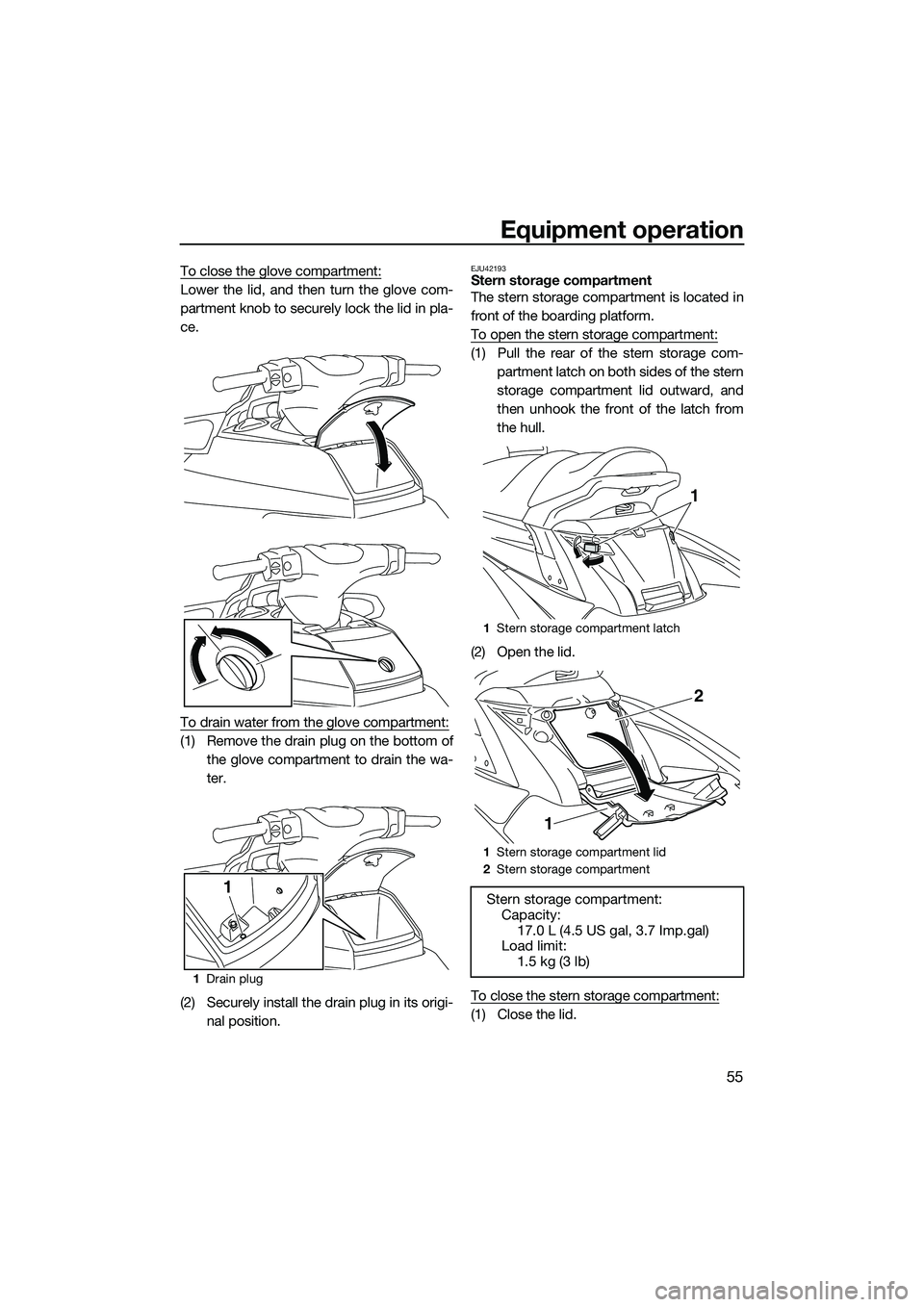

Equipment operation
55
To close the glove compartment:
Lower the lid, and then turn the glove com-
partment knob to securely lock the lid in pla-
ce.
To drain water from the glove compartment:
(1) Remove the drain plug on the bottom ofthe glove compartment to drain the wa-
ter.
(2) Securely install the drain plug in its origi- nal position.
EJU42193Stern storage compartment
The stern storage compartment is located in
front of the boarding platform.
To open the stern storage compartment:
(1) Pull the rear of the stern storage com-partment latch on both sides of the stern
storage compartment lid outward, and
then unhook the front of the latch from
the hull.
(2) Open the lid.
To close the stern storage compartment:
(1) Close the lid.
1 Drain plug
1
1Stern storage compartment latch
1 Stern storage compartment lid
2 Stern storage compartment
Stern storage compartment:
Capacity:
17.0 L (4.5 US gal, 3.7 Imp.gal)
Load limit: 1.5 kg (3 lb)
1
1
2
UF3J71E0.book Page 55 Friday, June 27, 2014 1:50 PM

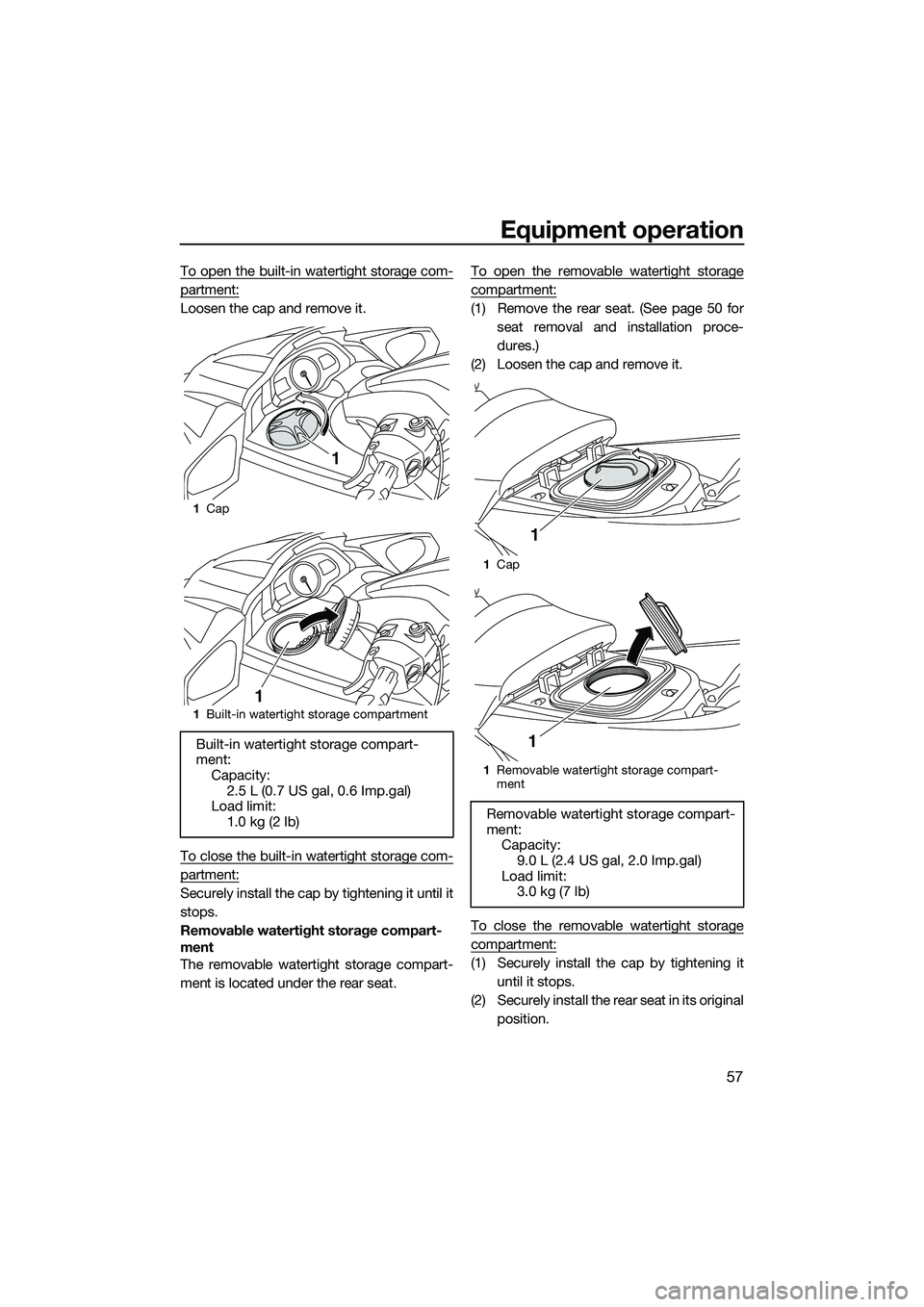

Equipment operation
57
To open the built-in watertight storage com-
partment:
Loosen the cap and remove it.
To close the built-in watertight storage com-
partment:
Securely install the cap by tightening it until it
stops.
Removable watertight storage compart-
ment
The removable watertight storage compart-
ment is located under the rear seat.To open the removable watertight storage
compartment:
(1) Remove the rear seat. (See page 50 for
seat removal and installation proce-
dures.)
(2) Loosen the cap and remove it.
To close the removable watertight storage
compartment:
(1) Securely install the cap by tightening it until it stops.
(2) Securely install the rear seat in its original position.
1Cap
1 Built-in watertight storage compartment
Built-in watertight storage compart-
ment:
Capacity:
2.5 L (0.7 US gal, 0.6 Imp.gal)
Load limit: 1.0 kg (2 lb)
1
1
1Cap
1 Removable watertight storage compart-
ment
Removable watertight storage compart-
ment:
Capacity:
9.0 L (2.4 US gal, 2.0 Imp.gal)
Load limit: 3.0 kg (7 lb)
1
1
UF3J71E0.book Page 57 Friday, June 27, 2014 1:50 PM

Specifications
99
EJU34543
Specifications
Watercraft capacity:
Maximum people on board:3 person
Maximum load capacity: 240 kg (530 lb)
Dimensions:
Length:
3560 mm (140.2 in)
Width: 1230 mm (48.4 in)
Height: 1230 mm (48.4 in)
Dry weight: FX SVHO 378 kg (833 lb)
FX Cruiser SVHO 379 kg (836 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):183.9 kW@7500 r/min
Maximum fuel consumption:
77.7 L/h (20.5 US gal/h, 17.1 Imp.gal/h)
Cruising range at full throttle: 0.90 hour
Trolling speed: 1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders: 4
Engine displacement:
1812 cm³
Bore × stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio: 8.5 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold): 0.36–0.45 mm (0.0142–0.0177 in)
Lubrication system: Wet sump
Cooling system:
Water
Starting system: Electric Ignition system:
T.C.I.
Spark plug: LFR7A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity: 12 V, 19 Ah
Charging system: Flywheel magneto
Drive unit:
Propulsion system:Jet pump
Jet pump type: Axial flow, single stage
Impeller rotation: Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle: -6, -3, 0, 3, 6 °
Fuel and oil:
Recommended fuel:
Premium unleaded gasoline
Minimum octane rating (PON): 91
Minimum octane rating (RON): 95
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API: API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity: 70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.6 L (3.81 US qt, 3.17 Imp.qt)
Engine oil quantity without oil filter replacement: 3.5 L (3.70 US qt, 3.08 Imp.qt)
Engine oil total quantity: 5.3 L (5.60 US qt, 4.66 Imp.qt)
