Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number............................................ 1
Craft Identification Number (CIN) ....... 1
Engine serial number.......................... 1
Manufactured date label .................... 2
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 4
Warning labels.................................... 5
Other labels ........................................ 9
Safety information ........................... 11
Limitations on who may operate
the watercraft ............................. 11
Cruising limitations ........................ 12
Operation requirements ................ 13
Recommended equipment ........... 15
Hazard information........................ 16
Watercraft characteristics ............. 16
Wakeboarding and water-skiing ... 18
Safe boating rules ......................... 19
Enjoy your watercraft
responsibly ................................. 20
Description....................................... 21
Watercraft glossary ....................... 21
Location of main components ...... 22
Control function operation ............. 26
Watercraft control functions ......... 26
Remote control transmitter .............. 26
Yamaha Security System ................. 27
Engine stop switch .......................... 28
Engine shut-off switch .................... 28
Start switch ..................................... 28
Throttle lever .................................... 29
RiDE lever ......................................... 29
Steering system ............................... 29
Adjustable tilt steering system ......... 30
Cooling water pilot outlet ................. 31
Water separator................................ 31
Watercraft operation ...................... 32
Watercraft operation functions ..... 32
Shift system...................................... 32
Electric trim system .......................... 34
Watercraft operation modes ......... 36
Low RPM Mode ............................... 36
No-wake mode ................................. 37
Cruise assist ..................................... 38
Instrument operation ...................... 40
Multifunction information center ... 40
Analog speedometer/tachometer..... 40
Information display ........................... 41
Multifunction display ........................ 45
Equipment operation ...................... 49
Equipment..................................... 49
Seats ................................................ 49
Handgrip........................................... 50
Reboarding grip................................ 50
Reboarding step ............................... 50
Bow eye............................................ 51
Stern eyes ........................................ 51
Cleat ................................................. 51
Pull-up cleats (FX Cruiser HO).......... 52
Storage compartments .................... 52
Fire extinguisher holder and cover ... 57
Operation and handling
requirements ................................... 58
Fuel requirements ......................... 58
Fuel................................................... 58
Engine oil requirements ................ 60
Engine oil .......................................... 60
Draining the bilge water ................ 62
Draining the bilge water on land....... 62
Draining the bilge water on water .... 62
UF2T74E0.book Page 1 Wednesday, July 2, 2014 11:17 AM

Table of contents
Transporting on a trailer ................ 63
First-time operation ........................ 64
Engine break-in ............................. 64
Pre-operation checks ..................... 65
Pre-operation checklist .................... 65
Pre-operation check points........... 67
Pre-launch checks ........................... 67
Post-launch checks ......................... 73
Operation ......................................... 76
Operating your watercraft ............. 76
Getting to know your watercraft ...... 76
Learning to operate your
watercraft ...................................... 76
Riding position ................................. 77
Launching the watercraft ................. 77
Starting the engine on water ............ 77
Stopping the engine ......................... 78
Leaving the watercraft...................... 78
Operating the watercraft .................. 78
Turning the watercraft ...................... 79
Stopping the watercraft ................... 80
Operating the watercraft in reverse
or neutral....................................... 81
Boarding the watercraft ................... 82
Starting off........................................ 84
Capsized watercraft ......................... 85
Beaching and docking the
watercraft ...................................... 86
Operating in weeded areas .............. 86
After removing the watercraft from
the water ....................................... 86
Care and storage............................. 88
Post-operation care ...................... 88
Flushing the cooling water
passages....................................... 88
Cleaning the watercraft .................... 89
Battery care ...................................... 89
Long-term storage ........................ 92
Cleaning ........................................... 92
Lubrication ....................................... 92Rustproofing ..................................... 92
Maintenance .................................... 93
Maintenance ................................. 93
Tool kit.............................................. 93
Removing and installing the engine
cover ............................................. 93
Periodic maintenance chart ............. 95
Engine oil and oil filter ...................... 97
Specifications .................................. 98
Specifications ............................... 98
Trouble recovery ............................. 99
Troubleshooting ............................ 99
Troubleshooting chart ...................... 99
Emergency procedures .............. 102
Cleaning the jet intake and
impeller ....................................... 102
Raising the reverse gate................. 103
Jumping the battery ....................... 103
Replacing the fuses ........................ 104
Towing the watercraft..................... 106
Submerged watercraft ................... 106
Index............................................... 108
UF2T74E0.book Page 2 Wednesday, July 2, 2014 11:17 AM

Safety information
20
EJU30992
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility
to treat these other people, and the lands,
waters, and wildlife with respect and courte-
sy.
Whenever and wherever you ride, think of
yourself as the guest of those around you.
Remember, for example, that the sound of
your watercraft may be music to you, but it
could be just noise to others. And the exciting
splash of your wake can make waves others
won’t enjoy.
Avoid riding close to shoreline homes and
waterfowl nesting areas or other wildlife ar-
eas, and keep a respectful distance from fish-
ermen, other boats, swimmers, and
populated beaches. When travel in areas like
these is unavoidable, ride slowly and obey all
laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within reg-
ulated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter.When you ride responsibly, with respect and
courtesy for others, you help ensure that our
waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF2T74E0.book Page 20 Wednesday, July 2, 2014 11:17 AM

Description
25

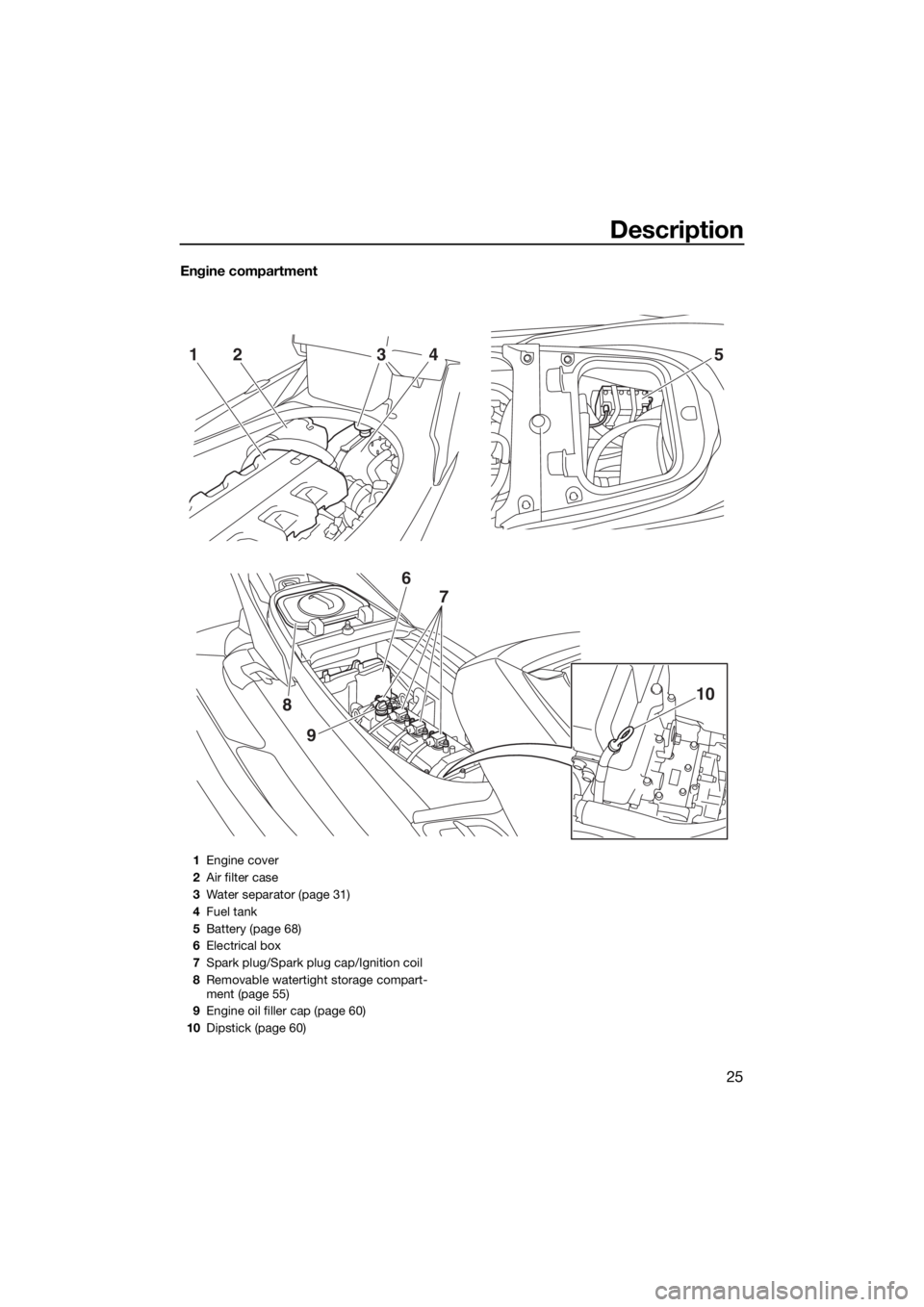

Engine compartment
52143
9
8
6
7
10
1Engine cover
2Air filter case
3Water separator (page 31)
4Fuel tank
5Battery (page 68)
6Electrical box
7Spark plug/Spark plug cap/Ignition coil
8Removable watertight storage compart-
ment (page 55)
9Engine oil filler cap (page 60)
10Dipstick (page 60)
UF2T74E0.book Page 25 Wednesday, July 2, 2014 11:17 AM

Instrument operation
41
To switch to the tachometer from the speed-
ometer:
Push the “SPEED/RPM” button for at least 1
second after the multifunction information
center is activated. When the meter switches
to the analog tachometer function, the
“RPM” indicator light comes on.
Analog speedometer
The analog speedometer shows the water-
craft speed against water.
The small inner numbers on the meter show
the watercraft speed in kilometers per hour
“km/h” and the large outer numbers show the
speed in miles per hour “mph”.
The “SPEED” indicator light comes on when
the analog speedometer is selected.
To switch to the speedometer from the ta-
chometer:
Push the “SPEED/RPM” button for at least 1
second after the multifunction information
center is activated. When the meter switches
to the analog speedometer function, the
“SPEED” indicator light comes on if “km/h”
are selected as the display units. The
“SPEED” indicator light blinks three times,
then comes on, if “mph” are selected as the
display units. (See page 41 for information onswitching the digital speedometer display
units.)
EJU35025Information display
The information display shows watercraft op-
erating conditions.
EJU42361Digital speedometer
The digital speedometer shows the water-
craft speed against water.
By switching the display units, the speed can
be shown in kilometers per hour (km/h) or
miles per hour (mph).

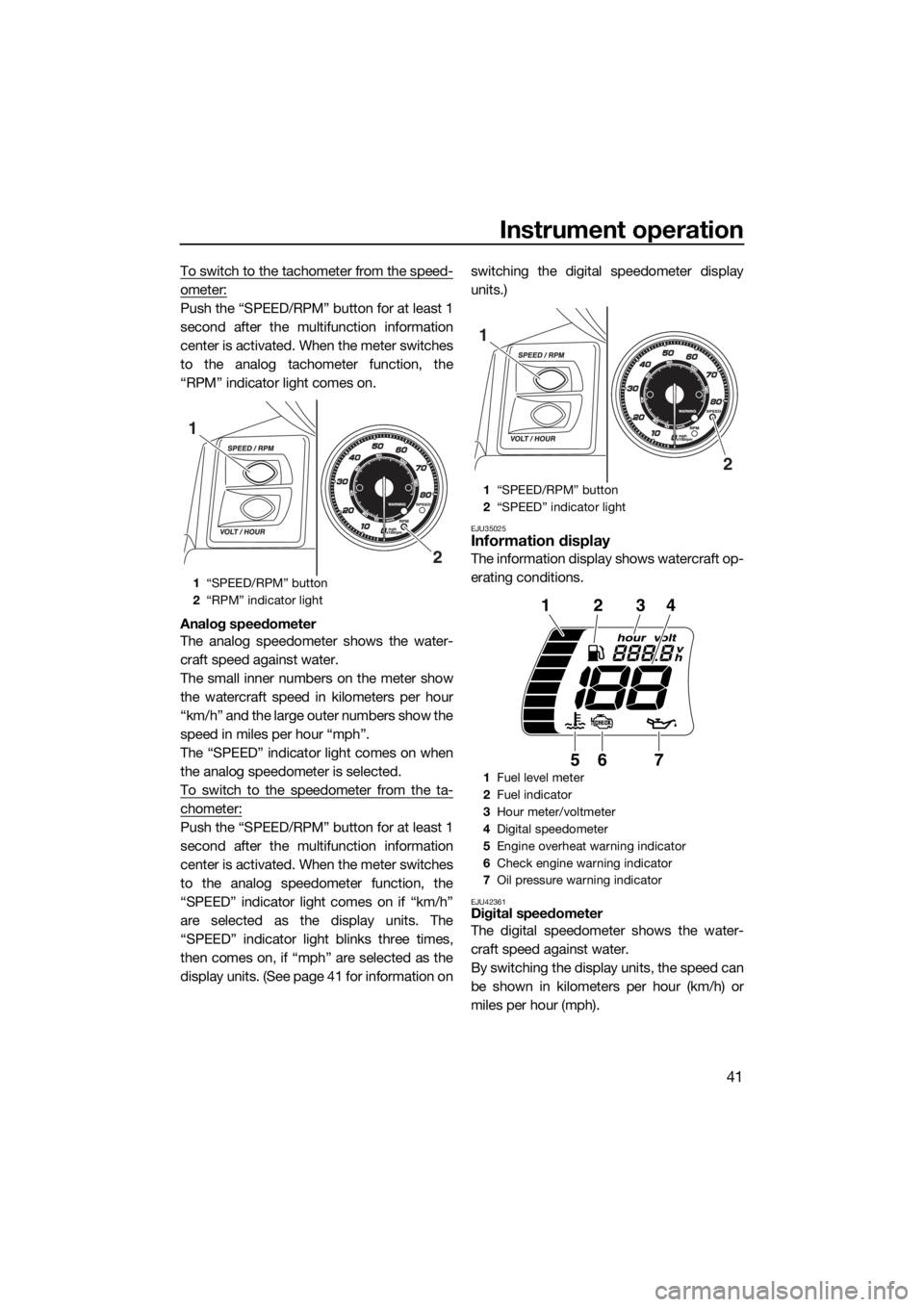

1“SPEED/RPM” button
2“RPM” indicator light
2
1
1“SPEED/RPM” button
2“SPEED” indicator light
1Fuel level meter
2Fuel indicator
3Hour meter/voltmeter
4Digital speedometer
5Engine overheat warning indicator
6Check engine warning indicator
7Oil pressure warning indicator
2
1
123
567
4
UF2T74E0.book Page 41 Wednesday, July 2, 2014 11:17 AM

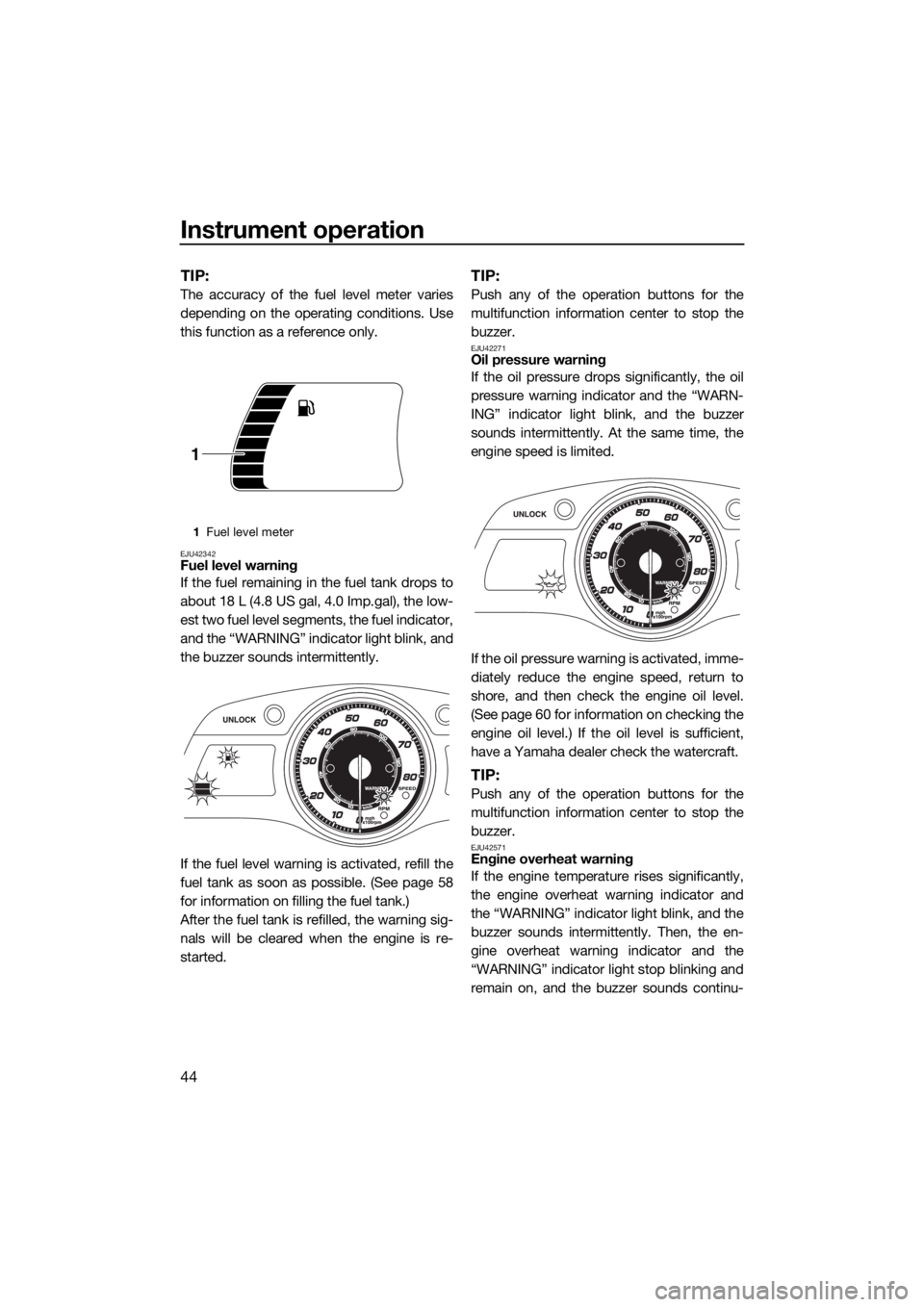

Instrument operation
44
TIP:
The accuracy of the fuel level meter varies
depending on the operating conditions. Use
this function as a reference only.
EJU42342Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp.gal), the low-
est two fuel level segments, the fuel indicator,
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 58
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is re-
started.
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU42271Oil pressure warning
If the oil pressure drops significantly, the oil
pressure warning indicator and the “WARN-
ING” indicator light blink, and the buzzer
sounds intermittently. At the same time, the
engine speed is limited.
If the oil pressure warning is activated, imme-
diately reduce the engine speed, return to
shore, and then check the engine oil level.
(See page 60 for information on checking the
engine oil level.) If the oil level is sufficient,
have a Yamaha dealer check the watercraft.
TIP:
Push any of the operation buttons for the
multifunction information center to stop the
buzzer.
EJU42571Engine overheat warning
If the engine temperature rises significantly,
the engine overheat warning indicator and
the “WARNING” indicator light blink, and the
buzzer sounds intermittently. Then, the en-
gine overheat warning indicator and the
“WARNING” indicator light stop blinking and
remain on, and the buzzer sounds continu-
1Fuel level meter
1
UF2T74E0.book Page 44 Wednesday, July 2, 2014 11:17 AM

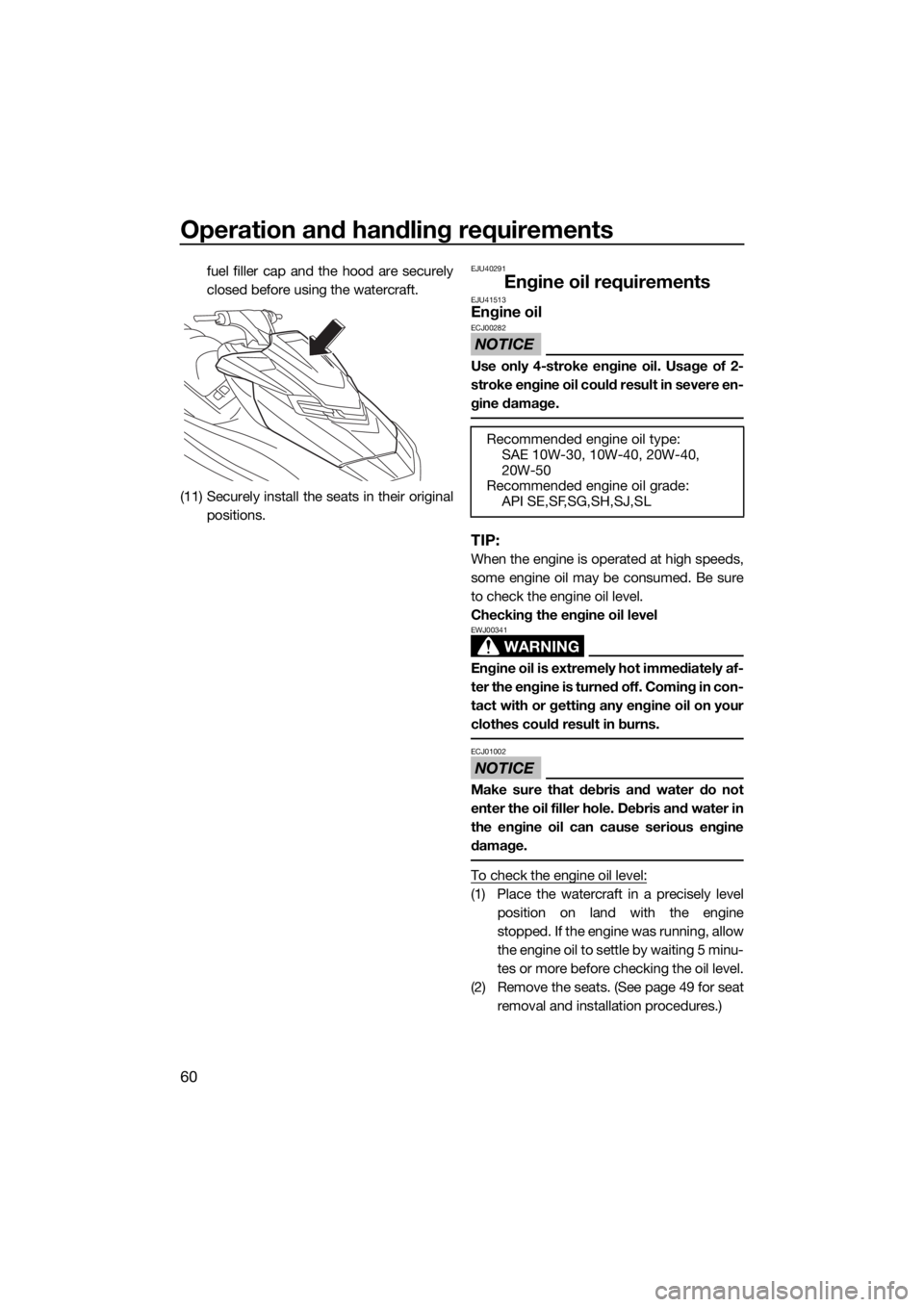

Operation and handling requirements
60
fuel filler cap and the hood are securely
closed before using the watercraft.
(11) Securely install the seats in their original
positions.EJU40291
Engine oil requirementsEJU41513Engine oil
NOTICE
ECJ00282
Use only 4-stroke engine oil. Usage of 2-
stroke engine oil could result in severe en-
gine damage.
TIP:
When the engine is operated at high speeds,
some engine oil may be consumed. Be sure
to check the engine oil level.
Checking the engine oil level
WARNING
EWJ00341
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ01002
Make sure that debris and water do not
enter the oil filler hole. Debris and water in
the engine oil can cause serious engine
damage.
To check the engine oil level:
(1) Place the watercraft in a precisely level
position on land with the engine
stopped. If the engine was running, allow
the engine oil to settle by waiting 5 minu-
tes or more before checking the oil level.
(2) Remove the seats. (See page 49 for seat
removal and installation procedures.)
Recommended engine oil type:
SAE 10W-30, 10W-40, 20W-40,
20W-50
Recommended engine oil grade:
API SE,SF,SG,SH,SJ,SL
UF2T74E0.book Page 60 Wednesday, July 2, 2014 11:17 AM

Operation and handling requirements
61
(3) Remove the dipstick and wipe it clean.
(4) Insert the dipstick back into the dipstick
tube completely. Remove the dipstick
again and make sure that the engine oil
level is between the minimum and maxi-
mum level marks.
(5) If the engine oil level is significantly
above the maximum level mark, consult
a Yamaha dealer. If the engine oil level is
below the minimum level mark, add en-
gine oil.(6) Loosen the engine oil filler cap and re-
move it.
(7) Slowly add engine oil.
TIP:
The difference between the minimum and
maximum level marks on the dipstick is equal
to approximately 1 L (1.06 US qt, 0.88 Imp.qt)
of engine oil.
(8) Wait approximately 5 minutes to allow
the engine oil to settle, and then check
the engine oil level again.
(9) Repeat steps 3–8 until the engine oil is at
the proper level.
(10) Securely install the engine oil filler cap by
tightening it until it stops.
(11) Securely install the seats in their original
positions.

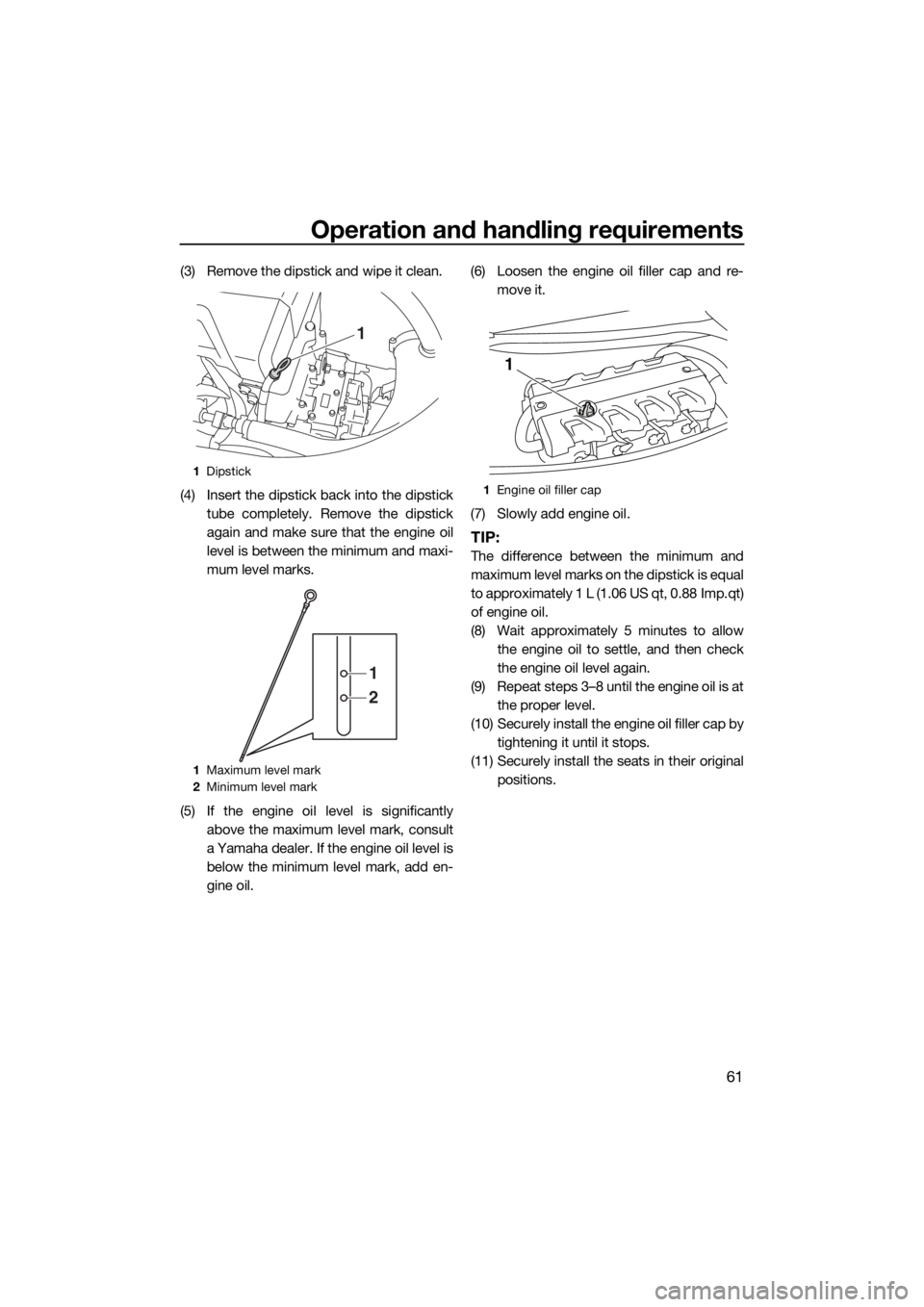

1Dipstick
1Maximum level mark
2Minimum level mark
1
1
2
1Engine oil filler cap
1
UF2T74E0.book Page 61 Wednesday, July 2, 2014 11:17 AM
