2015 YAMAHA FJR1300AS engine

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height:
1325/1455 mm (52.2/57.3 in)
Seat height:
805/825 mm (31.7/32.5 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
123 mm (4.84 in)
Minimum turning radius:
3200 mm (126.0 in)Weight:Curb weight:
296 kg (653 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Inline 4-cylinder
Displacement:
1298 cm³
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio:
10.8 : 1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
3.80 L (4.02 US qt, 3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt, 3.52 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil SAE
80W-90 API GL-5
Quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
2.60 L (2.75 US qt, 2.29 Imp.qt)Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
25.0 L (6.61 US gal, 5.50 Imp.gal)
Fuel reserve amount:
5.5 L (1.45 US gal, 1.21 Imp.gal)Fuel injection:Throttle body:
ID mark:
1MC1 00Spark plug(s):Manufacturer/model:
NGK/CPR8EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:
1.563 (75/48)
Final drive:
Shaft
–20 –10 0
1020 30 40 50 C 10 30 50 70 90 110 0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U1MDE1E0.book Page 1 Monday, July 28, 2014 10:48 AM

SPECIFICATIONS
8-3
8
Wheel travel:
125 mm (4.9 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60.0 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
LED
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
LED
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LEDOil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Cruise control “SET” indicator light:
LED
Cruise control “ON” indicator light:
LED
Immobilizer system indicator light:
LED
Traction control system indicator/warning
light:
LED
"STOP MODE" indicator light:
LED
Shift down indicator light:
LED
YCC-S system warning light:
LED
Suspension warning light:
LED
Fuses:Main fuse 1:
50.0 A
Main fuse 2:
30.0 A
Headlight fuse:
25.0 A
Brake light fuse:
1.0 ASignaling system fuse:
10.0 A
Ignition fuse:
20.0 A
Radiator fan motor fuse:
10.0 A × 2
Hazard fuse:
7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Suspension fuse:
15.0 A
Cruise control fuse:
1.0 A
Auxiliary DC jack fuse:
3.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse:
7.5 A
Windshield motor fuse:
20.0 A
Electronic throttle valve fuse:
7.5 A
U1MDE1E0.book Page 3 Monday, July 28, 2014 10:48 AM

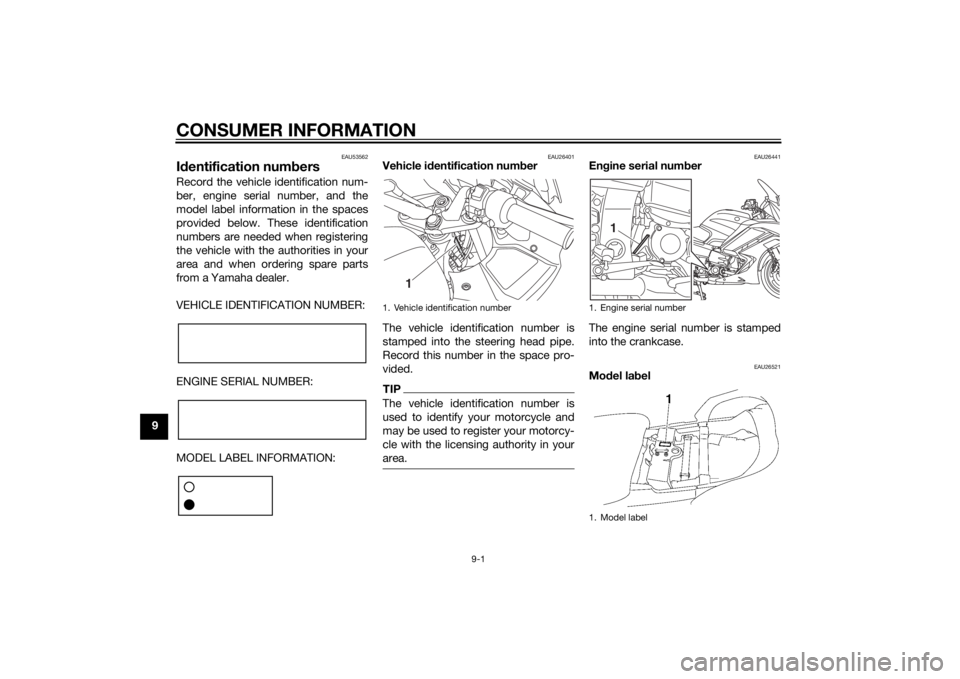

CONSUMER INFORMATION
9-1
9
EAU53562
Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26441
Engine serial number
The engine serial number is stamped
into the crankcase.
EAU26521
Model label
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
U1MDE1E0.book Page 1 Monday, July 28, 2014 10:48 AM

10-1
10
INDEXAABS ....................................................... 3-30
ABS warning light ................................... 3-5
Accessory box ...................................... 3-39
Air filter element .................................... 6-17
Auxiliary DC jack ................................... 3-49
Auxiliary light......................................... 6-32BBattery .................................................. 6-29
Brake and shift pedals, checking and
lubricating ........................................... 6-26
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-23
Brake and YCC-S clutch fluids,
changing ............................................. 6-25
Brake lever ............................................ 3-29
Brake lever, checking and lubricating .. 6-26
Brake lever free play, checking............. 6-21
Brake light switches.............................. 6-22
Brake pedal........................................... 3-29CCables, checking and lubricating ......... 6-25
Care ........................................................ 7-1
Catalytic converters .............................. 3-34
Centerstand and sidestand, checking
and lubricating .................................... 6-27
Coolant ................................................. 6-16
Cowling vents, opening and closing ..... 3-40
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-26
Cruise control system ............................. 3-7DDimmer/Pass switch ............................. 3-26
D-mode (drive mode) ............................ 3-25
EElectronically adjustable suspension
system warning light ............................ 3-6
Engine break-in ...................................... 5-4
Engine idling speed, checking ............. 6-17
Engine oil and oil filter cartridge ........... 6-12
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-22
Front fork, checking ............................. 6-28
Front turn signal light............................ 6-33
Fuel ....................................................... 3-33
Fuel consumption, tips for reducing ...... 5-4
Fuel tank breather/overflow hose ......... 3-34
Fuel tank cap ........................................ 3-32
Fuses, replacing ................................... 6-31HHandlebar position, adjusting .............. 3-40
Handlebar switches .............................. 3-25
Hand shift lever .................................... 3-29
Hazard switch....................................... 3-26
Headlight beams, adjusting.................. 3-40
Headlight bulb ...................................... 6-32
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-26IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-47
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-7
Indicator lights and warning lights ......... 3-4
LLicense plate light bulb, replacing ........6-34MMain switch/steering lock .......................3-2
Maintenance and lubrication, periodic....6-4
Maintenance, emission control
system ..................................................6-3
Matte color, caution ................................7-1
Menu switch..........................................3-26
Model label .............................................9-1
Multi-function meter unit .......................3-11NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PPanels, removing and installing ..............6-8
Parking ....................................................5-5
Part locations ..........................................2-1RRear suspension, lubricating ................6-27
Rear view mirrors ..................................3-42
Rider seat height, adjusting ..................3-36SSafety information ...................................1-1
Seats .....................................................3-35
Select switch.........................................3-27
Shift down indicator light ........................3-6
Shifting ....................................................5-3
Shift pedal .............................................3-28
Sidestand ..............................................3-46
Spark plugs, checking ..........................6-11
Specifications .........................................8-1
Start/Engine stop switch .......................3-26
U1MDE1E0.book Page 1 Monday, July 28, 2014 10:48 AM

INDEX
10-2
10
Starting the engine ................................. 5-1
Steering, checking ................................ 6-29
Stop mode function indicator light ......... 3-7
Stop mode function switch .................. 3-27
Storage ................................................... 7-4
Storage compartment .......................... 3-38
Suspension, adjusting the front and
rear ..................................................... 3-42
Swingarm pivots, lubricating ................ 6-28TThrottle grip and cable, checking and
lubricating........................................... 6-25
Throttle grip free play, checking ........... 6-18
Tires ...................................................... 6-18
Tool kit .................................................... 6-2
Traction control system ........................ 3-31
Traction control system indicator/
warning light ......................................... 3-5
Troubleshooting.................................... 6-34
Troubleshooting charts......................... 6-36
Turn signal indicator lights ..................... 3-4
Turn signal light or tail/brake light bulb,
replacing............................................. 6-33
Turn signal switch................................. 3-26VValve clearance .................................... 6-18
Vehicle identification number ................. 9-1WWheel bearings, checking .................... 6-29
Wheels .................................................. 6-21YYCC-S clutch........................................ 6-21
YCC-S system ...................................... 3-27
YCC-S system warning light .................. 3-6
U1MDE1E0.book Page 2 Monday, July 28, 2014 10:48 AM
