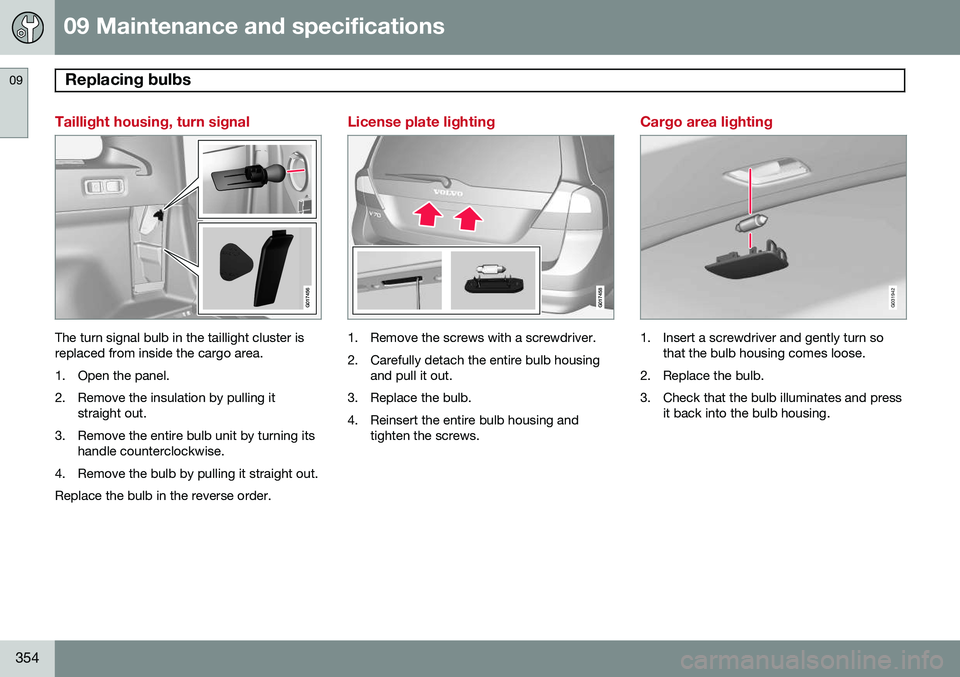

09 Maintenance and specifications
Replacing bulbs 09
354
Taillight housing, turn signal
G017456
The turn signal bulb in the taillight cluster is replaced from inside the cargo area.
1. Open the panel.
2. Remove the insulation by pulling itstraight out.
3. Remove the entire bulb unit by turning its handle counterclockwise.
4. Remove the bulb by pulling it straight out.Replace the bulb in the reverse order.
License plate lighting
G017458
1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing and pull it out.
3. Replace the bulb.
4. Reinsert the entire bulb housing and tighten the screws.
Cargo area lighting
G031942
1. Insert a screwdriver and gently turn so that the bulb housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press it back into the bulb housing.
11 Index
11
397
emergency brake assistance.............. 142
fluid..................................................... 389
general information............................. 141
Hill Descent Control............................ 147
Bulbs cargo area lighting.............................. 354
headlights........................... 350, 351, 352
introduction......................................... 350
license plate lights.............................. 354
side marker lights............................... 353
specifications...................................... 355
taillight................................................ 353
C
Camera, Park Assist................................ 197
Capacity weight....................................... 320Cargo areachanging bulbs................................... 354
floor rails............................................. 295
hooks for securing loads............ 295, 296
steel grid............................................. 299
Cargo area cover..................................... 300
Cargo area net......................................... 300
Catalytic converter................................... 291 Cell phone, hands-free connection......... 269
Cell phone voice control.......................... 278
Central locking system, introduction......... 58
Chains...................................................... 323
Check Engine warning light....................... 82Child restraints
recalls and registration......................... 39
Child restraint systems.............................. 40 booster cushions.................................. 47
convertible seats.................................. 44
infant seats........................................... 42
ISOFIX/LATCH anchors........................ 48
top tether anchors................................ 50
Child safety................................................ 37 booster cushions.................................. 47
child restraint systems.......................... 40
convertible seats.................................. 44
infant seats........................................... 42
Child safety locks...................................... 54
City safety................................................ 172
Climate system........................................ 221 air distribution............................. 216, 224
air vents.............................................. 217
Interior Air Quality System.................. 216
introduction......................................... 215 passenger compartment filter............ 215
refrigerant........................................... 215
Clock, setting............................................. 86
Cold weather driving................................ 286
Collision warning system................. 178, 179
Compass in rearview mirror..................... 115
Conserving electrical current................... 286
Controls, center console.......................... 241
Convertible seats....................................... 44
Coolant............................................ 348, 389
Cooling system, general information....... 285
Courtesy lighting.............................. 104, 105
Crash event data......................................... 9
Crash mode............................................... 35
Cruise control.................................. 156, 157 adaptive.............................................. 158
Curb weight............................................. 320
Current, conserving................................. 286
Cyclist detection...................................... 178
