09 Maintenance and specifications
Replacing bulbs 09
348* Option/accessory, for more information, see Introduction.
Introduction
All bulb specifications are listed on page 353. The following bulbs should only be replacedby a trained and qualified Volvo service tech-nician:
• Active Bending Lights
• Front parking lights
• Front side marker lights
• Cornering lights
• Turn signals in the door mirrors
• Approach lighting in the door mirrors
• Interior lighting (except for the front foot- well lighting)
• Glove compartment lighting
• Rear parking lights
• LED bulbsNOTE
• For information regarding any bulbs not mentioned in this section, pleasecontact your Volvo retailer or a trainedand authorized Volvo service techni-cian.
• Always switch off the ignition beforestarting to replace a bulb.
• If an error message remains in the dis-play after a faulty bulb has beenreplaced, contact an authorized Volvoworkshop.
• Condensation may form temporarily onthe inside of the lenses of exteriorlights such as headlights, fog lights, ortaillights. This is normal and the lightsare designed to withstand moisture.Normally, condensation will dissipateafter the lights have been on for ashort time.
• The optional Active Bending Lightbulbs contain trace amounts of mer-cury. These bulbs should always bedisposed of by a trained and qualifiedVolvo service technician.
CAUTION
Never touch the glass of bulbs with your fingers. Grease and oils from your fingersvaporize in the heat and will leave adeposit on the reflector, which will damageit.
WARNING
•The engine should not be running when changing bulbs.
• If the engine has been running justprior to replacing bulbs in the head-light housing, please keep in mind thatcomponents in the engine compart-ment will be hot.
WARNING
•Active Bending Lights* – due to the high voltage used by these headlights,these bulbs should only be replacedby a trained and qualified Volvo serv-ice technician.
• Turn off the lights and remove theremote key from the ignition beforechanging any bulbs.

09 Maintenance and specifications
Replacing bulbs09
}}
349
Headlight housing
The entire headlight housing must be lifted out when replacing all front bulbs.
Removing the headlight housing
Pull out the headlight housing's locking pins.
Remove the headlight housing by alterna- tively pulling the front and rear edges untilit can be lifted out.
CAUTION
When disconnecting the connector, pull on the connector itself and not on the wiring.
Unplug the wiring connector by holding down the clip with your thumb.
Pull the connector out with the other hand.
5. Lift out the headlight housing and place it on a soft surface to avoid scratching thelens.
6. Replace the defective bulb(s).
Reinserting the headlight housing
1. Plug in the connector until it clicks into place. 2. Reinstall the headlight housing and lock-
ing pins. The short locking pin should be closest to the grille. Check that they arecorrectly inserted. The headlight housing must be properly in place and the wiring connector cor-rectly reconnected before the lighting isswitched on or the remote key is insertedinto the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the bulbs

09 Maintenance and specifications
Replacing bulbs 09
350
NOTE
Before starting to replace a bulb, see page 348.
1. Loosen the cover's four retaining screws(3-4 turns) with a Torx T20 tool (1). The screws should not be removed com-pletely.
2. Push the cover to the side.
3. Remove the cover.Reinstall the cover in the reverse order.
Low beam, Halogen
1. Remove the headlight housing from the vehicle (see page 348).
2. Remove the cover over the bulbs (see page 349).
3. Unplug the connector from the bulb.
4. Remove the bulb by pulling it straight out.
5. The guide lug on the new bulb should be straight up when the bulb is inserted into the holder and the bulb should snap intoplace.
6. Put the cover back into position and rein- stall the headlight housing.
High beam, Halogen
1. Remove the headlight housing from the vehicle (see page 348).
2. Remove the cover over the bulbs (see page 349).
3. Remove the bulb by turning it counter- clockwise and pulling it straight out.
4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn it clockwise to put it in place. It can only be secured in one position.
6. Reinsert the bulb holder into the headlight housing.
7. Put the cover back into position and rein- stall the headlight housing.

09 Maintenance and specifications
Replacing bulbs09
}}
351
Extra high beam1
1. Remove the headlight housing from the
vehicle (see page 348).
2. Remove the cover over the bulbs (see page 349).
3. Remove the bulb by turning it counter- clockwise and pulling it straight out.
4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn it clockwise to put it in place. It can only be secured in one position.
6. Put the cover back into position and rein- stall the headlight housing.
Turn signals
1. Remove the headlight housing from thevehicle (see page 348).
2. Remove the cover by pulling it straight out.
3. Pull the holder to access the bulb.
4. Press in the bulb and turn it to remove it from the holder.
5. Press and turn the new bulb into place.
6. Reinsert the bulb holder into the headlight housing.
7. Put the cover back into position and rein- stall the headlight housing.
Taillight housing
The bulbs in the taillight cluster are replaced from inside the trunk (not the LED functions).
NOTE
Before starting to replace a bulb, see page 348.
1. Remove the covers in the left/right panel to access the bulb holder.
2. Press the catches together and pull out the bulb holder.
3. Remove the defective bulb by pressing it in slightly and it turning counterclockwise before pulling it out.
1Models with optional Active Bending Lights only.

11 Index
11
395
fluid..................................................... 388
general information............................. 139
Bulbs headlights........................... 348, 349, 350
introduction......................................... 348
license plate lights.............................. 352
specifications...................................... 353
trunk lighting....................................... 353
C
Camera, Park Assist................................ 198
Capacity weight....................................... 317
Catalytic converter................................... 295
Cell phone, hands-free connection......... 272
Cell phone voice control.......................... 281
Central locking system, introduction......... 56
Chains...................................................... 320
Check Engine warning light....................... 82Child restraintsrecalls and registration......................... 40
Child restraint systems.............................. 41 booster cushions.................................. 48
convertible seats.................................. 45
infant seats........................................... 43 ISOFIX/LATCH anchors........................ 49
top tether anchors................................ 51
Child safety................................................ 38 booster cushions.................................. 48
child restraint systems.......................... 41
convertible seats.................................. 45
infant seats........................................... 43
Child safety locks...................................... 52
City safety................................................ 169
Climate system........................................ 227 air distribution............................. 222, 229
air vents.............................................. 223
Interior Air Quality System.................. 222
introduction......................................... 221
passenger compartment filter............ 222
refrigerant........................................... 221
Clock, setting............................................. 86
Cold weather driving................................ 290
Collision warning system................. 175, 176
Compass in rearview mirror..................... 113
Conserving electrical current................... 289
Controls, center console.......................... 245
Convertible seats....................................... 45
Coolant............................................ 346, 388
Cooling system, general information....... 289 Corner traction control............................. 148
Courtesy lighting...................................... 104
Crash event data......................................... 9
Crash mode............................................... 36
Cruise control.................................. 153, 154
adaptive.............................................. 155
Curb weight............................................. 317
Current, conserving................................. 289
Cyclist detection...................................... 175
D
Daytime running lights............................... 98
Defroster.................................................. 227
Detachable key blade.......................... 62, 65Disconnecting the front passenger’s air-
bag....................................................... 27, 28
Distance Alert.......................................... 166
Dome lighting........................................... 104
Door mirrors............................................. 110
Driver alert............................................... 185 Lane Departure Warning..................... 187
Lane Keeping Aid............................... 190

11 Index
11
397
Geartronic automatic transmission.......... 126
Generator warning light............................. 84
Glossary of tire terminology..................... 316
Grocery bag holder.................................. 298
Gross vehicle weight............................... 317
H
Hazard warning flashers.......................... 103
HD digital radio........................................ 255Headlights Active Bending Lights......................... 101
active high beams................................. 99
changing bulbs........................... 349, 350
daytime running lights.......................... 98
high/low beams.................................... 99
high beam flash.................................... 99
tunnel detection.................................. 101
Headlight washers................................... 107
Head restraints, rear seat.......................... 93
Heated oxygen sensors........................... 296
Heated rear seats.................................... 225
Heated steering wheel............................... 97
Heated windshield........................... 111, 227 High beams................................................ 99
active.................................................... 99
Hill Start Assist (HSA).............................. 125
Hoisting the vehicle................................. 340 HomeLink ®
Wireless Control System...... 117
Home safe lighting........................... 104, 105
Hood, opening/closing............................ 342
Horn........................................................... 96
I
Ignition modes........................................... 88
Immobilizer................................................ 58
Important information.................................. 6
Indicator lights............................... 79, 81, 83
Infant seats................................................ 43
Inflatable Curtain........................................ 33
Inflation pressure..................................... 309
Inflation pressure table............................ 312Information and warning symbols, table
of.............................................................. 390
Information lights........................... 79, 81, 83 Infotainment
Menu navigation................................. 247
Infotainment system................................ 244 AUX/USB sockets............................... 267 Bluetooth ®
devices............................. 270
Bluetooth ®
hands-free system........... 272
getting started.................................... 245
media player....................................... 262
menus......................................... 245, 247
radio functions.................................... 253
sound settings.................................... 248
voice control....................................... 281
Inspection readiness................................ 340
Instrument lighting................................... 102 "theater" lighting................................. 102
Instrument overview............................ 78, 79
Instrument panel................................ 79, 213
Interior Air Quality System....................... 222
Interior lighting......................................... 104iPod ® connector (audio system)............. 267
ISOFIX/LATCH anchors............................. 49

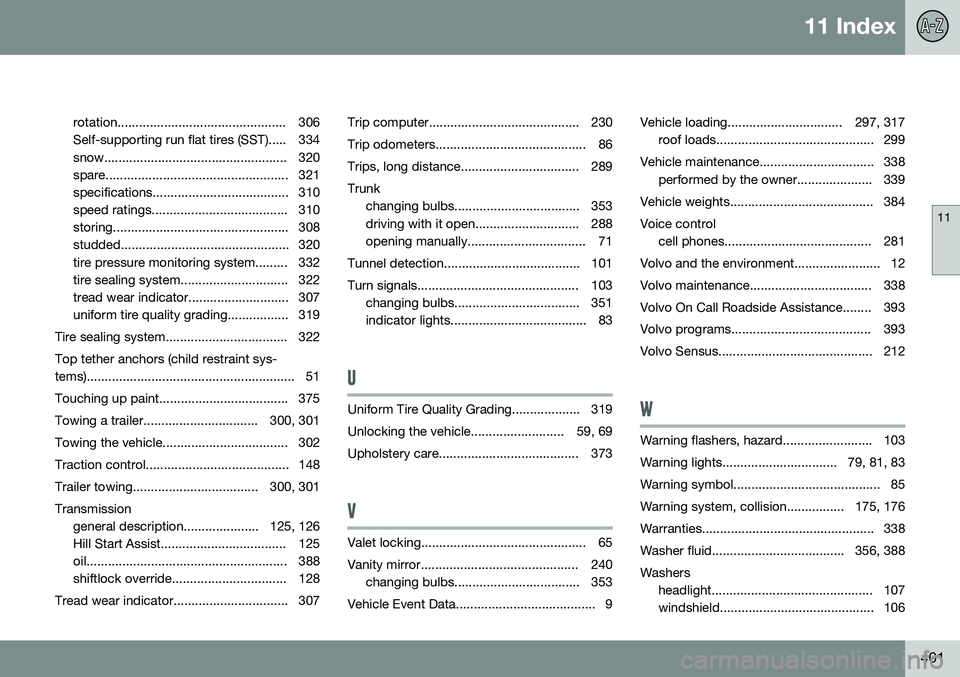

11 Index
11
401
rotation............................................... 306
Self-supporting run flat tires (SST)..... 334
snow................................................... 320
spare................................................... 321
specifications...................................... 310
speed ratings...................................... 310
storing................................................. 308
studded............................................... 320
tire pressure monitoring system......... 332
tire sealing system.............................. 322
tread wear indicator............................ 307
uniform tire quality grading................. 319
Tire sealing system.................................. 322 Top tether anchors (child restraint sys-
tems).......................................................... 51
Touching up paint.................................... 375
Towing a trailer................................ 300, 301
Towing the vehicle................................... 302
Traction control........................................ 148
Trailer towing................................... 300, 301Transmission general description..................... 125, 126
Hill Start Assist................................... 125
oil........................................................ 388
shiftlock override................................ 128
Tread wear indicator................................ 307 Trip computer.......................................... 230
Trip odometers.......................................... 86
Trips, long distance................................. 289Trunk
changing bulbs................................... 353
driving with it open............................. 288
opening manually................................. 71
Tunnel detection...................................... 101
Turn signals............................................. 103 changing bulbs................................... 351
indicator lights...................................... 83
U
Uniform Tire Quality Grading................... 319
Unlocking the vehicle.......................... 59, 69
Upholstery care....................................... 373
V
Valet locking.............................................. 65
Vanity mirror............................................ 240 changing bulbs................................... 353
Vehicle Event Data....................................... 9 Vehicle loading................................ 297, 317
roof loads............................................ 299
Vehicle maintenance................................ 338 performed by the owner..................... 339
Vehicle weights........................................ 384Voice control cell phones......................................... 281
Volvo and the environment........................ 12
Volvo maintenance.................................. 338
Volvo On Call Roadside Assistance........ 393
Volvo programs....................................... 393
Volvo Sensus........................................... 212
W
Warning flashers, hazard......................... 103
Warning lights................................ 79, 81, 83
Warning symbol......................................... 85
Warning system, collision................ 175, 176
Warranties................................................ 338
Washer fluid..................................... 356, 388Washers headlight............................................. 107
windshield........................................... 106
