2015 VOLKSWAGEN POLO instruments

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
6/32

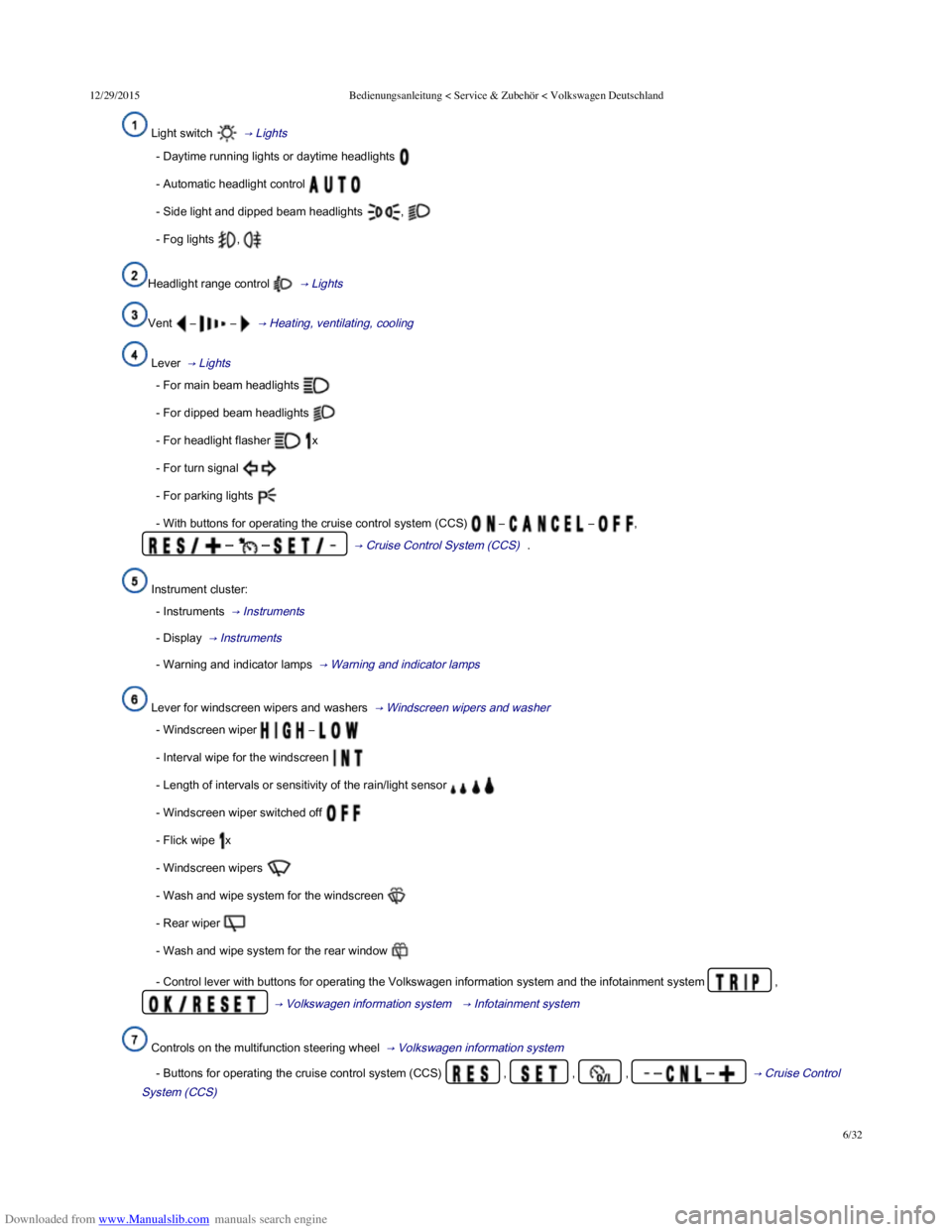

Light switch   → Lights  
- Daytime running lights or daytime headlights
- Automatic headlight control
- Side light and dipped beam headlights ,
- Fog lights ,
Headlight range control  → Lights  
Vent  –  –   → Heating, ventilating, cooling  
Lever  → Lights  
- For main beam headlights
- For dipped beam headlights
- For headlight flasher x
- For turn signal
- For parking lights
- With buttons for operating the cruise control system (CCS)  –   –  ,
 –  –   → Cruise Control System (CCS)   .
Instrument cluster:
- Instruments  → Instruments 
- Display  → Instruments 
- Warning and indicator lamps  → Warning and indicator lamps  
Lever for windscreen wipers and washers  → Windscreen wipers and washer  
- Windscreen wiper  –
- Interval wipe for the windscreen
- Length of intervals or sensitivity of the rain/light sensor
- Windscreen wiper switched off
- Flick wipe x
- Windscreen wipers
- Wash and wipe system for the windscreen
- Rear wiper
- Wash and wipe system for the rear window
- Control lever with buttons for operating the Volkswagen information system and the infotainment system ,
 → Volkswagen information system    → Infotainment system 
Controls on the multifunction steering wheel  → Volkswagen information system  
- Buttons for operating the cruise control system (CCS) ,  ,  ,   –   –   → Cruise Control
System (CCS)  

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
10/32

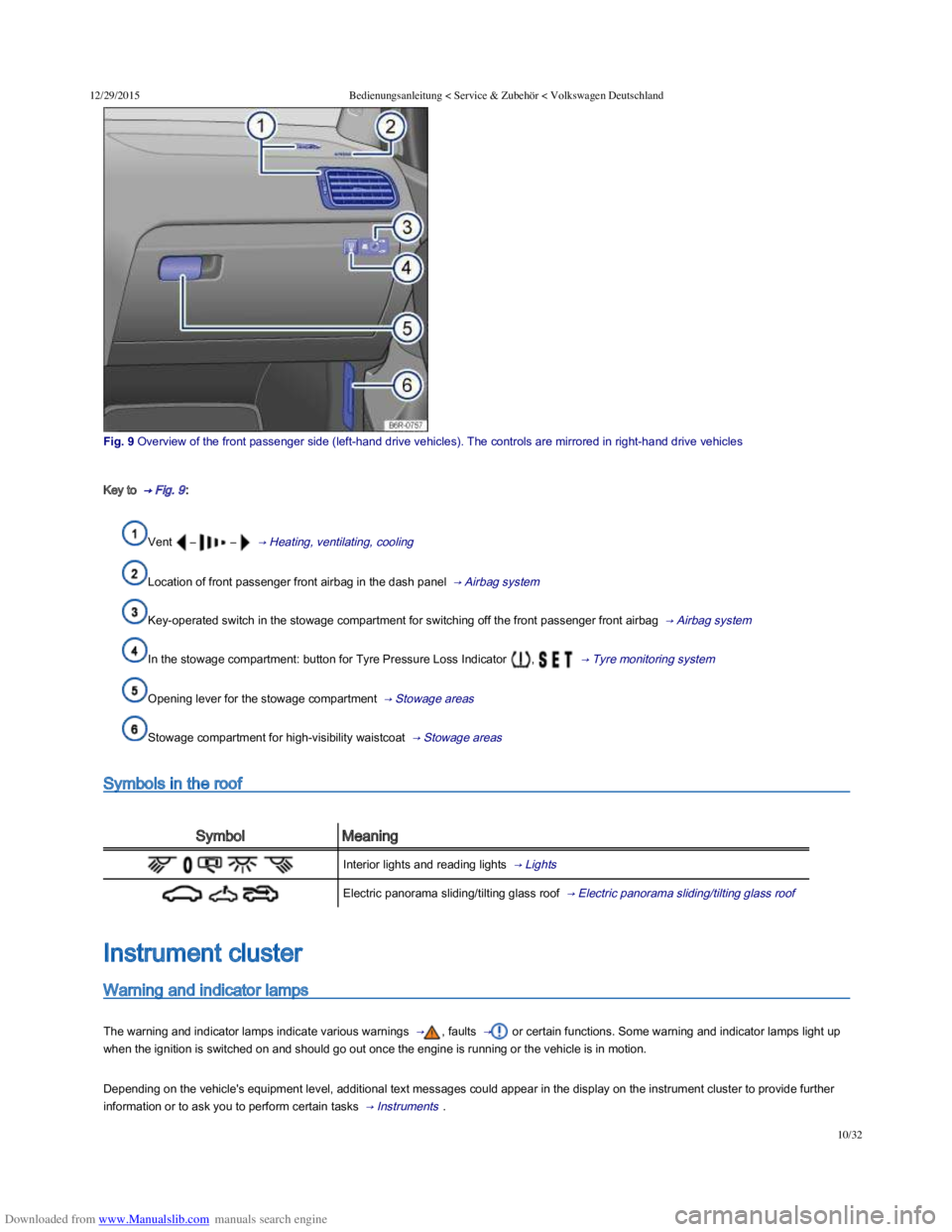

Fig. 9 Overview of the front passenger side (left­hand drive vehicles). The controls are mirrored in right­hand drive vehicles
Key to  → Fig. 9 :
Vent  –  –   → Heating, ventilating, cooling  
Location of front passenger front airbag in the dash panel  → Airbag system  
Key-operated switch in the stowage compartment for switching off the front passenger front airbag  → Airbag system  
In the stowage compartment: button for Tyre Pressure Loss Indicator ,   → Tyre monitoring system  
Opening lever for the stowage compartment  → Stowage areas  
Stowage compartment for high-visibility waistcoat  → Stowage areas  
Symbols in the roof
SymbolMeaning
Interior lights and reading lights  → Lights  
Electric panorama sliding/tilting glass roof  → Electric panorama sliding/tilting glass roof  
Warning and indicator lamps
The warning and indicator lamps indicate various warnings  → , faults  →  or certain functions. Some warning and indicator lamps light up
when the ignition is switched on and should go out once the engine is running or the vehicle is in motion.
Depending on the vehicle's equipment level, additional text messages could appear in the display on the instrument cluster to provide further
information or to ask you to perform certain tasks  → Instruments  .
Instrument cluster

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
11/32
Depending on the vehicle equipment level, symbols may be displayed in the instrument cluster instead of warning lamps.
Signal tones are given when some warning or indicator lamps light up.
For details on indicator lamps which light up in the light switch see Chapter Lighting  → Lights   .
SymbolMeaning  → See
Do not drive on!
When this message appears, the door(s), tailgate or bonnet are open or not closed
properly.
 → Instruments 
Central warning lamp. Observe the additional information on the instrument cluster display.–
Do not drive on!
Handbrake is applied. → Braking, stopping and
parking   Do not drive on!
Brake fluid level too low or fault in the brake system.
Flashing: Do not drive on!
Coolant level too low, coolant temperature too high, or coolant system is faulty. → Coolant  
Flashing: Do not drive on!
Engine oil pressure too low. → Engine oil  
Electromechanical steering not functioning. → Steering  
Brake or take avoiding action! Collision warning from the area monitoring system (Front
Assist).
 → Area monitoring system
(Front Assist)  
Driver or front passenger seat belt not fastened. → Seat belts  
Depress the brake pedal.
Changing gear  → Changing
gear  
ACC  → Adaptive Cruise
Control (ACC)  
Fault in the alternator. → Vehicle battery  
Dual clutch gearbox DSG® overheated. → Changing gear  
Central warning lamp. Observe the additional information on the instrument cluster display.–
Brake pads worn.
Infotainment system
 → Infotainment system 
Brakes  → Braking, stopping
and parking  
Lit up: ESC fault or switched off for system-related reasons.
OR: together with ABS indicator lamp : ABS faulty.
OR: the vehicle battery has been reconnected.
Flashing: ESC/TCS is taking corrective action.
TCS switched off manually.
OR: ESC switched off manually.
OR: ESC switched on manually.
ABS faulty or not functioning.
Vehicle lighting not working partially or completely. → Changing a bulb  
Rear fog light switched on. → Lights  
Lit up or flashing: catalytic converter fault.
Starting the engine  → Starting

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
12/32
Starting the engine  → Starting
and stopping the engine  
Engine management, exhaust
gas purification  → Engine
management system and
exhaust purification system  
Lit up: glow period for a diesel engine.
Flashing: fault in engine management system (diesel engine).
Engine management system fault (Electronic Power Control).
Diesel particulate filter has become saturated with soot.

Lit up: steering reduced or the vehicle battery has been disconnected and then
reconnected. → Steering  
Flashing: steering column is twisted or is not unlocked/locked.
Tyre pressure too low or Tyre Pressure Loss Indicator faulty. → Tyre monitoring system  
Windscreen washer fluid level too low. → Windscreen wipers and
washer  
Fuel tank almost empty.
 → Filling the tank  
Water in fuel in vehicles with a diesel engine.
Lit up: engine oil level too low.
 → Engine oil  
Flashing: engine oil system fault.
Fault in airbag and belt tensioner system.
 → Airbag system   Front passenger front airbag switched off (PASSENGER AIR BAG  ).
Front passenger front airbag switched on (PASSENGER AIR BAG  ).
Adaptive Cruise Control (ACC) currently not available. → Adaptive Cruise Control
(ACC)  
Fault in Sport Select suspension. →  Sport Select suspension  
Gearbox fault. → Changing gear  

Hazard warning lights switched on. → In an emergency  
Turn signal, left or right.
 → Lights  
Trailer turn signal.
Lit up: depress the brake pedal.
Starting the engine  → Starting
and stopping the engine  
Changing gear  → Changing
gear  
Brakes  → Braking, stopping
and parking  
Flashing: the lock button in the selector lever is not engaged.
The cruise control system (CCS) is switched on. → Cruise Control System
(CCS)  
Adaptive Cruise Control (ACC) is active. → Adaptive Cruise Control
(ACC)  
Main beam is switched on or the headlight flasher is being operated. → Lights  
ACC is active. No vehicle has been detected ahead.
 → Adaptive Cruise Control
(ACC)  When displayed in white: ACC active. Vehicle detected ahead.
When displayed in grey: ACC not active. System switched on, does not regulate.
Lit up: service alert / service due. → Instruments 
 → Changing gear  

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
13/32
Flashing: fault in automatic gearbox. → Changing gear  
The start/stop system is not available. Automatic engine switch-off is active.
 → Pull-away assist systems  Start/stop system not available.
OR: the engine was started automatically.
The engine is starting.
A mobile telephone is connected via Bluetooth to the factory-fitted provision for mobile
telephone.⇒ BookletProvision for mobile
telephone,
Mobile telephone battery charge level. Only for factory-fitted provision for mobile telephone.
m/k/s296MKThe outside temperature is below +4°C (+39°F). → Instruments 
Note about information in the vehicle wallet.–
 Introduction
This chapter contains information on the following subjects:
 → Instrument overview  
 → Displays  
 → Service interval display  
Additional information and warnings:
Warning and indicator lamps  → Warning and indicator lamps  
Volkswagen information system  → Volkswagen information system  
Infotainment system  → Infotainment system 
Failure to observe illuminated warning lamps and text messages can lead to your vehicle breaking down in traffic, and can cause accident
and serious injury.
Never ignore any illuminated warning lamps or text messages.
Stop the vehicle as soon as possible and when safe to do so.
Stop the vehicle at a safe distance away from moving traffic and make sure that no part of the exhaust system can come into contact with
any inflammable material underneath the vehicle, e.g. dry grass or fuel.
Any broken-down vehicle poses an increased accident risk, both for you and for other road users. If the situation requires, switch on the
hazard warning lights and set up the warning triangle as a warning to other road users.
Before opening the bonnet, switch off the engine and allow it to cool down sufficiently.
The engine compartment of any motor vehicle is a dangerous area. Serious injuries can be sustained here  → Preparation for working in
the engine compartment   .
WARNING
Failure to observe illuminated indicator lamps and text messages can lead to your vehicle being damaged.
NOTICE
Instruments

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
14/32
Selected gear display (for vehicles with an automatic gearbox)  → Changing gear  
Information on service intervals ⇒ BookletService schedule,
Instrument overview
Fig. 10 Instrument cluster in the dash panel (variant 1)
Fig. 11 Instrument cluster in the dash panel (variant 2)
First read and observe the introductory information and safety warnings →Introduction 
Descriptions of the instruments  → Fig. 10  or  → Fig. 11 :
Rev. counter (running engine speed in revolutions x 1,000 per minute). The start of the red zone on the dial indicates the maximum
engine speed that may be used in each gear when the engine is warm and after it has been run in properly. You should change up a gear
or move the selector lever to D (or lift your foot off the accelerator) before the needle reaches the red zone  → .
Displays  → Displays   .
Accidents and injuries can occur if the driver is distracted.
Never press the buttons on the instrument cluster while the vehicle is in motion.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
25/32

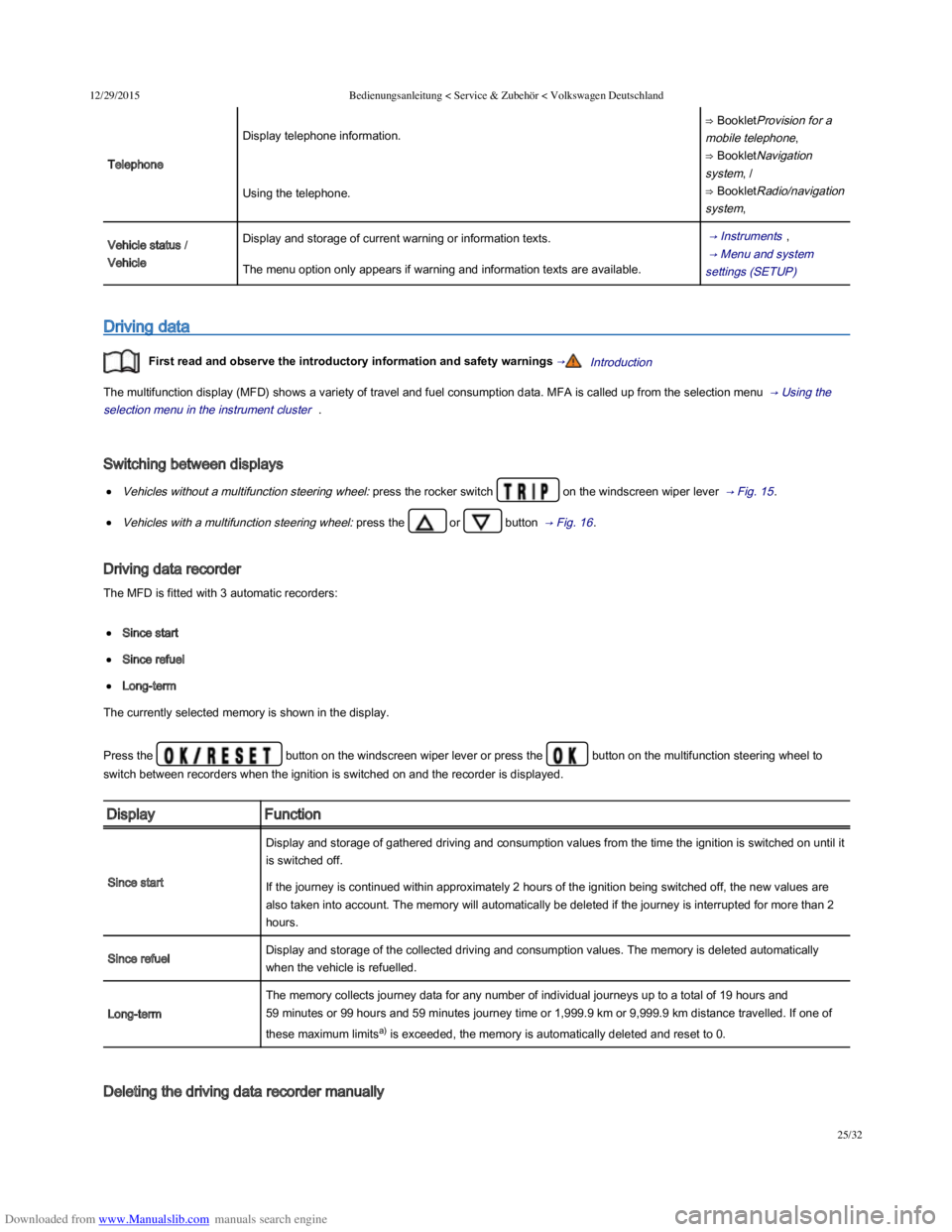

Telephone
Display telephone information.
⇒ BookletProvision for a
mobile telephone,
⇒ BookletNavigation
system, /
⇒ BookletRadio/navigation
system,
Using the telephone.
Vehicle status /
Vehicle
Display and storage of current warning or information texts. → Instruments  ,
 → Menu and system
settings (SETUP)  The menu option only appears if warning and information texts are available.
Driving data
First read and observe the introductory information and safety warnings →Introduction 
The multifunction display (MFD) shows a variety of travel and fuel consumption data. MFA is called up from the selection menu  → Using the
selection menu in the instrument cluster   .
Switching between displays
Vehicles without a multifunction steering wheel: press the rocker switch on the windscreen wiper lever  → Fig. 15 .
Vehicles with a multifunction steering wheel: press the or button  → Fig. 16 .
Driving data recorder
The MFD is fitted with 3 automatic recorders:
Since start
Since refuel
Long-term
The currently selected memory is shown in the display.
Press the button on the windscreen wiper lever or press the button on the multifunction steering wheel to
switch between recorders when the ignition is switched on and the recorder is displayed.
DisplayFunction
Since start
Display and storage of gathered driving and consumption values from the time the ignition is switched on until it
is switched off.
If the journey is continued within approximately 2 hours of the ignition being switched off, the new values are
also taken into account. The memory will automatically be deleted if the journey is interrupted for more than 2
hours.
Since refuelDisplay and storage of the collected driving and consumption values. The memory is deleted automatically
when the vehicle is refuelled.
Long-term
The memory collects journey data for any number of individual journeys up to a total of 19 hours and
59 minutes or 99 hours and 59 minutes journey time or 1,999.9 km or 9,999.9 km distance travelled. If one of
these maximum limitsa) is exceeded, the memory is automatically deleted and reset to 0.
Deleting the driving data recorder manually

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
27/32

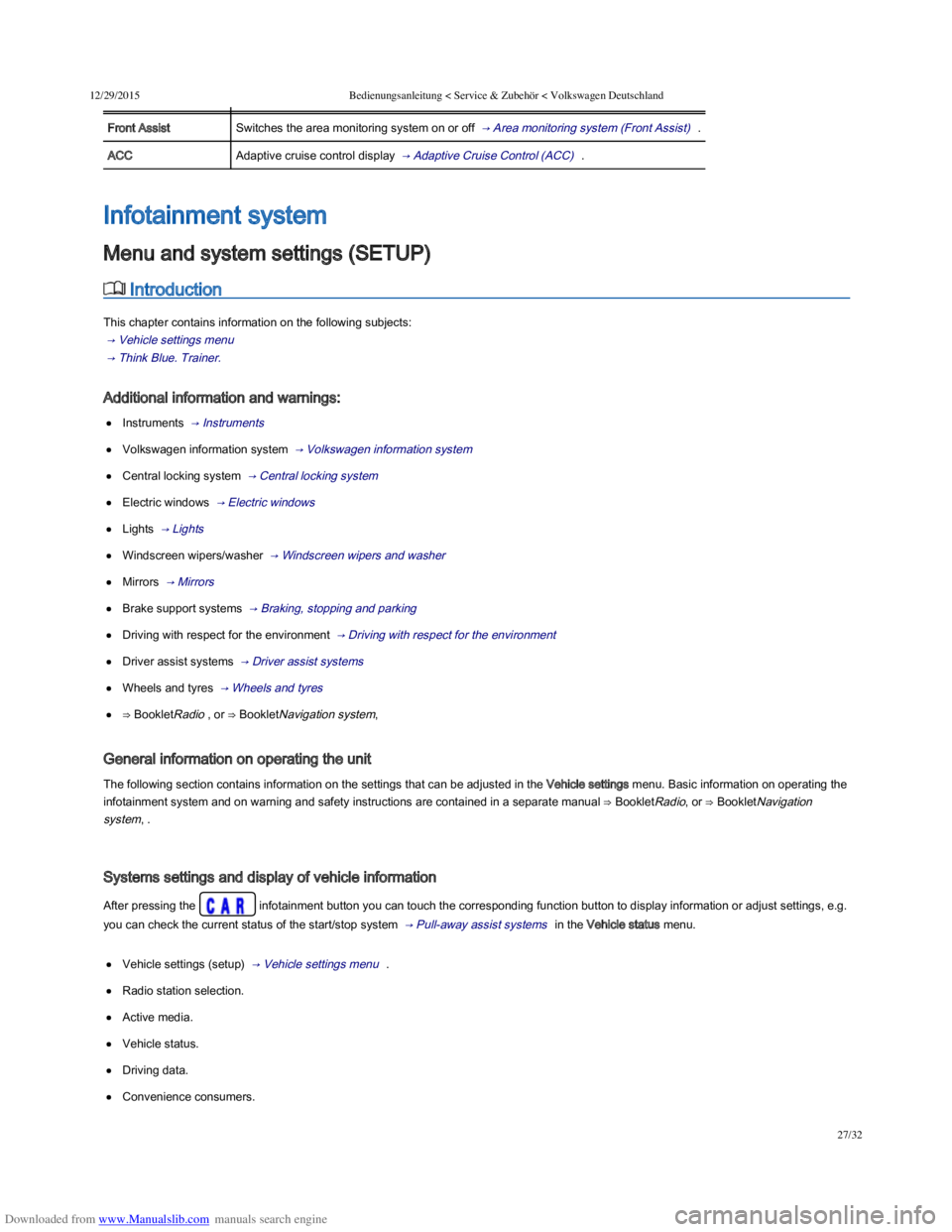

MenuFunction
Front AssistSwitches the area monitoring system on or off  → Area monitoring system (Front Assist)   .
ACCAdaptive cruise control display  → Adaptive Cruise Control (ACC)   .
 Introduction
This chapter contains information on the following subjects:
 → Vehicle settings menu  
 → Think Blue. Trainer.  
Additional information and warnings:
Instruments  → Instruments 
Volkswagen information system  → Volkswagen information system  
Central locking system  → Central locking system  
Electric windows  → Electric windows  
Lights  → Lights  
Windscreen wipers/washer  → Windscreen wipers and washer  
Mirrors  → Mirrors  
Brake support systems  → Braking, stopping and parking  
Driving with respect for the environment  → Driving with respect for the environment  
Driver assist systems  → Driver assist systems 
Wheels and tyres  → Wheels and tyres  
⇒ BookletRadio , or ⇒ BookletNavigation system,
General information on operating the unit
The following section contains information on the settings that can be adjusted in the Vehicle settings menu. Basic information on operating the
infotainment system and on warning and safety instructions are contained in a separate manual ⇒ BookletRadio, or ⇒ BookletNavigation
system, .
Systems settings and display of vehicle information
After pressing the infotainment button you can touch the corresponding function button to display information or adjust settings, e.g.
you can check the current status of the start/stop system  → Pull-away assist systems   in the Vehicle status menu.
Vehicle settings (setup)  → Vehicle settings menu   .
Radio station selection.
Active media.
Vehicle status.
Driving data.
Convenience consumers.
Infotainment system
Menu and system settings (SETUP)
