Page 9 of 223
In brief7
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly. Do not lean on the
seat backrest whilst adjusting it.
Seat position 3 35, Seat adjustment
3 36, Seat folding 3 37.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 35, Seat adjustment
3 36.
Power seat adjustment
Operate switches.
Page 10 of 223
8In brief
Positioning=move front switch
forwards/
backwardsHeight of front
part of seat=move front part of
front switch
upwards/
downwardsHeight of rear
part of seat=move rear part of
front switch
upwards/
downwardsHeight of entire
seat=move entire front
switch upwards/
downwardsBackrest=move upper part of
rear switch
forwards/
backwards
Seat position 3 35, Power seat
adjustment 3 38.

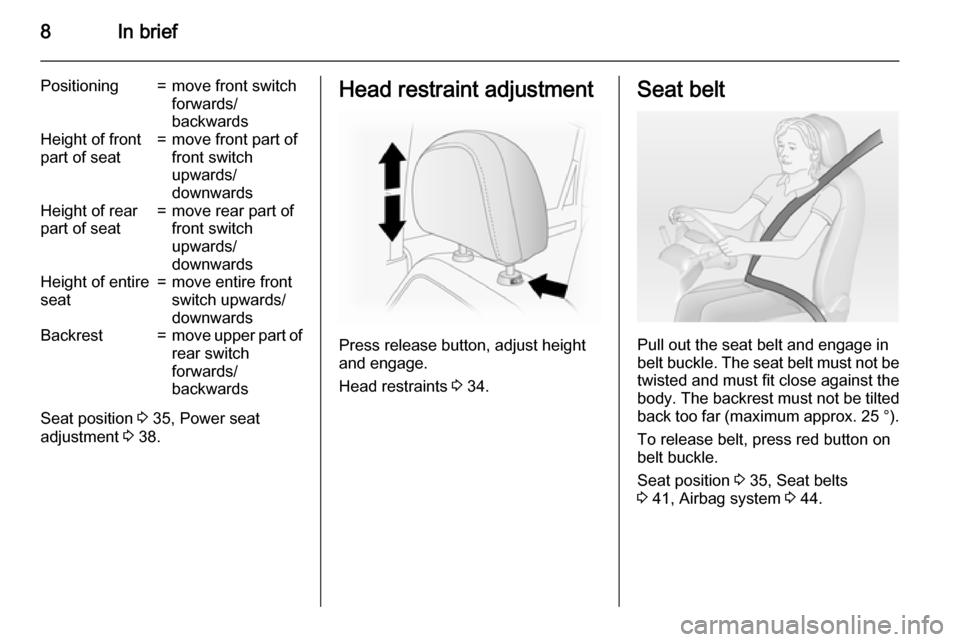

Head restraint adjustment
Press release button, adjust height
and engage.
Head restraints 3 34.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 35, Seat belts
3 41, Airbag system 3 44.
Page 36 of 223

34Seats, restraintsSeats, restraintsHead restraints............................ 34
Front seats ................................... 35
Rear seats ................................... 39
Seat belts ..................................... 41
Airbag system .............................. 44
Child restraints ............................. 51Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Height adjustment
Press release button, adjust height
and engage.
Pull head restraint up to raise. Push
head restraint down while pressing
the release button to lower the head
restraint.
Removal
Insert a suitable tool into the small
hole in the side of the guide sleeve
without the release button and
depress the lock. Press the release
button on the other guide sleeve and
pull up the head restraint.
Page 40 of 223

38Seats, restraints
Slide seat forwards.
To return the backrest to its original
position, slide seat as far back as it
will go, lift release lever, move the
backrest to upright position, lower
lever and the backrest engages.
Folding the backrest forwards is
possible only when the backrest is in
an upright position.
Do not operate lever to adjust lumbar support with backrest tilted forward.
Power seat adjustment9 Warning
Care must be taken when
operating the power seats. There
is a risk of injury, particularly for
children. Articles could become
trapped.
Keep a close watch on the seats
when adjusting them. Vehicle
passengers should be informed
accordingly.
Seat lengthwise position
Move front switch forwards/
backwards.
Seat height
Move front of switch upwards/
downwards to adjust height of front
part of seat cushion.
Move rear of switch upwards/
downwards to adjust height of rear
part of seat cushion.
Move front and rear of switch
upwards/downwards to adjust height
of entire seat cushion.
Seat backrests
Move upper part of rear switch
forwards/backwards.
The seat backrest must not be tilted
back too far (recommended
maximum tilting angle approx. 25°).
Page 44 of 223
42Seats, restraints
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.
Three-point seat belt
Fastening
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the shoulder
belt.
Seat belt reminder X 3 84.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Height adjustment
1. Squeeze release buttons together.
2. Slide adjuster up or down.
3. Ensure adjuster latches into position.
Page 54 of 223

52Seats, restraintsChild restraint installation locationsPermissible options for fitting a child restraint system
Weight and age class
On front passenger seat
On rear outboard seatsOn rear centre seat
activated airbagdeactivated airbagGroup 0: up to 10 kg
or approx. 10 monthsXU 1U,
or approx. 2 yearsXU 1U,
or approx. 8 months to 4 yearsXU 1U,
or approx. 3 to 7 yearsXXUXGroup III: 22 to 36 kg
or approx. 6 to 12 yearsXXUX1=Child restraint system must be secured using a three-point seat belt. Move seat height adjustment to uppermost position and ensure that vehicle seat belt runs forwards from the upper anchorage point. Adjust seat backrest inclination as faras necessary to a vertical position to ensure that the belt is tight on the buckle side.<=Vehicle seat with ISOFIX mounting available. When mounting with ISOFIX, only ISOFIX child restraint systems that
have been approved for the vehicle may be used.U=Universal suitability in conjunction with three-point seat belt.X=No child restraint system permitted in this weight and age class.
