2015 TOYOTA VERSO S stop start

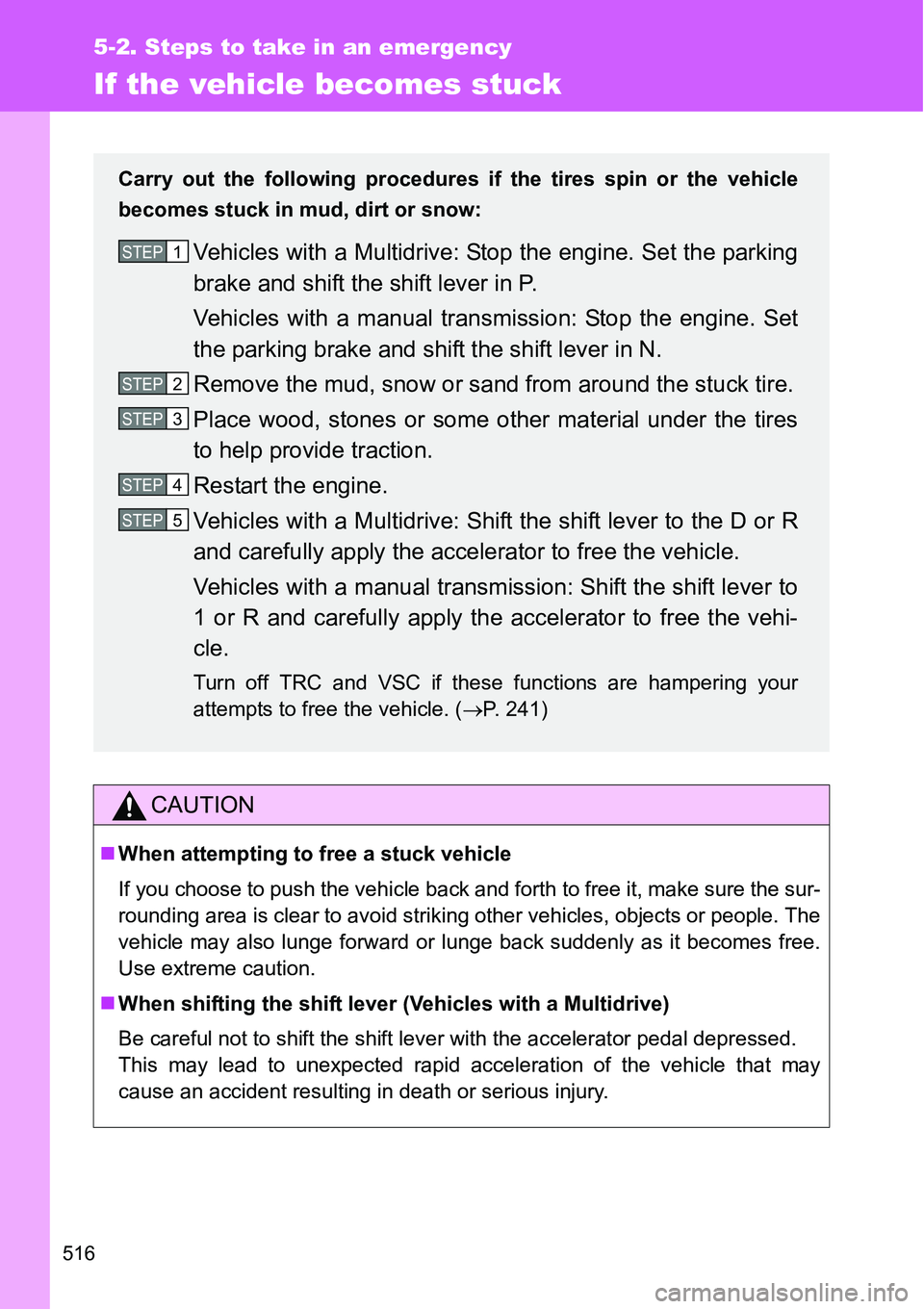

516
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
When shifting the shift lever (Vehicles with a Multidrive)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Vehicles with a Multidrive: Stop the engine. Set the parking
brake and shift the shift lever in P.
Vehicles with a manual transmission: Stop the engine. Set
the parking brake and shift the shift lever in N.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the engine.
Vehicles with a Multidrive: Shift the shift lever to the D or R
and carefully apply the accelerator to free the vehicle.
Vehicles with a manual transmission: Shift the shift lever to
1 or R and carefully apply the accelerator to free the vehi-
cle.
Turn off TRC and VSC if these functions are hampering your
attempts to free the vehicle. (P. 241)
STEP1
STEP2
STEP3
STEP4
STEP5

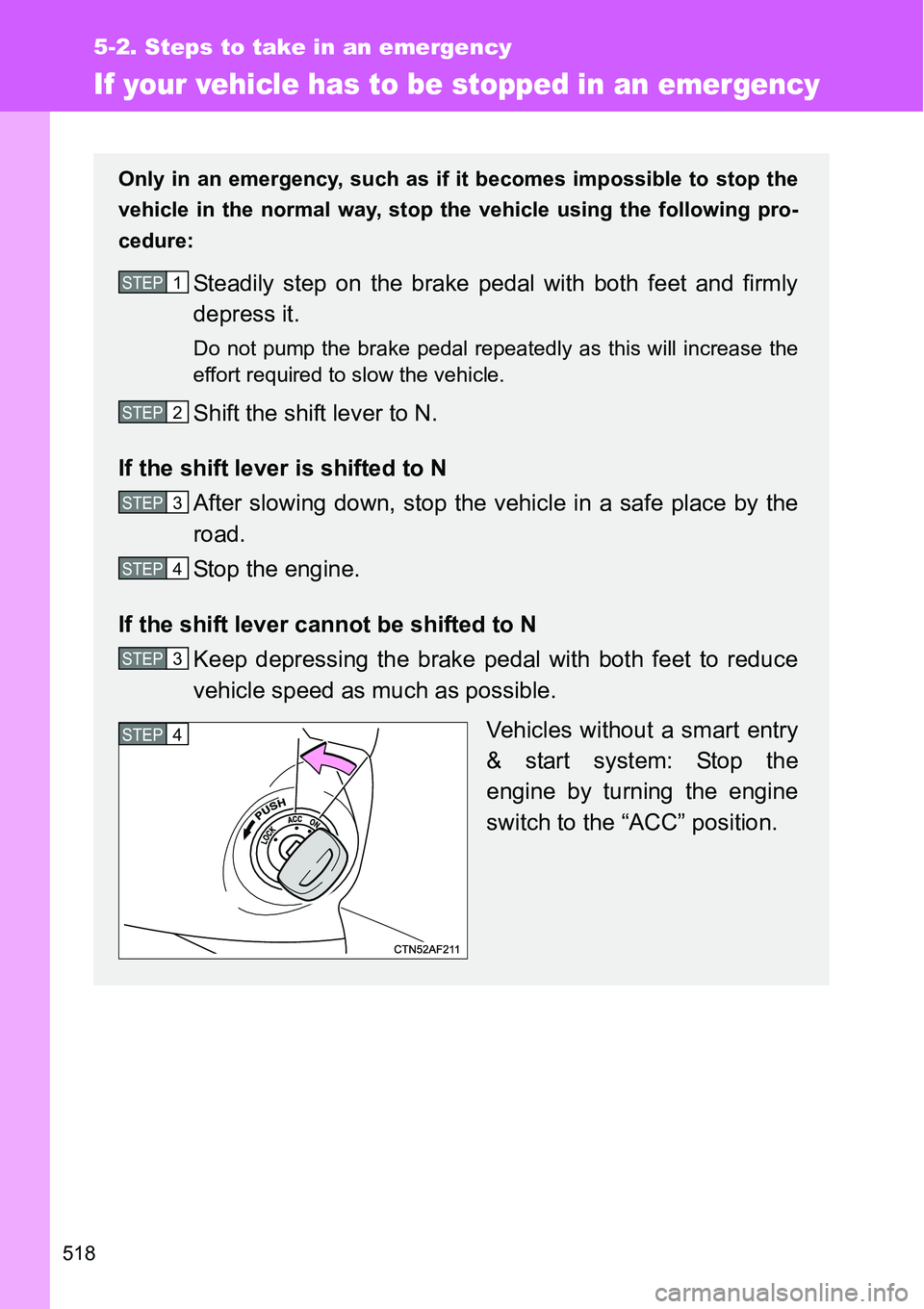

518
5-2. Steps to take in an emergency
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart entry
& start system: Stop the
engine by turning the engine
switch to the “ACC” position.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4

5

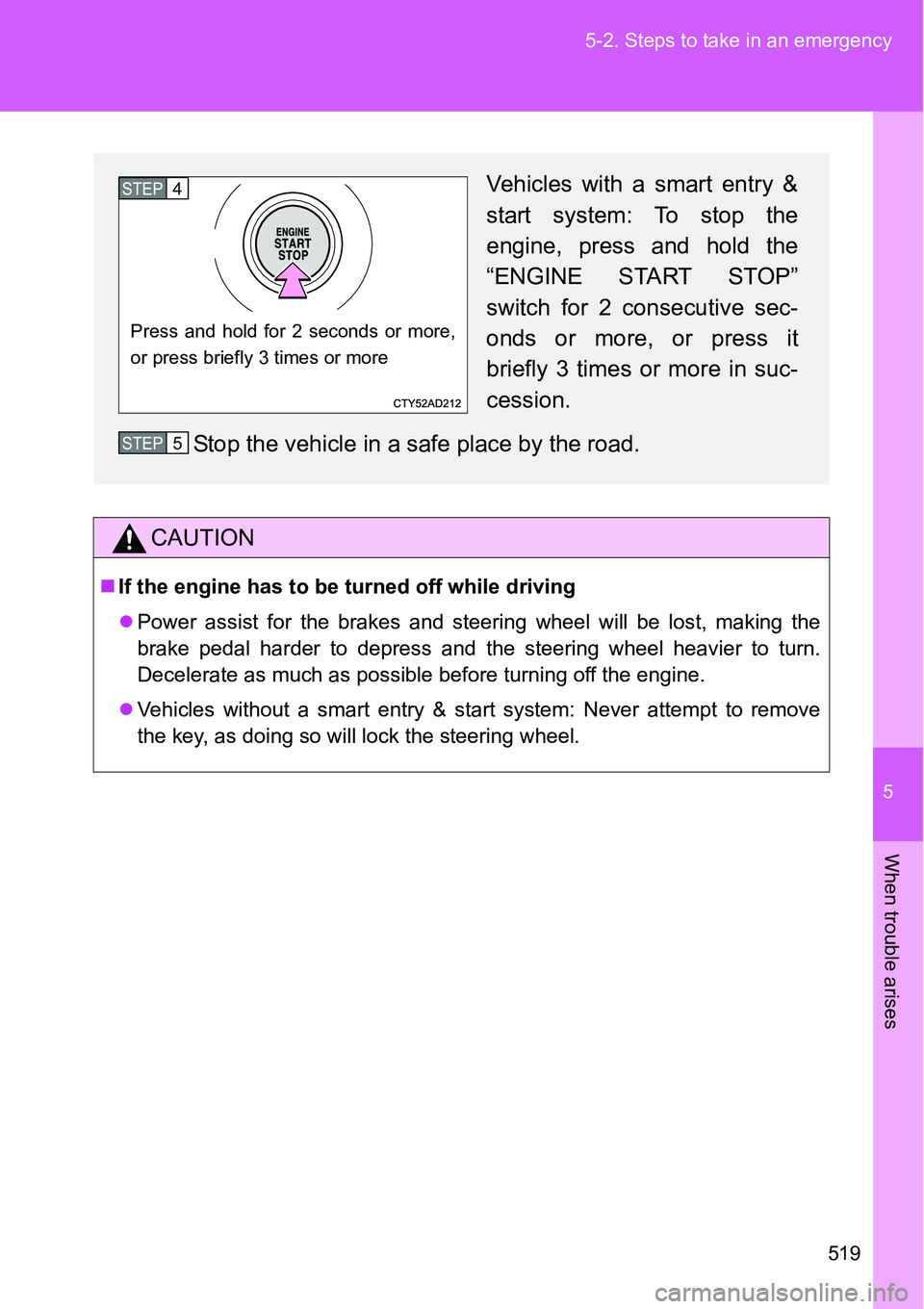

519 5-2. Steps to take in an emergency
When trouble arises
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 2 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP4
STEP5

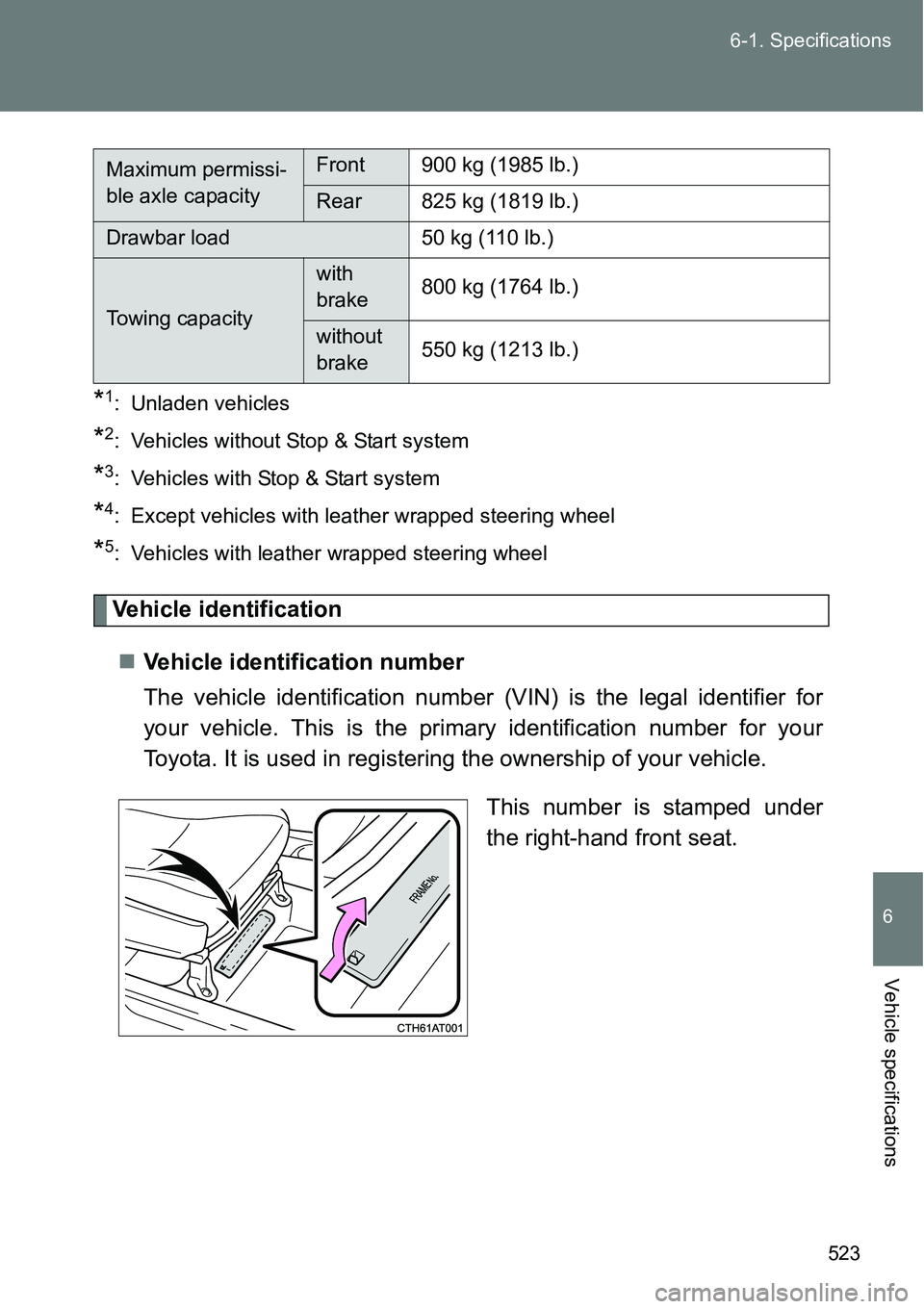

523 6-1. Specifications
6
Vehicle specifications
*1: Unladen vehicles
*2: Vehicles without Stop & Start system
*3: Vehicles with Stop & Start system
*4: Except vehicles with leather wrapped steering wheel
*5: Vehicles with leather wrapped steering wheel
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Maximum permissi-
ble axle capacityFront 900 kg (1985 lb.)
Rear 825 kg (1819 lb.)
Drawbar load 50 kg (110 lb.)
Towing capacity
with
brake800 kg (1764 lb.)
without
brake550 kg (1213 lb.)

550 Alphabetical index
Daytime running light
system .................................... 216
Deck board ............................... 347
Defogger
Rear window ......................... 281
Side mirror ............................ 281
Dimension ................................ 522
Display
Trip information ..................... 210
Do-it-yourself maintenance .... 364
Doors
Door lock ..................... 33, 57, 66
Door windows ......................... 98
Double locking system .......... 115
Side mirrors............................. 96
DPF
Diesel Particulate Filter
system ................................ 246
Warning light ......................... 450
Driver's seat belt reminder
light ......................................... 450
Driving
Break-in tips .......................... 162
Correct posture ..................... 120
Procedures............................ 158
Winter driving tips ................. 250
Dual-level deck board.............. 347Electric power steering ........... 240
Electronic key
If the electronic key does
not operate properly ........... 497
Replacing the battery ............ 403
Emergency flashers
Switch ................................... 436
Emergency, in case of
If the electronic key does not
operate properly ................. 497
If the engine will not start ...... 492
If the shift lever cannot be
shifted from P ..................... 495
If the vehicle has a
discharged battery .............. 501
If the warning buzzer
sounds ................................ 447
If the warning light
turns on .............................. 447
If you have a flat tire .... 462, 475
If you lose your keys ............. 496
If you run out of fuel and
the engine stalls ................. 514
If you think something is
wrong.................................. 445
If your vehicle becomes
stuck ................................... 516
If your vehicle has to be
stopped in an
emergency.......................... 518
If your vehicle needs to be
towed .................................. 437
If your vehicle overheats ....... 509DE

551 Alphabetical index
Emergency tire puncture
repair kit ................................. 475
Engine
Compartment ........................ 370
Engine switch ................ 173, 182
Hood ..................................... 367
How to start the
engine ......................... 173, 182
Identification number............. 523
If the engine will not start ...... 492
If you run out of fuel and
the engine stalls.................. 514
Ignition switch ............... 173, 182
Overheating .......................... 509
Engine coolant
Capacity ................................ 531
Checking ............................... 376
Preparing and checking
before winter ....................... 250
Engine immobilizer system .... 105
Engine oil
Capacity ................................ 527
Checking ............................... 372
Preparing and checking
before winter ....................... 250
“ENGINE START STOP”
switch light............................. 323
EPS............................................ 240Floor mat .................................. 345
Fluid
Washer ................................. 382
Fog lights
Replacing light bulbs............. 423
Switch ................................... 219
Wattage ................................ 536
Front fog lights
Replacing light bulbs............. 423
Switch ................................... 219
Wattage ................................ 536
Front passenger's seat belt
reminder light ........................ 451
Front position lights
Switch ................................... 213F

557 Alphabetical index
Seats
Adjustment .............................. 77
Adjustment precautions .......... 77
Child seats/child restraint
system installation .............. 145
Cleaning ................................ 358
Head restraint ......................... 83
Properly sitting in the seat..... 120
Rear seat adjustment .............. 78
Rear seat adjustment
precautions ........................... 81
Seat heaters.......................... 338
Service reminder
indicators .............................. 204
Shift lever
Manual transmission ............. 192
Multidrive............................... 186
Shift lock system ..................... 495
Side airbags ............................. 122
Side mirror
Adjusting and folding............... 96
Smart entry & start system
Entry function .......................... 33
Starting the engine ................ 173
Spare tire
Inflation pressure .................. 535
Storage location .................... 462Spark plug ................................ 531
Specifications .......................... 522
Speedometer ............................ 198
Steering
Column lock release ..... 179, 184
Steering wheel
Adjustment .............................. 92
Audio switches ...................... 320
Stop & Start cancel switch ..... 231
Stop & Start system ................ 229
Stop & Start system
operation time ....................... 199
Stop & Start system total
operation time ....................... 200
Storage feature ........................ 326
Storage precautions ................ 248
Stuck
If your vehicle becomes
stuck ................................... 516
Sun visors ................................ 332
*: Refer to “Navigation and multimedia system Owner’s manual”.

558 Alphabetical index
Sunshade
Panoramic roof...................... 341
Switch
Airbag manual on-off
switch.................................. 133
Emergency flasher switch ..... 436
Engine switch ................ 173, 182
Fog light switch ..................... 219
Hazard light switch ................ 436
Ignition switch ............... 173, 182
Light switches ....................... 213
Power door lock switch ........... 66
Power window switch .............. 98
“SPORT” switch .................... 187
Stop & Start cancel switch .... 231
Tire pressure warning reset
switch.................................. 386
Window lock switch ................. 98
Wiper and washer ......... 221, 227Tachometer .............................. 198
Tail lights
Switch ................................... 213
Telephone switch*
Theft deterrent system
Double locking system .......... 115
Engine immobilizer system ... 105
Tire inflation pressure ............. 395
Tire pressure warning
system .................................... 384
Function ................................ 385
Initializing .............................. 385
Installing tire pressure
warning valves and
transmitters......................... 385
Registering ID codes ............ 387
Tire pressure warning reset
switch ................................. 386
Warning light ......................... 453
Tires
Chains................................... 250
Checking ............................... 384
If you have a flat tire ..... 462, 475
Inflation pressure .................. 395
Replacing .............................. 462
Rotating tires......................... 384
Size ....................................... 535
Snow tires ............................. 250
Spare tire .............................. 462
Tire pressure warning
system ................................ 384
Warning light ......................... 453T
