2015 TOYOTA TUNDRA radio controls

9
1
2
3
4
5
6
7
8
9
1. BASIC OPERATION ........................ 68
QUICK REFERENCE ............................ 68
SOME BASICS ...................................... 70
2. RADIO OPERATION ....................... 75
AM/FM RADIO............................................... 75
XM Satellite Radio ................................. 84
INTERNET RADIO ................................ 90
3. MEDIA OPERATION ....................... 91
CD ......................................................... 91
USB MEMORY ...................................... 94
iPod ....................................................... 98
Bluetooth
® AUDIO ............................... 102
AUX ......................................................... 106
4. AUDIO REMOTE CONTROLS ...... 108
STEERING SWITCHES ...................... 108
5. SETUP ........................................... 109
AUDIO SETTINGS .............................. 109
6. TIPS FOR OPERATING 
THE AUDIO SYSTEM .................. 111
OPERATING INFORMATION ............. 111
1. VOICE COMMAND SYSTEM 
OPERATION ................................ 122
VOICE COMMAND SYSTEM .............. 122
CASUAL SPEECH 
RECOGNIZATION ............................ 127
COMMAND LIST ................................. 128
1. INFORMATION ............................. 132
RECEIVING WEATHER 
INFORMATION ................................. 132
RECEIVING TRAFFIC MAP  INFORMATION ................................. 133
DATA SERVICES SETTINGS ............. 134
1. REAR VIEW MONITOR 
SYSTEM ....... ............................ ...
136
REAR VIEW MONITOR SYSTEM ....... 136
REAR VIEW MONITOR SYSTEM 
PRECAUTIONS ................................ 138
THINGS YOU SHOULD KNOW .......... 143
1. PHONE OPERATION 
(HANDS-FREE SYSTEM 
FOR CELLULAR PHONES)........ 146
QUICK REFERENCE .......................... 146
SOME BASICS .................................... 147
CALLING ON THE Bluetooth
® 
PHONE .............................................. 150
RECEIVING ON THE Bluetooth
® 
PHONE .............................................. 155
TALKING ON THE Bluetooth
® 
PHONE .............................................. 156
Bluetooth
® PHONE MESSAGE 
FUNCTION ........................................ 159
2. SETUP........................................... 164
PHONE/MESSAGE SETTINGS .......... 164
3. WHAT TO DO IF... ........................ 176
TROUBLESHOOTING ......................... 176
3AUDIO SYSTEM
4VOICE COMMAND SYSTEM
5INFORMATION
6PERIPHERAL MONITORING 
SYSTEM
7PHONE

13
1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
By touching the screen with your finger, you can control the selected
functions.32
Insert a disc into this slot. The CD player turns on immediately.72
Press to access the Bluetooth® hands-free system and applications.145
Turn the tune/scroll knob to select a radio station or skip to the next or
previous track/file.75, 84, 91, 94, 98, 102
Press the “ ” or “ ” button to seek up or down for a radio station or to
access a desired track or file.75, 84, 91, 94, 98, 102
Map card slot
Do not eject the SD card, as doing so may deactivate the navigation
system.249
Press to pause or resume playing music.—
Press to access the audio system. The audio system turns on in the
last mode used.68, 70, 71
Press to display the “Apps” screen.14, 35
Press to display the “Home” screen.16, 34
Press the power·volume knob to turn the audio system on and off, and
turn it to adjust the volume.70
Press to eject a disc.72

18
1. CONTROLS AND FEATURES

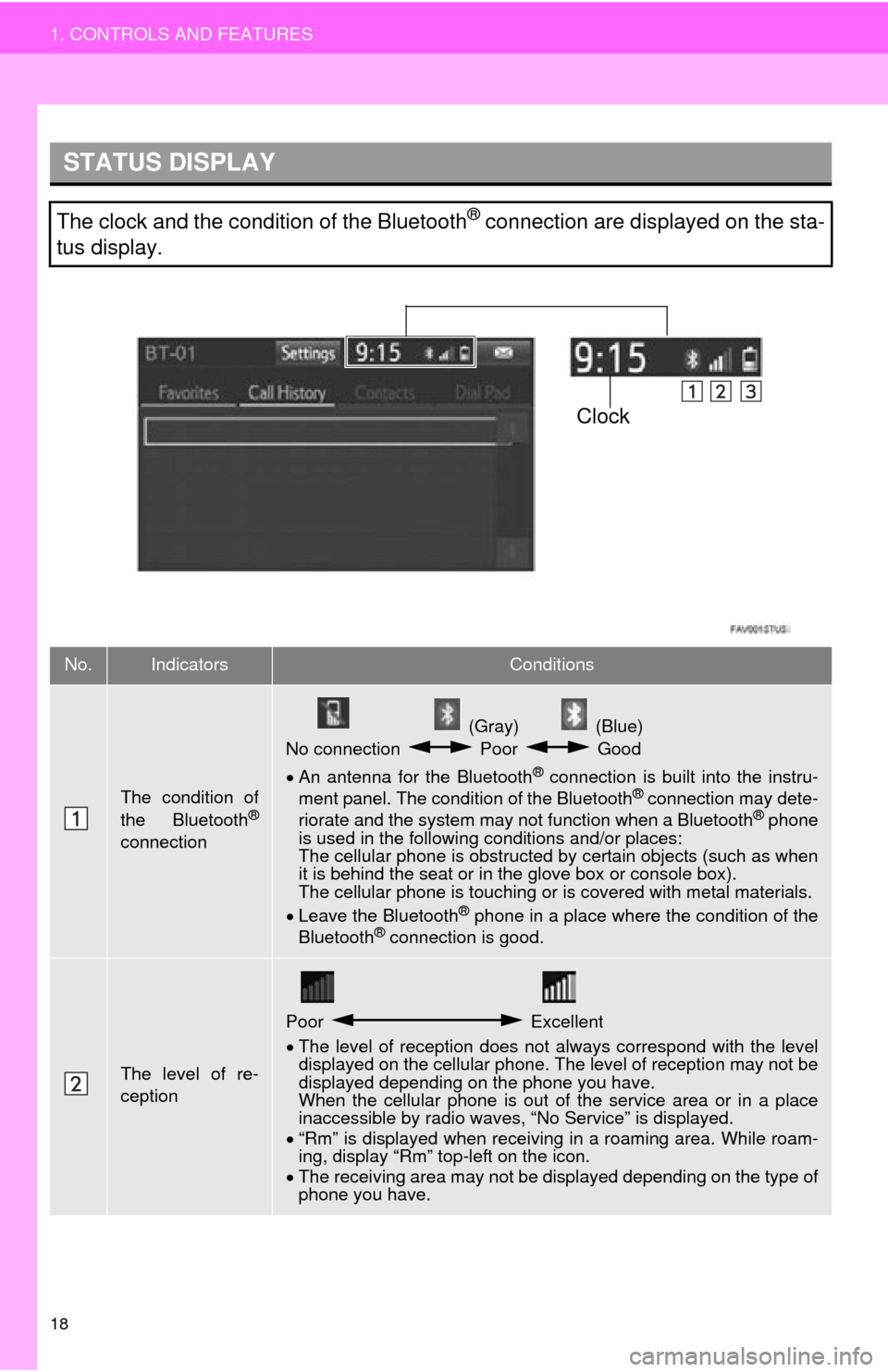

STATUS DISPLAY
The clock and the condition of the Bluetooth® connection are displayed on the sta-
tus display.
No.IndicatorsConditions
The condition of
the Bluetooth®
connection
(Gray) (Blue)
No connection Poor Good
 An antenna for the Bluetooth® connection is built into the instru -
ment panel. The condition of the Bluetooth® connection may dete -
riorate and the system may not function when a Bluetooth® phone
is used in the following conditions and/or places: 
The cellular phone is obstructed by cert
ain objects (such as when
it is behind the seat or in the glove box or console box). 
The cellular phone is touching or is covered with metal materials.
 Leave the Blu
etooth® phone in a place where the condition of the
Bluetooth® connection is good.
The level of re-
ception
Poor Excellent
The level of reception does not always correspond with the level
displayed on the cellular phone. The level of reception may not be
displayed depending on the phone you have. 
When the cellular phone is out of t
he service area or in a place
inaccessible by radio waves, “No Service” is displayed.
 “Rm”
is displayed when receiving in a roaming area. While roam -
ing, display “Rm” top-left on the icon.
 The
receiving area may not be di splayed depending on the type of
phone you have.
Clock

21
1. CONTROLS AND FEATURES
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.55
Select to customize the “Home” screen.34
Select to set the voice settings.60
Select to adjust the contrast and brightness of the screens.39
Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous desti-
nations.
227, 236
Select to turn the screen off.
Select to set radio and external media settings.109
Select to set the phone sound, contacts, message settings, etc.164
Select to set Bluetooth® phones and Bluetooth® audio devices.48
*Select to set Entune App Suite settings.264
*Select to set data services settings.134
Select to link the driver’s cellular phone settings (audio presets, lan-
guage, etc.).62
Select to set vehicle customization.“Owner’s
Manual”
*Select to set traffic information.240
*: Available in the 48 states, D.C. and Alaska

1
2
3
4
5
6
7
8
9
1. CD .................................................. 91
OVERVIEW ........................................... 91
PLAYING AN AUDIO CD ...................... 93
PLAYING AN MP3/WMA/AAC DISC ..... 93
2. USB MEMORY ............................... 94
OVERVIEW ........................................... 94
PLAYING A USB AUDIO ....................... 97
3. iPod ................................................ 98
OVERVIEW ........................................... 98
PLAYING AN iPod ............................... 101
4. Bluetooth® AUDIO ...................... 102
OVERVIEW ......................................... 102
CONNECTING A Bluetooth® 
DEVICE ............................................. 105
LISTENING TO Bluetooth
® AUDIO ..... 105
5.AUX ................................................. 106
OVERVIEW ......................................... 106
1. STEERING SWITCHES............... 108
1. AUDIO SETTINGS ...................... 109
“Audio Settings” SCREEN ................... 109
1. OPERATING INFORMATION ..... 111
RADIO.................................................. 111
CD PLAYER AND DISC ...................... 112
iPod ...................................................... 114
FILE INFORMATION ........................... 115
TERMS ................................................ 118
ERROR MESSAGES ........................... 119
3MEDIA OPERATION4AUDIO REMOTE CONTROLS
5SETUP
6TIPS FOR OPERATING 
THE AUDIO SYSTEM
3
67

104
3. MEDIA OPERATION
CAUTION
●Do not operate the player’s controls or connect to the Blueto oth® audio system while driv-
ing.
● Y
our audio unit is fitted with Bluetooth® antennas. People with implantable cardiac pace -
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
d efibrillators should maintain a reasonable distance between themselves and the Blue -
tooth
® antennas. The radio waves may affect the operation of such devices.
● Bef
ore using Bluetooth® devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves. Radio waves could
have unexpected effects on the operation of such medical devices.
NOTICE
● Do not leave your portable player in the vehicle. In particular, high temperatures inside
t
he vehicle may damage the portable player.
INFORMATION
●Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is paused. Conversely, the music may pause when
selecting while it is playing.
● In the following conditions, the system may not function:
• The Bluetooth
® device is turned off.
• The Bluetooth
® device is not connected.
• The Bluetooth
® device has a low battery.
● It may take time to connect the phone when Blueto oth
® audio is being played.
● For operating the portable player, see the instruction manual that comes with it.
● If the Bluetooth
® device is disconnected due to poor reception from the Bluetooth® net -
work when the engine switch is in the “ACC” or “ON” position, the system automatically
reconnects the portable player.
● If the Blueto oth
® device is disconnected on purpose, such as it was turned off, this does
not happen. Reconnect the portable player manually.
● Bluetooth
® device information is registered when the Bluetooth® device is connected to
the Blueto oth® audio system. When selling or disposing of the vehicle, remove the
Blueto oth® audio information from the system. ( P. 5 9 )

108
4. AUDIO REMOTE CONTROLS
1. STEERING SWITCHES
Volume control switch
 Press th
e “+” side to increase the volume.
The volume continues to increase while
the switch is being pressed.
 Press t
he “-” side to decrease the vol -
ume. The volume continues to decrease
wh ile the switch is being pressed.
Back switch
 Press t
he back switch to return to the pre-
vious screen.
“ ” switch
When in radio mode
 Press the “ ” or “ ” switch to change
the station/channel up or down.
 Pres
s and hold the “” or “” switch to
type seek up or down. (XM Satelite Radio)
 When in media mode
 Press the “” or “ ” switch to skip to the
next or previous track/file.
 Pres
s and hold the “” or “” switch to
fast skip to the next or previous track/file.
 Pres
s and hold the “” or “” switch to
fast forward or rewind.
 When in a list screen of media mode
 Press the “” or “ ” switch to scroll up
or down the items.
 Pres
s and hold the “” or “” switch to
skip to the next or previous page.
 Pres
s and hold the “” or “” switch to
change the playlist tab. (iPod, USB)
Enter switch
 W
hen in media mode
 Press the enter switch to show the list
screen.
When in a list screen of media mode
 Enter the selected item.
“MODE/HOLD” swi
tch
 Pres
s the “MODE/HOLD” switch to select
an audio mode. Each press changes the
mode sequentially if the desired mode is
ready to use.
 T
o turn the audio system on, press the
“MODE/HOLD” switch.
 Pres
s and hold the “MODE/HOLD” switch
to mute or pause the current operation.
Some parts of the audio system can be
adjusted using the switches on the
steering wheel.
No.Switch
Volume control switch
Back switch
“ ” switch
Enter switch
“MODE/HOLD” switch
