2015 TOYOTA SIENNA display

4025-11. Using the voice command system
SIENNA_OM_01999-08001_(U)
Some recognizable voice commands and their actions are shown
below as examples.
Basic
Phone

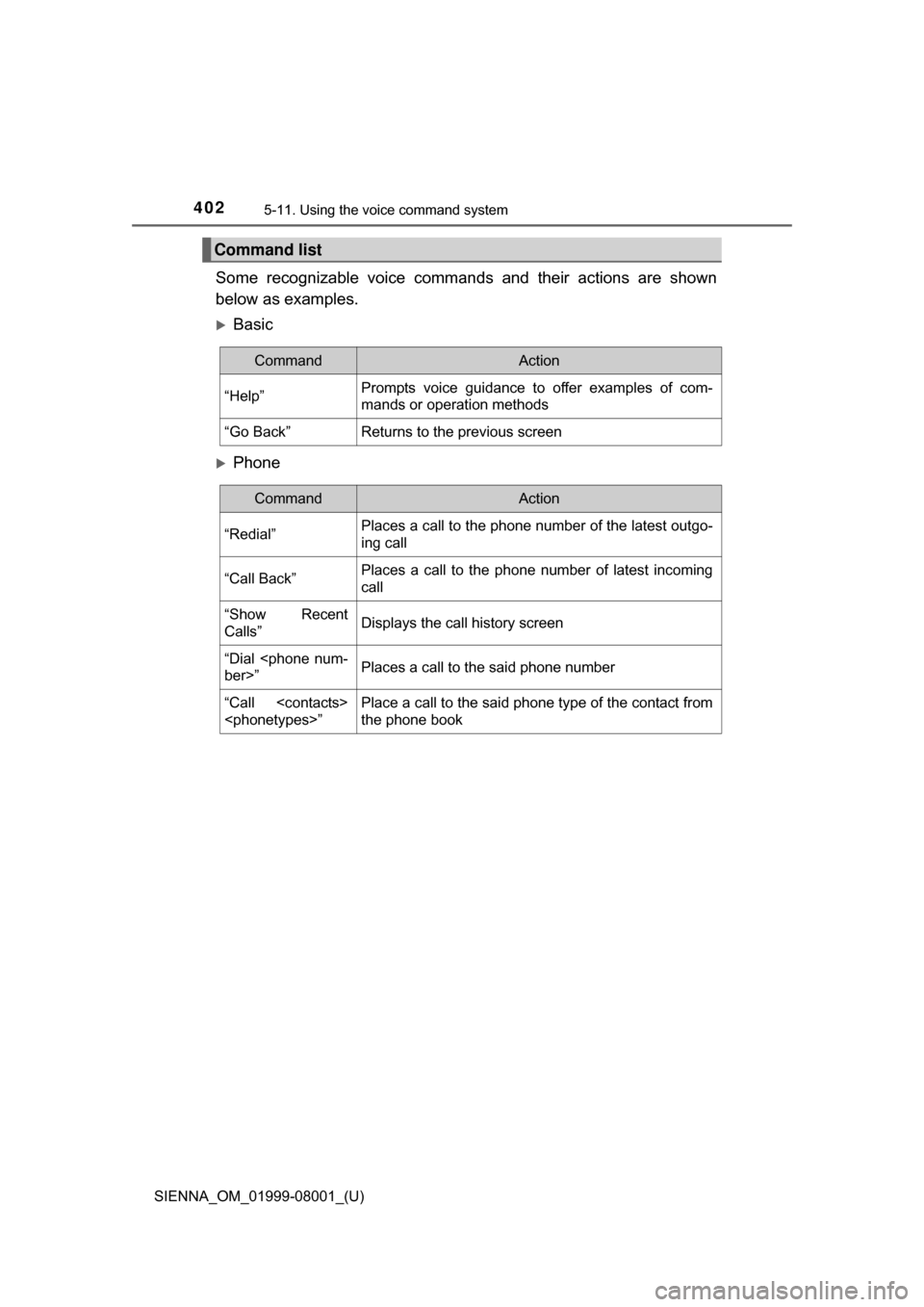

Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent
Calls”Displays the call history screen
“Dial ber>”Places a call to the said phone number
“Call
”Place a call to the said phone type of the contact from
the phone book

SIENNA_OM_01999-08001_(U)
4076-1. Using the air conditioning system and defogger
6
Interior features
Press the “AUTO” button (“AUTO” appears on the display).
Adjust the temperature setting.
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
■Adjusting the temperature setting
Press the “REAR” button (indicator and rear temperature on the
display on).
Turn the “REAR TEMP” dial clockwise to increase the tempera-
ture and counterclockwise to decrease the temperature.
The air conditioning system switches between individual (the lower side
indicator on the “SYNC” button is off) and simultaneous (the lower side
indicator on the “SYNC” button is on) modes each time the “SYNC” but-
ton is pressed.
■
Adjusting the fan speed
Press “ ” on to increase the fan speed and “ ” to
decrease the fan speed.
Press to turn the fan off.
■
Changing the air outlets
Press the “REAR MODE” button.
The air outlets switch each time the button is pressed. ( P. 414)
Using the automatic mode
Changing the rear setting
1
2
3
1
2

4086-1. Using the air conditioning system and defogger
SIENNA_OM_01999-08001_(U)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode ( appears on the
display) and recirculated air mode ( appears on the display) each
time the button is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press
.
Set to outside air mode if the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the wind-
shield is defogged.
■
Rear window defogger, outside rear view mirror defoggers (if
equipped) and windshield wi per de-icer (if equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors. The wind-
shield wiper de-icer is used to prevent ice from building up on the
windshield and wiper blades.
Press .
The defoggers and windshield wiper de-icer will automatically turn off
after a period of time.
Other functions

SIENNA_OM_01999-08001_(U)
4116-1. Using the air conditioning system and defogger
6
Interior features
■Temperature display
The temperature display on the multi-information display can be changed.
(P. 618)
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
■ When the outside temperature is low
The dehumidification function may not operate even when the “A/C” button is
pressed.
■ When “A/C ON” flashes in the display
Press the “A/C” button and turn off the air conditioning system before turning it
on once more. There may be a problem in the air conditioning system if “A/C
ON” continues to flash. Turn the air conditioning system off and have it
inspected by your Toyota dealer.
■ Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■ Air conditioning filter
P. 501
■ Customization
Settings (e.g. “AUTO” button linked operation) can be changed.
(Customizable features: P. 625)

4146-1. Using the air conditioning system and defogger
SIENNA_OM_01999-08001_(U)■
Changing the air outlets
Press the “MODE” button.
The air flow mode switch each time the button is pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Press the “AUTO” button (“AUTO” appears on the display).
Adjust the temperature setting.
To stop the operation, press the “OFF” button.
■Automatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
1
2
3
Using automatic mode
Air outlets
1
2
3

SIENNA_OM_01999-08001_(U)
4156-1. Using the air conditioning system and defogger
6
Interior features
■Adjusting the position of the air outlets
Direct air flow to the front or
rear, up or down.
■Temperature display
The temperature display on the multi-information display can be changed.
(P. 618)
■ When the front air conditioning system is in simultaneous mode
The lower side indicator on the “SYNC” button is on. The rear air conditioning
system controls will continue to function. ( P. 404)
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

449
SIENNA_OM_01999-08001_(U)
6-4. Using the other interior features
6
Interior features

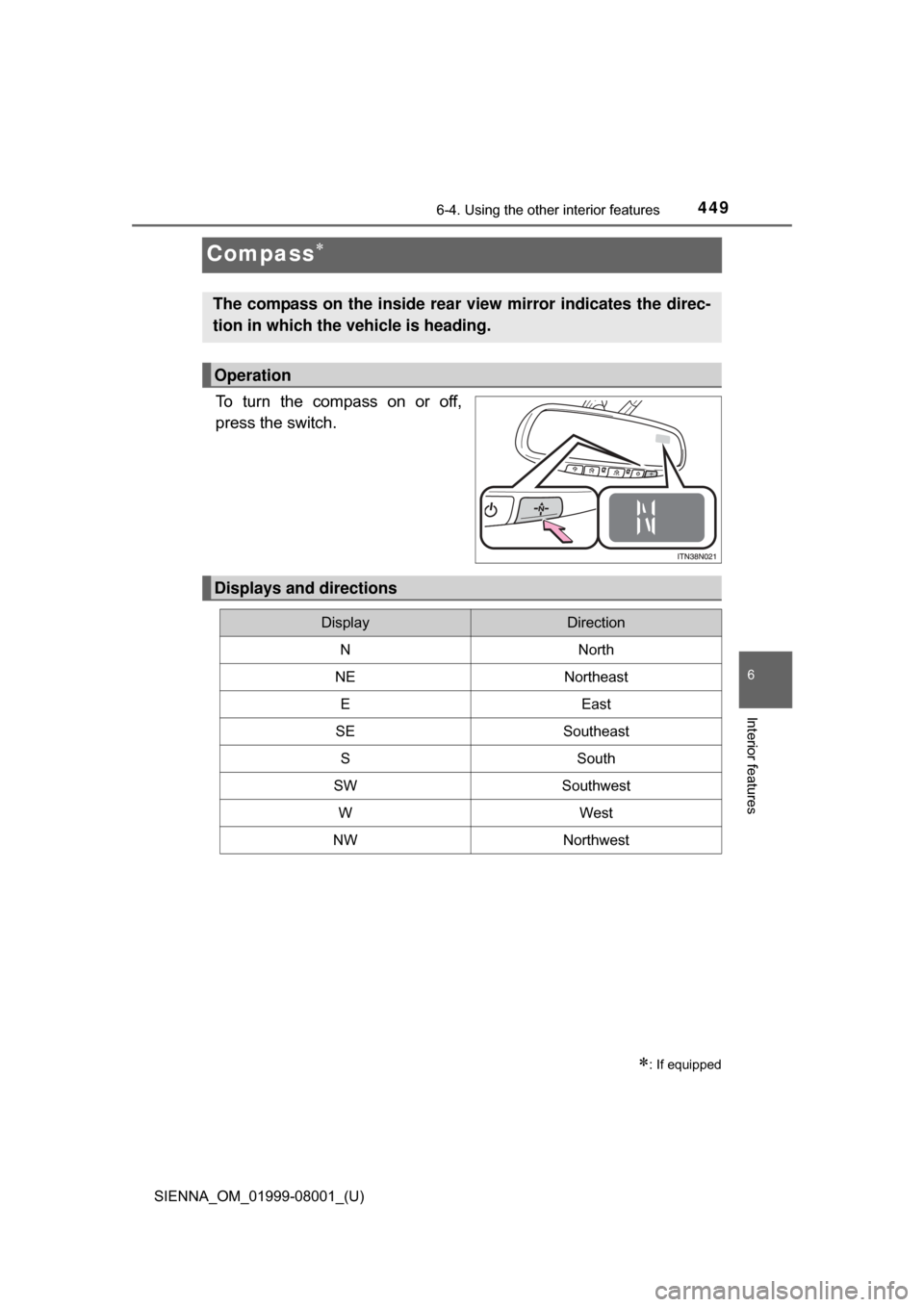

Compass
To turn the compass on or off,
press the switch.
: If equipped
The compass on the inside rear view mirror indicates the direc-
tion in which the vehicle is heading.
Operation
Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

450
SIENNA_OM_01999-08001_(U)
6-4. Using the other interior features
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according to
the geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
■
Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Press and hold the switch.
A number (1 to 15) appears
on the compass display.
Referring to the map above, press the switch to select the num-
ber of the zone you are in.
If the direction is displayed several seconds after adjustment, the cali-
bration is complete.
Calibrating the compass
Samoa: 5 Guam: 8 Saipan: 8
1
2
3
