4-5. Using the driving support systems
■Conditions under which the Rear Cr oss Traffic Alert function will not
detect a vehicle
The Rear Cross Traffic Alert function is not designed to detect the following
types of vehicles and/or objects.
● Small motorcycles, bicycles, pedestrians, etc.
*
●Vehicles approaching from directly behind
● Guardrails, walls, signs, parked vehicles and similar stationary objects
*
●Vehicles moving away from your vehicle
● Vehicles approaching from the parking spaces next to your vehicle
*
●Vehicles backing up in the parking space next to your vehicle*
*
: Depending on conditions, detection of a vehicle and/or object may occur.
■ Conditions under which the Rear Cross Traffic Alert function may not
function correctly
The Rear Cross Traffic Alert function may not detect vehicles correctly in the
following conditions:
● When ice, mud, etc. is attached to the rear bumper
● During bad weather such as heavy rain, fog, snow, etc.
● When multiple vehicles approach continuously
● Shallow angle parking
● When a vehicle is approaching at high speed
● When parking on a steep incline, such as hills, a dip in the road, etc.
● Directly after the BSM main switch is set to on
● Directly after the engine is started with the BSM main switch on
● When towing a trailer
● Vehicles that the sensors cannot detect
because of obstacles

RAV4_OM_OM42A78U_(U)
5196-1. Maintenance and care
6
Maintenance and care
NOTICE
■When cleaning the inside of the wi ndshield (vehicles with LDA [Lane
Departure Alert] and Automatic High Beam)
Be careful not to touch the camera sensor (P. 227, 245).
If the camera is accidentally scratched or hit, LDA and Automatic High
Beam may not operate properly or may cause a malfunction.
■ Cleaning the inside of the rear window
● Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
● Be careful not to scratch or damage the heater wires.

558
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
■The initialization operation (vehicles with the tire pressure warning
system)
●Make sure to carry out in itialization after adjusting the tire inflation pres-
sure.
Also, make sure the tires are cold be fore carrying out initialization or tire
inflation pressure adjustment.
●If you have accidentally turned the engine switch to the “LOCK” position
(vehicles without a smart key system) or off (vehicles with a smart key
system) during initialization, it is no t necessary to press the reset switch
again as initialization will restart aut omatically when the engine switch
has been turned to the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehic les with a smart key system) for the
next time.
●If you accidentally press the reset s witch when initialization is not neces-
sary, adjust the tire inflation pressu re to the specified level when the
tires are cold, and conduct initialization again.
■When initialization of the tire pressure warning system has failed (if
equipped)
Initialization can be completed in a few minutes. However, in the following
cases, the settings have not been recorded and the system will not oper-
ate properly. If repeated attempts to record tire inflation pressure settings
are unsuccessful, have the vehicle inspected by your Toyota dealer.
●When operating the tire pressure wa rning reset switch, the tire pressure
warning light does not blink 3 times.
●After driving for a certain period of time since the initialization has been
completed, the warning light comes on after blinking for 1 minute.
■Tire pressure warning system certification
For vehicles sold in the U.S.A.
TRW Automotive
Tire Pressure Monitoring Sensor
FCC ID: GQ4-51T
This device complies with Part 15 of th e FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation of this device.
WARNING: Changes or modifications not expressly approved by TRW
Automotive U.S. LLC could void the user’s authority to operate the equip-
ment.

RAV4_OM_OM42A78U_(U)
5596-3. Do-it-yourself maintenance
6
Maintenance and care
FCC ID: PAXPMVC010
NOTE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC WARNING
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
For vehicles sold in Canada
TRW Automotive
Tire Pressure Monitoring Sensor
Model: 228408
IC: 1470A-32T
MADE IN U.S.A.
This device complies with Industry Canada license-exempt RSS stan-
dard(s). Operation is subject to the following two conditions: (1) This
device may not cause harmful inte rference, and (2) This device must
accept any interference received, including interference that may cause
undesired operation of this device.
Le présent appareil est conforme aux CNR d’Industrie Canada applica-
bles aux appareils radio exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes : 1. L’appareil ne doit pas produire de
brouillage. 2. L’utilisateu r de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
WARNING: Changes or modifications not expressly approved by TRW
Automotive U.S. LLC could void the user’s authority to operate the equip-
ment.
NOTE
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.

576
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance

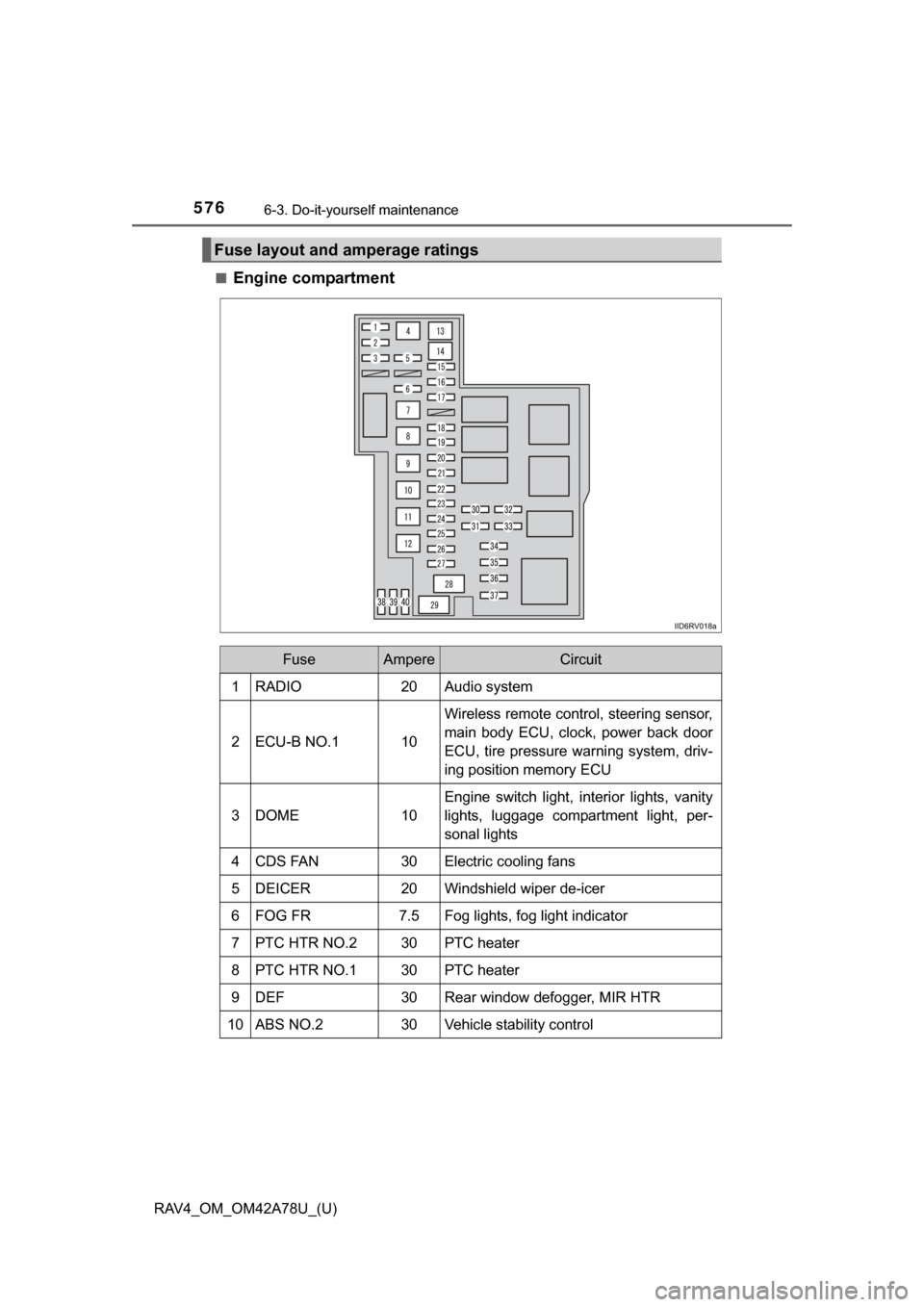

■Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1RADIO20Audio system
2ECU-B NO.110
Wireless remote control, steering sensor,
main body ECU, clock, power back door
ECU, tire pressure warning system, driv-
ing position memory ECU
3DOME10
Engine switch light, interior lights, vanity
lights, luggage compartment light, per-
sonal lights
4CDS FAN30Electric cooling fans
5DEICER20Windshield wiper de-icer
6FOG FR7.5Fog lights, fog light indicator
7PTC HTR NO.230PTC heater
8PTC HTR NO.130PTC heater
9DEF30Rear window defogger, MIR HTR
10ABS NO.230Vehicle stability control

RAV4_OM_OM42A78U_(U)
5776-3. Do-it-yourself maintenance
6
Maintenance and care
11RDI FAN30Electric cooling fans
12ABS NO.150Vehicle stability control
13HTR50Air conditioning system
14H-LP-MAIN50H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI, daytime running lights
15AMP30Audio system
16ST30Starting system
17EFI-MAIN NO.120
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2
18IG215
METER, IGN, A/B, multiport fuel injection
system/sequential multiport fuel injection
system
19TURN & HAZ10Gauges and meters
20AM27.5IG2, starting system
21ECU-B NO.210
Air conditioning system ECU, gauges
and meters, front passenger occupant
classification system ECU, smart key
system
22STRG LOCK10Steering lock ECU
23D/C CUT30DOME, ECU-B NO.1, RADIO
24HORN10Horn
25ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
26EFI-MAIN NO.220Air flow sensor, fuel pump, rear O2 sen-
sor
27ALT-S/ICS7.5Electric current sensor
28EPS80Electric power steering
29ALT120
ABS NO.1, ABS NO.2, PTC HTR NO.1,
PTC HTR NO.2, DEICER, HTR, RDI
FAN, CDS FAN, FOG FR, DEF
30MIR HTR10
Outside rear view mirror defoggers, mul-
tiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

578
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
31WIPER-S5Windshield wiper switch, electric current
sensor
32H-LP LH-LO10Left-hand headlight (low beam)
33H-LP RH-LO10Right-hand headlight (low beam)
34EFI NO.110Air flow meter, purge control VSV, ACIS
VSV
35EFI NO.210
Multiport fuel injection system/sequential
multiport fuel injection system, key off
pump module
36H-LP LH-HI10Left-hand headlight (high beam), head-
light high beam indicator
37H-LP RH-HI10Right-hand headlight (high beam)
38SPARE10Spare fuse
39SPARE20Spare fuse
40SPARE30Spare fuse
FuseAmpereCircuit

580
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
18ACC7.5
Power outlets, audio system, outside rear
view mirrors, main body ECU, clock,
electric current sensor
19PA N E L7.5
VSC OFF switch, instrument cluster (indi-
cators and warning lights), BSM main
switch, all-wheel drive lock switch, wind-
shield wiper de-icer switch, multiport fuel
injection system/sequential multiport fuel
injection system, intuitive parking assist
ECU, seat heater switches, power out-
lets, power back door switches, air condi-
tioning system switches, rear window
defogger switch, audio system, cup
holder light, steering switches, driver
module switch
20TA I L10Parking lights, tail lights, license plate
lights, side marker lights, fog lights
21EPS-IG5Electric power steering
22ECU-IG NO.110
Dynamic Torque Control AWD system
ECU, steering sensor, instrument cluster
(indicators and warning lights), shift con-
trol switch
23ECU-IG NO.25
Main body ECU, wireless remote control,
shift lock system ECU, smart key system,
moon roof ECU, audio system, power
back door ECU, tire pressure warning
system, LDA system, Blind Spot Monitor
system
24HTR-IG7.5
Air conditioning system ECU, air condi-
tioning system switches, rear window
defogger switch
25S-HTR LH10Left-hand seat heater
26S-HTR RH10Right-hand seat heater
27IGN7.5
Fuel pump, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, stop lights, steering lock system
ECU
