6347-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
CAUTION
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wh eel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deforma tions in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( P. 566)
■Replacing a flat tire for vehicles with power back door (if equipped)
In cases such as when replacing tire s, make sure to turn off the power
back door main switch (P. 126). Failure to do so may cause the back
door to operate unintentionally if the power back door switch is acciden-
tally touched, resulting in hands and fingers being caught and injured.

6367-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
For vehicles with full wheel
ornament, reinstall the wheel
ornament.
*
Align the cutout of the wheel
ornament with the valve stem as
shown.
*: The wheel ornament cannot
be installed on the compact
spare tire.
Stow the flat tire, tire jack and all tools.
3
4
5
6

6407-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
CAUTION
■When using the compact spare tire (if equipped)
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■When the compact spare tire is attached (if equipped)
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
Also, not only can the following system not be utilized fully, it may actu-
ally negatively effect the drive-train components:
• Dynamic Torque Control AWD system (AWD models)
• ABS & Brake assist
• VSC
•TRAC
• Cruise control
• EPS
• LDA (Lane Departure Alert) (if equipped) • Rear view monitor system (if
equipped)
• Intuitive parking assist (if equipped)
• Entune Premium Audio with Navigation (if equipped)

RAV4_OM_OM42A78U_(U)
6698-1. Specifications
8

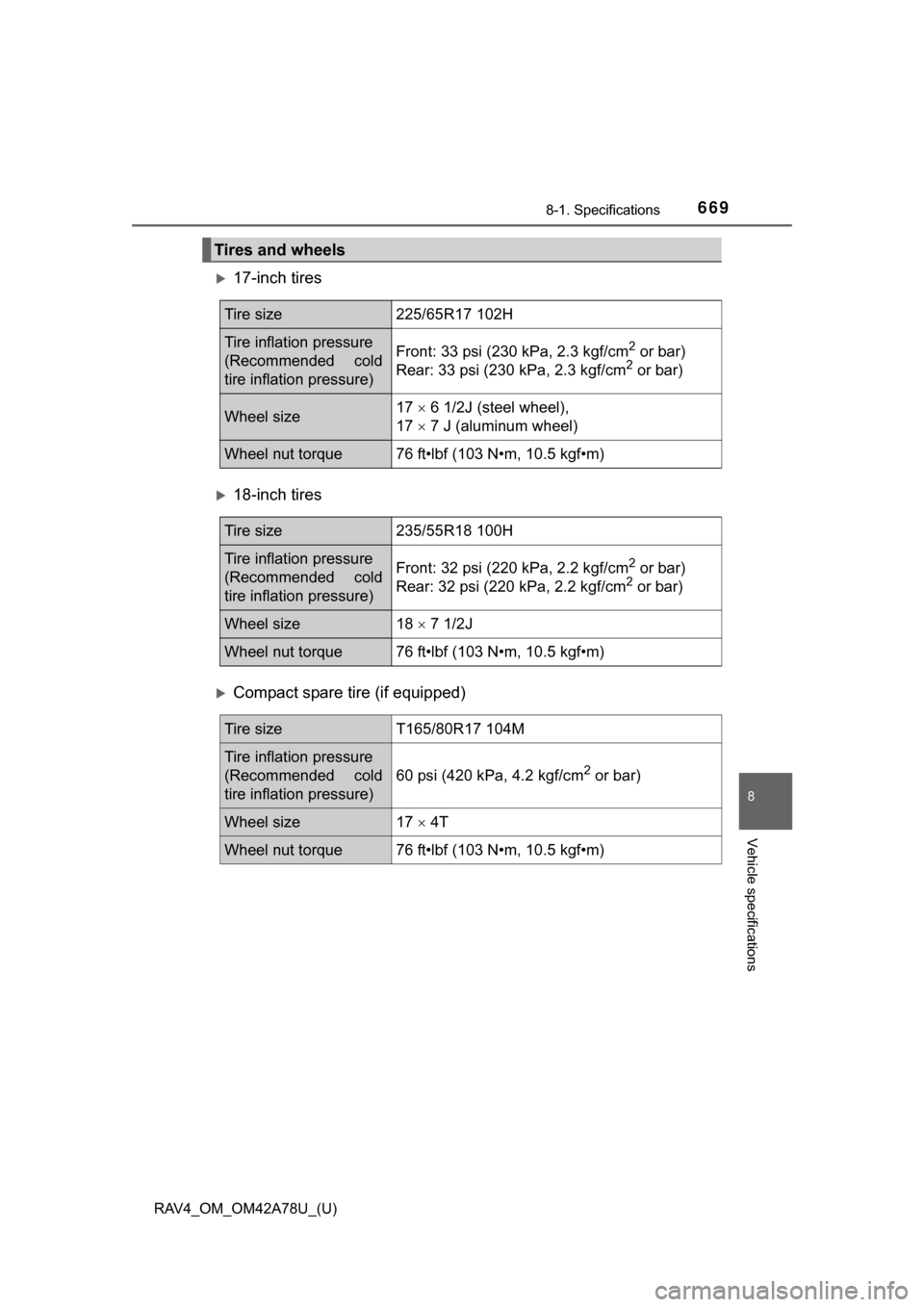

Vehicle specifications
17-inch tires
18-inch tires
Compact spare tire (if equipped)
Tires and wheels
Tire size225/65R17 102H
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Wheel size17  6 1/2J (steel wheel),
17  7 J (aluminum wheel)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size235/55R18 100H
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size18  7 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeT165/80R17 104M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

719Alphabetical index
RAV4_OM_OM42A78U_(U)
Child safety ................................ 58Airbag precautions .................. 41
Back door precautions .......... 129
Battery precautions ....... 546, 652
Child restraint system ............. 59
How your child should
wear the seat belt ................. 34
Installing child restraints ......... 63
Moon roof precautions .......... 161
Power window lock switch .... 155
Power window
precautions ......................... 157
Rear door child-protectors .... 121
Removed key battery precautions ......................... 572
Seat belt extender precautions ........................... 37
Seat belt precautions .............. 35
Seat heater precautions........ 507
Child-protectors....................... 121
Cleaning ........................... 512, 516
Aluminum wheels.................. 514
Exterior ................................. 512
Interior................................... 516
Seat belts .............................. 517
Clock ......................................... 504
Coat hooks ............................... 509
Condenser ................................ 544
Console box ............................. 491
Cooling system Engine overheating ............... 653
Cruise control .......................... 241
Cup holders.............................. 492
Curtain shield airbags ............... 38
Customizable features ............ 687 Daytime running light
system.................................... 219
Defogger Outside rear view mirrors ..... 316
Rear window ......................... 316
Windshield ............................ 301
Differential................................ 666
Dimension ................................ 660
Dinghy towing.......................... 196
Display Fuel consumption
information ........................... 92
LDA (Lane Departure Alert)................................... 245
Multi-information display ......... 87
Trip information....................... 88
Do-it-yourself maintenance .... 528
Doors
Automatic door locking and unlocking system......... 122
Back door ............................. 124
Door glasses......................... 155
Door lock ...................... 119, 124
Open door warning buzzer ... 104
Open door warning light ....... 615
Outside rear view mirrors ..... 153
Rear door child-protectors .... 121
Side doors ............................ 119
Driver’s seat position memory .................................. 142
Driving ...................................... 164 Break-in tips.......................... 166
Correct posture ....................... 28
Driving mode select switch ................................. 209
Procedures ........................... 164
Winter drive tips .................... 287
Driving position memory ........ 142 Driving position memory ....... 142
Memory recall function ......... 144
Dynamic Torque Control AWD system .......................... 272D
