WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 12,000 miles, whichever
occurs first.
Hybrid System Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of the components listed
here and supplied by Toyota, subject to
the exceptions indicated under “What Is
Not Covered” on pages 14-15.
•Battery control module (battery
voltage sensor)
• Hybrid
battery
• Hybrid control module (power
management
control
module)
• Inverter with converter
Coverage is for 96 months or
100,000 miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed
below and in the next column and
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
Engine
Cylinder block and head and all internal
parts, timing gears and gaskets, timing
chain/belt and cover, valve covers, oil pan,
oil pump, engine mounts, engine control
computer, water pump, fuel pump, seals
and gaskets.
Transaxle/Motor/Generator
Case and all internal parts, transaxle
mounts, seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals and
gaskets.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail13
JOBNAME: 1705402-2015-prvWG-E PAGE: 18 SESS: 12 OUTPUT: Thu Oct 23 07:07:08 2014
/tweddle/toyota/sched-maint/1705402-en-prv/wg15
WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
•The use of replacement parts not
certified in
accordance with
aftermarket parts certification
regulations.
• The use of replacement parts not
equivalent
in
quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air/Fuel Metering System
• Air/fuel ratio feedback control system
• Electronic fuel injection system
components
– Air
flow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System
• Intake manifold and intake air surge
tank
Catalyst System
•Catalytic converter and protector
(8/80)
• Constricted fuel filler neck
• Exhaust manifold
• Exhaust pipe (manifold to catalyst
and/or
catalyst
to catalyst)
Evaporative Control System
•Charcoal canister
• Diaphragm valve
• Fuel filler cap
• Fuel tank
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
18Your Warranties in Detail

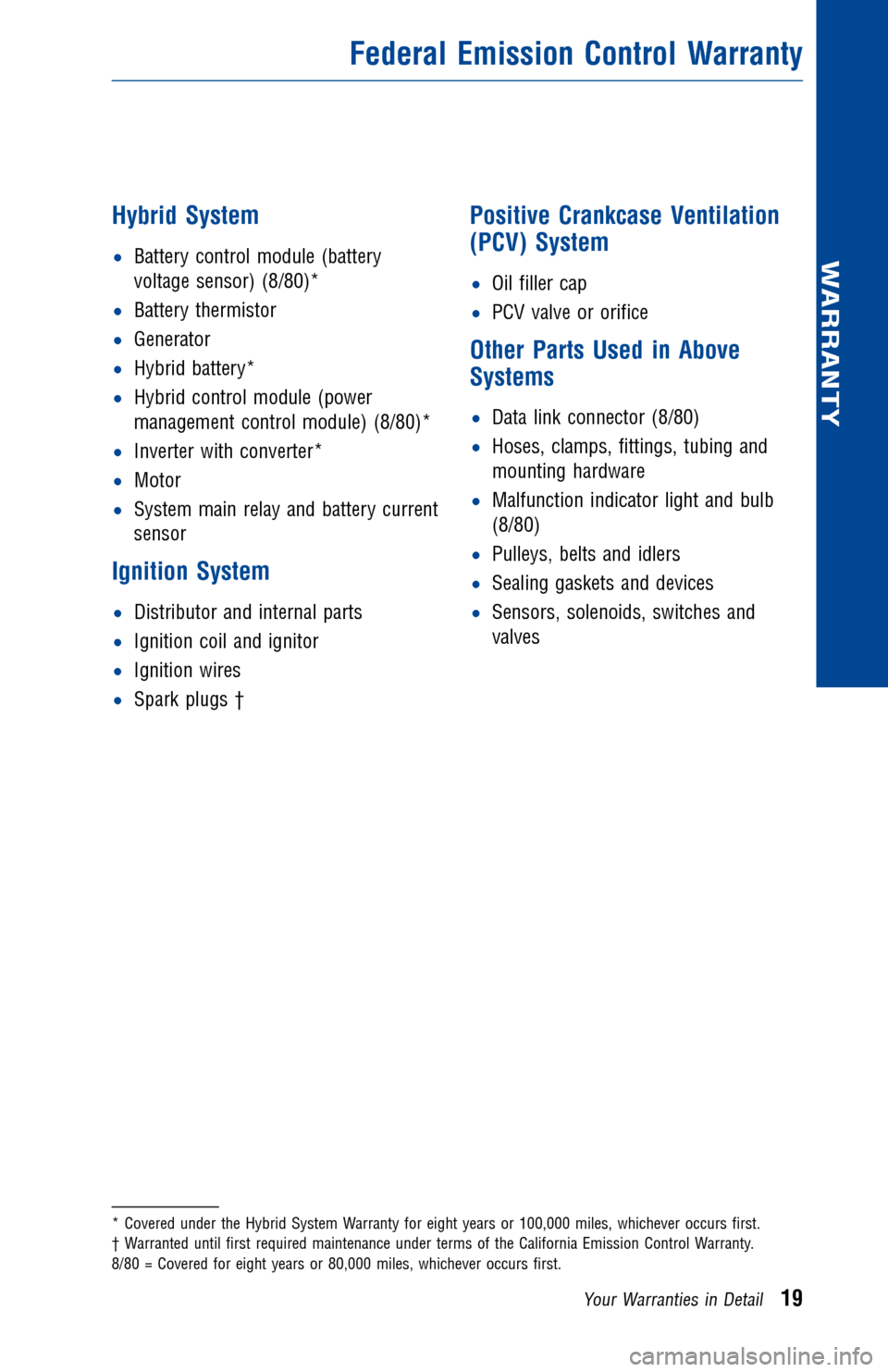

JOBNAME: 1705402-2015-prvWG-E PAGE: 19 SESS: 12 OUTPUT: Thu Oct 23 07:07:08 2014
/tweddle/toyota/sched-maint/1705402-en-prv/wg15
Hybrid System
•Battery control module (battery
voltage sensor)
(8/80)*
• Battery thermistor
• Generator
• Hybrid battery*
• Hybrid control module (power
management
control
module) (8/80)*
• Inverter with converter*
• Motor
• System main relay and battery current
sensor
Ignition System
•Distributor and internal parts
• Ignition coil and ignitor
• Ignition wires
• Spark plugs †
Positive Crankcase Ventilation
(PCV) System
•Oil filler cap
• PCV valve or orifice
Other Parts Used in Above
Systems
•Data link connector (8/80)
• Hoses, clamps, fittings, tubing and
mounting hardware
• Malfunction
indicator light and bulb
(8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and
valves
* Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first.
† Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail19
