2015 TOYOTA PRIUS PLUS sensor

2584-5. Using the driving support systems
PRIUS +_OM_OM47B16E_(EE)■
Automatic cancelation of the pre-crash safety system
When a malfunction occurs due to sensor contamination, etc. that results in
the sensors being unable to detect obstacles, the pre-crash safety system will
be automatically disabled. In this case, the system will not activate even if
there is a collision possibility.
■ When there is a malfunction in the system, or if the system is tempo-
rarily unusable
The PCS warning light flashes and a warning message is shown on the multi-
information display. If a warning message is shown on the multi-information
display, read the message and follow the instructions. ( →P. 376, 388)
■ Certification for the pre-crash safety system

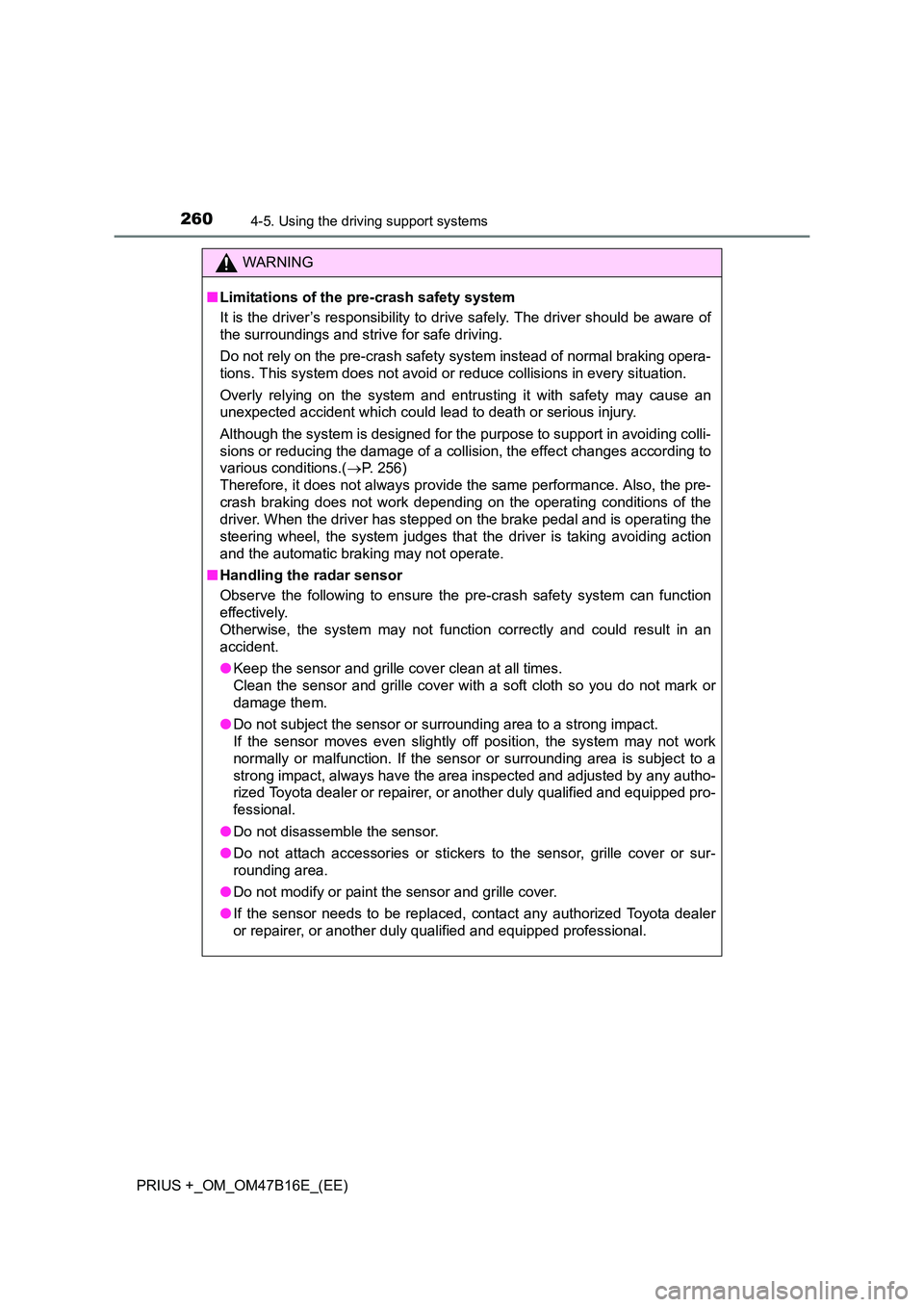

2604-5. Using the driving support systems
PRIUS +_OM_OM47B16E_(EE)
WARNING
■ Limitations of the pre-crash safety system
It is the driver’s responsibility to drive safely. The driver should be aware of
the surroundings and strive for safe driving.
Do not rely on the pre-crash safety system instead of normal braking opera-
tions. This system does not avoid or reduce collisions in every situation.
Overly relying on the system and entrusting it with safety may cause an
unexpected accident which could lead to death or serious injury.
Although the system is designed for the purpose to support in avoiding colli-
sions or reducing the damage of a collision, the effect changes according to
various conditions.( →P. 256)
Therefore, it does not always provi de the same performance. Also, the pre-
crash braking does not work depending on the operating conditions of the
driver. When the driver has stepped on the brake pedal and is operating the
steering wheel, the system judges that the driver is taking avoiding action
and the automatic braking may not operate.
■ Handling the radar sensor
Observe the following to ensure the pre-crash safety system can function
effectively.
Otherwise, the system may not function correctly and could result in an
accident.
●Keep the sensor and grille cover clean at all times.
Clean the sensor and grille cover with a soft cloth so you do not mark or
damage them.
● Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may not work
normally or malfunction. If the sensor or surrounding area is subject to a
strong impact, always have the area inspected and adjusted by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
● Do not disassemble the sensor.
● Do not attach accessories or stickers to the sensor, grille cover or sur-
rounding area.
● Do not modify or paint the sensor and grille cover.
● If the sensor needs to be replaced, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.

3026-1. Maintenance and care
PRIUS +_OM_OM47B16E_(EE)
WARNING
■ When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
■ When cleaning the windshield (vehic les with rain-sensing windshield
wipers)
● When the upper part of the windshield where the raindrop sensor is
located is touched by hand
● When a wet rag or similar is held close to the raindrop sensor
● If something bumps against the windshield
● If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
■ Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has
cooled sufficiently, as touching a hot exhaust pipe can cause burns.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in
hands being caught or other serious inju-
ries and cause damage to the wiper
blades.
Off

3907-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
Indicates a malfunction in the shift control systemIn this situation, there is a possibility that the
parking lock mechanism will not work. When
parking, park the vehicle on a flat surface and
apply the parking brake securely. Also, it may
not be possible to turn the power switch off. If
this happens, applying the parking brake will
enable the switch to be turned off. A buzzer
also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact any authorized Toyota dealer
or repairer, or another duly qualified and
equipped professional.
Indicates that the hybrid battery (traction battery)
is low
A buzzer also sounds.
→ When stopping the vehicle for a long
period of time, shift the shift position to P.
The battery cannot be charged with the
shift position in N.
(If equipped)
Indicates that the radar cruise control sensor is
dirty or covered with ice
A buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
→ If the windshield wipers are on, turn them
off or set them to either intermittent or slow
mode.
Warning messageDetails/Actions
(Flashes)

3927-2. Steps to take in an emergency
PRIUS +_OM_OM47B16E_(EE)
Indicates that the insufficient 12-volt battery
charge
→A few seconds
* after the message disap-
pears: Maintain the hybrid system opera-
tion state for approximately 15 minutes or
more to recharge the 12-volt battery.
→ If the message does not disappear: Start
the hybrid system by following the “If the
12-volt battery is discharged” procedure
(→ P. 439).
*: This is displayed for about 6 seconds.
(If equipped)
Indicates that the pre-crash safety system is not
currently functional
→ Check the grille cover and the sensor and
clean them if they are dirty.
Hybrid battery (traction battery) inspection or
replacement time.
→Have the hybrid battery (traction battery)
inspected by any authorized Toyota dealer
or repairer, or another duly qualified and
equipped professional immediately.
Hybrid system restarting will soon be disabled.
→If you continue to use the vehicle in this
state, you will soon become unable to
restart the hybrid system. Have the hybrid
battery (traction battery) inspected by any
authorized Toyota dealer or repairer, or
another duly qualified and equipped pro-
fessional immediately.
Indicates that restarting of the hybrid system is
not possible.
→Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional immediately.
Warning messageDetails/Actions
(Flashes)
(Flashes)

4678-2. Customization
PRIUS +_OM_OM47B16E_(EE)
8
Vehicle specifications
■Wireless remote control (→P. 138)
■Automatic light control system ( →P. 215)
■Illumination ( →P. 280)
FunctionDefault
settingCustomized setting
Wireless remote control On Off – – O
123
FunctionDefault
settingCustomized setting
Light sensor sensitivityLevel 0Level -2 to 2–OO
123
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off 15 secondsOff
–OO
7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors
are unlocked with the
smart entry & start system
or the wireless remote
control function or the
mechanical key
OnOff––O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff––O
Footwell lighting On Off – – O
Footwell lighting control On Off – – O
123

4688-2. Customization
PRIUS +_OM_OM47B16E_(EE)■
Instrument cluster (
→P. 109)
*: The default setting varies according to countries.
■
Automatic air conditioning system ( →P. 270)
FunctionDefault
settingCustomized setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
Language*English
French
O–OGerman
Spanish
Italian
Unitskm
(L/100km)km (km/L)OOO
Pop-up displayOnOffO–O
123
FunctionDefault settingCustomized setting
A/C auto switching opera-
tionOnOff––O
Heating/cooling operation
minimized in Eco drive
mode
OnOff––O
123

476What to do if... (Troubleshooting)
PRIUS +_OM_OM47B16E_(EE)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (→P. 381)
●The parking brake indicator is on
Is the parking brake released? ( →P. 214)
Depending on the situation, other types of warning buzzer may also sound.
( → P. 376, 388)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 97)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
●Is the electronic key left inside the vehicle?
Vehicles without multi-information display: →P. 152
Vehicles with multi-information display: →P. 402
●When a warning light turns on or a warning message is displayed, refer to
P. 376, 388.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
