2015 TOYOTA PRIUS PLUG-IN display

56
1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A11U_(U)
ConditionDisplay
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and the
electric motor (traction motor)
When the vehicle is powered by
the gasoline engine

57
1-1. Plug-in hybrid system
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
These images are examples only, and may vary slightly from actual conditions.
ConditionDisplay
When the vehicle is charging the
hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery)
status
Low Full

58
1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A11U_(U)

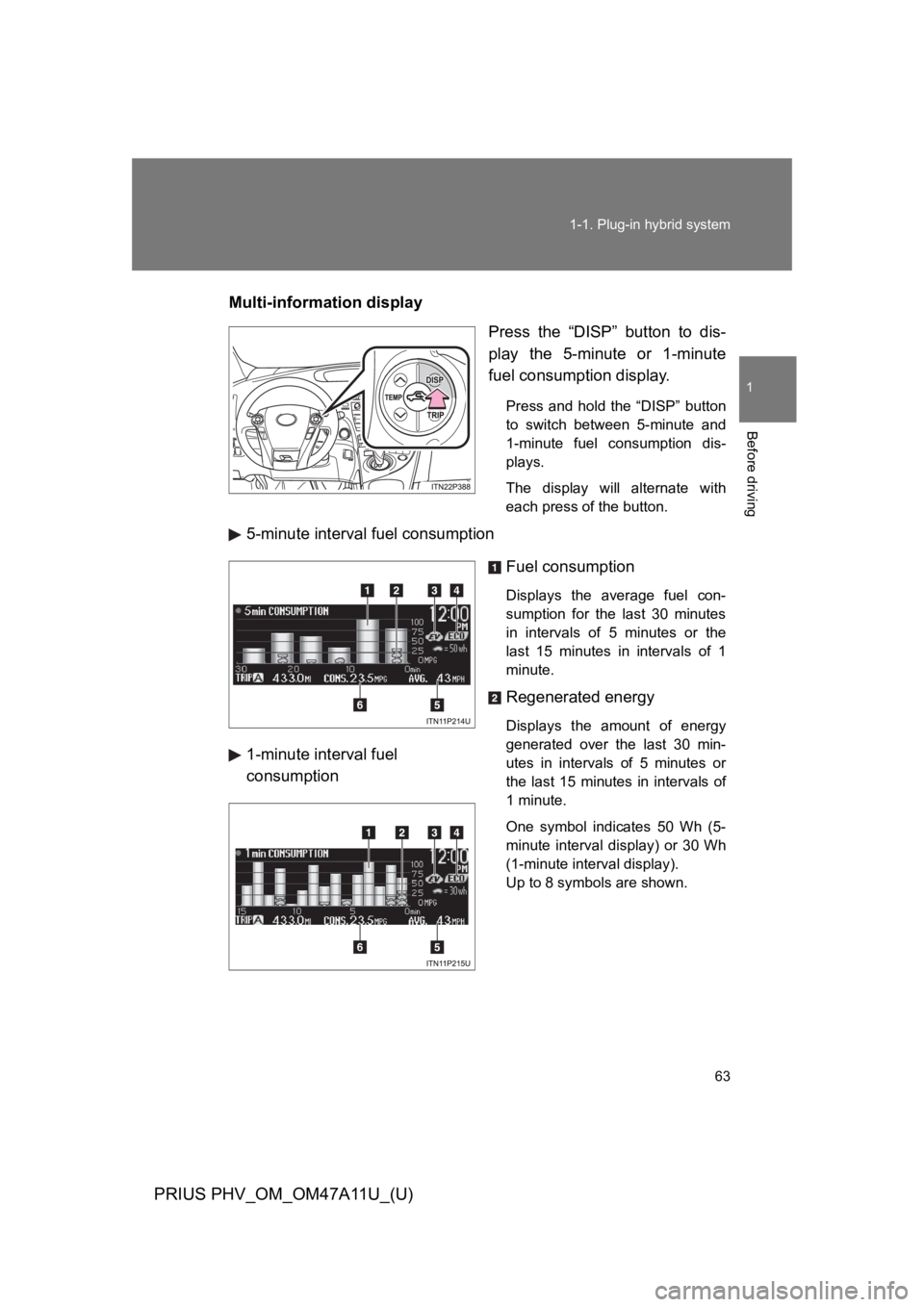

Multi-information display
Press the “DISP” button to dis-
play the energy monitor.
■Names and meaning of each icons
Gasoline engine
Hybrid battery (traction bat-
tery)
Electric motor (traction motor)
EV driving range
Displays the approximate driving
range using only the electric
motor (traction motor) when in EV
mode or when enough power is
remaining for EV mode. The dis-
play turns off if the charge level of
the hybrid battery (traction bat-
tery) reduces and HV mode is
selected.
(The display will not turn off if HV
mode is selected using the EV/
HV mode selection switch.)

59
1-1. Plug-in hybrid system
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
ConditionDisplay
When the vehicle is powered by
the electric motor (traction
motor)
The illustration shows the display when
in EV mode.
When the vehicle is powered by
both the gasoline engine and the
electric motor (traction motor)
When the vehicle is powered by
the gasoline engine
When charging the hybrid bat-
tery (traction battery) from an
external power source (while a
charging cable is connected)

60
1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A11U_(U)
These images are examples only, and may vary slightly from actual conditions.
ConditionDisplay
When the vehicle is charging the
hybrid battery (traction battery)
When there is no energy flow

61
1-1. Plug-in hybrid system
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
■Hybrid battery (traction battery) status
When driving in EV mode, the battery display will switch when the
remaining charge display reaches one fifth of the total, and HV
mode will be switched to when the level reaches 6 or below.
The display when switching from EV mode to HV mode is different to the
display when switching from HV mode to EV mode.
*1:Switching to HV mode using the EV/HV mode selection switch is possi-
ble.
*2:Switching to EV mode using the EV/HV mode selection switch is not pos-
sible.
*3:Switching to EV mode using the EV/HV mode selection switch is possi-
ble.
EV mode*1HV mode*2
EV mode*1HV mode*3HV mode*2
LowFull

62
1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A11U_(U)
Consumption screen
Display Audio system
Press “CAR”.
If the “Energy Monitor” screen is displayed, touch “Consumption”.
Fuel consumption in the past
30 minutes
Cruising range (oP. 6 7 )
Regenerated energy in the
past 30 minutes
One symbol indicates 30 Wh. Up
to 4 symbols are shown.
The image is an example only, and may vary slightly from actual conditions.
Navigation system
Press “INFO APPS” or “INFO”.
To u c h “ F u e l C o n s u m p t i o n ” o n t h e “ I n f o r m a t i o n ” s c r e e n .
If the “Energy Monitor” screen is displayed, touch “Fuel Consump-
tion”.
Fuel consumption in the past
30 minutes
Regenerated energy in the
past 30 minutes
One symbol indicates 30 Wh. Up
to 4 symbols are shown.
Cruising range (oP. 6 7 )
The image is an example only, and may vary slightly from actual conditions.
STEP 1
STEP 2

63
1-1. Plug-in hybrid system
1
Before driving
PRIUS PHV_OM_OM47A11U_(U)
Multi-information display
Press the “DISP” button to dis-
play the 5-minute or 1-minute
fuel consumption display.
Press and hold the “DISP” button
to switch between 5-minute and
1-minute fuel consumption dis-
plays.
The display will alternate with
each press of the button.
5-minute interval fuel consumption
Fuel consumption
Displays the average fuel con-
sumption for the last 30 minutes
in intervals of 5 minutes or the
last 15 minutes in intervals of 1
minute.
Regenerated energy
Displays the amount of energy
generated over the last 30 min-
utes in intervals of 5 minutes or
the last 15 minutes in intervals of
1 minute.
One symbol indicates 50 Wh (5-
minute interval display) or 30 Wh
(1-minute interval display).
Up to 8 symbols are shown.
1-minute interval fuel
consumption
