2015 TOYOTA PRIUS PLUG-IN HYBRID glove box

TABLE OF CONTENTSIndex
4
PRIUS PHV_OM_OM47A11U_(U)
3-1. Using the air conditioning system and defogger
Air conditioning system ...... 364
Using the steering wheel climate remote control
switches ........................... 375
Remote Air Conditioning System ............................. 377
Rear window and outside rear view mirror
defoggers switch .............. 381
3-2. Using the audio system Audio system types ............ 382
Using the AUX port/USB port .......................... 387
3-3. Using the interior lights Interior lights list ................. 388
• Front interior lights ........... 389
• Personal lights ................. 389
• Rear interior light .............. 390 3-4. Using the storage features
List of storage features ....... 391
• Glove boxes ..................... 392
• Console box ..................... 393
• Cup holders ...................... 394
• Bottle holders ................... 396
• Auxiliary boxes ................. 397
3-5. Other interior features Sun visors ........................... 398
Vanity mirrors ..................... 399
Outside temperature display .............................. 400
Power outlets ...................... 401
Seat heaters ....................... 403
Armrest ............................... 405
Assist grips ......................... 406
Floor mats........................... 407
Luggage compartment features ............................ 409
Garage door opener ........... 413
Safety Connect ................... 421
3Interior features

10
PRIUS PHV_OM_OM47A11U_(U)
Floor mat P. 407
Pictorial indexInterior
SRS side airbags P. 187
SRS front passenger airbag
P. 187
Front seats P. 150
Rear seats P. 153
Glove boxes P. 392
Head restraints P. 156
Seat belts P. 160
Armrest P. 405
Cup holders P. 394

124 1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47A11U_(U)
■Note for the entry function
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is on the instrument panel, luggage cover, floor, or in the door pockets or glove box when the hybrid system is started or
“POWER” switch modes are changed.
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping the
electronic key inside the vehicle.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
● Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.
● The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The door will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)
● If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)

132 1-4. Opening, closing and locking the doors
PRIUS PHV_OM_OM47A11U_(U)
■Conditions affecting operation
P. 123
■ Electronic key battery depletion
P. 127
■ To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The door lock prevention may not operate.)
■ Note for the smart key system
●Even when the electronic key is within the effective range (detection
areas), the system may not operate properly.
For example, the electronic key is on the instrument panel, luggage
cover, floor or in the door pockets or glove box when the hybrid system is
started or “POWER” switch modes are changed.
● Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.

237
2-1. Driving procedures
PRIUS PHV_OM_OM47A11U_(U)
2
When driving
CAUTION
■
When the vehicle is parked
●Make sure to firmly apply the parking brake and shift the shift position to P.
Failure to do so may cause the vehicle to move, or the vehicle to acceler-
ate suddenly if the accelerator pedal is accidentally depressed. Also, when
leaving the vehicle, make sure to turn off the hybrid system and lock the
vehicle.
Sound or shuddering may not be noticed even when the hybrid vehicle is
ready to drive (when the “READY” indicator is illuminated).
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of the vehicle, and may also cause a short circuit in the vehi-
cle’s electrical components.
● Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.

Interior features3
363
PRIUS PHV_OM_OM47A11U_(U)
3-1. Using the air conditioning system and defogger
Air conditioning system .... 364
Using the steering wheel climate remote control
switches ......................... 375
Remote Air Conditioning System ........................... 377
Rear window and outside rear view mirror defoggers
switch ............................. 381
3-2. Using the audio system Audio system types .......... 382
Using the AUX port/USB port ........................ 387
3-3. Using the interior lights Interior lights list ............... 388
• Front interior lights ......... 389
• Personal lights ............... 389
• Rear interior light ........... 390 3-4. Using the storage features
List of storage features .... 391
• Glove boxes ................... 392
• Console box ................... 393
• Cup holders ................... 394
• Bottle holders ................. 396
• Auxiliary boxes ............... 397
3-5. Other interior features Sun visors ........................ 398
Vanity mirrors ................... 399
Outside temperature display............................ 400
Power outlets ................... 401
Seat heaters..................... 403
Armrest ............................ 405
Assist grips....................... 406
Floor mats ........................ 407
Luggage compartment features .......................... 409
Garage door opener......... 413
Safety Connect ................ 421

391
PRIUS PHV_OM_OM47A11U_(U)
3
Interior features
3-4. Using the storage features

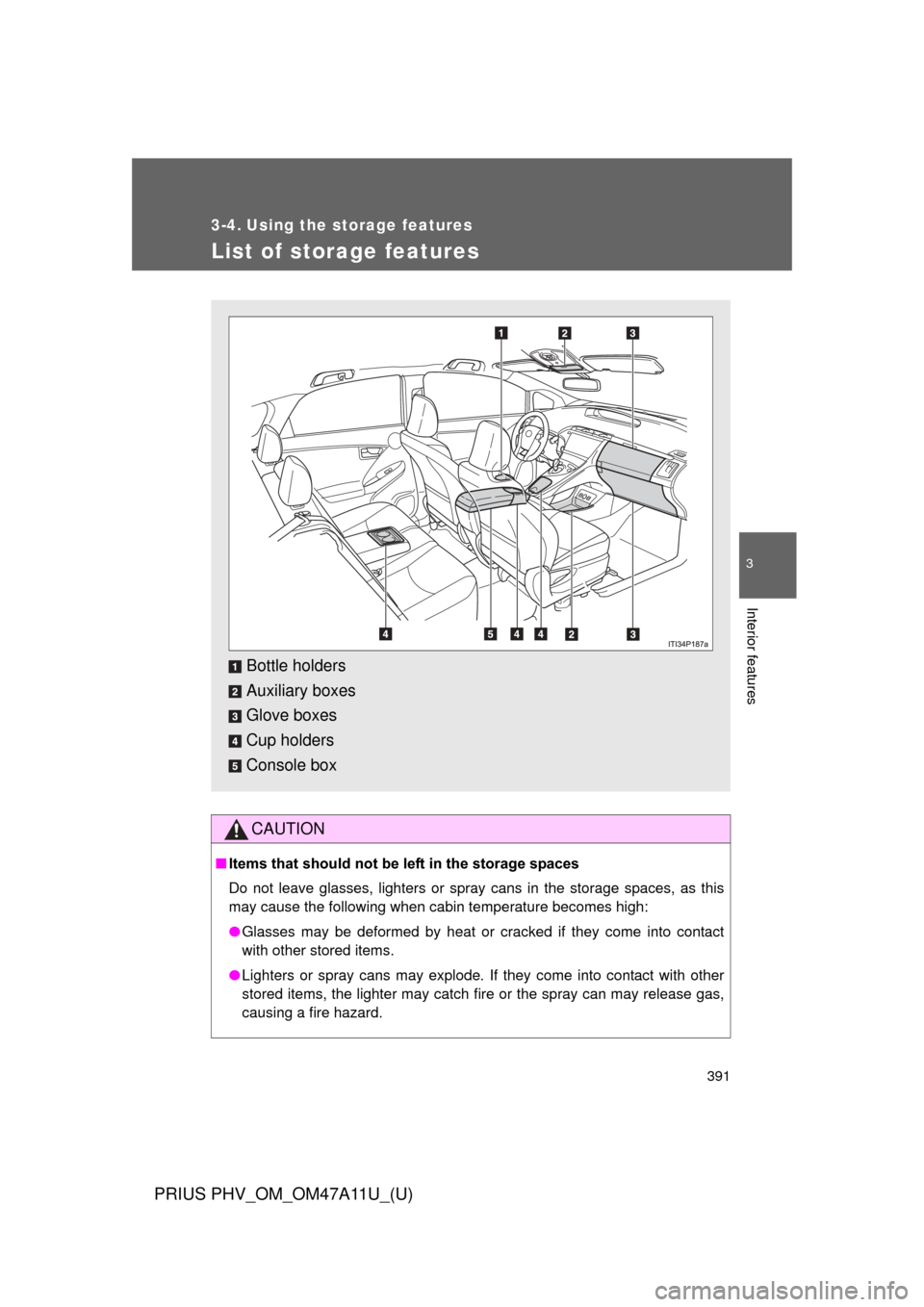

List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Bottle holders
Auxiliary boxes
Glove boxes
Cup holders
Console box

392 3-4. Using the storage features
PRIUS PHV_OM_OM47A11U_(U)

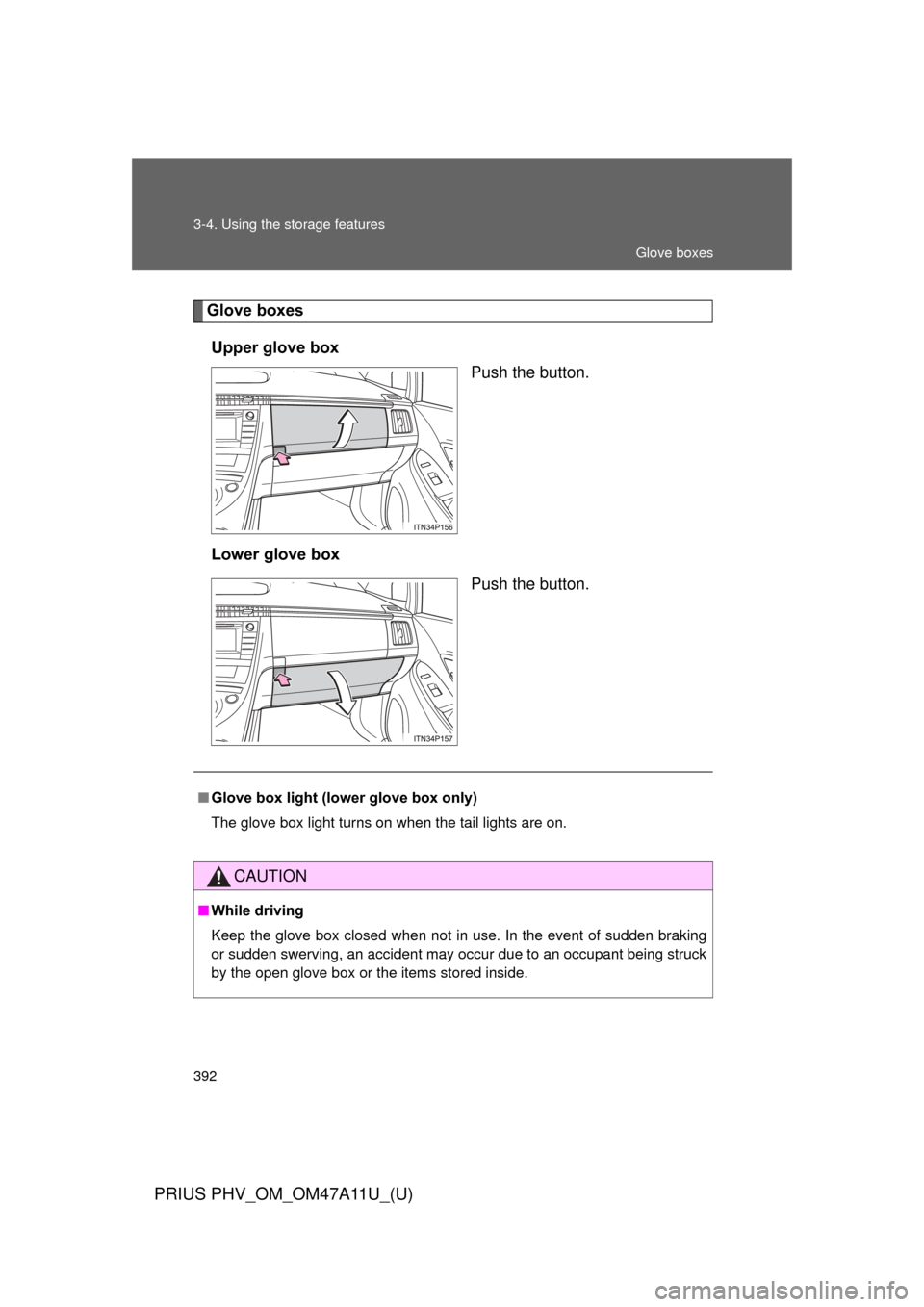

Glove boxesUpper glove box Push the button.
Lower glove box Push the button.
■Glove box light (lower glove box only)
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed when not in use. In the event of sudden braking
or sudden swerving, an accident may occur due to an occupant being struck
by the open glove box or the items stored inside.
Glove boxes
