4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
4
Maintenance and care
■
Left side instrument panel
FUSEAmpereCircuit
1 CIG 15A Power outlets
2 ECU-ACC 10AMultiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system, advanced
parking guidance system, head-up
display
3 PWR OUTLET 15A Power outlets
4 SEAT HTR FR 10A Seat heater
5 SEAT HTR FL 10A Seat heater
6 DOOR NO.1 25A Power door lock system
7 PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front passenger’s seat
9 DBL LOCK 25A No circuit
10 FR FOG 7.5A Front fog lights
11 PWR SEAT FL 30A Driver’s seat
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
ITO43P133
12
3 4
56 7
8
910
11 12
13
14 15
16 17
18 19
23 24 25
26
2728
29
30
20 21 22

474 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
FUSEAmpereCircuit
14 STOP 10A Stop lights, high mounted stop-
light, brake system, driver support
system, vehicle proximity notifica-
tion system
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A Moon roof
20 ECU-IG NO.1 10A Electric cooling fans, multiplex
communication system, vehicle
proximity notification system
21 ECU-IG NO.2 10A Driver support system, Pre-Colli-
sion System, LKA system, inside
rear view mirror, garage door
opener, yaw rate & G sensor,
brake system, electric power
steering, navigation system, moon
roof, tire pressure warning system,
seat belt pretensioners, audio sys-
tem, emergency flashers, turn sig-
nal lights, windshield wipers,
headlight cleaner
22 GAUGE 10AHeadlight leveling system, gauges
and meters, emergency flashers,
turn signal lights
23 A/C 10AAir conditioning system, Solar
Ventilation System, Remote Air
Conditioning System

475
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47A17U_DVD_(U)
4
Maintenance and care
FUSEAmpereCircuit
24 WASHER 15A Windshield washer
25 RR WIP 20A Rear window wiper and washer
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
28 IGN 10ABrake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, front passenger occupant
classification system (ECU and
sensors), power management sys-
tem, smart key system, front pas-
senger’s seat belt reminder light
29 PANEL 10AAir conditioning system, personal
light, transmission, P position
switch, navigation system, Solar
Ventilation System, Remote Air
Conditioning System, advanced
parking guidance system, head-
light cleaner, front passenger’s
seat belt reminder light, headlight
leveling system, glove box light,
clock, audio system, MPH or km/h
switch
30 TAIL 10AHeadlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights

546 5-2. Steps to take in an emergency
PRIUS_OM_OM47A17U_DVD_(U)
CAUTION
■When using the compact spare tire
●Remember that the spare tire provided is specifically designed for use
with your vehicle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp
cornering.
■When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
●Cruise control (if equipped)
●Dynamic radar cruise control (if equipped)
●Pre-collision system (if equipped)
●LKA (Lane-Keeping Assist) (if equipped)
●EPS
●Rear view monitor system (if equipped)
●Advanced parking guidance system (if equipped)
●Navigation system (if equipped)

602
PRIUS_OM_OM47A17U_DVD_(U)
6-2. Customization
Customizable features
Customizable featuresVehicles with a Display Audio system: Settings that can be
changed using the Display Audio system
(For further information on custom izing settings using the Display
Audio system, refer to the “D ISPLAY AUDIO SYSTEM OWNER’S
MANUAL”.)
Vehicles with a navigation syst em: Settings that can be changed
using the navi gation system
(For further information on cust omizing settings using the naviga-
tion system, refer to the “NAVIGATION SYSTEM OWNER’S
MANUAL”.)
Settings that can be chan ged by your Toyota dealer
Definition of symbols: O = Available, — = Not available
Your vehicle includes a variety of electronic features that can be per-
sonalized to suit your prefer ences. Programming these preferences
requires specialized equipment and may be performed by your
Toyota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

Index

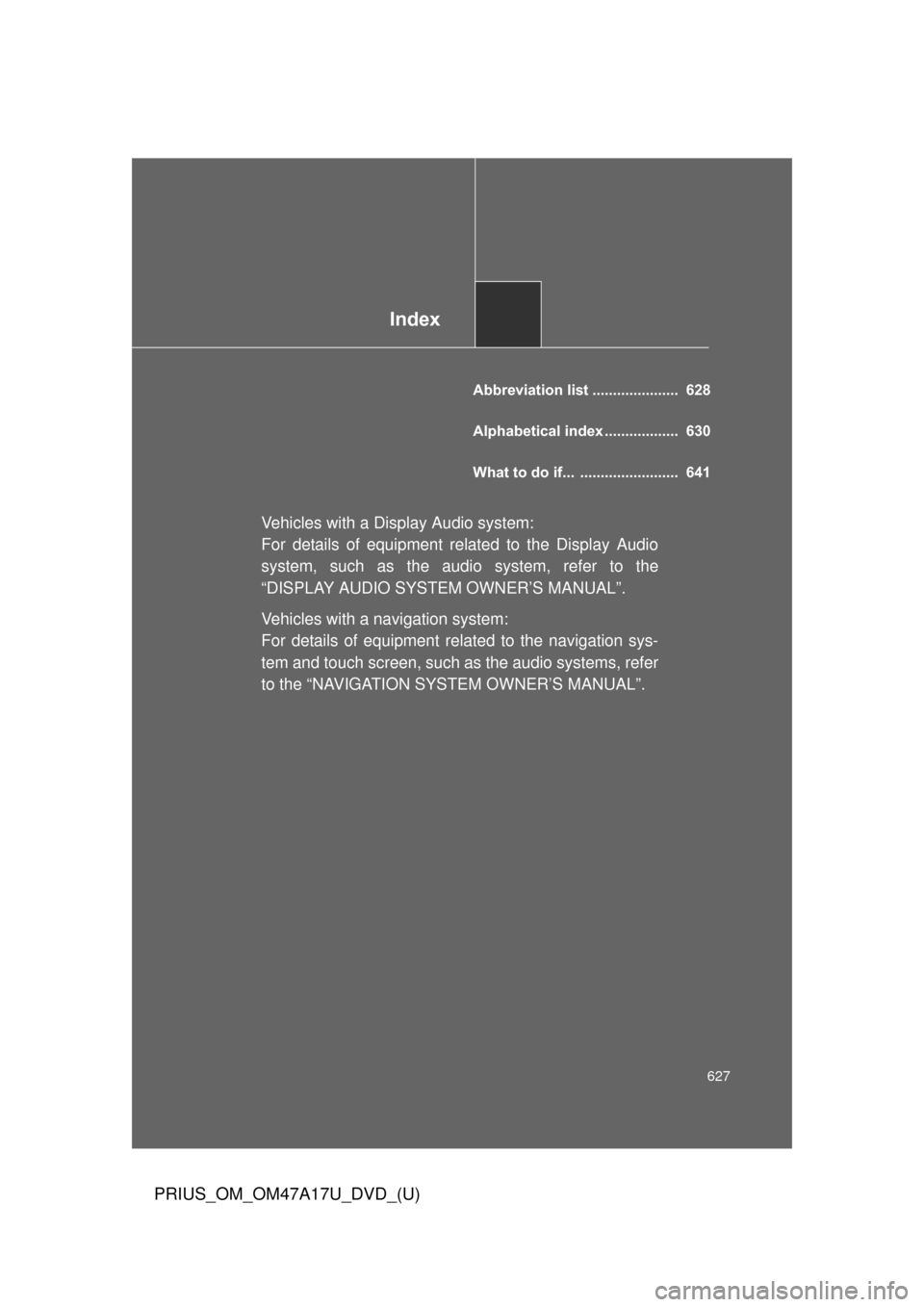

627
PRIUS_OM_OM47A17U_DVD_(U)
Abbreviation list ..................... 628
Alphabetical index .................. 630
What to do if... ........................ 641
Vehicles with a Display Audio system:
For details of equipment related to the Display Audio
system, such as the audio system, refer to the
“DISPLAY AUDIO SYSTEM OWNER’S MANUAL”.
Vehicles with a navigation system:
For details of equipment related to the navigation sys-
tem and touch screen, such as the audio systems, refer
to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

635
Alphabetical index
PRIUS_OM_OM47A17U_DVD_(U)
I/M test ...................................... 418
Identification
Engine .................................. 574
Vehicle.................................. 573
Ignition switch ......................... 195
Illuminated entry system ........ 359
Immobilizer system ................. 137
Indicator lights ........................ 222
Initialization Items to initialize ................... 609
Inside rear view mirror............ 119
Instrument panel light control.................................... 220
Interior lights Interior lights ................. 360, 361
Switch ........................... 360, 361
Wattage ................................ 582
Jack Positioning a floor jack ......... 425
Vehicle-equipped jack .......... 537
Jack handle.............................. 537
Keyless entry ............................. 86
Keys Electronic key ......................... 60
If the electronic key does not
operate properly ................. 553
If you lose your keys............. 552
Key number ............................ 60
Keyless entry .......................... 86
Keys ....................................... 60
Mechanical key....................... 60
“POWER” switch .................. 195
Wireless remote
control key............................ 86
Knee airbag.............................. 141 Lane-Keeping Assist ...............290
Language ..................................241
License plate lights
Replacing light bulbs .............478
Wattage .................................582
Light bulbs
Replacing ..............................478
Wattage .................................582
Lights
Emergency flasher switch .....494
Fog light switch .....................259
Foot lights..............................359
Hazard light switch ................494
Headlight switch ....................253
Interior lights..................360, 361
Personal lights.......................361
Replacing light bulbs .............478
Shift lever lighting ..................359
Turn signal lever....................214
Turn signal light switch ..........214
Vanity lights ...........................371
Wattage .................................582
LKA (Lane-Keeping Assist).....290
Load capacity ...........................322
Luggage compartment light Switch......................................95
Wattage .................................582
Luggage cover .........................384I
J
K
L
*: Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL” or “NAVIGATION SYSTEM OWNER’S MANUAL”.

636 Alphabetical index
PRIUS_OM_OM47A17U_DVD_(U)
MaintenanceDo-it-yourself maintenance ....................... 419
General maintenance ............ 414
Maintenance data.................. 572
Maintenance requirements.... 411
Maintenance data ..................... 412
Meter Instrument panel light
control ................................. 220
Meters ................................... 217
Speed unit select button........ 219
Trip information display ......... 232
Micro dust and pollen filter ..... 336
Microphone
*............................ 395
Mirrors Inside rear view mirror........... 119
Side mirror heater ................. 352
Side mirrors ........................... 123
Vanity mirrors ........................ 371
MP3 disc
*
Multi-information display ........ 226
Navigation system (refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”)
Noise from under vehicle ..........22
Odometer .................................. 231
Oil
Engine oil .............................. 429
Opener
Back door ................................94
Fuel filler door ....................... 133
Hood...................................... 422
Outside rear view mirrors Adjusting and folding ............. 123
Outside rear view mirror
defogger switch ..................... 352 Outside temperature
display .................................... 372
Overheating .............................. 561
Parking brake ........................... 215
Parking lights
Switch ................................... 253
PCS ........................................... 308
Personal lights
Switch ................................... 361
Wattage................................. 582
Power outlets ........................... 373
“POWER” switch ..................... 195
Power windows ........................ 125
Pre-collision system ................ 308
Radar cruise control system .................................... 273
Radiator .................................... 435
Radio
*
Radio data system*
RDS*
Rear seats Adjustment ............................ 103
Folding down......................... 104
Rear turn signal lights
Replacing light bulbs ............. 478
Wattage................................. 582
Rear view mirror .............. 119, 123
Rear view monitor system
*
Rear window and outside rear view mirror
defoggers ............................... 352
Rear window wiper and washer .................................... 265
Remote Air C onditioning
System.................................... 348
M
N
O
P
R
