2015 TOYOTA LAND CRUISER climate control

6
297
1
2
3
4
5
6
7
8
L/C200_Navi_OM60M04U_(U)
14.05.01 20:55
9
10
1. QUICK REFERENCE .................. 298
2. SOME BASICS ............................ 300
CLIMATE CONTROL ........................... 300
VOICE COMMAND SYSTEM .............. 300
3. FRONT AUTOMATIC AIR CONDITIONING SYST EM ........ 301
USING THE AIR CONDITIONING
SYSTEM ............................................ 301
AIR CONDITIONING SYSTEM OPERATING HINTS.......................... 306
4. REAR AUTOMATIC AIR CONDITIONING SYST EM ........ 308
REAR AIR CONDITIONING
CONTROLS ...................................... 308
1AIR CONDITIONING SYSTEM
OPERATION
AIR CONDITIONING

298
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
1. AIR CONDITIONING SYSTEM OPERATION
1. QUICK REFERENCE
*1: Driver side temperature display
*2: Outside temperature display
*3: Passenger side temperature display
Operations such as changing the air outlets or fan speed are carried out on the
screen. Press the “CLIMATE” button to display the air conditioning control screen.
No.NameFunctionPage
Air flow control buttonsTouch to change the air outlets.303
Rear air conditioning
control buttonTouch to display the rear air conditioning control
screen.308
Windshield wiper
de-icer (If equipped)Touch to prevent ice from building up on the
windshield and wiper blades.Owner’s
Manual
“4-ZONE”Touch to set the temperatures independently for
the driver’s, front pass enger’s and rear seats.301
“A/C”Touch to change the air conditioning between on
and off.306
*1*2*3

299

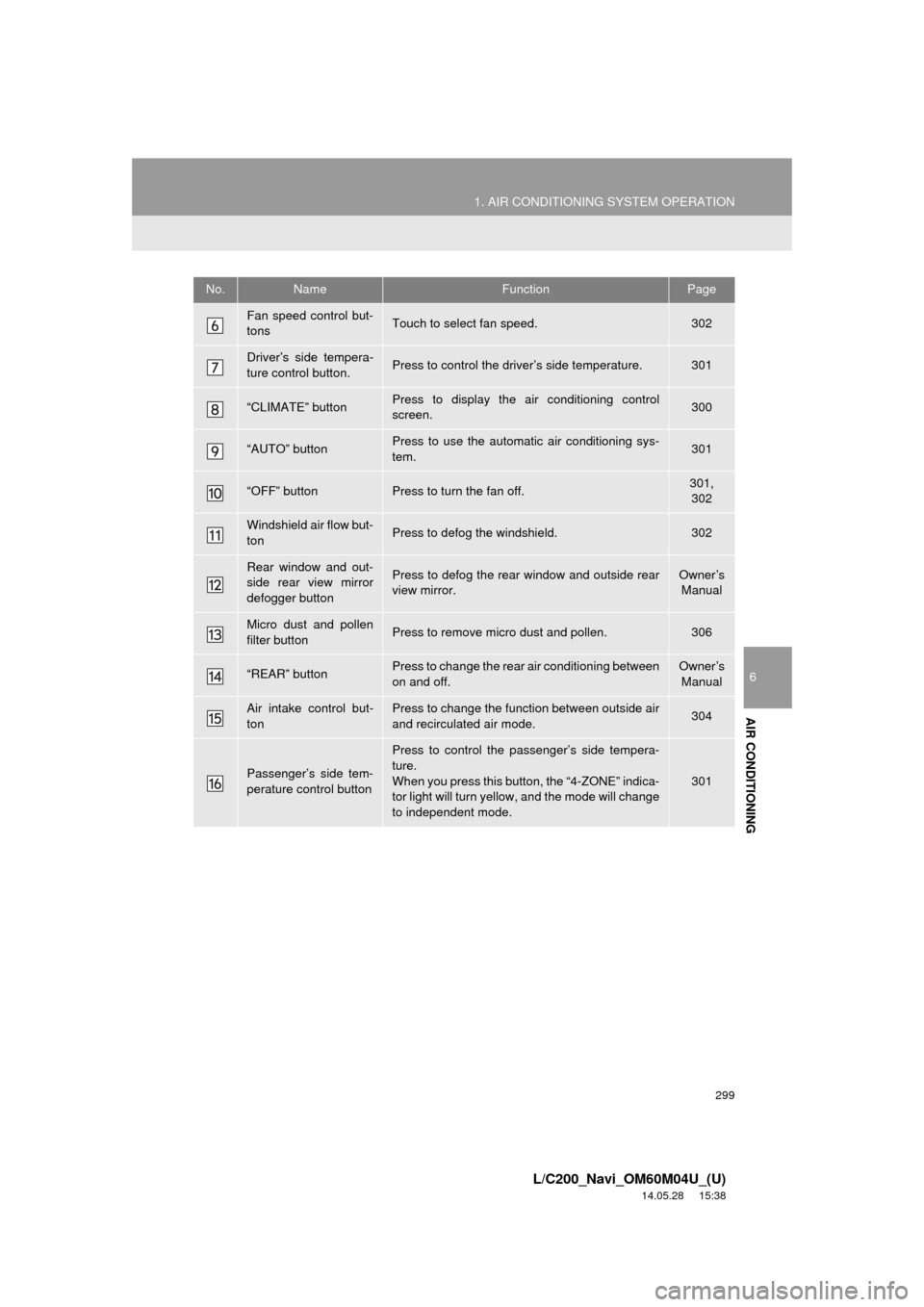

1. AIR CONDITIONING SYSTEM OPERATION
6
AIR CONDITIONING
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
Fan speed control but-
tonsTouch to select fan speed.302
Driver’s side tempera-
ture control button.Press to control the driver’s side temperature.301
“CLIMATE” buttonPress to display the air conditioning control
screen.300
“AUTO” buttonPress to use the automatic air conditioning sys-
tem.301
“OFF” buttonPress to turn the fan off.301, 302
Windshield air flow but-
tonPress to defog the windshield.302
Rear window and out-
side rear view mirror
defogger buttonPress to defog the rear window and outside rear
view mirror.Owner’s
Manual
Micro dust and pollen
filter buttonPress to remove micro dust and pollen.306
“REAR” buttonPress to change the rear air conditioning between
on and off.Owner’s Manual
Air intake control but-
tonPress to change the function between outside air
and recirculated air mode.304
Passenger’s side tem-
perature control button
Press to control the passenger’s side tempera-
ture.
When you press this button, the “4-ZONE” indica-
tor light will turn yellow, and the mode will change
to independent mode.
301
No.NameFunctionPage

300
1. AIR CONDITIONING SYSTEM OPERATION
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
2. SOME BASICS
1Press the “CLIMATE” button to dis-
play the air conditioning control screen.
CLIMATE CONTROL
The “ENGINE START STOP” switch
must be in IGNITION ON mode.
 A function that enables automatic return
to the previous screen from the air con-
ditioning control screen can be selected.
See page 44 for details.
NOTICE
●To prevent battery discharge, do not
leave the air conditioning system on
longer than necessary when the engine
is stopped.
INFORMATION
●During use, various odors from inside
and outside the vehicle may enter into
and accumulate in the air conditioning
system. This may then cause odor to be
emitted from the vents.
● To reduce potential odors from occur-
ring:
• It is recommended that the air condi-
tioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning
system is started in automatic opera-
tion mode.
VOICE COMMAND SYSTEM
Press this switch to operate the voice
command system.
 For the operation of the voice command
system and the list of commands, see
pages 310 and 319.
Type A
Type B

322
1. VOICE COMMAND SYSTEM OPERATION
L/C200_Navi_OM60M04U_(U)
14.05.28 15:38
Climate command
When Expanded Voice Commands are turned “On”. (See page 318.)
CommandActionShortcut
Menu
“Automatic climate control”Turns air conditioning system on and off.O
“Warmer”Turns temperature up.O
“Cooler”Turns temperature down.O
INFORMATION
● Commands that have a “O” in the Shortcut Menu column can be recognized from the
“Shortcut Menu” screen.
● Commands that have a “
” in the Shortcut Menu column can only be recognized from
the screen that they are displayed in.

390
ALPHABETICAL INDEX
L/C200_Navi_OM60M04U_(U)
14.05.01 20:55
Numerics
4-ZONE switch ........................................ 298
A
A/C switch ............................................... 298
A/V input port .......................................... 200
Adding destinations................................... 87
Address book .......................................... 103
Address book entries .............................. 103
Air conditioning ....................................... 298Air conditioning system operating hints ................................. 306
Climate control .................................... 300
Front automatic air conditioning system ............. .......................... ...... 301
Rear air conditioning controls .............. 308
Rear automatic air conditioning system ............. .......................... ...... 308
Using the air conditioning system........ 301
Air flow control buttons............................ 298
Air intake control button .......................... 298
AM........................................................... 201
Apps ........................................................ 348
Audio ....................................................... 192
AUDIO button.......................................... 192
Audio settings ......................................... 293 HD Radio™ system sett ings ............... 293
iPod and external video settings ......... 294
Audio/video remote controls (Steering switches) .............................. 281
Audio/video system ......... ..................... ... 192 Audio/video system operating hints ........283
Caring for your DVD player and disc............................................285
CD-R and CD-RW discs ......................289
iPod .....................................................284
MP3/WMA files ....................................287
Radio reception ...................................283
Terms ..................................................289
USB memory .......................................285
AUTO button ...........................................298
Automatic Sound Levelizer (ASL) ...........197
AUX port..................................................200
B
Basic function ............................................26
Bluetooth®...............................................132
Bluetooth® audio .....................................249
Connecting a Bluetooth® audio
player ...............................................252
Playing Bluetooth
® audio.....................253
Bluetooth® phone ....................................138
Bluetooth® phone message function.......153
Checking messages ............................153
New message notification....................155
Replying (Quick reply) .........................154
Bluetooth
® settings .................................178
Detailed Bluetooth® settings................185
Registered devices ..............................178
Selecting a Bluetooth
® phone .............182
Selecting portable player .....................184
Brightness .................................31, 226, 279
ALPHABETICAL INDEX

391
L/C200_Navi_OM60M04U_(U)
14.05.01 20:55
C
Call on the Bluetooth® phone ................. 142
By call history ...................................... 144
By dial ................................................. 142
By phonebook ..................................... 142
By POI call .......................................... 148
By speed dial....................................... 144
By voice recognition ............................ 146
Calling using an SMS/MMS message .......................................... 148
CD........................................................... 215
CLIMATE button ..................................... 298
Clock settings ........................................... 46
Color ......................................... 48, 226, 279
Command list .......................................... 319
Contrast .................................... 31, 226, 279
Current position calibration ..................... 119
Current position display ............................ 33
D
Deleting destinations ................................ 88
Deleting personal data .............................. 53
Deleting previous destinations ................ 112
Deleting set destinations........................... 74
DEST button ............................................. 10
“Destination” screen.................................. 20
Destination search .................................... 58 By “Address” ......................................... 60
By “Address Book” ................................ 70
By “Coordinates” ................................... 74
By “Emergency” .................................... 70
By home ................................................ 59
By “Intersection & Freeway” .................. 71
By “Map”................................................ 73
By “Point of Interest” ............................. 63
By preset destinations ........................... 59
By “Previous Destinations” .................... 69
Selecting the search area ..................... 58 Detailed navigation settings .................... 114
Detour setting............................................ 89
Dial .................................................. 142, 146
Disc slot .................................................. 192
Distance and time to destination ............... 86
DSP control ............................................. 197
DVD ........................................................ 215
DVD player.............................................. 215
DVD options ........................................ 224
DVD player and DVD video disc information ....................................... 234
Ejecting a disc ..................................... 215
If the player malfunctions .................... 233
Inserting a disc .................................... 215
Operating a DVD disc.......................... 221
Playing a disc ...................................... 216
Playing a DVD disc.............................. 222
Playing an audio disc .......................... 216
Playing an MP3/WMA disc .................. 218
E
Eject button ............................................. 192
Emergency ................................................ 70
Entune App Suite .................................... 348
Expanded voice commands .................... 318
F
Fan speed control buttons ...................... 298
FM ........................................................... 201
Fuel consumption.................................... 324
Function index........................................... 18
G
General settings ........................................ 44
GPS (Global Positioning System) ..... 10, 128
