4437-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
Engine compar tment

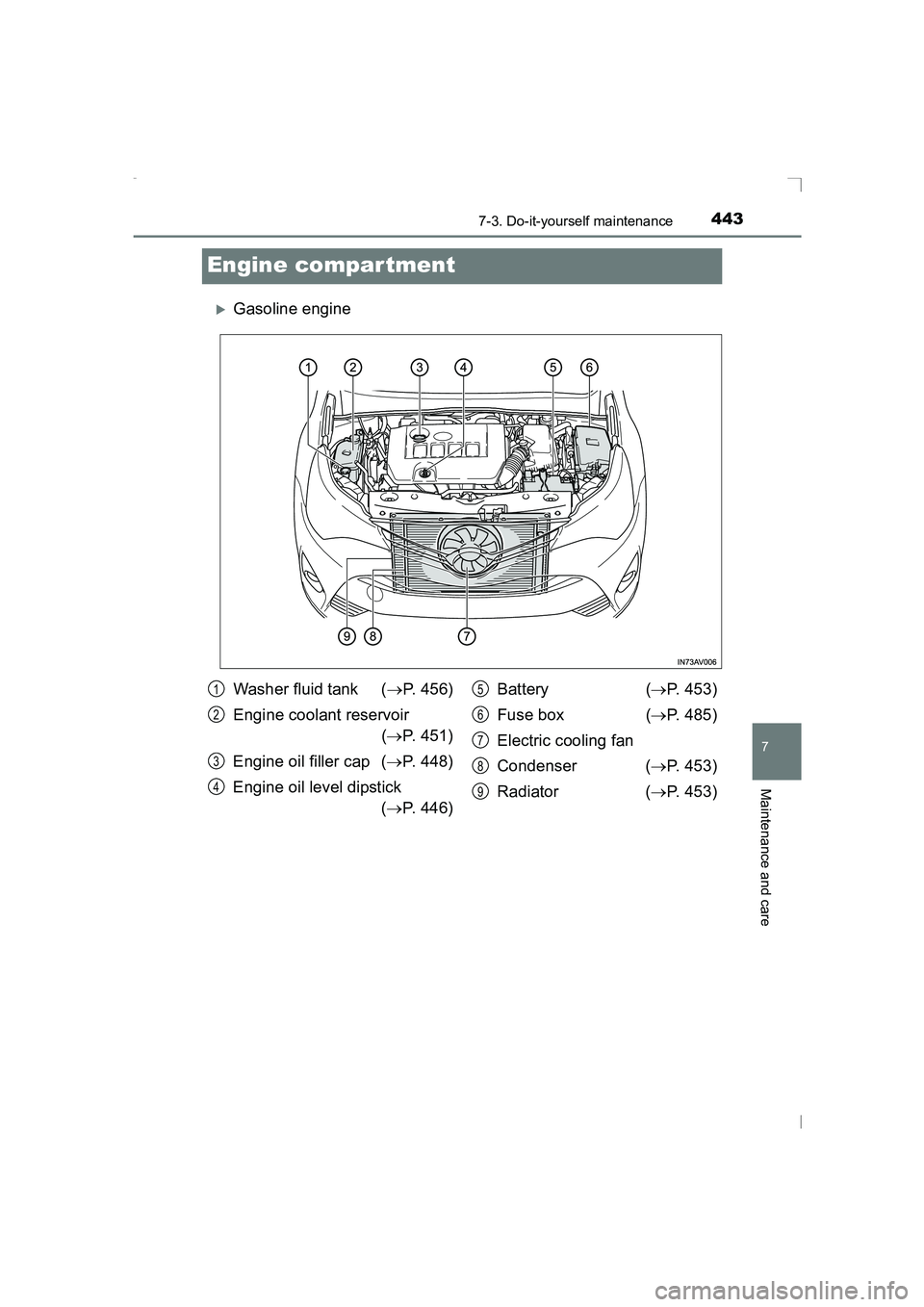

XGasoline engine
Washer fluid tank (→P. 456)
Engine coolant reservoir (→ P. 451)
Engine oil filler cap ( →P. 448)
Engine oil level dipstick (→ P. 446) Battery (
→P. 453)
Fuse box ( →P. 485)
Electric cooling fan
Condenser ( →P. 453)
Radiator ( →P. 453)1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 443 Thursday, January 29, 2015 1:47 PM

4447-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)

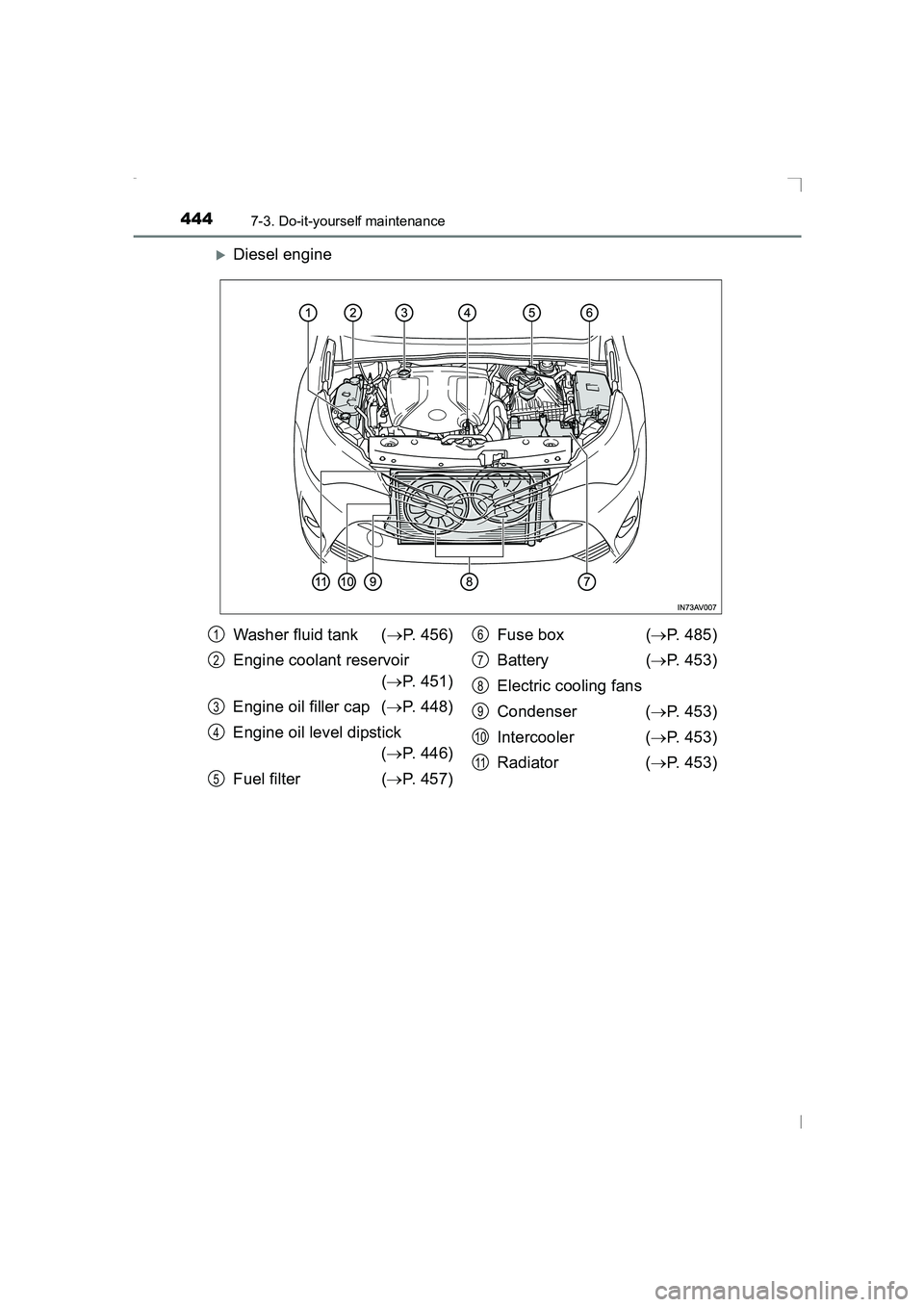

XDiesel engine
Washer fluid tank (→P. 456)
Engine coolant reservoir (→ P. 451)
Engine oil filler cap ( →P. 448)
Engine oil level dipstick (→ P. 446)
Fuel filter ( →P. 457) Fuse box (
→P. 485)
Battery ( →P. 453)
Electric cooling fans
Condenser ( →P. 453)
Intercooler ( →P. 453)
Radiator ( →P. 453)1
2
3
4
5
6
7
8
9
10
11
AVENSIS_OM_OM20C20E_(EE).book Page 444 Thursday, January 29, 2015 1:47 PM

4527-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
■ Coolant selection
XGasoline engine
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Enabled: -35 °C [-31 °F])
XDiesel engine
Only use “Toyota Genuine Premium Long Life Coolant 1WW/2WW” or equiv-
alent. “Toyota Genuine Premium Long Life Coolant 1WW/2WW” concen-
trated product always needs to be mixed as 50% coolant and 50% deionized
water. (Enabled: -35 °C [-31 °F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
WARNING
■ When the engine is hot
Do not remove the coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■When adding engine coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent damage to parts or paint.
AVENSIS_OM_OM20C20E_(EE).book Page 452 Thursday, January 29, 2015 1:47 PM

5918-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
5
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
6
7
