2015 TOYOTA AVENSIS ignition

263
4
4-5. Toyota Safety Sense
Driving
AVENSIS_OM_OM20C20E_(EE)
LDA (Lane Depar ture Alert)∗
While driving on a road that has lane markers, this system recognizes
the lane markers using a camera as a sensor to alert the driver when
the vehicle deviates from its lane.
If the system judges that the vehicle has deviated from its lane, it
alerts the driver using a buzzer and indications on the multi-informa-
tion display.
Front sensor
Press the LDA switch to activate
the system.
The LDA indicator will come on.
Press the switch again to turn the
LDA system off.
The LDA system will remain on or
off even if the engine switch is
turned to the “ON” position (vehi-
cles without smart entry & start
system) or IGNITION ON mode
(vehicles with smart entry & start
system).
∗: If equipped
Summary of function
Turning the LDA system on
AVENSIS_OM_OM20C20E_(EE).book Page 263 Thursday, January 29, 2015 1:47 PM

2724-5. Toyota Safety Sense
AVENSIS_OM_OM20C20E_(EE)
■The Automatic High Beam can be operated when
The engine switch is in the “ON” position (vehicles without a smart entry &
start system) or IGNITION ON mode (vehicles with a smart entry & start sys-
tem).
■ Camera sensor detection information
●High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another
• When oncoming or preceding vehicles are hidden from sight due to
repeated curves, road divi ders or roadside trees
● High beam may be turned off if an oncoming vehicle that is using fog lights
without using the headlights is detected.
● House lights, street lights, red traffic signals, and illuminated billboards or
signs may cause the high beam to turn off.
● The following factors may affect the amount of time taken to turn high beam
on or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and
preceding vehicles
• The movement and direction of oncoming and preceding vehicles
• When a oncoming or preceding vehicle only has operational lights on one side
• When a oncoming or preceding vehi cle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
● High beam may be turned on or off when unexpectedly by the driver.
AVENSIS_OM_OM20C20E_(EE).book Page 272 Thursday, January 29, 2015 1:47 PM

2794-5. Toyota Safety Sense
4
Driving
AVENSIS_OM_OM20C20E_(EE)■
When driving vehicle in country with different speed unit
Since RSA recognizes signs based on the set unit of the meter, it is neces-
sary to change the set unit of the meter. Adjust the set unit of the meter to the
speed unit of signs in the current location. ( →P. 619)
■ Turning the system on/off
■ Speed limit sign display
If the engine switch was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
engine switch is turned to “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
■ Customization
The settings for warning display, warning buzzer
*, speeding warning thresh-
old, etc., can be changed.
(Customizable feature: →P. 619)
*: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate. Select on the settings display
(→ P. 111 )
Press on the steering wheel.
WARNING
■ Before using the RSA
Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 279 Thursday, January 29, 2015 1:47 PM

2924-6. Using the driving support systems
AVENSIS_OM_OM20C20E_(EE)
■The Stop & Start system protection feature
Vehicles without a smart entry & st art system: When an excessively loud
sound is being projected by the audio system, the audio system may be auto-
matically cut off in order to reduce battery consumption.
If this occurs, turning the engine switch to the “LOCK” position then to the
“ACC” or “ON” position re -enables the audio system.
Vehicles with a smart entry & start system: When an excessively loud sound
is being projected by the audio system, the audio system may be automati-
cally cut off in order to reduce battery consumption.
If this occurs, turning the engine switch off then to ACCESSORY mode or
IGNITION ON mode re-enables the audio system.
■ Replacing battery
→ P. 587
■ Displaying the Stop & Start system status
●Color display only: Operation status of Stop & Start system will be displayed
on the multi-information display.
● Operation status of the Stop & Start system can be displayed on the multi-
information display.
Monochrome display:
Press the TRIP switch on the steering wheel. ( →P. 107)
Color display:
Select (Drive information) from the menu icons ( →P. 1 1 1 )
Displays the current engine stop time.
(The time that engine is stopped by the
Stop & Start system.)
Status A:
(Monochrome display)(Color display) Displays the cumulative time that the
engine is stopped by the Stop & Start
system from when the engine is started
until the engine is stopped.
AVENSIS_OM_OM20C20E_(EE).book Page 292 Thursday, January 29,
2015 1:47 PM

3605-7. “SETUP” menu
AVENSIS_OM_OM20C20E_(EE)
Select “Bluetooth* info” using the tune/scroll knob. (→P. 354)
● Displaying the device name
Select “Device name” using the knob.
● Displaying the device address
Select “Device address” using the knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position (vehicles without smart entry & start system), or
ACCESSORY or IGNITION ON mode (vehicles with smart entry &
start system).
Select “Display setting” using the tune/scroll knob. ( →P. 354)
Select “ON” or “OFF” using the knob.
Select “Reset” using the tune/scroll knob. ( →P. 354)
● Initializing the sound settings
Select “Sound Setting” using the knob and press [YES].
For details about sound settings: →P. 313
● Initializing the device information
Select “Car Device Info” using the knob and press [YES].
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
●Initializing the all settings
Select “All Initialize” using the knob and press [YES].
Displaying the device status
Setting the automatic connection confirmation display to on or off
Initialization
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 360 Thursday, January 29, 2015 1:47 PM

3976-1. Using the air conditioning system and defogger
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Seat heaters∗
Left-hand drive vehicles: For
driver’s seat
Right-hand drive vehicles: For
front passenger’s seat
Left-hand drive vehicles: For
front passenger’s seat
Right-hand drive vehicles: For
driver’s seat
On
The indicator light comes on.
Adjusts the seat temperature
The further you turn the dial
upward, the warmer the seat
becomes.
■The seat heaters can be used when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
∗: If equipped
1
2
3
4
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat heater.
• Do not use seat heater more than necessary.
AVENSIS_OM_OM20C20E_(EE).book Page 397 Thursday, January 29, 2015 1:47 PM

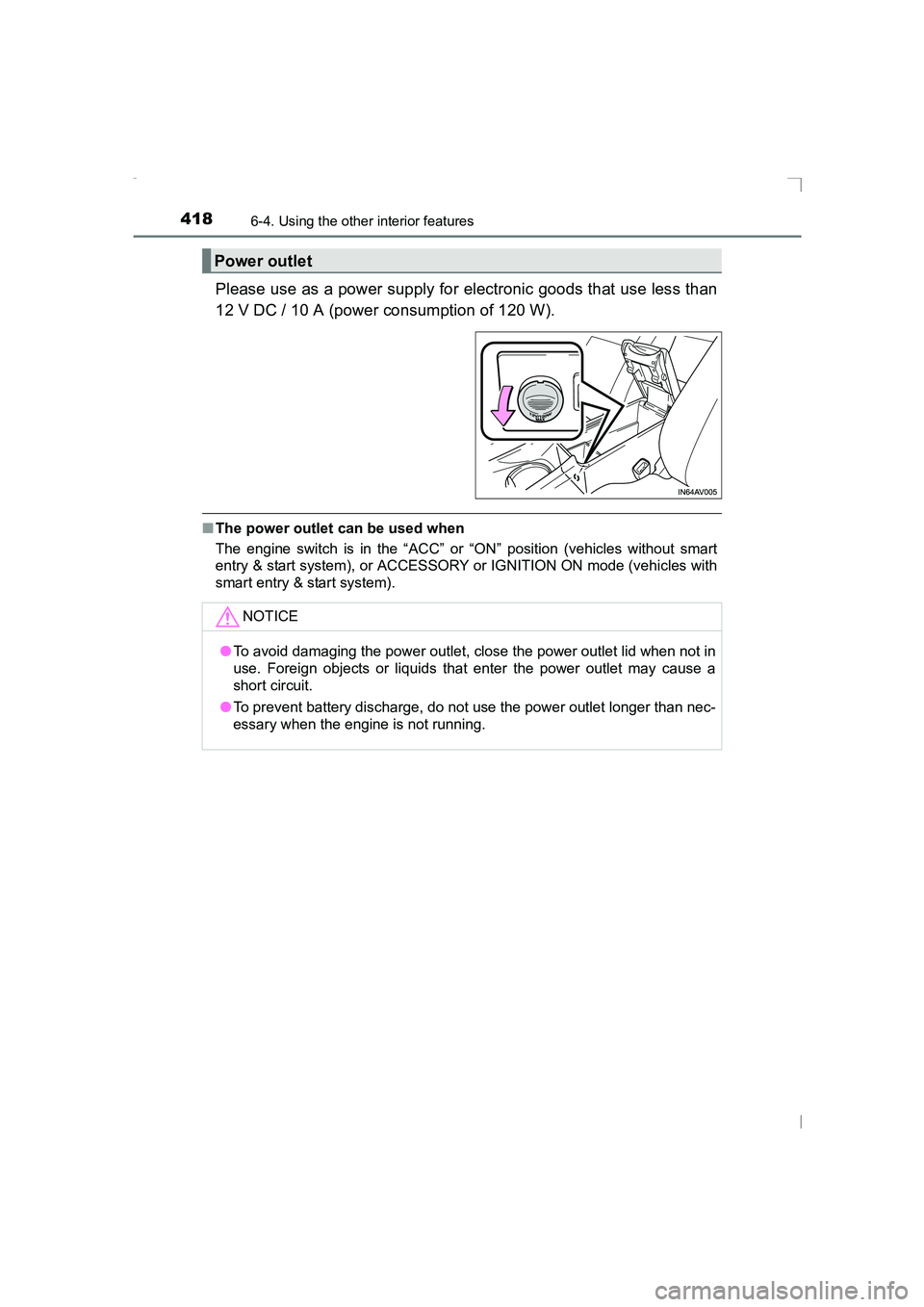

418
AVENSIS_OM_OM20C20E_(EE)
6-4. Using the other interior features
Please use as a power supply for electronic goods that use less than
12 V DC / 10 A (power consumption of 120 W).
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position (vehicles without smart
entry & start system), or ACCESSORY or IGNITION ON mode (vehicles with
smart entry & start system).
Power outlet
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when not in
use. Foreign objects or liquids that enter the power outlet may cause a
short circuit.
● To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is not running.
AVENSIS_OM_OM20C20E_(EE).book Page 418 Thursday, January 29, 2015 1:47 PM

4216-4. Using the other interior features
AVENSIS_OM_OM20C20E_(EE)
6
Interior features
Use the overhead switches to open or close the panoramic roof
shade.Close
To stop partway, press the switch
lightly.
Open
To stop partway, press the switch
lightly.
■The panoramic roof shade can be operated when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
■ Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
■ If the panoramic roof shade cannot be closed automatically
If the switch is kept depressed, the panoramic roof shade can be closed man-
ually. If the automatic function will not operate while the panoramic roof shade
is closed, push and hold the switch and open the panoramic roof shade fully.
It will then be possible to us e automatic operation once again.
Panoramic roof shade (wagon) (if equipped)
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 421 Thursday, January 29, 2015 1:47 PM
