531-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

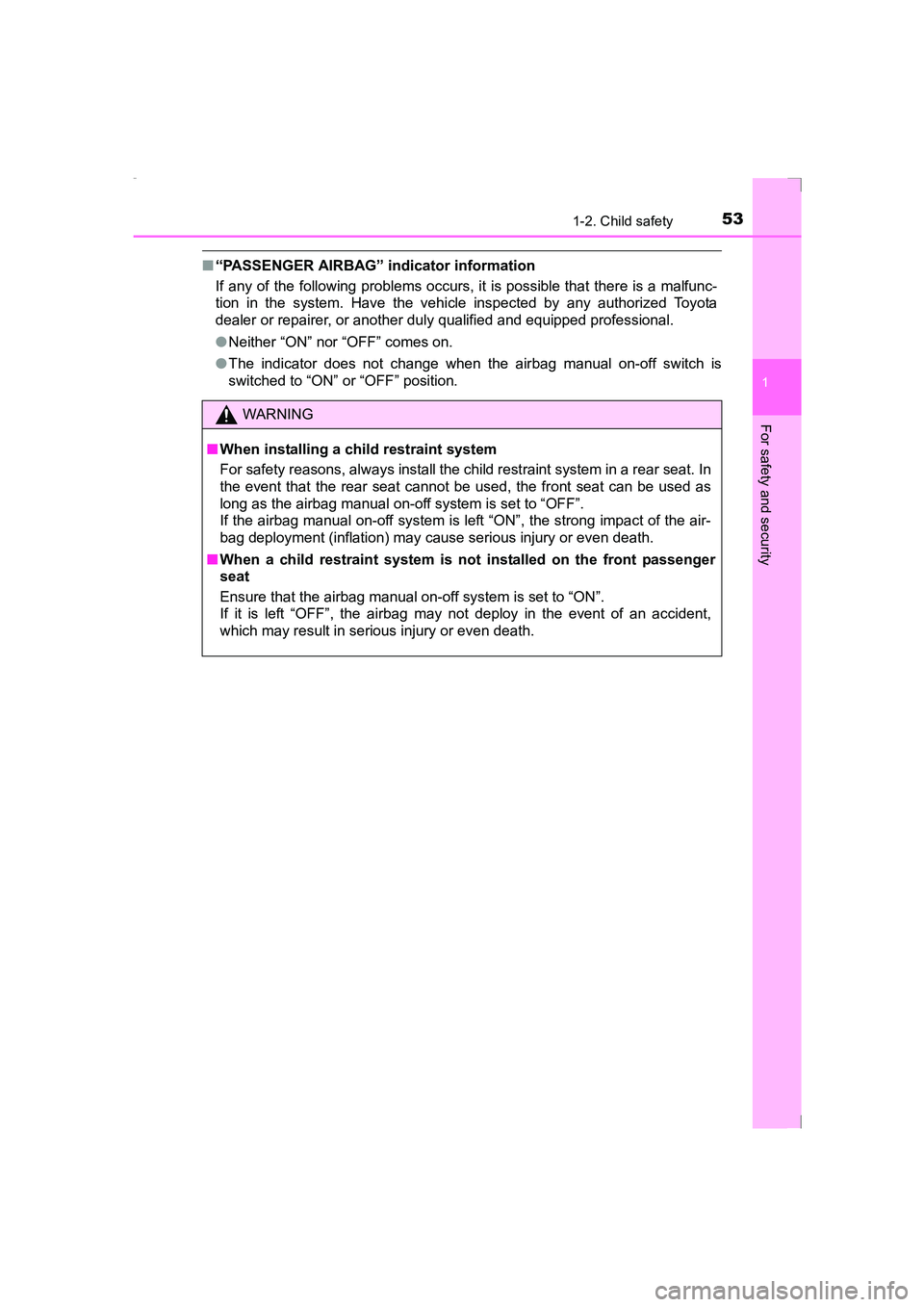

■“PASSENGER AIRBAG” indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
● The indicator does not change when the airbag manual on-off switch is
switched to “ON” or “OFF” position.
WARNING
■ When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident,
which may result in serious injury or even death.
AVENSIS_OM_OM20C20E_(EE).book Page 53 Thursday, January 29, 2 015 1:47 PM

541-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

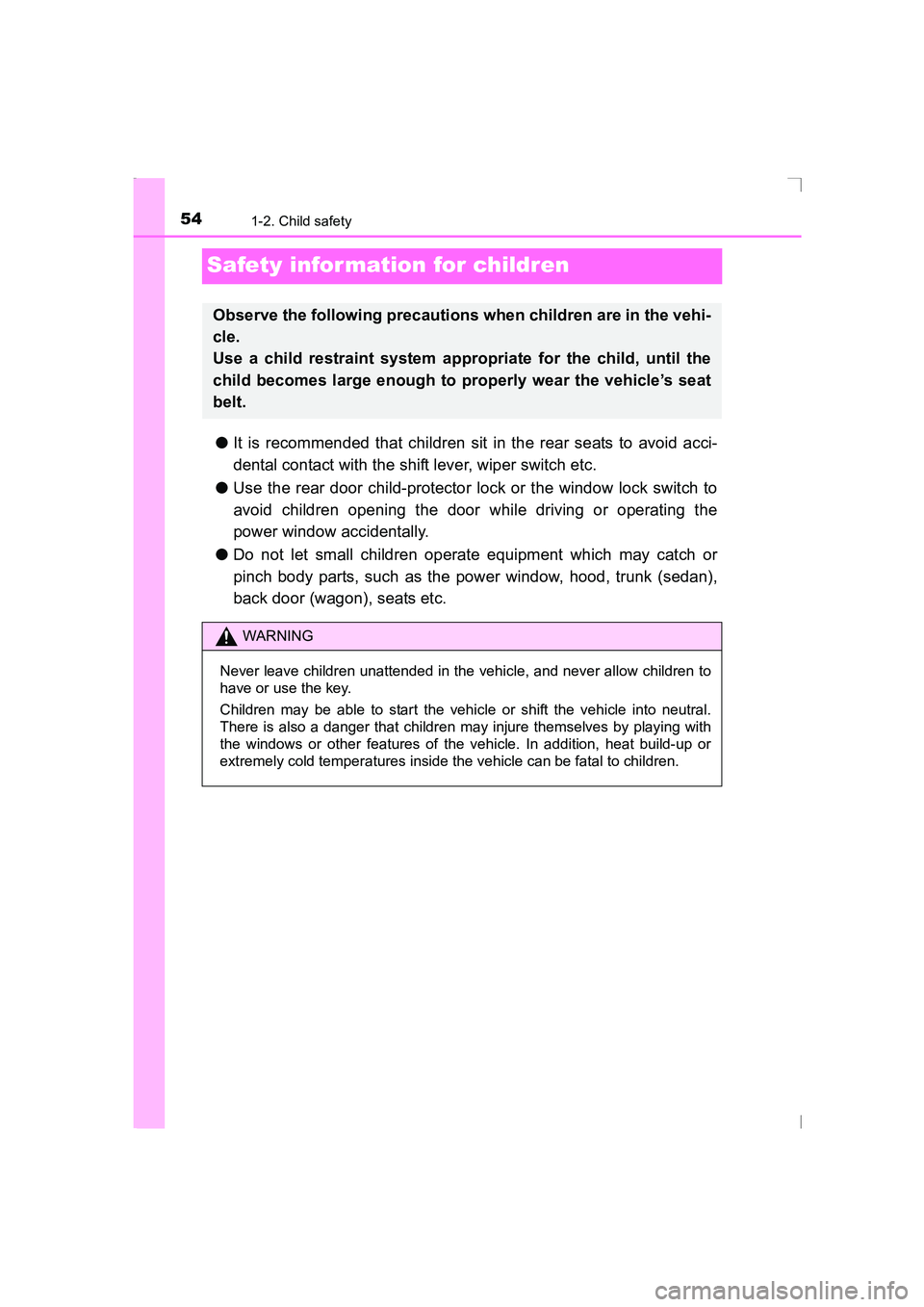

Safety infor mation for children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, trunk (sedan),
back door (wagon), seats etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
AVENSIS_OM_OM20C20E_(EE).book Page 54 Thursday, January 29, 2 015 1:47 PM

55
1
1-2. Child safety
AVENSIS_OM_OM20C20E_(EE)
For safety and security

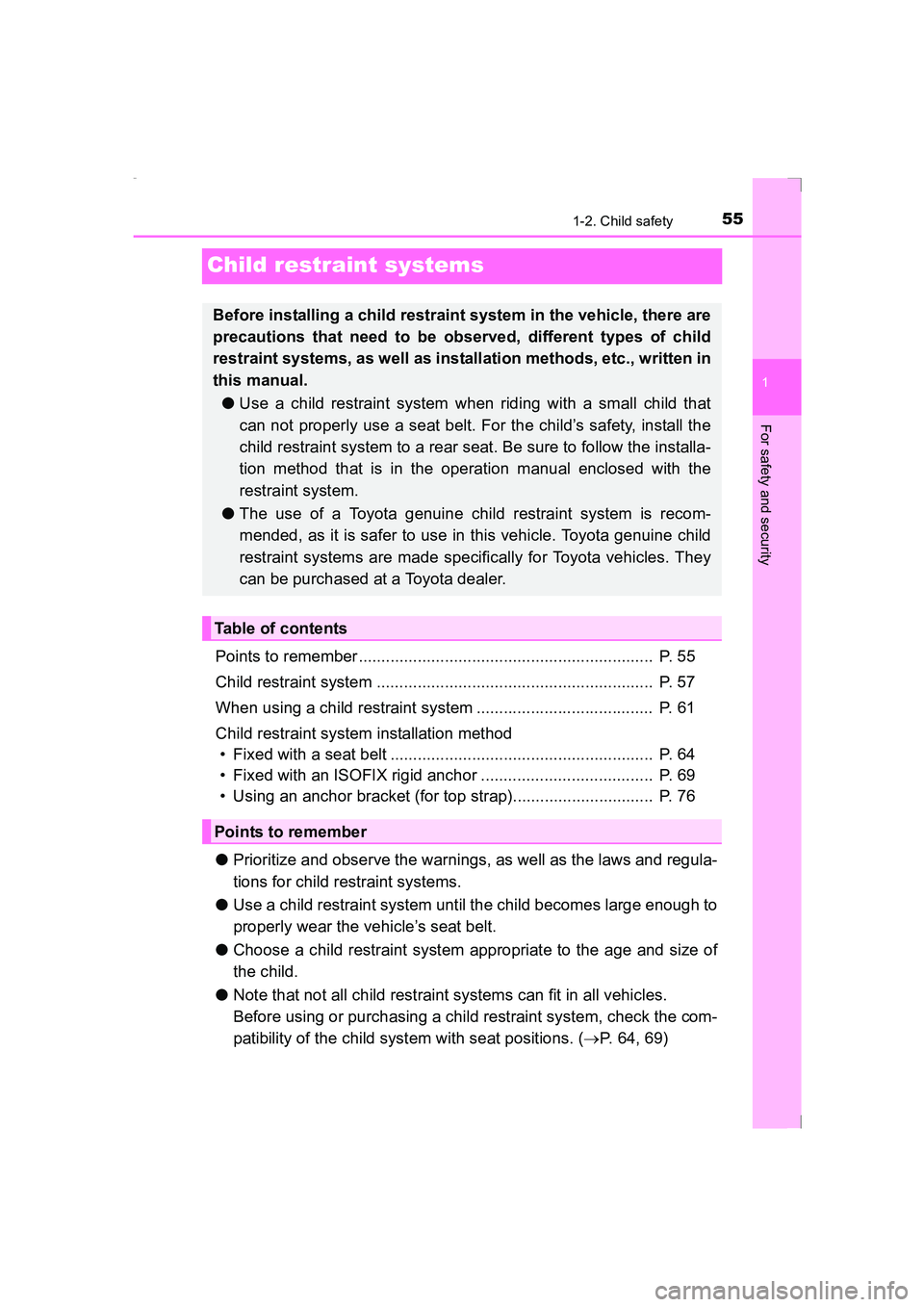

Child restraint systems
Points to remember ................................................................. P. 55
Child restraint system ............................................................. P. 57
When using a child restraint system ....................................... P. 61
Child restraint system installation method• Fixed with a seat belt .......................................................... P. 64
• Fixed with an ISOFIX rigid anchor ...................................... P. 69
• Using an anchor bracket (for top strap)............................... P. 76
● Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
● Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
● Choose a child restraint system appropriate to the age and size of
the child.
● Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child system with seat positions. ( →P. 64, 69)
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., written in
this manual.
● Use a child restraint system when riding with a small child that
can not properly use a seat belt. For the child’s safety, install the
child restraint system to a rear seat. Be sure to follow the installa-
tion method that is in the operation manual enclosed with the
restraint system.
● The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine child
restraint systems are made specifically for Toyota vehicles. They
can be purchased at a Toyota dealer.
Table of contents
Points to remember
AVENSIS_OM_OM20C20E_(EE).book Page 55 Thursday, January 29, 2 015 1:47 PM

561-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

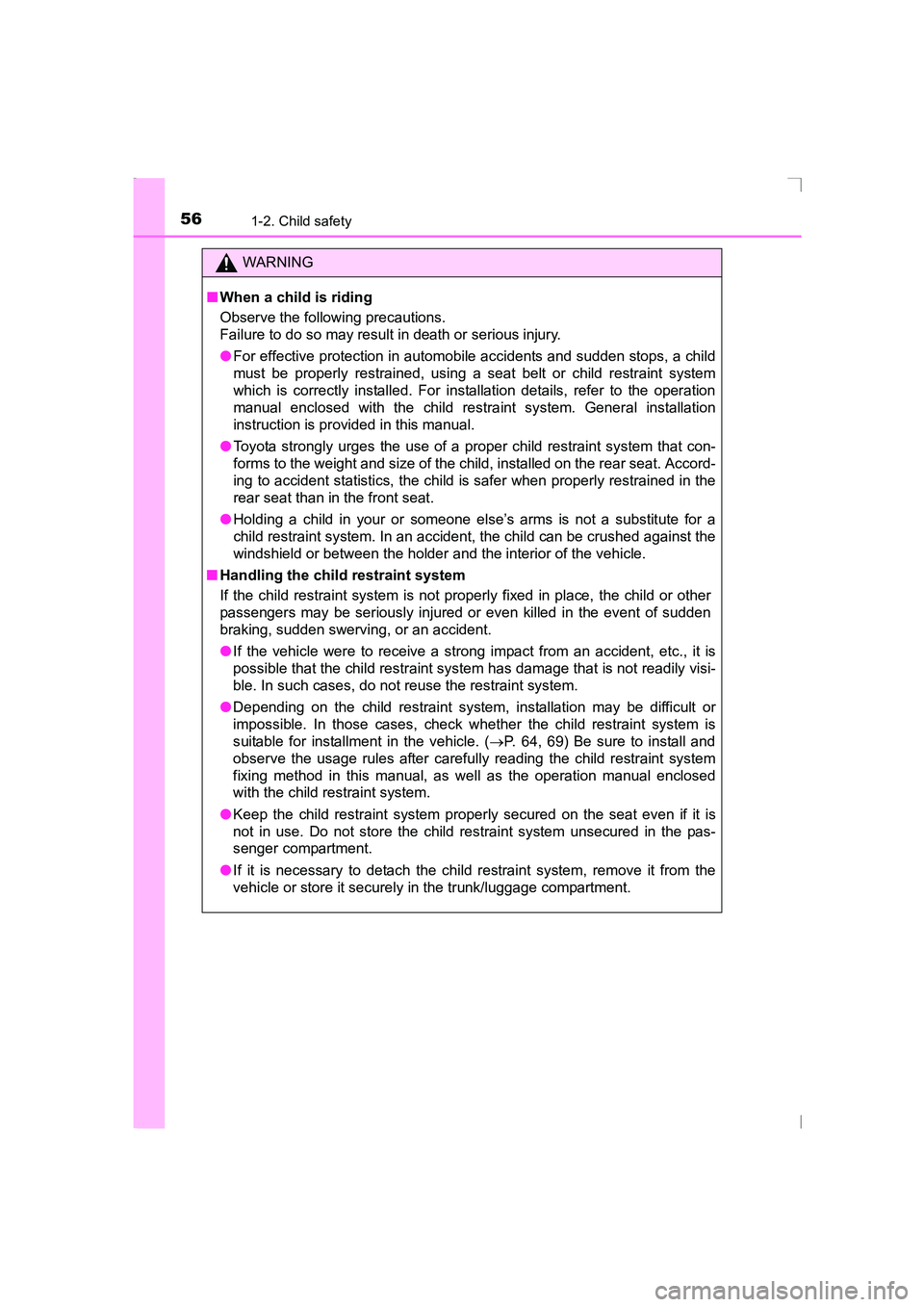

WARNING
■ When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
which is correctly installed. For installation details, refer to the operation
manual enclosed with the child restraint system. General installation
instruction is provided in this manual.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.
●If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint system is
suitable for installment in the vehicle. ( →P. 64, 69) Be sure to install and
observe the usage rules after carefully reading the child restraint system
fixing method in this manual, as well as the operation manual enclosed
with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk/luggage compartment.
AVENSIS_OM_OM20C20E_(EE).book Page 56 Thursday, January 29, 2 015 1:47 PM

621-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

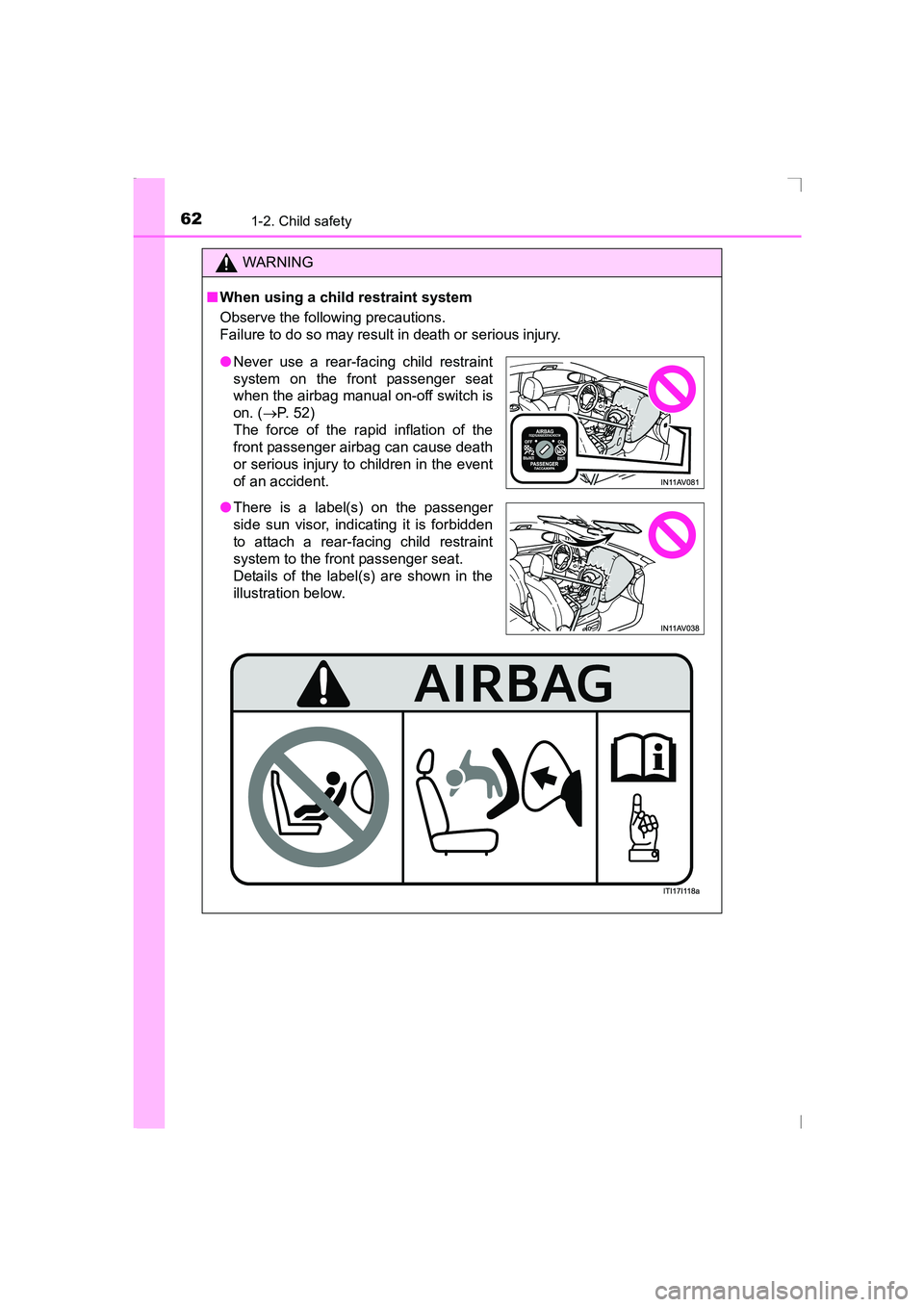

WARNING
■ When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( →P. 52)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
AVENSIS_OM_OM20C20E_(EE).book Page 62 Thursday, January 29, 2 015 1:47 PM

631-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

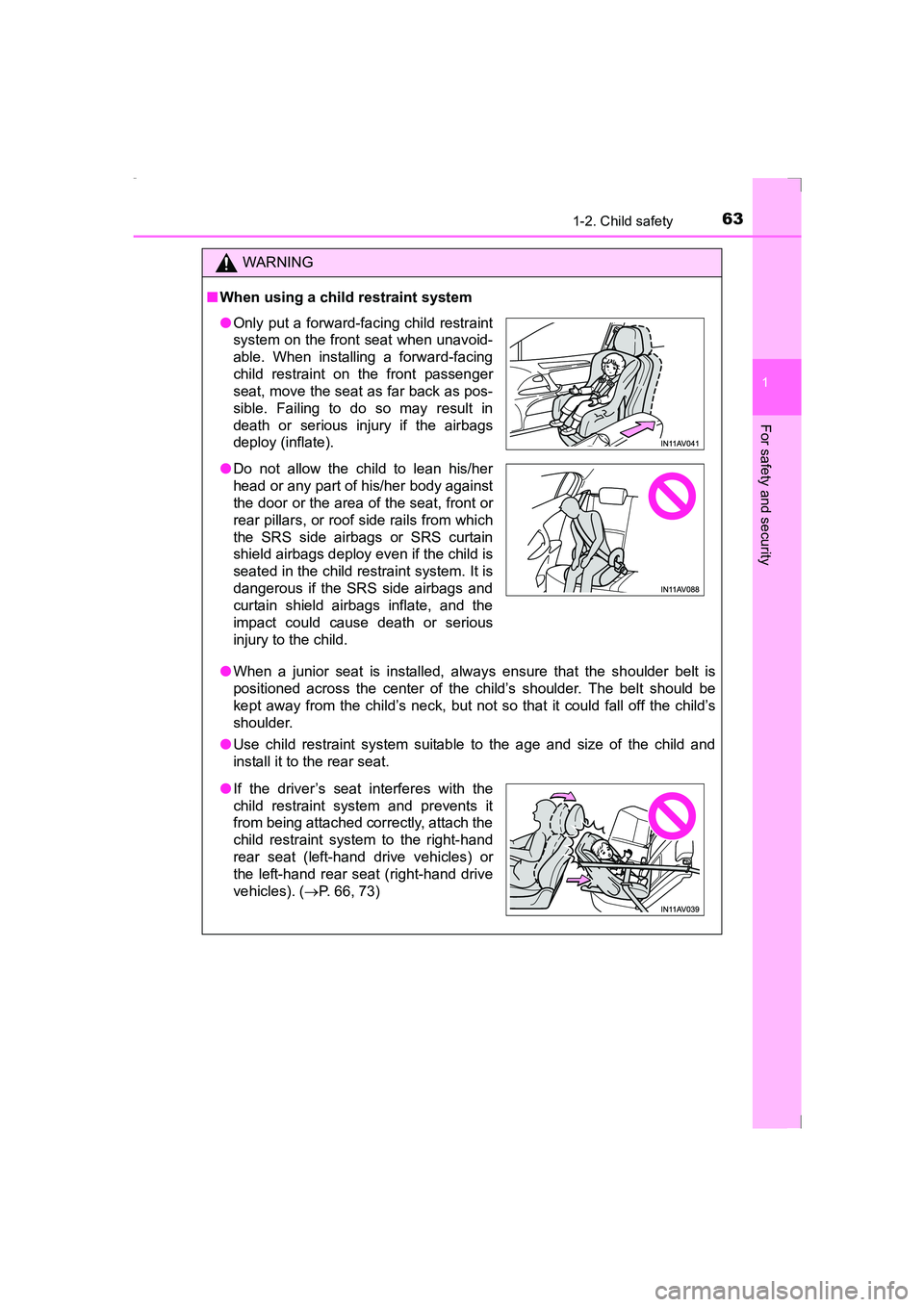

WARNING
■ When using a child restraint system
●When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Do not allow the child to lean his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the SRS side airbags or SRS curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( →P. 66, 73)
AVENSIS_OM_OM20C20E_(EE).book Page 63 Thursday, January 29, 2 015 1:47 PM

681-2. Child safety
AVENSIS_OM_OM20C20E_(EE)

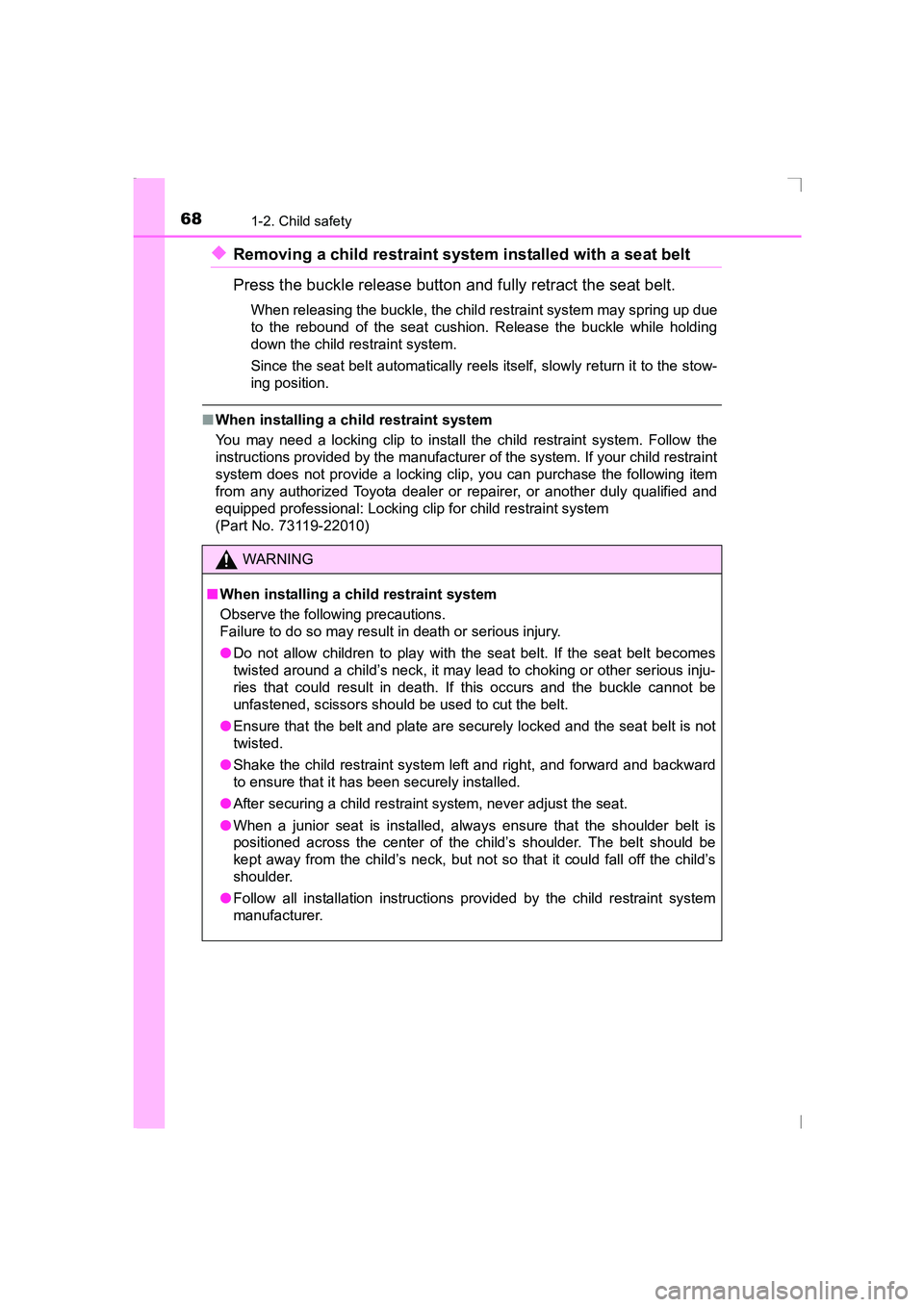

◆Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the child restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional: Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.
AVENSIS_OM_OM20C20E_(EE).book Page 68 Thursday, January 29, 2 015 1:47 PM

751-2. Child safety
1
AVENSIS_OM_OM20C20E_(EE)
For safety and security

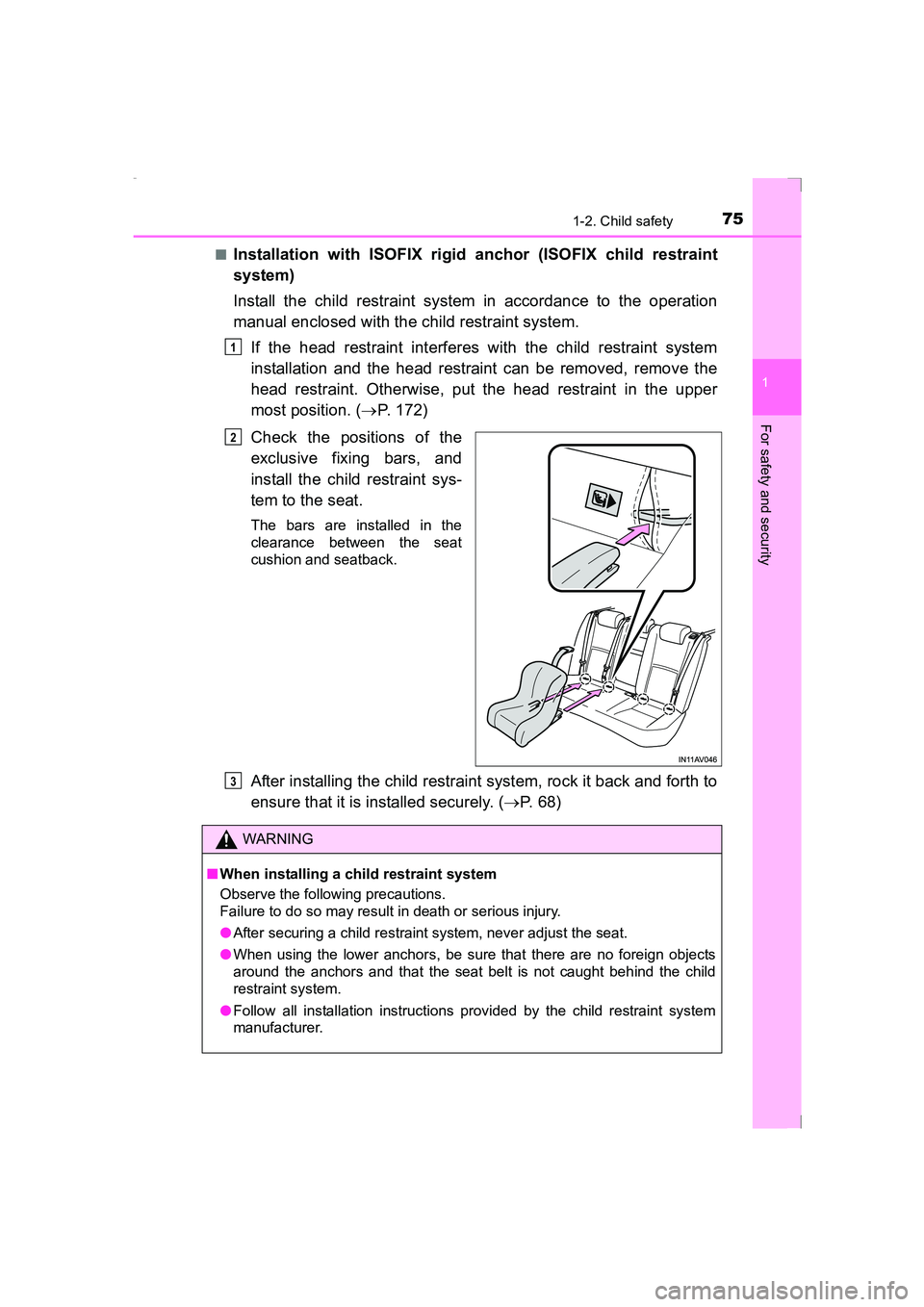

■Installation with ISOFIX rigid anchor (ISOFIX child restraint
system)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( →P. 172)
Check the positions of the
exclusive fixing bars, and
install the child restraint sys-
tem to the seat.
The bars are installed in the
clearance between the seat
cushion and seatback.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( →P. 6 8 )
1
2
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●After securing a child restraint system, never adjust the seat.
● When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.
● Follow all installation instructions provided by the child restraint system
manufacturer.
3
AVENSIS_OM_OM20C20E_(EE).book Page 75 Thursday, January 29, 2 015 1:47 PM
