2015 TOYOTA AVENSIS turn signal bulb

5037-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

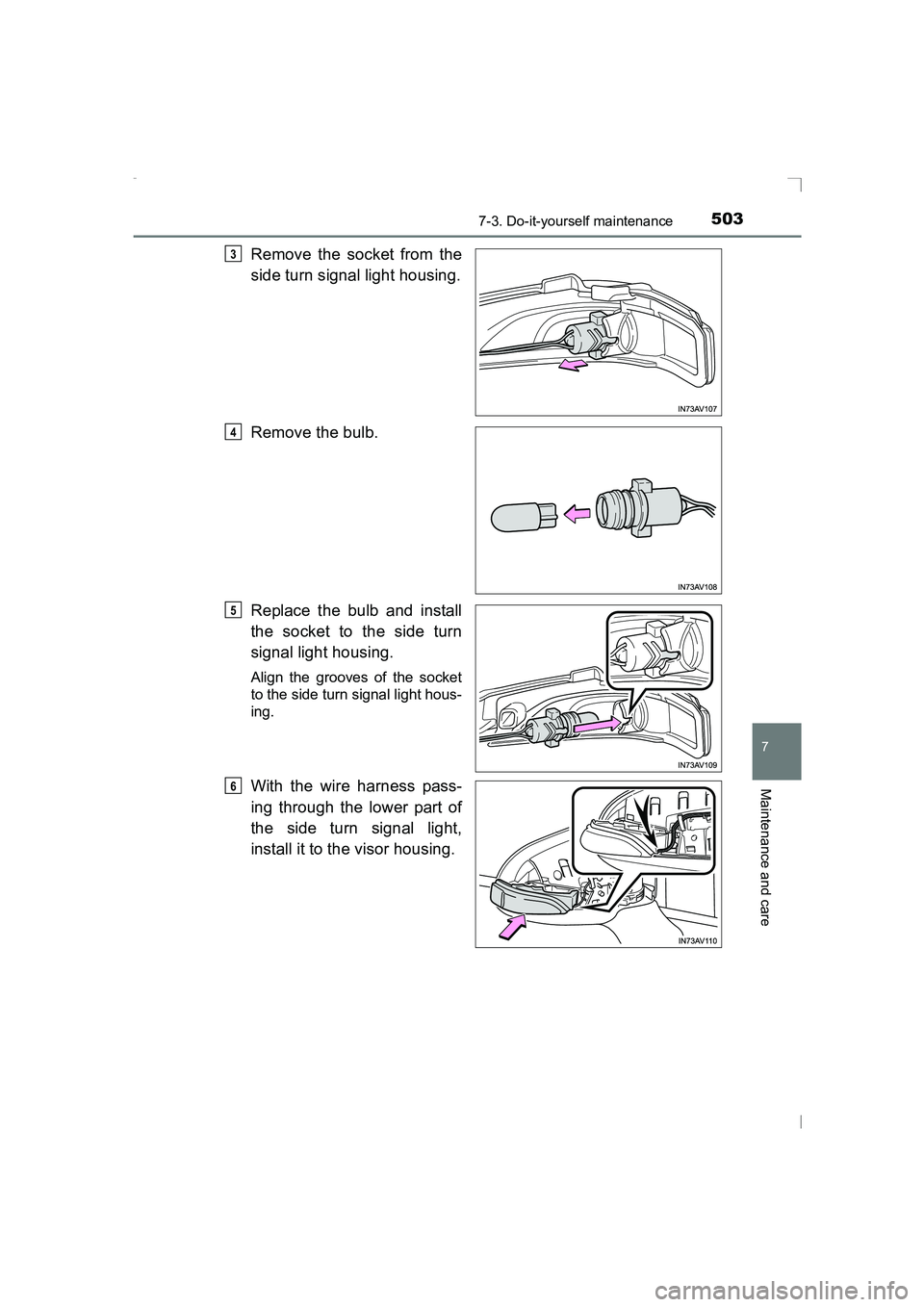

Remove the socket from the
side turn signal light housing.
Remove the bulb.
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
3
4
5
6
AVENSIS_OM_OM20C20E_(EE).book Page 503 Thursday, January 29, 2015 1:47 PM

6159-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
XCompact spare tire
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17
× 4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior Headlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
Interior
Personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbs E: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs
AVENSIS_OM_OM20C20E_(EE).book Page 615 Thursday, January 29, 2015 1:47 PM

639Alphabetical index
