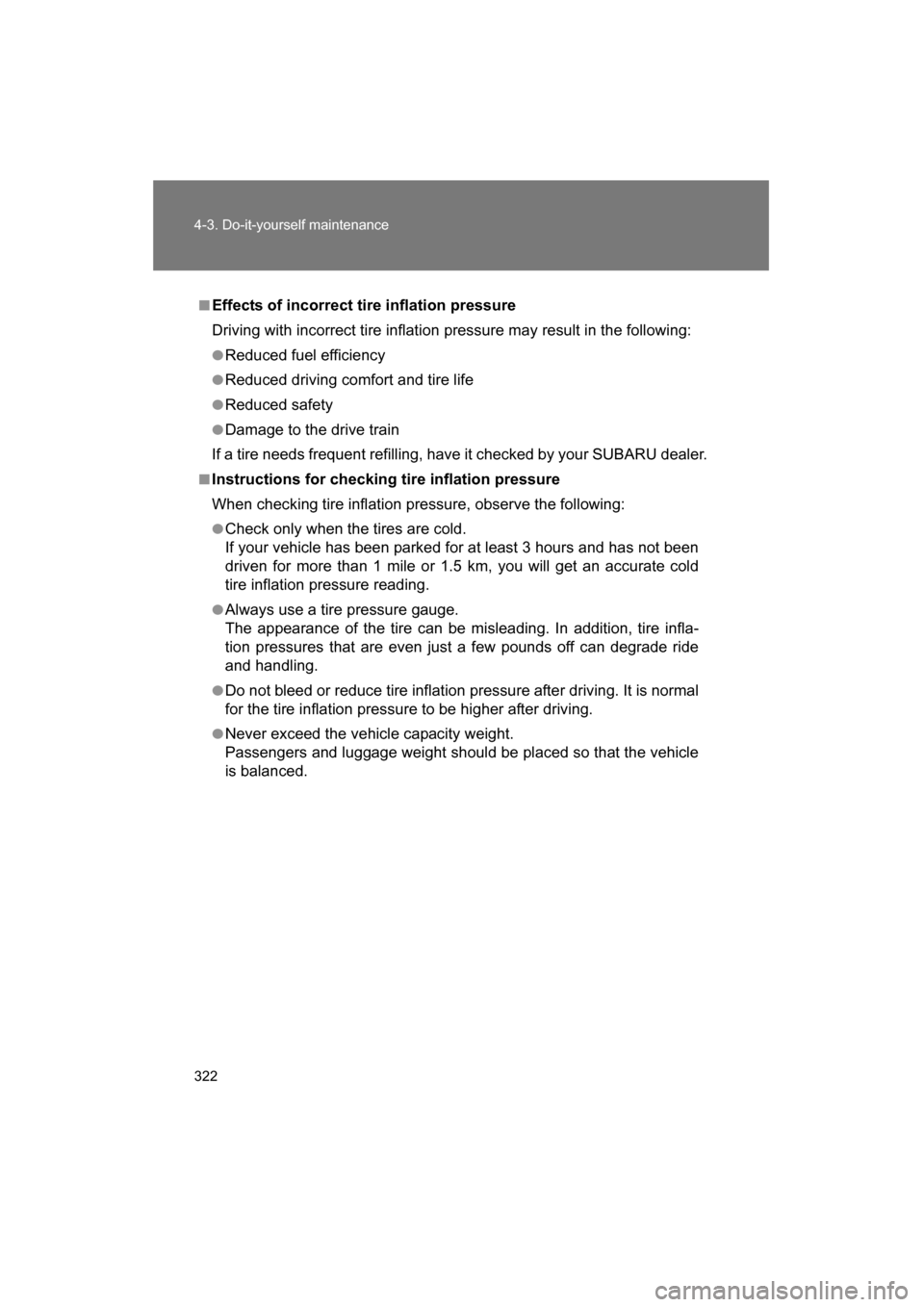

322
4-3. Do-it-yourself maintenance
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel efficiency
●Reduced driving comfort and tire life
●Reduced safety
●Damage to the drive train
If a tire needs frequent refilling, have it checked by your SUBARU dealer.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours and has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold
tire inflation pressure reading.
●Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire infla-
tion pressures that are even just a few pounds off can degrade ride
and handling.
●Do not bleed or reduce tire inflation pressure after driving. It is normal
for the tire inflation pressure to be higher after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle
is balanced.

372
5-2. Steps to take in an emergency
(Comes on in yellow) Cruise control indicator light
Indicates a malfunction in the cruise control system.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The malfunction indicator lamp will go off after several driving trips.
If the malfunction indicator lamp does not go off even after several trips, con-
tact your SUBARU dealer as soon as possible.
■SRS airbag system warning light
→ P. 121
■Electric power steering warning light (warning buzzer)
The electric power steering warning light may come on and the warning
buzzer may sound when the voltage is low or the voltage drops.
WARNING
■When the electric power steering warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
Warning lightWarning light/Details

416
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
* : Unladen vehicle
Overall length 166.7 in. (4235 mm)
Overall width 69.9 in. (1775 mm)
Overall height
* 52.0 in. (1320 mm)
Wheelbase 101.2 in. (2570 mm)
TreadFront 59.8 in. (1520 mm)
Rear 60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage) Details are described on the tire and load-
ing information label. (
→P. 320)

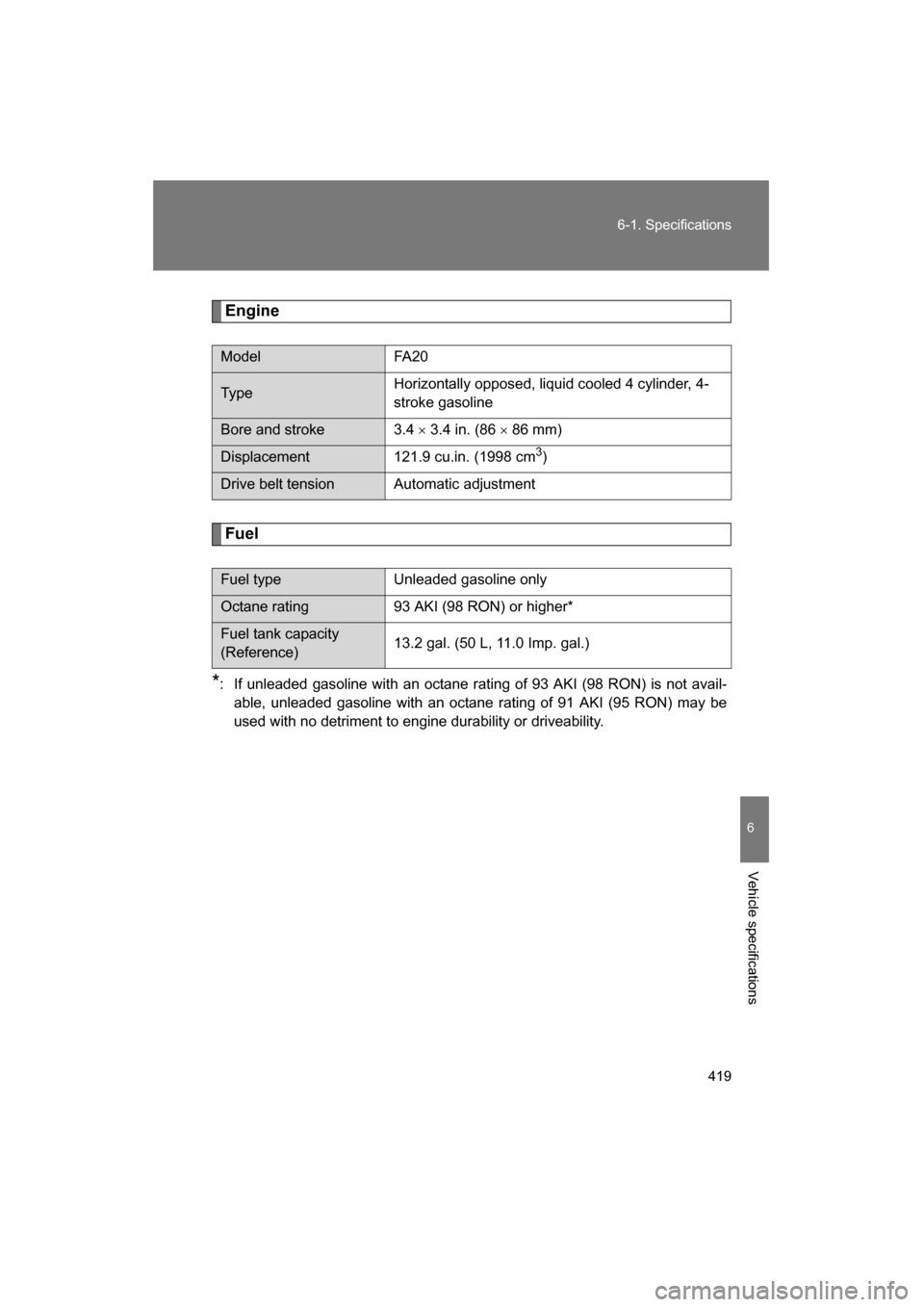

419
6-1. Specifications
6
Vehicle specifications
Engine
Fuel
* : If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not avail-
able, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.
Model FA20
Ty p e Horizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 3.4
× 3.4 in. (86 × 86 mm)
Displacement 121.9 cu.in. (1998 cm 3
)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 93 AKI (98 RON) or higher*
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 11.0 Imp. gal.)

420
6-1. Specifications
Lubrication system
* : The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
Always use SUBARU approved engine oil. For details, we recom-
mend that you contact your SUBARU dealer.
If approved engine oil is unavailable, another motor oil of matching
quality can also be used.
Oil grade:
ILSAC GF4 or GF5 multigrade engine oil
API classification SM or SN with the words “ENERGY CONSERV-
ING” or “RESOURCE CONSERVING”
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
Oil capacity
(Drain and refill 
reference*)

438
6-1. Specifications
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer.
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

481
Alphabetical index
Floor mat.................................. 273
FluidBrake .................................... 304
Washer ................................. 310
Fog lights Replacing light bulbs ............ 343
Switch ................................... 208
Wattage ................................ 427
Front fog lights Replacing light bulbs ............ 343
Switch ................................... 208
Wattage ................................ 427
Front passenger occupant detection system .................. 123
Front passenger's seatbelt reminder light ........................ 373
Front seats Adjustment ............................. 51
Front side marker light Replacing light bulbs ............ 343
Wattage ................................ 427
Front turn signal lights
Replacing light bulbs ............ 343
Switch ................................... 184
Wattage ................................ 427 Fuel
Capacity ................................419
Fuel gauge ............................187
Fuel pump shut off system .... 369
Gas station information .........492
Information ............................428
Refueling .................................74
Fuel door.....................................74
Fuel filler lid ................................74
Fuel pump shut off system .....369
Fuses.........................................335
Gauges ......................................187
Glove box..................................261F
G

492GAS STATION INFORMATION
Auxiliary catch lever
P. 296
Trunk lid opener
P. 4 5
Engine hood lock release lever
P. 296
Fuel filler lid
P. 7 4
Tire inflation pressure
P. 426
Fuel filler lid opener
P. 7 4
Fuel tank capacity
(Reference)
13.2 gal. (50 L, 11.0 Imp. gal.)
Fuel type Unleaded gasoline only P. 74, 419
Cold tire inflation
pressureFront:
35 psi (240 kPa, 2.4 kgf/cm
2
or bar)
Rear:
35 psi (240 kPa, 2.4 kgf/cm 2
or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm 2
or bar) P. 4 2 6
Engine oil capacity
(Drain and refill

reference)
