2015 SUBARU BRZ ignition

5
When trouble arises
403
5-2. Steps to take in an emergency
■Stopping the engine
Vehicles with an automatic transmission: Shift the select lever to P and press
the push-button ignition switch as you normally do when stopping theengine.
Vehicles with a manual transmission: Shift the shift lever to neutral and press
the push-button ignition switch as you normally do when stopping theengine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
access key battery be replaced immediately when the battery depletes. (→ P. 330)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. ( →P. 82)
■If the doors cannot be locked or unlocked by the keyless access with
push button start system
Lock and unlock the doors by the mechanical key or remote keyless entry
system.

404
5-2. Steps to take in an emergency
If the batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle's battery is discharged.
You can call your SUBARU dealer or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your vehicle following
the steps below.Connect the jumper cables according to the following pro-
cedures:
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration. Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Vehicles with a keyless access with push button start sys-
tem only: Open and close any of the doors of your vehicle
with the push-button ignition switch off.
STEP 1
STEP 2
STEP 3

5
When trouble arises
405
5-2. Steps to take in an emergency
Vehicles without a keyless access with push button start
system: Maintain the engine speed of the second vehicle
and turn the engine switch to the “ON” position, then start
the vehicle's engine.
Vehicles with a keyless access with push button start sys-
tem: Maintain the engine speed of the second vehicle and
turn the push-button ignition switch to “ON” mode, then
start the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your SUBARU
dealer as soon as possible.STEP 4
STEP 5

406
5-2. Steps to take in an emergency
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■Avoiding a discharged battery
●Turn off the headlights and the air conditioning system while the engine is
off.
●Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■Precautions when the battery is discharged (vehicles with a keyless
access with push button start system)
●In some cases, it may not be possible to unlock the doors using the key-
less access with push button start system when the battery is dis-
charged. Use the remote keyless entry system or the mechanical key to
lock or unlock the doors.
●The engine may not start on the first attempt after the battery has
recharged but will start normally after the second attempt. This is not a
malfunction.
●The push-button ignition switch mode is memorized by the vehicle. When
the battery is reconnected, the system will return to the mode it was in
before the battery was discharged. Before disconnecting the battery, turn
the push-button ignition switch off.
If you are unsure what mode the push-button ignition switch was in
before the battery discharged, be especially careful when reconnecting
the battery.

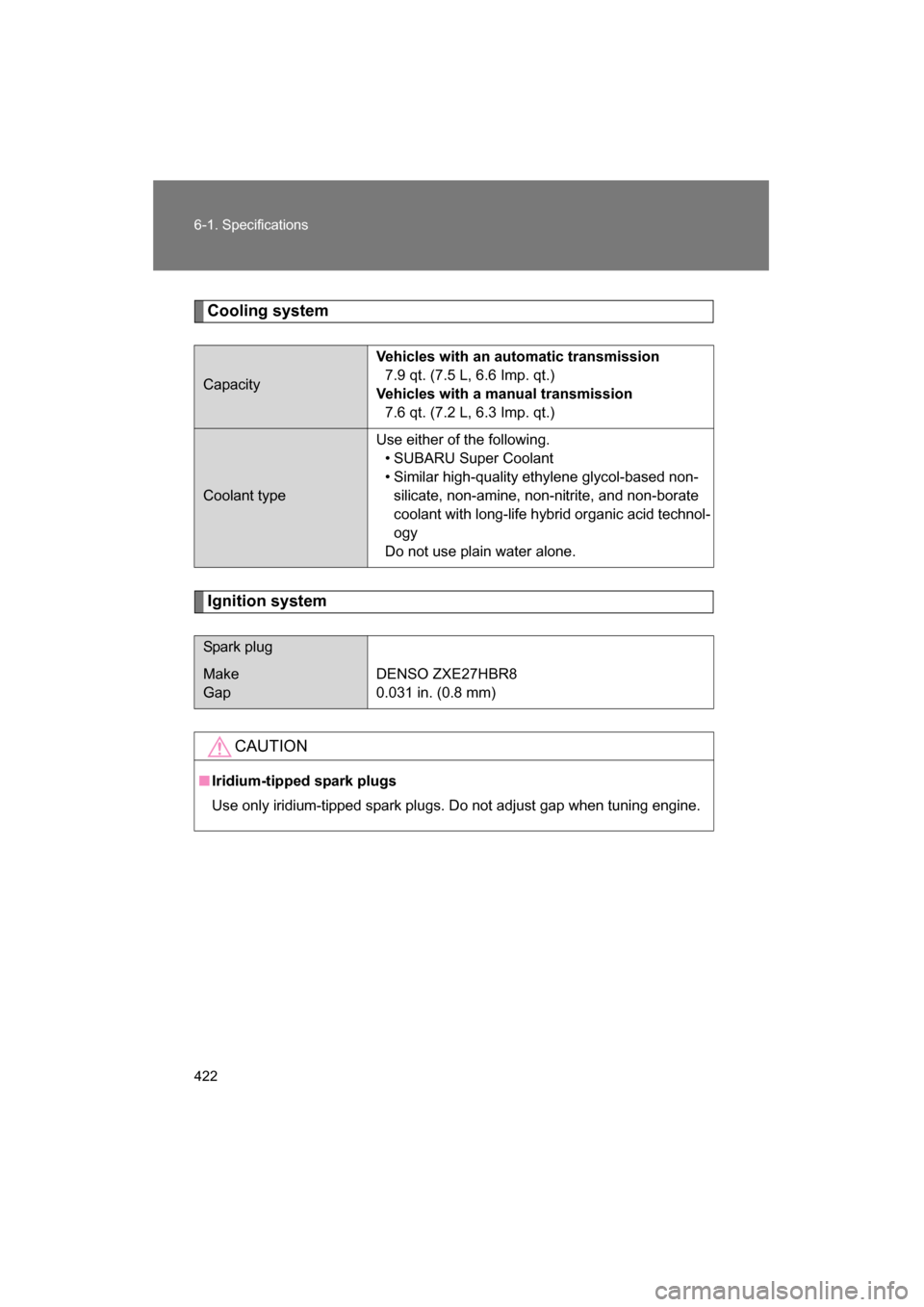

422
6-1. Specifications
Cooling system
Ignition system
CapacityVehicles with an automatic transmission
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Vehicles with a manual transmission 7.6 qt. (7.2 L, 6.3 Imp. qt.)
Coolant type Use either of the following.

480
Alphabetical index
Electric power steering ........... 217
Emergency, in case ofIf the access key does not operate properly............ 400
If the engine will not start ...... 395
If the select lever cannot be shifted from P.................398
If the vehicle has a
discharged battery ..............404
If the warning buzzer sounds ................................ 370
If the warning light
turns on ............................... 370
If you have a flat tire ............. 384
If you lose your keys ............. 399
If you think something is wrong .................................. 368
If your vehicle becomes
stuck ................................... 412
If your vehicle needs to
be towed ............................. 361
If your vehicle overheats ....... 409 Engine
Compartment ........................ 298
Engine hood.......................... 296
Engine switch................ 162, 171
How to start the engine ......................... 162, 171
Identification number............. 417
If the engine will not start ...... 395
Ignition switch ............... 162, 171
Overheating .......................... 409
Engine coolant Capacity ................................ 422
Checking ............................... 302
Engine coolant temperature gauge ...................................... 187
Engine hood ............................. 296
Engine immobilizer system ...... 78
Engine oil Capacity ................................ 420
Checking ............................... 299
Preparing and checking before winter ....................... 229
Engine switch................... 162, 171
Engine switch light .................. 258
Event data recorder ................... 16E

482
Alphabetical index
Hazard lightsSwitch.................................... 360
Hazard warning flashers Switch.................................... 360
Head restraints Adjusting ................................56
Headlights Discharge headlight
precautions ......................... 357
Replacing light bulbs ............. 343
Switch.................................... 202
Wattage.................................427
Heaters Seat heaters.......................... 271
Side mirror............................. 254
Horn...........................................186 I/M test ...................................... 292
Identification
Engine................................... 417
Vehicle .................................. 417
Ignition switch.................. 162, 171
Ignition switch light Ignition switch light ................ 258
Illuminated entry system......... 258
Immobilizer system ................... 78
Indicator lights ......................... 192
Inside rear view mirror .............. 66
Interior light Interior light ........................... 259
Switch ................................... 259
Wattage................................. 427
Jack Vehicle-equipped
jack ..................................... 384
Jack handle .............................. 384HI
J

486
Alphabetical index
SpeedometerSpeedometer......................... 187
Steering Column lock release................65
Steering wheel Adjustment ..............................65
Storage feature......................... 260
Stuck If your vehicle becomes stuck ................................... 412
Sun visors.................................265
Switch
Driving mode selector switch .................................. 176
Engine switch ................162, 171
Fog light switch ..................... 208
Hazard light switch ................ 360
Hazard warning flasher switch .................................. 360
Ignition switch................162, 171
Light switches........................ 202
“ODO/TRIP” switch ............... 189
Power door lock switch ....................................43
Power window switch ..............70
Transmission shift
switches ......................177, 179
Window lock switch .................70
Wiper and washer switch .................................. 209 Tachometer
Tachometer........................... 187
Tail lights
Switch ................................... 202
Theft deterrent system Alarm....................................... 82
Engine immobilizer system ..... 78
Theft prevention labels ............. 81
Tire inflation pressure ............. 426
Tire information Glossary ................................ 438
Size ....................................... 435
Tire identification number...... 434
Uniform tire quality grading................................ 436
Tires Chains ................................... 231
Checking ............................... 312
Compact spare tire................ 384
If you have a flat tire.............. 384
Inflation pressure .................. 320
Inflation pressure sensor....... 312
Information ............................ 432
Replacing .............................. 384
Rotating tires......................... 312
Size ....................................... 426
Snow tires ............................. 229
Spare tire .............................. 384
Tire pressure monitoring system ................................ 373T
