2015 SMART FORTWO COUPE tow

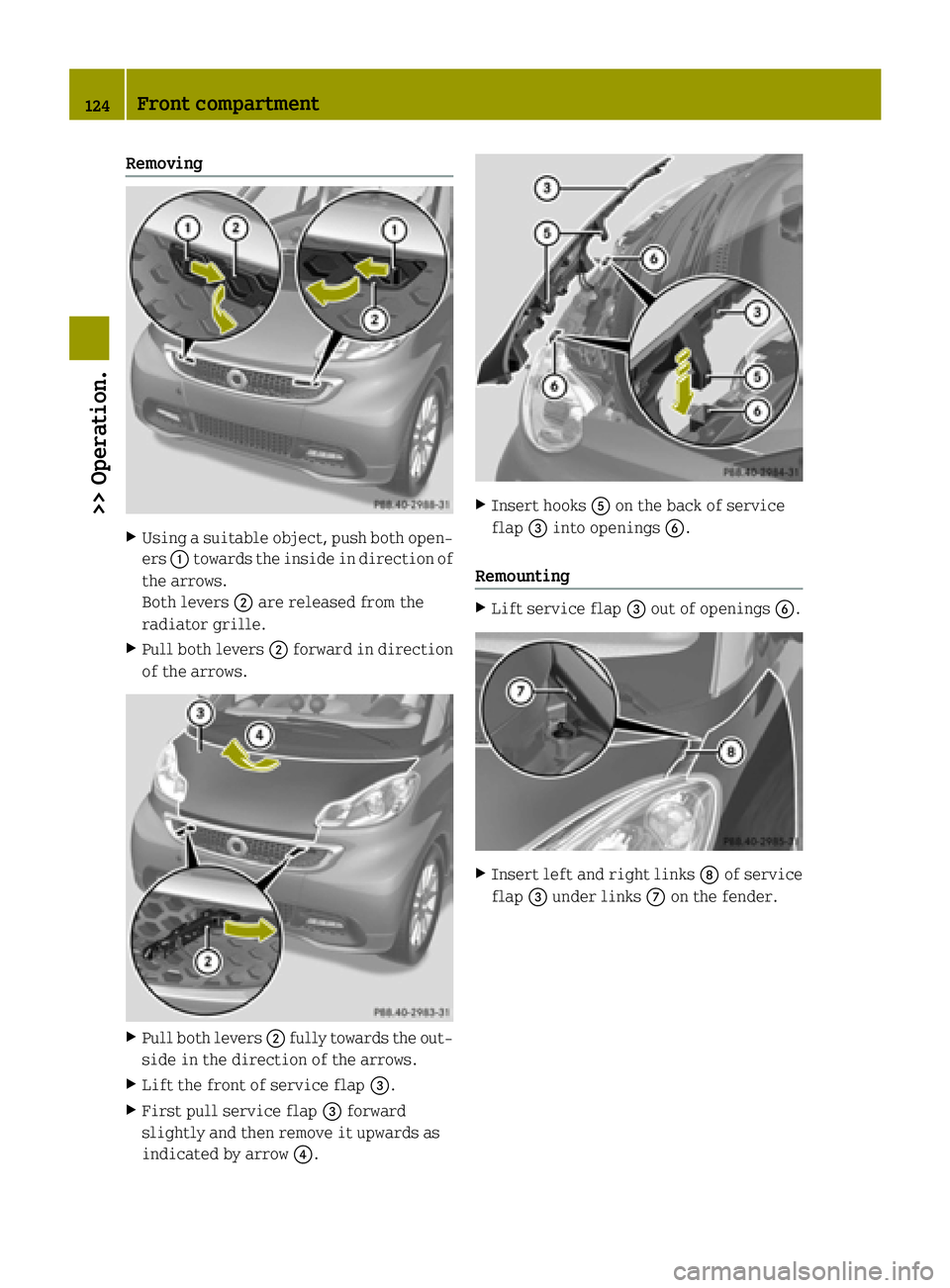

Removing
X
Using a suitable object, push both open-
ers :towards the inside in direction of
the arrows.
Both levers ;are released from the
radiator grille.
X Pull both levers ;forward in direction
of the arrows. X
Pull both levers ;fully towards the out-
side in the direction of the arrows.
X Lift the front of service flap =.
X First pull service flap =forward
slightly and then remove it upwards as
indicated by arrow ?. X
Insert hooks Aon the back of service
flap =into openings B.
Remounting X
Lift service flap =out of openings B. X
Insert left and right links Dof service
flap =under links Con the fender. 124
Front compartment>> Operation.

sion components can be damaged. Also, the
operating clearance of the wheels and the
tires may no longer be correct. G
WARNING
Worn, old tires can cause accidents. If the
tire tread is worn to minimum tread depth,
or if the tires have sustained damage,
replace them.
When replacing rims, only use genuine
smart wheel bolts specified for the partic- ular rim type. Failure to do so can result in
the bolts loosening and possibly an acci-
dent.
Retreaded tires are not tested or recom-
mended by smart, since previous damage
cannot always be recognized on retreads.
The operating safety of the vehicle cannot
be assured when such tires are used. G
WARNING
If you feel a sudden significant vibration
or ride disturbance, or you suspect that
possible damage to your vehicle has occur- red, you should turn on the hazard warning
flashers, carefully slow down, and drive
with caution to an area which is a safe dis-
tance from the road.
Inspect the tires and the vehicle underbody for possible damage. If the vehicle or tires
appear unsafe, have the vehicle towed to the nearest authorized electric drive smart
center or tire dealer for repairs. G
WARNING
Do not drive with a flat tire. A flat tire
affects the ability to steer or brake the
vehicle. You could lose control of the vehi- cle. Continued driving with a flat tire or
driving at high speed with a flat tire will
cause excessive heat build-up and possibly a fire.
Modifications to the brake system and
wheels and the use of brake dust rings are
not permissible. Important guidelines
R Only use sets of tires and rims of the same
type and make.
R Tires must be of the correct size for the
rim.
R Break in new tires for approximately
60 miles (100 km) at moderate speeds.
R Regularly check the tires and rims for
damage. Dented or bent rims can cause
tire pressure loss and damage to the tire
beads.
R If vehicle is heavily loaded, check tire
inflation pressure and correct as
required.
R Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths of less
than 1
/ 8 in (3 mm). Recommended tire inflation pressure
G
WARNING
Follow recommended tire inflation pres-
sures.
Do not underinflate tires. Underinflated
tires wear excessively and/or unevenly,
adversely affect handling and energy con-
sumption of the vehicle, and are more
likely to fail from being overheated.
Do not overinflate tires. Overinflated
tires can adversely affect handling and
ride comfort, wear unevenly, increase
stopping distance, and result in sudden
deflation (blowout) because they are more
likely to become punctured or damaged by
road debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the
Tire and Loading Information placard on
the driver’s door B‑pillar. Overloading the tires can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or brake failure. 128
Tires and wheels>> Operation.

R
Remove unnecessary loads.
R Have all maintenance work performed at
the intervals specified in the Mainte-
nance Booklet and as required by the
Maintenance System. Contact an author-
ized electric drive smart center.
Energy consumption is also increased by
driving in stop-and-go traffic, on short
trips, and in hilly areas. Tires
G
WARNING
If you feel a sudden significant vibration
or ride disturbance, or you suspect that
possible damage to your vehicle has occur- red, you should turn on the hazard warning
flashers, carefully slow down, and drive
with caution to an area which is a safe dis-
tance from the road.
Inspect the tires and the vehicle underbody for possible damage. If the vehicle or tires
appear unsafe, have the vehicle towed to the nearest smart center or tire dealer for
repairs.
Treadwear indicators (TWI) are required by law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately 1
/ 16 in (1.6 mm), at which point the
tire is considered worn and should be
replaced.
The treadwear indicator appears as a solid
band across the tread. G
WARNING
Although the applicable federal motor
vehicle safety laws consider a tire to be
worn when the treadwear indicators (TWI)
become visible at approximately 1
/ 16 in
(1.6 mm), we recommend that you do not allow your tires to wear down to that level. As
tread depth approaches 1
/ 8 in (3 mm), the
adhesion properties on a wet road are
sharply reduced. Depending upon the weather and/or road
surface (conditions), the tire traction var- ies widely.
Specified tire inflation pressures must be maintained. This applies particularly if
the tires are subject to high loads (e.g.
high speeds, heavy loads, high ambient
temperatures). G
WARNING
Do not drive with a flat tire. A flat tire will affect your ability to steer or brake and maycause you to lose control of the vehicle.
Continued driving with a flat tire or driv-
ing at high speed with a flat tire will cause
excessive heat build-up and possibly a
fire.
For more information, see “Tires and
wheels” (Y page 127). Hydroplaning
Depending on the depth of the water layer
on the road, hydroplaning may occur
resulting in a loss of control, even at low
speeds and with new tires. Reduce vehicle
speed, avoid track grooves in the road and
apply brakes cautiously when it is raining. Tire traction
The safe speed on a wet, snow covered or icy
road is always lower than on a dry road.
You should pay particular attention to the
condition of the road whenever the outside temperatures are close to the freezing
point. G
WARNING
If ice has formed on the road, tire traction will be substantially reduced. Under such
weather conditions, drive, steer and brake
with extreme caution.
smart recommends winter tires (Y page 146)
with a minimum tread depth of approx- 150
Driving instructions>> Operation.

Exterior Special considera-
tions Lightly soiled
Hand-/Automatic
car washes Heavily soiled
Hand-/Automatic
car washes
Wheels and wheel
covers Two-layer metallic
paint (high-gloss) Car shampoo con-
centrate, rim care Car shampoo con-
centrate, rim care
Retractable soft top PAC fabric Car shampoo con-
centrate, soft top
cleaner, impregna-
tion spray Car shampoo con-
centrate, soft top
cleaner, impregna-
tion spray
Removing insects
Remove insect remains before you start to
wash the vehicle.
X Spray insect remover on.
X Allow insect remover to work in briefly.
X Rub in gently with a soft cloth or sponge.
X Rinse with plenty of water.
X Treat the cleaned surface with hard wax.
Removing tar Remove any tar marks before washing the
vehicle.
X Apply tar remover with a soft cloth.
X Allow tar remover to work in briefly.
X Rub in gently.
X Rinse with plenty of water.
X Treat the cleaned surface with hard wax.
Vehicle washing In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the vehicle underbody, do not forget to clean the inner sides of the
wheels.
Washing your vehicle by hand
X Wash the vehicle using car shampoo con-
centrate and a sponge.
X Rinse with clean water.
X Towel dry the vehicle. !
Do not wash the vehicle in direct sun-
light. The body panel surfaces and paint finish may be damaged.
Washing your vehicle in an automatic car
wash
i When running your vehicle through an
automatic car wash, water droplets can
run down the inside of the side windows.
Unscrew your vehicle’s antenna before
driving into an automatic car wash. X
Removing: Unscrew antenna :counter-
clockwise.
X Fitting: Screw antenna :in clockwise.
Power washer G
WARNING
Do not use a round nozzle (dirt grinders) to powerwash your vehicle, in particular the
tires. You could otherwise damage the tires
and cause an accident. 156
Vehicle care>> Operation.

>> Practical hints.Where will I find ... .......................... 160
Display messages ............................
.161
What to do if ... ...............................1 66
Unlocking/locking manually ............... 177
Replacing transmitter battery ............ 178
Replacing bulbs ...............................1 79
Replacing wiper blades ..................... 185
Flat tire ........................................ 187
Wheel change .................................. 195
Batteries ....................................... 197
Jump starting .................................2 00
Towing .......................................... 203
Fuses ............................................ 205

Display messages Possible causes/consequences and
M
MSolutions þ
Drive System Drive System
Y Service Required Service Required There is a malfunction in the drive system, the electric motor
or the high‑voltage battery.
In addition, the yellow þwarning lamp in the instrument
cluster lights up.
X Contact an authorized electric drive smart center. þ
Drive System Drive System
Y Switch
Switch Engine
EngineOff
Off There is a malfunction in the drive train. If the drive system
continues to run, the drive train can become damaged.
In addition, the red
þwarning lamp in the instrument clus-
ter lights up and a warning signal sounds.
X Switch off the drive system.
X Do not continue driving.
X Contact an authorized electric drive smart center. *
Do Not Tow Do Not Tow
(Away)
(Away) Either the drive or the high‑voltage system is faulty.
In addition, the
Nwarning lamp in the instrument cluster
lights up.
X It is recommended to have the vehicle transported by a
qualified specialist workshop.
Do not tow the vehicle on its own wheels. *
Charging Charging
Not
NotPossi‐
Possi‐
ble
ble There is a malfunction in the on-board charger. The high‑volt-
age battery cannot be charged.
X Contact an authorized electric drive smart center. *
Parking Lock Inac‐ Parking Lock Inac‐
tive tive The gear selector lever is in position
P, but the parking lock is
not detected.
In addition, a warning signal sounds.
X Apply the parking brake.
X Move the gear selector lever to another position, e.g. to R.
X Move the gear selector lever to Pagain. Ö
Driver´s Door Ajar Driver´s Door Ajar The driver’s door is open.
X Close the driver’s door. Ø
Door Ajar Door Ajar The passenger door is open.
X
Close the passenger door. Õ
Tailgate Open Tailgate Open A tailgate or the rear soft top
9
is open.
X Close the tailgates or the rear soft. 9
cabriolet only. Display messages
163>> Practical hints. Z

Display messages Possible causes/consequences and
M
MSolutions è
Charge Cable Con‐ Charge Cable Con‐
nected nected The charging cable is inserted in the vehicle power socket. The
vehicle cannot be moved.
In addition, a warning signal sounds.
X To drive off, remove the charging cable from the vehicle
power socket and stow the cable in the vehicle. Ready to Charge Ready to Charge
The vehicle is prepared for the high‑voltage battery to be
charged. It may take 30 seconds for the charging process to
begin.
Malfunction Malfunction
Despite the charging cable being correctly inserted in the
vehicle power socket, the high‑voltage battery does not
charge. There is a malfunction in the on-board charger.
X Contact an authorized electric drive smart center. No Charge No Charge
The voltage on the vehicle power socket is too low.
X Check whether the charging cable is inserted correctly in
the power sockets of both the vehicle and the power source. If necessary, unplug the charging cable from both sockets and
reinsert it.
If, afterwards, the message is still displayed:
X Contact an authorized electric drive smart center. Display messages Possible causes/consequences and
M MSolutions h
Check Check
Tire
TirePressure
Pressure The tire inflation pressure in at least one tire is signifi-
cantly below the reference value.
X Carefully bring the vehicle to a halt, avoiding abrupt steer-
ing and braking maneuvers.
X Check and adjust tire inflation pressure as required
(Y page 130).
X If necessary, change the wheel (Y page 195).G
WARNING
Each tire should be checked monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the Tire and Loading Information placard. If your vehicle has tires of a different size than the size indicated on the Tire and Loading Infor- mation placard, you should determine the proper tire inflation pressure for those tires.
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is
significantly underinflated. 164
Display messages>> Practical hints.

Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X Turn the exterior lamp switch to position
$ (Ypage 64).
X Switch off the ignition.
X Open the service flap (Y page 123).Left headlamp, (right headlamp in reverse)
Parking and side marker lamp bulb X
Removing:
Driver’s side: Turn bulb socket ?toward
the outside.
Passenger side: Turn bulb socket ?
toward the outside.
X Pull bulb socket ?out of the headlamp
housing.
X Pull the bulb out of bulb socket ?.
X Installing: Insert the new bulb into bulb
socket ?.
X Insert bulb socket ?into the headlamp
housing.
X Driver side: Turn bulb socket ?toward
the inside.
Passenger side: Turn bulb socket ?
toward the inside.
Low‑beam headlamp bulb X
Removing: Take off low‑beam headlamp
cover =.
X Detach the electrical connector. X
Bend the retainer spring end down and
forward until it unclips. Fold the
retainer spring back.
X Pull the bulb out of the headlamp hous-
ing.
X Installing: Insert the new bulb into the
headlamp housing.
X Fold the retainer spring forward.
X Bend the retainer spring end forward
then up and back to clip in.
X Attach the electrical connector.
X Reinstall low‑beam headlamp cover =.
High‑beam headlamp bulb X
Removing: Take off high‑beam headlamp
cover ;.
X Detach the electrical connector.
X Tilt the bulb socket down and pull it out.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Fit the bulb so that the retaining lug of
the base plate is pointing up.
X Press the bulb into the bulb socket until
it is fully engaged.
X Attach the electrical connector.
X Reinstall high‑beam headlamp cover ;.
Front turn signal lamp bulb X
Removing: Turn bulb socket :counter-
clockwise by a quarter of turn and pull it out of the headlamp housing.
X Press gently onto the bulb and turn it
counterclockwise.
X Pull the bulb out of bulb socket :.
X Installing: Insert the new bulb into bulb
socket :.
X Press gently onto the bulb and turn it
clockwise.
X Insert bulb socket :into the headlamp
housing. 182
Replacing bulbs>> Practical hints.
