2015 SKODA SUPERB technical data

Dimensions - SuperbFig. 278
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 278SpecificationValueA
Height
Basic dimension1468Vehicles with the off-road package1483Vehicles with the SPORT package1453Vehicles with DCC1458BFront trackBasic dimension1584Vehicles with the 2.0 l/162 kW TSI and 2.0 l/206 kW TSI engine1586CWidth1864DRear track widthBasic dimension1572Vehicles with the 2.0 l/162 kW TSI and 2.0 l/206 kW TSI engine1574EWidth including exterior mirror2031F
Clearance
Basic dimension149/148 a)Vehicles with the off-road package164/163a)
/ 158 b)Vehicles with the SPORT package134/133 a)Vehicles with DCC139/138 a)GWheel base2841HLength4861a)
Applies to Superb 4 x 4 vehicles.
b)
Applies to vehicles with a 2.0 l/206 kW TSI engine.
249Technical data

Dimensions - Superb estateFig. 279
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 279SpecificationValueA
Height
Basic dimension1477Vehicles with the off-road package1492Vehicles with the SPORT package1462Vehicles with DCC1467BFront trackBasic dimension1584Vehicles with the 2.0 l/162 kW TSI and 2.0 l/206 kW TSI engine1586CWidth1864DRear track widthBasic dimension1572Vehicles with the 2.0 l/162 kW TSI and 2.0 l/206 kW TSI engine1574EWidth including exterior mirror2031F
Clearance
Basic dimension149/148 a)Vehicles with the off-road package164/163a)
/ 158 b)Vehicles with the SPORT package134/133 a)Vehicles with DCC139/138 a)GWheel base2841HLength4856a)
Does not apply to Superb Estate 4 x 4 vehicles.
b)
Applies to vehicles with a 2.0 l/206 kW TSI engine.
250Technical data

Overhang angleFig. 280
Overhang angle Superb / Superb Estate
Angle » Fig. 280
Approach angle
Departure angle
Overhang angle
The values shown indicate the maximum incline of an embankment, up which
the vehicle can drive at a slow speed without the bumper or underbody touch-
ing down.
The values listed represent the maximum axle load at the front and rear.
Overhang angle (°) - Superb
» Fig. 280ABBasic dimension14.0/14.1 a)12.2Vehicles with the off-road package15.1/15.2a)12.4/12.3 a)Vehicles with the SPORT package12.7/13.0 a)12.4/12.3a)Vehicles with DCC13.212.5/12.3a)a)
Applies to Superb 4 x 4 vehicles.
ABOverhang angle (°) - Superb Estate» Fig. 280ABBasic dimension14.0/14.1 a)12.2/12.0 a)Vehicles with the off-road package15.1/15.2a)12.4/12.1 a)Vehicles with the SPORT package12.7/13.0 a)12.4/12.2a)Vehicles with DCC13.212.4/12.3 a)a)
Does not apply to Superb Estate 4 x 4 vehicles.
251Technical data

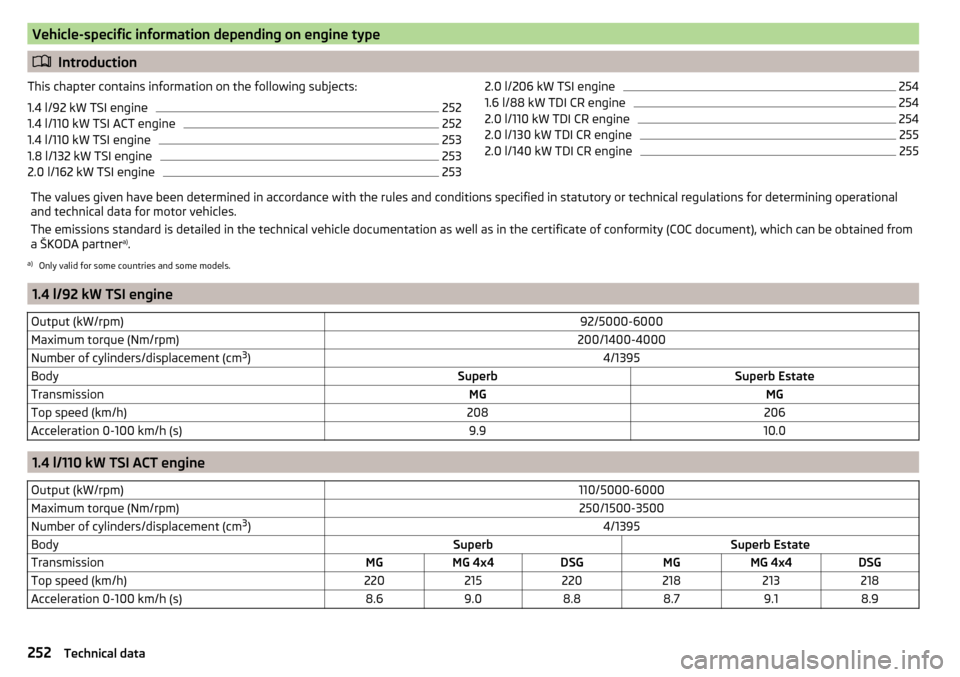

Vehicle-specific information depending on engine type
Introduction
This chapter contains information on the following subjects:
1.4 l/92 kW TSI engine252
1.4 l/110 kW TSI ACT engine
252
1.4 l/110 kW TSI engine
253
1.8 l/132 kW TSI engine
253
2.0 l/162 kW TSI engine
2532.0 l/206 kW TSI engine2541.6 l/88 kW TDI CR engine254
2.0 l/110 kW TDI CR engine
254
2.0 l/130 kW TDI CR engine
255
2.0 l/140 kW TDI CR engine
255The values given have been determined in accordance with the rules and conditions specified in statutory or technical regulations for determining operational
and technical data for motor vehicles.The emissions standard is detailed in the technical vehicle documentation as well as in the certificate of conformity (COC document), which can be obtained from a ŠKODA partner a)
.a)
Only valid for some countries and some models.
1.4 l/92 kW TSI engine
Output (kW/rpm)92/5000-6000Maximum torque (Nm/rpm)200/1400-4000Number of cylinders/displacement (cm 3
)4/1395BodySuperbSuperb EstateTransmissionMGMGTop speed (km/h)208206Acceleration 0-100 km/h (s)9.910.0
1.4 l/110 kW TSI ACT engine
Output (kW/rpm)110/5000-6000Maximum torque (Nm/rpm)250/1500-3500Number of cylinders/displacement (cm 3
)4/1395BodySuperbSuperb EstateTransmissionMGMG 4x4DSGMGMG 4x4DSGTop speed (km/h)220215220218213218Acceleration 0-100 km/h (s)8.69.08.88.79.18.9252Technical data

1.4 l/110 kW TSI engineOutput (kW/rpm)110/5000-6000Maximum torque (Nm/rpm)250/1500-3500Number of cylinders/displacement (cm3
)4/1395BodySuperbSuperb EstateTransmissionMGDSGMGDSGTop speed (km/h)220220218218Acceleration 0-100 km/h (s)8.68.88.78.9
1.8 l/132 kW TSI engine
Output (kW/rpm)MG132/4000-6200DSG132/5100-6200Maximum torque (Nm/rpm)MG320/1450-3900DSG250/1250-5000Number of cylinders/displacement (cm 3
)4/1798BodySuperbSuperb EstateTransmissionMGDSGMGDSGTop speed (km/h)232232230230Acceleration 0-100 km/h (s)8.08.18.18.2
2.0 l/162 kW TSI engine
Output (kW/rpm)162/4500-6200Maximum torque (Nm/rpm)350/1500-4400Number of cylinders/displacement (cm 3
)4/1984BodySuperbSuperb EstateTransmissionDSGDSGTop speed (km/h)245243Acceleration 0-100 km/h (s)7.07.1253Technical data

2.0 l/206 kW TSI engineOutput (kW/rpm)206/5600-6500Maximum torque (Nm/rpm)350/1700-5600Number of cylinders/displacement (cm3
)4/1984BodySuperbSuperb EstateTransmissionDSG 4x4DSG 4x4Top speed (km/h)250250Acceleration 0-100 km/h (s)5.85.8
1.6 l/88 kW TDI CR engine
Output (kW/rpm)88/3600-4000Maximum torque (Nm/rpm)250/1600-3250Number of cylinders/displacement (cm 3
)4/1598BodySuperbSuperb EstateTransmissionMGMG (Green Line)DSGMGMG (Green Line)DSGTop speed (km/h)206209206204206204Acceleration 0-100 km/h (s)10.911.011.011.011.111.1
2.0 l/110 kW TDI CR engine
Output (kW/rpm)110/3500-4000Maximum torque (Nm/rpm)340/1750-3000Number of cylinders/displacement (cm 3
)4/1968BodySuperbSuperb EstateTransmissionMGMG 4x4DSGMGMG 4x4DSGTop speed (km/h)220215218218213216Acceleration 0-100 km/h (s)8.89.08.98.99.19.0254Technical data

2.0 l/130 kW TDI CR engineOutput (kW/rpm)130/3700-4000Maximum torque (Nm/rpm)380/1750-3400Number of cylinders/displacement (cm3
)4/1968BodySuperbSuperb EstateTransmissionDSGDSGTop speed (km/h)222220Acceleration 0-100 km/h (s)8.48.5
2.0 l/140 kW TDI CR engine
Output (kW/rpm)140/3500-4000Maximum torque (Nm/rpm)400/1750-3250Number of cylinders/displacement (cm 3
)4/1968BodySuperbSuperb EstateTransmissionMGDSGDSG 4x4MGDSGDSG 4x4Top speed (km/h)237235230235233228Acceleration 0-100 km/h (s)8.07.77.68.17.87.7255Technical data
