2015 SKODA RAPID SPACEBACK navigation

Enter destination in route›
If guidance takes place, then in the menu Navigation, press the function key

→ New dest./stopover .
›
Enter destination.
›
Press the function key Start→ Stopover .
In the displayed menu of a new tour the order of the stopovers can be
changed by holding the function key 
and moving the stopover to a different
position.
›
Press the function key Calculate.
A route is created by inserting the destination in the route. For more informa-
tion on the tour » page 59.
Note
Up to 20 destinations can be included in a tour.
My destinations
Introduction
This chapter contains information on the following subjects:
List of registered destinations
50
Home address
51
Current vehicle position Store(flagged destination)
51
This chapter discusses the entry options and selecting the destinations stored
in the device memory.
List of registered destinationsFig. 38
List of stored destinations
Display list of stored destinations
› Press in the
Navigation menu the function key

→ Destinations .
The last selected list of registered destinations are displayed.
The following functions can be performed from the displayed list. - Destination search by name (with more than 4 entries)
- Management of the stored destination
Display category of the stored destinations
› Press in the
Navigation menu the function key

→ Destinations →
 .
The following menu is displayed with the categories of stored destinations
» Fig. 38 .
Last destinations to which the guidance was carried out (automatically
saved, max. 50)
Destination memory (manually saved):
› 
Flagged destination (current vehicle position is saved)
› 
Stored destination (stored in the destination details / imported in
vCard format)
› 
Favourite (stored in the destination details)
Favourites (max. 50 entries). The favourite position is displayed in the map
by the symbol  .
Telephone contacts of the connected telephone containing an address. If
the address is in an unsupported format, then a menu for editing is dis-
played. 
Find50Navigation (Amundsen)

Route guidance to the stored destination
› Select the desired destination in the list of stored destinations.
› Press the function key
Start.
If the menu for setting the alternative routes is turned on, the guidance for
this route type (most economic/fastest/shortest) must be selected before
starting.
If the destination entry occurs during route guidance, the destination change
must be confirmed by pressing the function key Start in addition to confirming
in the following menu that appears.
Home address
Define home address
When your home address is not entered, then proceed as follows.
›
Press in the Navigation menu the function key

→ Home address .
›
Defining the home address using the current vehicle position or by entering
the address.
Route guidance to your home address
If your home address is entered, then proceed as follows.
›
Press in the Navigation menu the function key

→ Home address .
If the navigation menu for setting the alternative routes is turned on, the guid-
ance for this route type (economic / fast / short) must be selected before start-
ing.
The position of the home address is displayed in the map by the symbol  .
Chang the home address
›
Press in the Navigation menu the function key

→ Manage memory → De-
fine home address .
›
With a stored home address, press the function key Edit.
With an unstored home address the device request the entry of an address.
›
Edit the home address or set one up using the current vehicle position or by
entering the address.
Delete home address
›
Press in the Navigation menu the function key

→ Manage memory → De-
lete user data → Home address .
›
Press the function key Delete and confirm the deletion.
Current vehicle position Store(flagged destination)
The current vehicle position can be stored as the so-called “Flagged destina-
tion”.
By storing the next flagged destination, the last flagged destination will be
overwritten.
The flagged destination can be stored in the device memory to prevent over-
writing.
Store›
Press in the Navigation menu the function key

→ Store position .
Route guidance to flagged destination
›
Press in the Navigation menu the function key

→ Destinations →

→
 .
›
Press the function key of the flagged destination to start the route guidance.
If the destination entry occurs during route guidance, the destination change
must be confirmed by pressing the function key Start in addition to confirming
in the following menu that appears.
Store the flagged destination as a stored destination
›
Press in the Navigation menu the function key

→ Destinations →

→
 .
›
At the desired flagged destination, press the function key

→ Store .
POI

Introduction
This chapter contains information on the following subjects:
Quick selection of a POI
52
Other POIs
52
Search and selecting a POI
52
POI (e.g. restaurants, petrol stations etc.) can be selected directly on the map
or selected in another POI menu.
This chapter deals with the selection options for a POI using the function key
 .
51Navigation (Amundsen)

Quick selection of a POI
The device enables quick searching for a POI in the following categories. Petrol stations
Restaurants
Car parks›
Press in the Navigation menu the function key
 .
›
Select the desired POI category.
If no route guidance takes place, then a list of the nearest POIs will be dis-
played.
If a route guidance does take place, then a list of points of interest along the
route is displayed.
›
Select the desired POI.
›
Press the function key Start.
If the menu for setting the alternative routes is turned on, the guidance for
this route type (most economic/fastest/shortest) must be selected before
starting.
If the destination entry occurs during route guidance, the destination change
must be confirmed by pressing the function key Start in addition to confirming
in the following menu that appears.
Other POIs
Fig. 39
POI entry
›
Press in the Navigation menu the function key

→ Other POIs .
The following menu is displayed » Fig. 39.
Selection of the search area
Selection of the search area
ABClarification of the address or location
Search area address
POI search by category
POI search by name
Search and selecting a POI
Fig. 40
Search area for POIs
POI search
›
Press in the Navigation menu the function key

→ Other POIs .
›
Press the function key
A
» Fig. 40 .
›
Select the search area.
›
The POI search is performed according to the category by pressing the func-
tion key
B
.
or
›
the POI search is based on the destination name by pressing the function
key
C
as well as by entering the name.
POI selection
Following the search, a list of found POIs will be displayed (the list is sorted by
the distance to the destination target).
›
Select the POI.
›
Press the function key Start.
If the destination entry occurs during route guidance, the destination change
must be confirmed by pressing the function key Start in addition to confirming
in the following menu that appears. 
CDEF52Navigation (Amundsen)

The search areas menu for POIs » Fig. 40
Search in immediate vicinity
Search near destination
Search near stopover
Along the route
Search near address
Within the area of the map point
In the option selection Near address and Select on map , the function key Edit
is displayed. The entered search area for the POIs can be edited by pressing
this function key.
Import my destinations
 Introduction
This chapter contains information on the following subjects:
Custom destination in vCard-format
53
My POI categories
53
In this chapter, destinations are described which can be imported into the de-
vice memory.
Custom destinations can be created by means of the ŠKODA application
“MyDestination”. More information can be found on the following ŠKODA Inter-
net pages.
http://infotainment.skoda-auto.com
Custom destination in vCard-format
In the device memory, a custom destination can be imported in the vCard for-
mat (*.vcf) from an SD card or a USB source.
Import
›
Insert the SD card into the device or connect a USB source with the file of
custom destination.
›
Press in the Navigation menu the function key

→ Import destinations .
›
Select the source and confirm the import.
Route guidance
›
Press in the Navigation menu the function key

→ Destinations →

→
 .
DEFGHI›Press the function key of the vCard to start the route guidance.›Press the function key
Start.
If the menu for setting the alternative routes is turned on, the guidance for
this route type (most economic/fastest/shortest) must be selected before
starting.
If the destination entry occurs during route guidance, the destination change
must be confirmed by pressing the function key Start in addition to confirming
in the following menu that appears.
Delete›
Press in the Navigation menu the function key

→ Destinations → 
→
 .
›
Press the function key
 in the line with the name of your stored custom des-
tination.
›
In the destination details, press the function key Edit → Delete .
›
Confirm the deletion.
My POI categories
In the device memory, custom POI categories that have been created using the
ŠKODA application “MyDestination” can be imported from the SD card.
Import
›
Insert the SD card with the POI categories into the device.
›
Press in the Navigation menu the function key

→ Version information →
Update .
›
Select the SD card as the source and confirm the import.
If there is already the same POI category name in the device, then it will be
overwritten during import.
Custom POI categories can be displayed on the map.
›
Press in the Navigation menu the function key

→ Map → Select catego-
ries for POIs → My points of interest (Personal POI) .
Route guidance to a destination of another category
›
Press in the Navigation menu the function key

→ Other POIs .
›
Press the function key
A
» Fig. 40 on page 52 .
›
Select the search area.
›
Press the function key
B
» Fig. 40 on page 52 → My Points of Interest (Per-
sonal POI) .
›
Select the desired category of own destinations.
›
Press the function key Start. 
53Navigation (Amundsen)

If the menu for setting the alternative routes is turned on, the guidance for
this route type (most economic/fastest/shortest) must be selected before
starting.
If the destination entry occurs during route guidance, the destination change
must be confirmed by pressing the function key Start in addition to confirming
in the following menu that appears.
Delete›
Press in the Navigation menu the function key 
→ Manage memory → De-
lete my POIs → Delete .

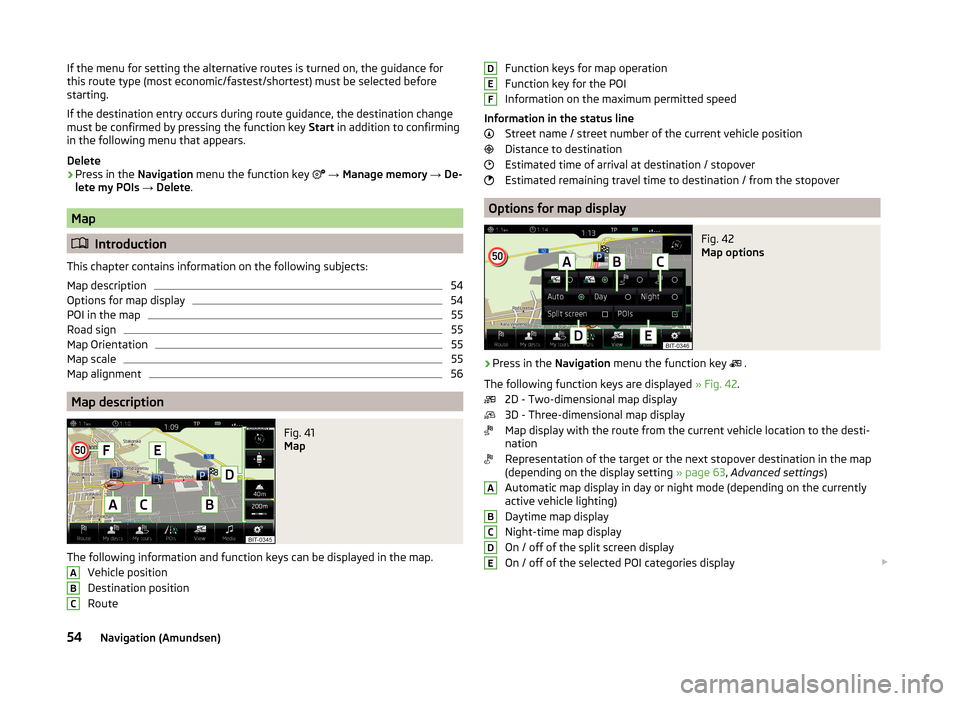

Map

Introduction
This chapter contains information on the following subjects:
Map description
54
Options for map display
54
POI in the map
55
Road sign
55
Map Orientation
55
Map scale
55
Map alignment
56
Map description
Fig. 41
Map
The following information and function keys can be displayed in the map. Vehicle position
Destination position
Route
ABCFunction keys for map operation
Function key for the POI
Information on the maximum permitted speed
Information in the status line Street name / street number of the current vehicle position
Distance to destination
Estimated time of arrival at destination / stopover
Estimated remaining travel time to destination / from the stopover
Options for map display
Fig. 42
Map options
›
Press in the Navigation menu the function key
 .
The following function keys are displayed » Fig. 42.
2D - Two-dimensional map display
3D - Three-dimensional map display
Map display with the route from the current vehicle location to the desti-
nation
Representation of the target or the next stopover destination in the map
(depending on the display setting » page 63, Advanced settings )
Automatic map display in day or night mode (depending on the currently
active vehicle lighting)
Daytime map display
Night-time map display
On / off of the split screen display
On / off of the selected POI categories display 
DEFABCDE54Navigation (Amundsen)

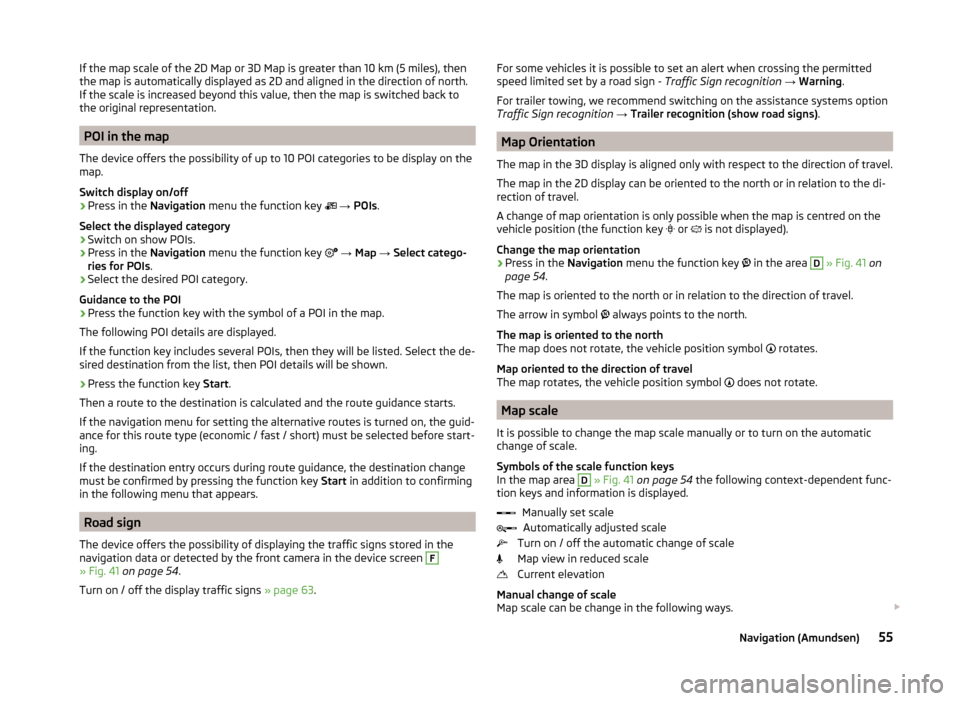

If the map scale of the 2D Map or 3D Map is greater than 10 km (5 miles), then
the map is automatically displayed as 2D and aligned in the direction of north.
If the scale is increased beyond this value, then the map is switched back to
the original representation.
POI in the map
The device offers the possibility of up to 10 POI categories to be display on the
map.
Switch display on/off
›
Press in the Navigation menu the function key

→ POIs .
Select the displayed category
›
Switch on show POIs.
›
Press in the Navigation menu the function key

→ Map → Select catego-
ries for POIs .
›
Select the desired POI category.
Guidance to the POI
›
Press the function key with the symbol of a POI in the map.
The following POI details are displayed.
If the function key includes several POIs, then they will be listed. Select the de-
sired destination from the list, then POI details will be shown.
›
Press the function key Start.
Then a route to the destination is calculated and the route guidance starts.
If the navigation menu for setting the alternative routes is turned on, the guid-
ance for this route type (economic / fast / short) must be selected before start-
ing.
If the destination entry occurs during route guidance, the destination change
must be confirmed by pressing the function key Start in addition to confirming
in the following menu that appears.
Road sign
The device offers the possibility of displaying the traffic signs stored in the
navigation data or detected by the front camera in the device screen
F
» Fig. 41 on page 54 .
Turn on / off the display traffic signs » page 63.
For some vehicles it is possible to set an alert when crossing the permitted
speed limited set by a road sign - Traffic Sign recognition → Warning .
For trailer towing, we recommend switching on the assistance systems option
Traffic Sign recognition → Trailer recognition (show road signs) .
Map Orientation
The map in the 3D display is aligned only with respect to the direction of travel.
The map in the 2D display can be oriented to the north or in relation to the di-
rection of travel.
A change of map orientation is only possible when the map is centred on the
vehicle position (the function key  or
 is not displayed).
Change the map orientation
›
Press in the Navigation menu the function key
 in the area
D

» Fig. 41 on
page 54 .
The map is oriented to the north or in relation to the direction of travel.
The arrow in symbol  always points to the north.
The map is oriented to the north
The map does not rotate, the vehicle position symbol  rotates.
Map oriented to the direction of travel
The map rotates, the vehicle position symbol  does not rotate.
Map scale
It is possible to change the map scale manually or to turn on the automatic
change of scale.
Symbols of the scale function keys
In the map area
D
» Fig. 41 on page 54 the following context-dependent func-
tion keys and information is displayed.
Manually set scaleAutomatically adjusted scale
Turn on / off the automatic change of scale
Map view in reduced scale
Current elevation
Manual change of scale
Map scale can be change in the following ways. 
55Navigation (Amundsen)

›Turning the control knob
 .
› Touching the screen with two fingers and pulling them apart or closing them
together.
Enabling automatic scaling
› Press in the
Navigation menu the function key 
→ 
.
Press the function key 
is highlighted in green. The manual scaling switches
to automatic scaling.
The automatic scale is only active as long as the map is centred on the vehicle
position (the function key 
or  is not displayed).
If the automatic scale is active, the map scale will change automatically de-
pending on the type of roads travelled (motorway - smaller map scale / town
larger map scale) and from the manoeuvre to be carried out.
Turn off the automatic change of scale
› Press in the
Navigation menu the function key

→
 .
Press the function key  is highlighted in white. The automatic scaling
changes to manual change of scale.
The turning off occurs likewise when the map is moved or the map scale is
changed manually.
Map view in reduced scale
› Press in the
Navigation menu the function key

→
 or

→
 .
The map scale is reduced for a few seconds and then restored.
Map alignment
The moved map can be centred/aligned to the vehicle, destination or route po-
sition.
In the map area
D
» Fig. 41 on page 54 the following function keys are dis-
played depending on the map display.
Aligning to the vehicle position (in the 2D map display -  or 3D map dis-
play - )
Alignment to the destination position (in the destination position display -
 )
Route alignment (in the route display - )
Route guidance

Introduction
This chapter contains information on the following subjects:
Destination management
57
Route calculation
57
Most common routes
58
graphical driving recommendations
58
Nav. announcements
58
Route information
58
Finish route guidance
59
Abort route guidance
59
The route guidance is as follows.
› Through graphical driving instructions in the device display screen and in the
display of the instrument cluster.
› With navigation announcements.
The unit tries to allow for continued guidance even if the navigation data is in-
complete or there is no data at all for the given area.
The route is recalculated each time if you ignore driving recommendations or
change the route.
Route guidance in demo mode
The Demo mode provides a travel simulation to the entered destination. The
function offers the chance to travel through the calculated route “virtually”.
When the Demo mode is turned on, a menu for route guidance in the Demo
mode or in normal operation is displayed before the start of route guidance.
Activation / deactivation of the Demo mode » page 63, Advanced settings .
WARNINGThe navigation announcements provided may vary from the actual situa-
tions, e.g. due to out-of-date navigation data.56Navigation (Amundsen)

Destination managementFig. 43
Destination details
Read and observe on page 56 first.
After you enter a new destination or after pressing the function key  in the
list of registered destinations a menu for the destination and route manage-
ment appears » Fig. 43.
Area with function keys
Detailed destination information
Destination position in the map
Magnification of the window with destination information
Reduction of the window with destination information
Function keys in range
A
› Start
- Depending on the setting of the start of the route calculation or route
type selection
› Finish
- Stop the route guidance
› Route options
- Display a menu for setting the route options
› Store
- Store the destination in the destination memory
› Edit
- Edit the address of the destination entered through the map point
› Dial number
- Start a telephone conversation with the contact number of the
POI
Store destination
› Press the function key
Store.
› Name destination and confirm store.
Edit destination
By pressing the function key Edit the following menu is displayed for the desti-
nation processing.
ABC› Delete
- Delete the destination
› Store as
- Edit the name and then store the destination
› Favourite
- Add or remove the destinations as favourites
Route calculation
Fig. 44
Alternative routes
Read and observe on page 56 first.
Route calculation is done on the basis of the set route options. These route
options can be set » page 62, Route options .
Alternative routes
With selection of alternative routes turned on, the following menu is displayed
after the route calculation » Fig. 44.
 Calculate the most economical route with shortest travelling time and
distance travelled – the route is highlighted green
 Calculate the fastest route to the destination, even if a detour is neces-
sary - the route is highlighted in red
 Calculate the shortest route to the destination, even if a longer travel-
ling time is required - the route is highlighted in orange
In the Alternative Routes function keys, information about the route length
and the estimated travel time are displayed.
It is possible to select an already calculated alternative route before the calcu- lation of the remaining routes is completed.
Selecting the type of route will start the route guidance.
If no route selection is made within 30 s after the calculation of all routes, the
route guidance is automatically started according to the set route type
» page 62 , Route options .
ABC57Navigation (Amundsen)
