If the warning light  flashes after starting the engine again, there is a system
error.
Seek help from a specialist garage.
Disconnecting the vehicle battery
If the vehicle's battery has been disconnected and reconnected, the indicator
light 
comes on after switching on the ignition.
The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-
ror.
Seek help from a specialist garage.
Other incidents
The illumination of the warning light  can have the following reasons.
▶ The vehicle is loaded on one side. Distribute loads as evenly as possible.
▶ The wheels of one axle are loaded more heavily (e.g. when towing a trailer or
when driving uphill or downhill).
▶ Snow chains are mounted.
▶ A wheel has been changed.
CAUTION
Under certain circumstances (e.g. sporty style of driving, wintry or unpaved
roads) the warning light  in the instrument cluster may be delayed or not
light up at all.
 Fuel reserve
Read and observe
on page 32 first.
 illuminates – the fuel level in the fuel tank is at the reserve level (approxi-
mately 7 litres).
Please refuel. Range: ...

kmPLEASE REFUEL RANGE …

km
An audible signal sounds as a warning.
Note
The text in the display goes out after refuelling and driving a short distance.  Turn signal system
Read and observe
on page 32 first.
 flashes – the left turn signal is turned on.
 flashes – the right turn signal is turned on.
If there is a fault in the turn signal system, the warning light flashes at twice
its normal rate. This does not apply when towing a trailer.
When the hazard warning light system is switched on, this will cause all of the
turn signal lights as well as both warning lights to flash.
 Trailer turn signal lights
Read and observe
on page 32 first.
 flashes – the trailer lights are switched on.
If a trailer is hitched and the warning light  is not flashing, one of the trailer
turn signal lights has failed.
An example message in the display of the instrument cluster
Trailer: check left turn signal!TRAILER TURN SIG_ CHECK LEFT
Check the trailer bulbs.
 Fog lights
Read and observe
on page 32 first.
 illuminates – the fog lights are switched on.
 Cruise control system
Read and observe
on page 32 first.
 illuminates – the vehicle speed is regulated by the cruise control.
 Brake pedal (automatic gearbox)
Read and observe
on page 32 first.
 illuminates – apply the brake.
35Instruments and Indicator Lights

The brake and stabilization systems are automatically activated each time the
ignition is switched on, unless otherwise indicated.WARNINGThe general information relating to the use of assistance systems must be
observed » page 105, in section Introduction .
Stability Control (ESC)
Read and observe
on page 106 first.
The ESC improves vehicle stability in dynamic driving situations, such as whenthe vehicle starts to skid.
The ESC monitors whether the desired direction of the current vehicle motion
is occurring. In case of any deviation (e.g. over-steer), the ESC automatically
brakes individual wheels to maintain the desired direction.
During an intervention of the system, the warning light  flashes in the instru-
ment cluster.
Anti-lock braking system (ABS)
Read and observe
on page 106 first.
ABS prevents the wheels locking when braking. Thus helping the driver to
maintain control of the vehicle.
The intervention of the ABS is noticeable from the pulsating movements of
the brake pedal which is accompanied by noises.
When the ABS system is active, do not brake periodically or reduce the pres-
sure on the brake pedal.
Traction control (TCS)Fig. 114
System button: Activating/deac-
tivating TCS
Read and observe on page 106 first.
TCS prevents the spinning of the wheels of the driven axle. TCS reduces the drive power transmitted to the wheels in the case of slipping wheels. Thus, for
example, driving on road surfaces with low grip is made easier.
During a TCS intervention, the indicator light  flashes in the instrument clus-
ter.
Activating/deactivating TCS
The activation or deactivation of TCS can be done, depending on equipment, in
one of the following ways. ▶ Infotainment » Owner´s Manual Infotainment , chapter CAR - vehicle set-
tings .
▶ By briefly pressing the symbol key 
» Fig. 114 .
The warning light illuminates in the instrument cluster when the TCS is deacti-
vated .
The TCS should normally always be enabled. The system should be deactivated
only in the following situations, for example. ▶ When driving with snow chains.
▶ When driving in deep snow or on a very loose surface.
▶ When “rocking a car free” when it has become stuck.
106Driving

NoteDriving comfort is not impaired by consumers being deactivated. The driver is
often not aware of it having taken place.Wheels
Tyres and wheel rims
 Introduction
This chapter contains information on the following subjects:
Notes on using wheels
150
Tyre pressure
151
Tyre wear
152
Tyre wear indicator and wheels exchange
152
Tyre damage
153
Unidirectional tyres
153
Spare wheel
153
Spare wheel
153
Tyre label
154
Only use tyres or wheel rims that have been approved by ŠKODA for your mod-
el of vehicle.
WARNINGFor reasons of driving safety, do not replace tyres individually.
Note
■ We recommend that any work on the wheels or tyres be carried out by a spe-
cialist garage.■
We recommend that you use wheel rims, tyres, full wheel trims and snow
chains from ŠKODA Original Accessories.
Notes on using wheels
Read and observe
on page 150 first.
During the first 500 km, new tyres do not offer optimum grip and appropriate
care should therefore be taken when driving.
Always fit the tyres with the deeper tread depth to the front wheels.
Tyre storage
Identify disassembled tyres so that the previous direction of rotation can be
maintained if the tyres are reassembled. 
150General Maintenance

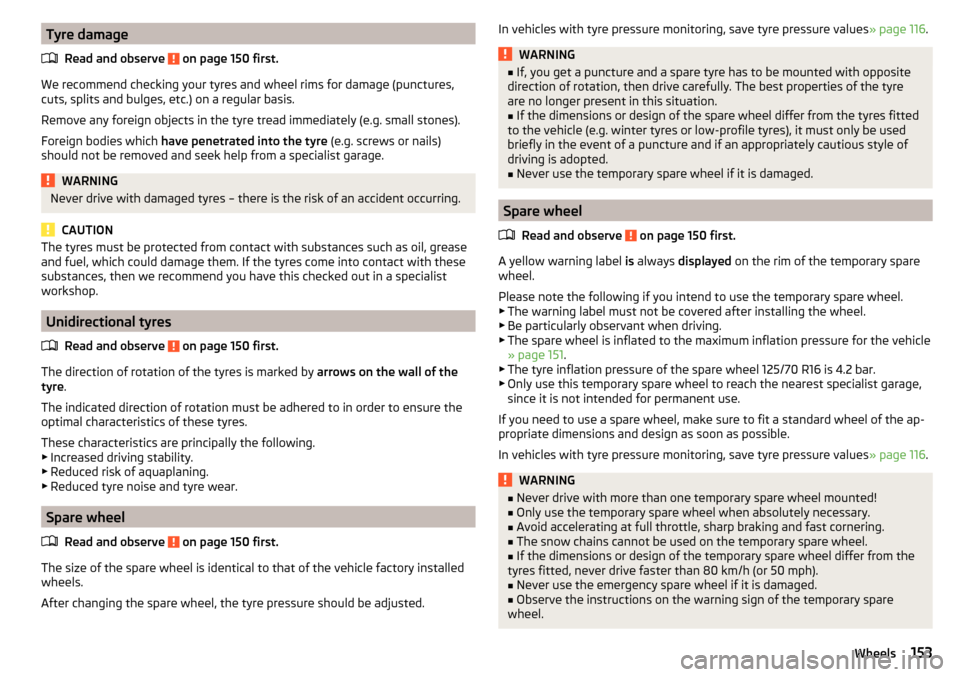

Tyre damageRead and observe
on page 150 first.
We recommend checking your tyres and wheel rims for damage (punctures,
cuts, splits and bulges, etc.) on a regular basis.
Remove any foreign objects in the tyre tread immediately (e.g. small stones).
Foreign bodies which have penetrated into the tyre (e.g. screws or nails)
should not be removed and seek help from a specialist garage.
WARNINGNever drive with damaged tyres – there is the risk of an accident occurring.
CAUTION
The tyres must be protected from contact with substances such as oil, grease
and fuel, which could damage them. If the tyres come into contact with these
substances, then we recommend you have this checked out in a specialist
workshop.
Unidirectional tyres
Read and observe
on page 150 first.
The direction of rotation of the tyres is marked by arrows on the wall of the
tyre .
The indicated direction of rotation must be adhered to in order to ensure the
optimal characteristics of these tyres.
These characteristics are principally the following.
▶ Increased driving stability.
▶ Reduced risk of aquaplaning.
▶ Reduced tyre noise and tyre wear.
Spare wheel
Read and observe
on page 150 first.
The size of the spare wheel is identical to that of the vehicle factory installedwheels.
After changing the spare wheel, the tyre pressure should be adjusted.
In vehicles with tyre pressure monitoring, save tyre pressure values » page 116.WARNING■
If, you get a puncture and a spare tyre has to be mounted with opposite
direction of rotation, then drive carefully. The best properties of the tyre
are no longer present in this situation.■
If the dimensions or design of the spare wheel differ from the tyres fitted
to the vehicle (e.g. winter tyres or low-profile tyres), it must only be used
briefly in the event of a puncture and if an appropriately cautious style of
driving is adopted.
■
Never use the temporary spare wheel if it is damaged.
Spare wheel
Read and observe
on page 150 first.
A yellow warning label is always displayed on the rim of the temporary spare
wheel.
Please note the following if you intend to use the temporary spare wheel. ▶ The warning label must not be covered after installing the wheel.
▶ Be particularly observant when driving.
▶ The spare wheel is inflated to the maximum inflation pressure for the vehicle
» page 151 .
▶ The tyre inflation pressure of the spare wheel 125/70 R16 is 4.2 bar.
▶ Only use this temporary spare wheel to reach the nearest specialist garage,
since it is not intended for permanent use.
If you need to use a spare wheel, make sure to fit a standard wheel of the ap-
propriate dimensions and design as soon as possible.
In vehicles with tyre pressure monitoring, save tyre pressure values » page 116.
WARNING■
Never drive with more than one temporary spare wheel mounted!■Only use the temporary spare wheel when absolutely necessary.■
Avoid accelerating at full throttle, sharp braking and fast cornering.
■
The snow chains cannot be used on the temporary spare wheel.
■
If the dimensions or design of the temporary spare wheel differ from the
tyres fitted, never drive faster than 80 km/h (or 50 mph).
■
Never use the emergency spare wheel if it is damaged.
■
Observe the instructions on the warning sign of the temporary spare
wheel.
153Wheels

Tyre labelRead and observe
on page 150 first.
Only use radial tyres of the same type, size (rolling circumference) and treadpattern on one axle on all four wheels.
When mounting new tyres the tyres have to be replaced axle by axle.
Explanation of tyre markings
For example, 225/50R 17 91 T means:
225Tyre width in mm50Height/width ratio in %RCode letter for the type of tyre – Radial17Diameter of wheel in inches91Load indexTSpeed symbol
The date of manufacture is stated on the tyre wall (possibly on the inside).
For example DOT ... 10 15... means, for example, that the tyre was manufac-
tured in the 10th week of 2015.
Load index
The load index indicates the maximum permissible load for each individual
tyre.
Load index838485868788Load
(In kg)487500515530545560
Speed symbol
The maximum speed symbol indicates the maximum permissible vehicle speed
with fitted tyres in each category.
Speed
symbolSTUHVWMaximum speed
(in km/h)180190200210240270
WARNING■ Never exceed the maximum permissible load bearing capacity of moun-
ted tyres.■
Never exceed the maximum permissible speed for the mounted tyres.
Winter operation
Introduction
This chapter contains information on the following subjects:
Winter tyres
154
Snow chains
155
Do not use alloy rims with bevelled or polished surfaces during the winter. The
rim surface does not have sufficient corrosion protection and could be perma-
nently damaged (e.g. through grit).
Winter tyres
The handling of your vehicle will be significantly improved when driving on
wintry roads if you fit winter tyres (labelled M+S).
To get best possible handling, winter tyres must be fitted to all four wheels. The minimum tread depth must be 4 mm.
Fit the summer tyres on again in good time as they provide better handling
properties, a shorter braking distance, less tyre noise, and reduced tyre wear
on roads which are free of snow and ice as well as at temperatures above 7 °C.
Speed symbol
Winter tyres (marked with M+S and a peak/snowflake symbol
) of a lower
speed category can be used provided that the permissible maximum speed of
these tyres is not exceeded even if the possible maximum speed of the vehicle
is higher.
On vehicles with the infotainment system with key the speed limit can be
set for winter tyres » Owner´s Manual Infotainment , chapter CAR - Adjust ve-
hicle systems .
For other vehicles with the MAXI DOT display there is the possibility to have
the speed limit set for winter tyres in a specialist workshop.
154General Maintenance

Snow chains
When driving in wintry road conditions, snow chains improve not only traction,
but also the braking performance.
Snow chains must only be mounted on the front wheels.
It is only permissible to fit snow chains with the following wheel/tyre combina-
tions.Rim sizeImpression depth DTyre size5J x 1435 mm175/70 R14
Only fit snow chains with links and locks not larger than 9 mm.
Rim sizeImpression depth DTyre size6J x 1538 mm185/60 R15
Only fit snow chains with links and locks not larger than 12 mm.
Remove the full wheel trims before installing the snow chains » page 158.
CAUTION
The chains are to be removed when driving on snow-free paths. They would
otherwise cause loss of performance and damage the tyres.155Wheels

SmartGateConnection by searching for a Wi-Fi network47
introductory information47
Password/PIN code change48
Setting48
Wi-Fi Direct48
SmartLink see Infotainment
4
Snow chains155
Spare wheel153
Remove158
stow158
Speed control system110
Speed symbol See Wheels
154
Spoiler128
Stabilisation system105
Stability Control (ESC)106
Staring engine Jump-starting
164
START-STOP95
Jump-starting164
Manually deactivating/activating the system97
operation96
Warning light38
START-STOP system95
Starter button Problems with the engine start
95
Steering column lock locking93
Steering column lock unlocking93
Switching off the engine94
Switch off the ignition94
Switch on the ignition94
Starting and stopping the engine at the push of the button
93
Starting and stopping the engine using the key 91
Starting engine Jump-starting
164
Starting the engine Starter button
94
START STOPInformation messages97
Start the engine Key
92
Steering column lock locking Starter button
93
Steering column lock unlocking Starter button
93
Steering lock locking Key
92
Steering lock unlocking Key
92
Steering wheel correct posture
9
setting9
Stop see Parking
99
Stopping the engine Key
92
Storage72
Storage compartment Glasses compartment
77
in the boot84
in the centre console73
in the front arm rest77
on the front passenger side77
Storage compartments72
Stowage compartments in the doors
73
Sun visors65
Switching off the engine Starter button
94
Switch light on/off59
Switch off the ignition Key
92
Starter button94
Switch on the ignition Key
92
Starter button94
T
Tablet holder Behind the headrests
80
Taking care of your vehicle Automatic car wash system
130
High-pressure cleaner130
Washing by hand129
Wash system130
TCS Operation
106
Warning light33
Technical data179
Time31
Tiptronic101
Tools157
TOP TETHER24
Towing165
Towing a trailer124
Towing device Accessories
122
Description118
Operation and maintenance133
Towing eye Front
166
Rear167
Towing protection54
Towing the vehicle165
Traction control (TCS)106
Trailer122
13-pin socket123
connection and disconnection123
Load124
Loading123
Safety eye123
Towing a trailer124
Trailer operation117
Trailer stabilization system (TSA)107
Transmission Warning messages
36
194Index

WashingAutomatic car wash system130
by hand129
High-pressure cleaner130
Washing vehicles129
Waste container76
Weather conditions126
Wheel bolts Anti-theft wheel bolts
159
Caps159
Loosening and tightening159
Wheel rims150
Wheels Age of wheels
150
Changing157
Driving style152
Full trim158
General information150
Load index154
Remove158
Snow chains155
Speed symbol154
Storage of wheels150
stow158
Tyre damage153
Tyre pressure151
Tyre size154
Tyre wear152
Tyre wear indicator152
Unidirectional tyres153
Wheel balance152
Wheels exchange152
Winter tyres154
Wi-Fi Connection
47
Password47
Password change48
Setting48
Wi-Fi Direct Connection48
Password change48
Setting48
Window wiper Replacing the rear window wiper blade
169
Windscreen washer fluid Checking
141
Replenishing141
Warning light38
Winter141
Windscreen washer system141
Windscreen wipers66
Windscreen wipers Activating
66
Replacing the windscreen wipers169
Windscreen washer fluid141
Windscreen wipers and washers65
Winter operation154
De-icing windows132
Snow chains155
Winter tyres154
Winter tyres See Wheels
154
Wiper blades134
Service position of the windscreen wiper arms 169
Wipers Maintaining wiper blades
134
196Index
