2015 Seat Mii navigation

Operation
central locking button is used, they may be
lock
ed in the
vehicle. CAUTION
Before opening the rear lid, ensure that there
i s s

ufficient free space to open and close it,
for example if you are in a garage. Note
On the display of the Portable Navigation
Sy s

tem (supplied by SEAT) ››› page 164 can
be seen if the rear lid has been left open or is
not correctly shut. Opening the rear lid
Fig. 106
On the vehicle key: button to unlock
and open the boot h
at

ch.Read the additional information carefully
› ›
›

 page 9 If bicycles are attached to a rack on the boot
hatc

h, for example, in some cases, it may not
open automatically ››› . Remove the load
fr om the c
arrier and s

upport the open rear
lid.
Opening with central locking
● Press the button  on the vehicle key
› ›
›

Fig. 106 for about one second to unlock
the boot hatch.
● OR: Press the button  on the vehicle key
u nti
l

the rear lid opens automatically several
centimetres.
● Opening the rear lid with the button.
Opening with the
vehicle mechanical key
● Insert the vehicle key into the lock cylinder
of the driver door and t
urn the key in an anti-
clockwise direction ››› page 92.
● Opening the rear lid with the button. WARNING
Unsuitable or careless unlocking and opening
of the r e

ar lid could cause serious injuries.
● If there is a loaded luggage carrier on the
rear lid, it
could be unlocked or open but not
recognised as such. An unlocked or open rear
lid could open unexpectedly while driving. Note
At outside temperatures of less than 0 °C
(+32 °F), the pre s

surised gas struts cannot
always automatically lift the rear lid. In this
case, open the rear lid manually. Closing the rear lid
Fig. 107
Rear lid open: hand grip Closing the rear lid
● Grab the handgrip inside the rear lid
› ›
›

Fig. 107 (arrow).
● Push the rear lid downwards until it locks
into pl
ace in the lock.
● Ensure that it is correctly closed by pulling
on it firmly
.
98

Driving
Automatic gearbox malfunction Back-up programme
When autom
atic
gearbox warning and indica-
tion lamps light up on the instrument panel,
there may be a system malfunction
››› page 137. In the event of some faults the
automatic gearbox functions using a backup
programme. When the programme is activa-
ted, it is possible to drive the vehicle, howev-
er, at low speeds and within a selected range
of gears.
With the manual gearbox, in some cases it is
not possible to drive with all the gears .
In all cases the automatic gearbox must be
checked at a specialised workshop.
Automatic gearbox overheating
The automatic gearbox can overheat with a
prolonged start up, or when stopping and
starting continuously. This overheating is dis-
played with a warning lamp  in the instru-
ment panel. Additionally, an audible warning
can be heard. Stop and let the gearbox cool
››› .
The v
ehic

le moves forward or back despite
having selected a gear range
When the vehicle does not move in the re-
quired direction, the system may not have
the gear range correctly engaged. Press the
brake pedal and engage the gear range again. If the vehicle still does not move in the
required dir

ection, there is a system malfunc-
tion. Seek specialist assistance and have the
system checked. CAUTION
● When the ge arbo

x is displayed as overheat-
ing for the first time, the vehicle must be
parked safely or must be driven at a speed of
more than 20 km/h (12 mph).
● When the warning lamp lights up and the
audible w
arning is heard, the vehicle must be
parked safely and the engine switched off.
Let the gearbox cool down.
● To prevent damage to the gearbox, driving
must
only be continued when the warning
lamps are no longer lit up. While the gearbox
is overheated, starting up and driving, even
at a slow speed should be avoided. Recommended gear display
In some vehicles, the recommended gear for
r
educ
in

g fuel consumption is displayed on
the instrument panel:
DisplayMeaning 
Optimum gear.

Recommendation to change up a gear.

Recommendation to change down a
gear. WARNING
The recommended gear display is intended as
a guideline only; it shou

ld never replace the
driver's attention to driving carefully.
● Responsibility for selecting the correct gear
for eac
h situation continues to lie with the
driver, for example when overtaking or climb-
ing a hill. For the sake of the environment
Selecting the most appropriate gear for the
sit uation w

ill help you to save fuel. Note
● The rec ommended g

ear display is switched
off when the clutch pedal is pressed.
● On the display of the Portable Navigation
Sys
tem (supplied by SEAT) ››› page 164 the
recommended gear can also be seen. Run-in and economical driving
R u
nnin

g in Please observe the instructions for running-in
new c
omponents.
R u

nning-in the engine
The engine needs to be run in over the first
1,500 km. During its first few hours of »
141
Technical data
Advice
Operation
Emergencies
Safety

Operation
For the sake of the environment
Even when the emission control system is
work in
g perfectly, there may be a smell of
sulphur under certain conditions. This de-
pends on the sulphur content of the fuel
used. Driving abroad
In some countries, certain safety regulations
and requir
ements

are in force relating to ex-
haust gas emissions, which differ from the
technical characteristics of the vehicle. Be-
fore travelling abroad, SEAT recommends you
consult a technical service about the legal re-
quirements and the following points:
● Does the vehicle need technical modifica-
tions f

or driving abroad, for example, adjust-
ment of the headlamps?
● Does the vehicle have all the tools, diag-
nostic
s equipment and spare parts required
for inspections and repairs?
● Are there any SEAT dealers in the destina-
tion countr
y?
● For petrol vehicles: Is unleaded petrol avail-
able at
the right octane rating?
● For diesel engines: is diesel fuel available
with a low s
ulphur content?
● Are a suitable engine oil ( ›››

page 186) and
other engine fluids complying with SEAT specifications available in the destination
countr

y?
● Will the navigation system fitted at the fac-
tory
operate correctly in the destination coun-
try with the available navigation data?
● Are special tyres required in the destination
countr
y? CAUTION
SEAT does not accept liability for any damage
to the v

ehicle due to the use of a lower quali-
ty fuel, an inadequate service or the non-
availability of genuine spare parts. Driving along flooded roadways
To prevent damage to the vehicle when driv-
in
g thr
ough w

ater, for example, along a floo-
ded road, please observe the following:
● Check the depth of the water before enter-
ing the flooded z
one. The water should never
come above the lower edge of the bodywork
››› .
● Do not drive faster than a pedestrian.
● Do not stop in the water, use reverse gear
or sw it
c

h off the engine.
● Oncoming traffic will cause waves which
raise the l
evel of the water, making it difficult
to cross the water. ●
Disc
onnect the Start-Stop system whenever
crossing water. WARNING
When driving through water, mud, melted
sno w

, etc., please remember that due to
damp or frozen brake discs and shoes in win-
ter, the braking effect may be delayed, there-
fore the required braking distance is greater.
● “Dry the brakes and remove ice” by braking
caref
ully. Ensure that you are not endanger-
ing other road-users or breaking traffic regu-
lations in the process.
● After driving through water, avoid sudden
sharp manoeu
vres. CAUTION
● Drivin g thr

ough flooded areas may severely
damage vehicle components such as the en-
gine, transmission, drive train or electrical
system.
● Never drive through salt water as salt cau-
ses c
orrosion. Always rinse any parts of the
vehicle which have been in contact with salt
water. 146

Operation
Switching the parking distance warning sys-
t em on and off
● Swit
ching on: With the ignition swit
ched
on, select reverse gear. A short audible warn-
ing confirms that the parking distance warn-
ing system is switched on and functioning.
● Switching off: Rele
ase reverse gear.
Special features of the parking distance
warning system
● The parking distance warning system
sometimes r
egisters water on the sensors as
an obstacle.
● If the distance does not change, the warn-
ing sign
al will sound less loudly after a few
seconds. If the continuous signal sounds, the
volume will remain constant.
● When the vehicle moves away from the ob-
stac
le, the beeping sound automatically
switches off. When getting close again, it re-
connects.
● Your SEAT dealership can adjust the volume
of the warnin
g signals. Note
A fault in the parking distance warning sys-
tem i s

indicated through a brief audible warn-
ing that is constant for about 3 seconds when
switching it on the first time. Check the park-
ing distance warning system at a Specialised
workshop as soon as possible. Optical parking system* (OPS)
Fig. 149
On-screen OPS display: A has de-
t ect
ed an o

bstacle in the collision zone; B has detected an obstacle in the segment;
C zone recorded behind the vehicle.
The optical parking system is an extension of
the p
ark
in

g distance warning system
››› page 149.
On the screen of the SEAT Portable System
(supplied by SEAT) the area behind the vehi-
cle is shown registered by the sensors. Any
obstacles are displayed in relation to the ve-
hicle ››› .
FunctionNecessary operations
Switching the
display on:Switching on the
››› page 149 park-
ing distance warning system. The
OPS switches on automatically.
Switching the
display off man-
ually:Press the  button on the Portable
Navigation System.
FunctionNecessary operations
Switching the
display off man-
ually:Release reverse gear. Zones explored
Behind the
v

ehicle ››› Fig. 149 C , the zone
analy sed r

eaches a distance of up to 150 cm
and around 60 cm to the sides.
Screen display
The image displayed represents the super-
vised zones in several segments. As the vehi-
cle moves closer to an obstacle, the segment
moves closer to the vehicle displayed A or
B . When the penultimate segment is dis-
p l
a

yed, this means that the vehicle has
reached the collision zone. Stop the vehicle!
Distance from
the vehicle to
the obstacleAudible
warning
Displayed in col-
our on the screen: colour of the seg-ment if an obsta-cle is recognised
behind:
approx. 31-150
cmbeeping soundYellow
behind:
approx. 0-30 cmperma- nent
soundRed 150

Driver assistance systems
WARNING
Do not be distracted from traffic to look at the
sc r
een. Note
● SEA T r

ecommends practising using the
parking distance warning system in a traffic-
free zone or in a car park to familiarise your-
self with the system and its operation.
● Representation of the registered area on
the scr
een of the portable navigation system
may take up to 5 seconds.
● Note the Instruction Manual provided for
the device of
the additional information relat-
ing to the Portable Navigation System (sup-
plied by SEAT) ››› page 164. Cruise control* (Cruise control
sy
s
t

em - CCS)
Control lamp
It lights upPossible cause 
This cruise control system maintains the
set speed of the vehicle.
Several warning and indication lamps light
up f
or a f
ew sec

onds when the ignition is
switched on, signalling that the function is being verified. They will switch off after a few
seconds. WARNING
If the warning lamps are ignored, the vehicle
ma y

stall in traffic, or may cause accidents
and severe injuries.
● Never ignore the warning lamps. CAUTION
Failure to heed the warning lamps when they
appe ar m

ay result in faults in the vehicle. Cruise control operation
Read the additional information carefully
› ›
›

 page 25
The cruise control system (CCS) is able to in-
dividually maintain the set speed when driv-
ing forwards from approx. 20 km/h (15 mph).
The CCS only slows down by reducing the ac-
celerator but not by braking ››› .
T r
av

elling down hills with the CCS
When travelling down hills the CCS cannot
maintain a constant speed. Slow the vehicle
down using the brake pedal and reduce
gears if required. Automatic off
The cruise c

ontrol system (CCS) is switched
off automatically or temporarily:
● If the system detects a fault that could af-
fect the w
orking order of the CCS.
● If you increase the stored speed by press-
ing the acc
elerator pedal for a certain time.
● if the brake or clutch pedal is depressed.
● If the gear is changed with the manual
gearbo
x.
● If the airbag is triggered. WARNING
Use of the cruise control could cause acci-
dents and sev

ere injuries if it is not possible
to drive at a constant speed maintaining the
safety distance.
● Do not use the cruise control in heavy traf-
fic, if the dis
tance from the vehicle in front is
insufficient, on steep roads, with several
bends or in slippery circumstances (snow,
ice, rain or loose gravel), or on flooded roads.
● Never use the CCS when driving off-road or
on unpav
ed roads.
● Always adapt your speed and the distance
to the v
ehicles ahead in line with visibility,
weather conditions, the condition of the road
and the traffic situation.
● To avoid unexpected operation of the cruise
contro
l system, turn it off every time you fin-
ish using it. » 151
Technical data
Advice
Operation
Emergencies
Safety

Advice
WARNING
If the mobile phone is not securely fastened
in pos ition, it
could be sent flying around the
vehicle in the event of sharp braking, sudden
manoeuvres or accident, causing injury.
● While driving, the mobile telephone, other
equipment includin
g telephone accessories
such as telephone supports, notepads and
navigators must be correctly secured, away
from the airbags deployment zones, or stored
in a safe place. WARNING
When using a mobile telephone or two-way
ra dio w

ithout connecting an external aerial,
the maximum permitted levels of electromag-
netic radiation in the vehicle may be excee-
ded, thus putting the driver and the rest of
the vehicle occupants in danger. This is also
the case if the aerial has not been correctly
installed.
● A minimum of 20 centimetres should be
kept betw
een mobile phone aerials and artifi-
cial pacemakers, as mobile telephones may
affect the working of pacemakers.
● Do not keep mobile phones in breast pock-
ets dir
ectly above pacemakers.
● Immediately switch off the mobile tele-
phone if y
ou suspect any interference with
pacemakers or other types of medical equip-
ment. SEAT Portable System*
Fig. 156
In the centre console: Remove the
n av
ig

ator. Fig. 157
Remove the navigator holder The SEAT Portable System (supplied by SEAT)
al
lo
w

s for the use of other vehicle functions
such as additional applications ››› .The gradient and the angle of vision can be
set
b
y

moving the navigator to the required
position ››› Fig. 156 ››› .
The P or
t

able Navigation System Instruction
Manual can be observed directly on the
equipment.
Functions 1)
● Multifunction display (MFI) shown with ad-
ditional in
struments ››› page 86.
● Operation of a factory-fitted radio and a
›››
Booklet Radio system connected multime-
dia player.
● Image display.
● Navigation.
● Hands-free system for mobile telephones
via Bluet
ooth.
● Door open.
● Optical parking system (OPS).
● Recommended gear and driving advice.
Obser
ve the Instruction Manual in the equip-
ment
● Connect the Portable Navigation System.
● Press the button more on the scr
een.
● Press the Manual button. 1)
subject to the vehicle
164

Care and maintenance

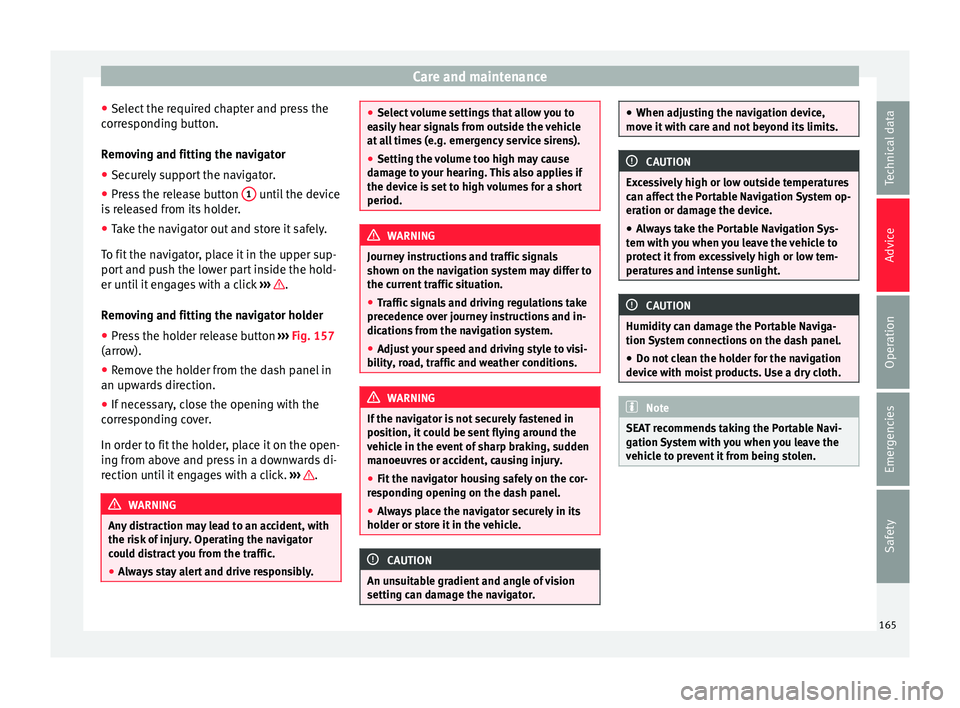

● Sel ect
the r
equired chapter and press the
corresponding button.
Removing and fitting the navigator
● Securely support the navigator.
● Press the release button 1 until the device
i s
r

eleased from its holder.
● Take the navigator out and store it safely.
To fit the n
avigator, place it in the upper sup-
port and push the lower part inside the hold-
er until it engages with a click ››› .
R emo
v

ing and fitting the navigator holder
● Press the holder release button ›››
Fig. 157
(arrow).
● Remove the holder from the dash panel in
an upwar
ds direction.
● If necessary, close the opening with the
corre
sponding cover.
In order to fit the holder, place it on the open-
ing from above and press in a downwards di-
rection until it engages with a click. ››› .
WARNING
Any distraction may lead to an accident, with
the risk of

injury. Operating the navigator
could distract you from the traffic.
● Always stay alert and drive responsibly. ●
Select

volume settings that allow you to
easily hear signals from outside the vehicle
at all times (e.g. emergency service sirens).
● Setting the volume too high may cause
damag
e to your hearing. This also applies if
the device is set to high volumes for a short
period. WARNING
Journey instructions and traffic signals
sho wn on the n av

igation system may differ to
the current traffic situation.
● Traffic signals and driving regulations take
precedenc
e over journey instructions and in-
dications from the navigation system.
● Adjust your speed and driving style to visi-
bility
, road, traffic and weather conditions. WARNING
If the navigator is not securely fastened in
pos ition, it

could be sent flying around the
vehicle in the event of sharp braking, sudden
manoeuvres or accident, causing injury.
● Fit the navigator housing safely on the cor-
res
ponding opening on the dash panel.
● Always place the navigator securely in its
holder or s
tore it in the vehicle. CAUTION
An unsuitable gradient and angle of vision
setting c an d

amage the navigator. ●
When adju s

ting the navigation device,
move it with care and not beyond its limits. CAUTION
Excessively high or low outside temperatures
c an aff ect

the Portable Navigation System op-
eration or damage the device.
● Always take the Portable Navigation Sys-
tem with
you when you leave the vehicle to
protect it from excessively high or low tem-
peratures and intense sunlight. CAUTION
Humidity can damage the Portable Naviga-
tion S y

stem connections on the dash panel.
● Do not clean the holder for the navigation
device w
ith moist products. Use a dry cloth. Note
SEAT recommends taking the Portable Navi-
gation S

ystem with you when you leave the
vehicle to prevent it from being stolen. 165
Technical data
Advice
Operation
Emergencies
Safety

AdviceType of
stainCleaning the vehicle
Water-based
stains, e.g.
coffee or fruit
juice.– Use a sponge and wipe with a solu-
tion of water and wool wash.
– Dry with a dry, absorbent cloth.
Persistent
stains, e.g.
chocolate or
make-up.– Apply a washing paste
a)
directly to
the stain and allow it to work.
– Apply clean water using a sponge or
damp cloth to remove the cleaning
product deposits.
– Dry with a dry absorbent cloth.
Grease-based
stains, e.g. oil
or lipstick.– Apply neutral soap or cleaning
paste a)
and allow it to work.
– Remove dissolved grease or colour
particles with an absorbent cloth.
– Then apply clean water. Take care not
to soak the upholstery.
a) Bile soap can be used as a cleaning paste. CAUTION
● Brushe s

should only be used to clean the
mats and floor mat! Other surfaces may be
damaged if a brush is used.
● Do not use steam cleaning equipment, as
the dirt bec
omes more encrusted in the mate-
rial when steam is applied.
● Never use brushes for cleaning damp mate-
rial
as they could damage the surface. Cleaning storage compartments,
drink
s
ho

lders and ashtrays Fig. 160
In the front part of the centre con-
so l
e:

Storage compartment with cup holder. Fig. 161
Ashtray removed and open with area
t o s t

ub cigarettes Cleaning storage compartments and drinks
ho
l
der

s
● Use a clean, damp, lint-free cloth to clean
parts.
● If

this does not provide satisfactory results,
we rec
ommend using a special solvent-free
plastic cleaning product.
Cleaning the ashtray
● Extract the ashtray and empty it.
● Clean the ashtray with a dishcloth.
Use a toothpic
k or similar to remove ash from
the area where cigarettes are stubbed out
››› Fig. 161.
Care and cleaning of plastic parts,
wooden trim and the ins
trument pan-
el ●
Use a clean, damp, lint-free cloth to clean
p ar
ts.
● C

lean plastic parts (inside and outside the
vehicle) and
the dash panel with a special
solvent-free product for the care and clean-
ing of plastic, approved by SEAT ››› .
● Wash wooden trims
w
ith a mi
ld soap and
water solution.
● Clean the Portable Navigation System hous-
ing (S upp

lied by SEAT) with a dry cloth only.
174
